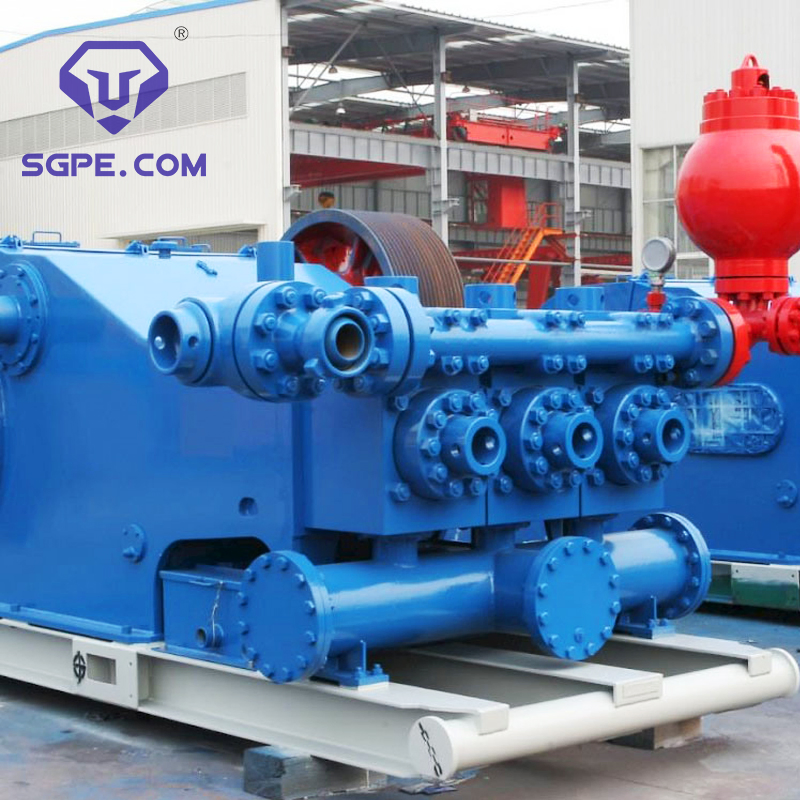

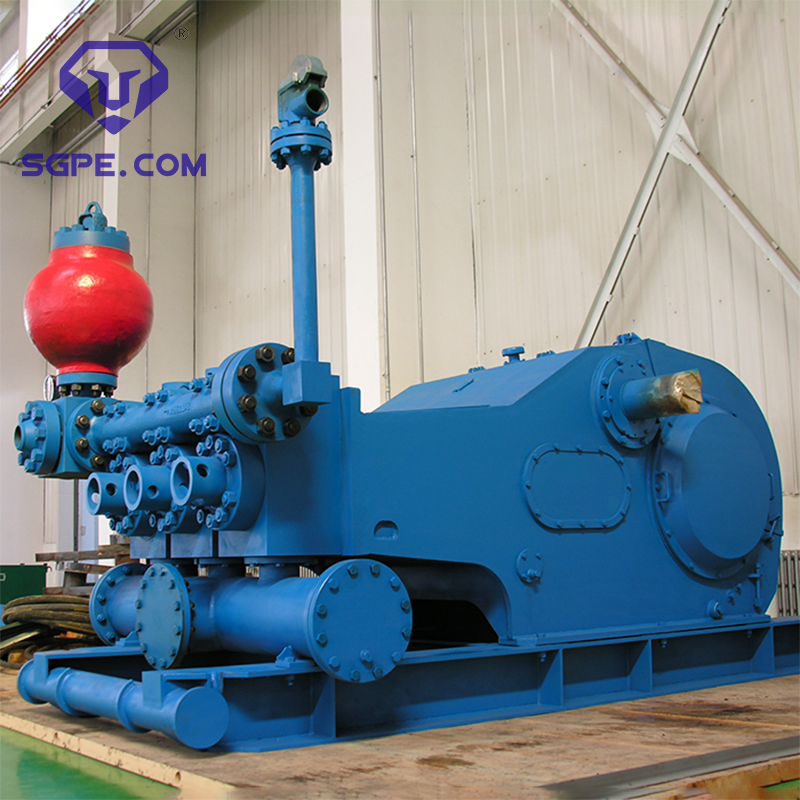

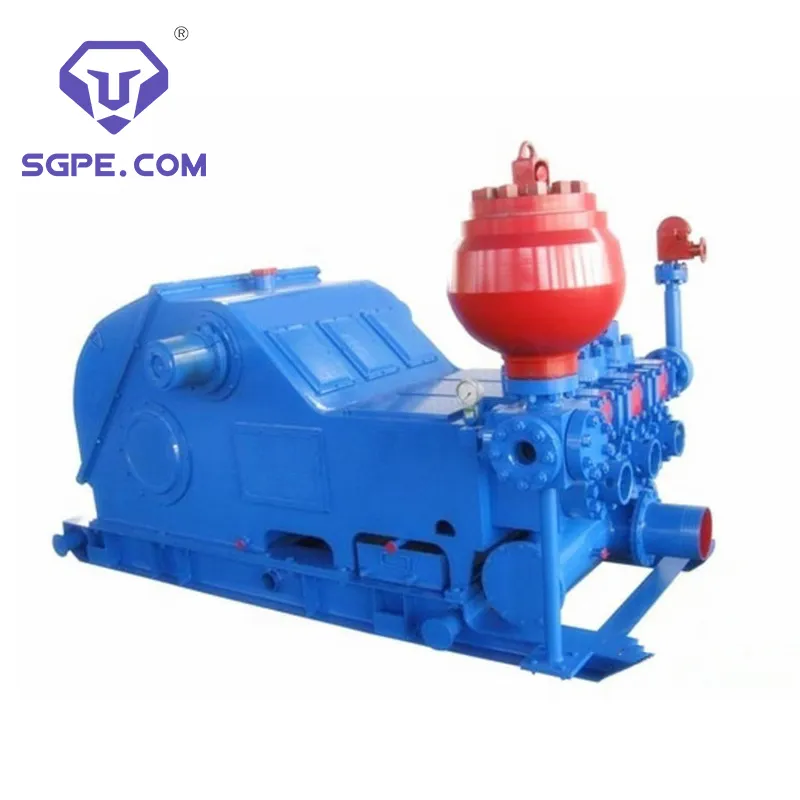

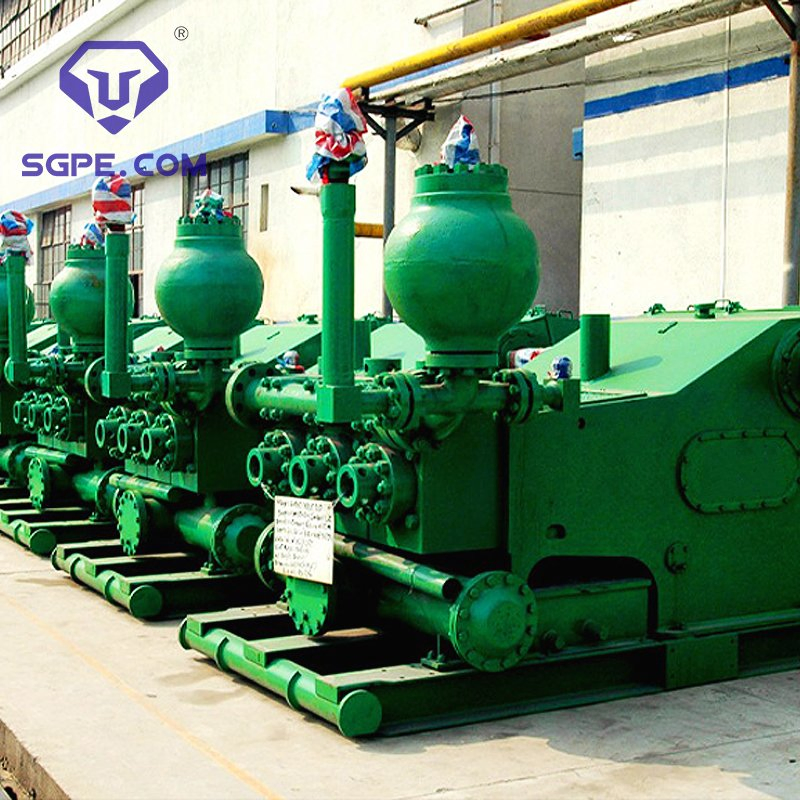

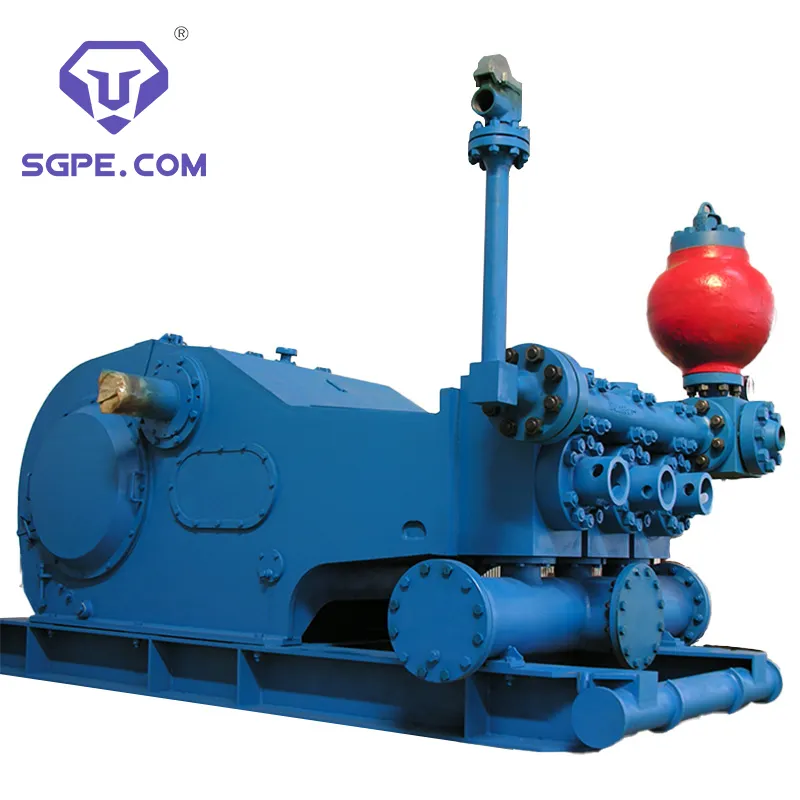

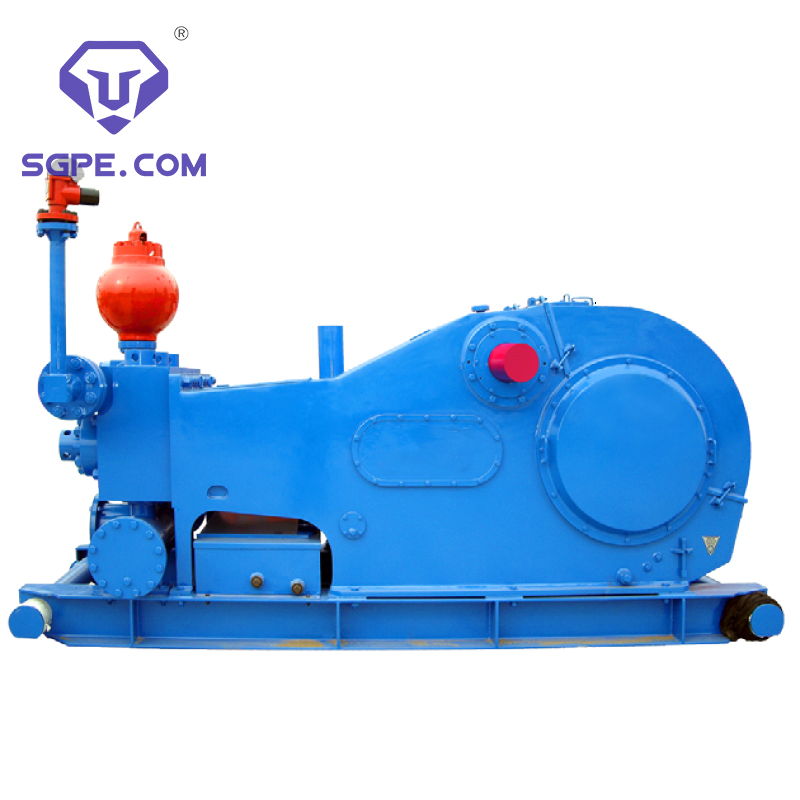

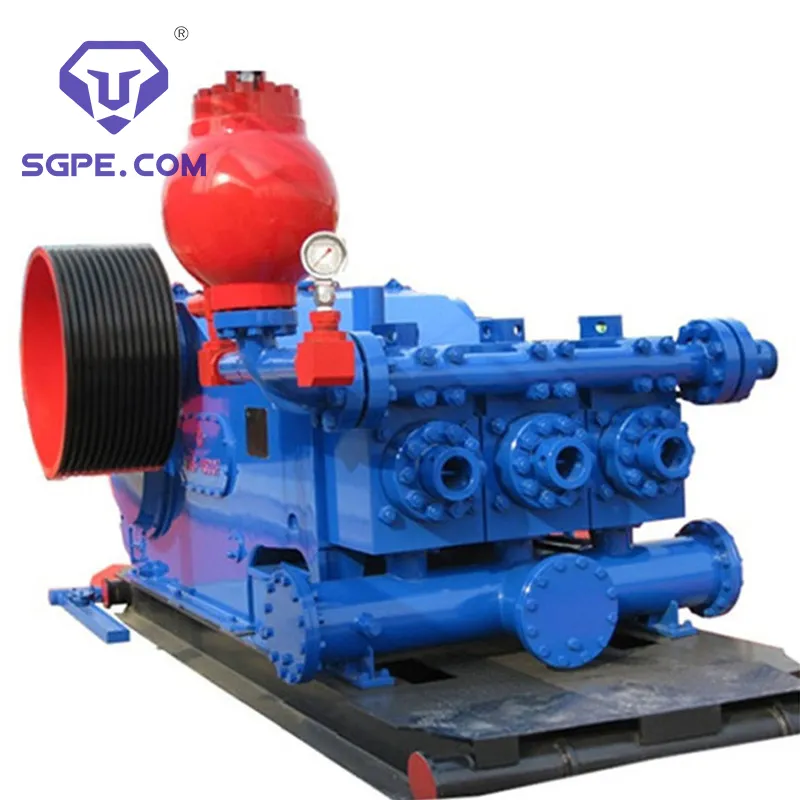

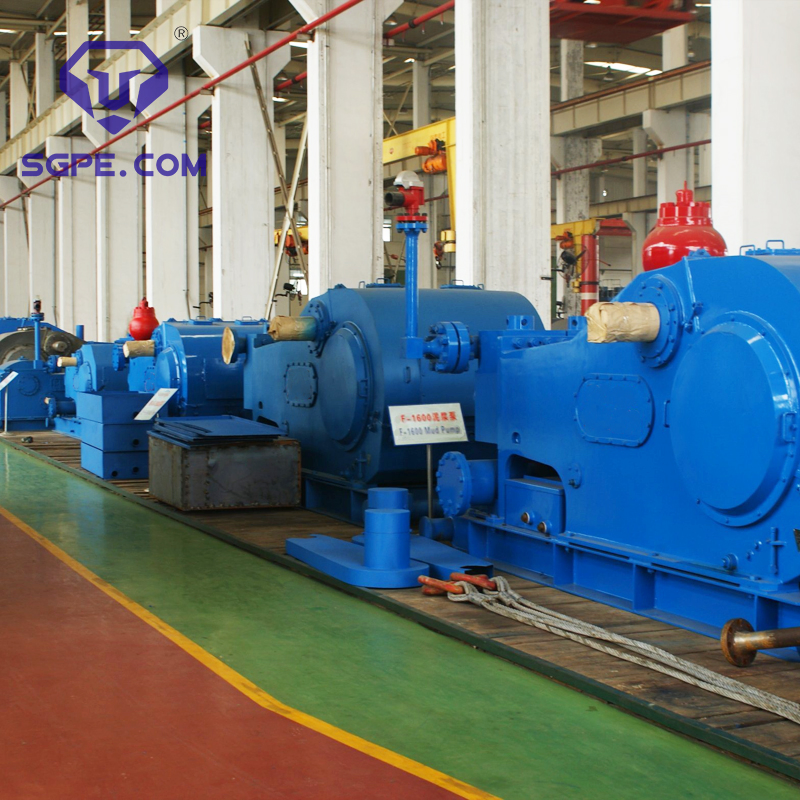

This F Series Drilling Mud Pump and Spare Parts collection features a high-pressure reciprocating piston design primarily used in drilling rigs. Certified under API standards, these pumps are engineered for reliability and durability in slurry, chemical, oil, and gas applications.
The F Series Mud Pumps are designed for high-efficiency drilling operations, available in both metric and British systems. The series includes models F-500 through F-2200, known for their compact structure and ease of maintenance.
| Feature | Description |
|---|---|
| Advanced Gear Transmission | Herringbone gear transmission with larger torque and stable performance. |
| Durable Steel Frame | Welded steel plates with stress-relieved crankshaft seats and reinforced bottom. |
| High-Strength Crankshaft | Cast alloy steel with double row spherical roller bearings for stability. |

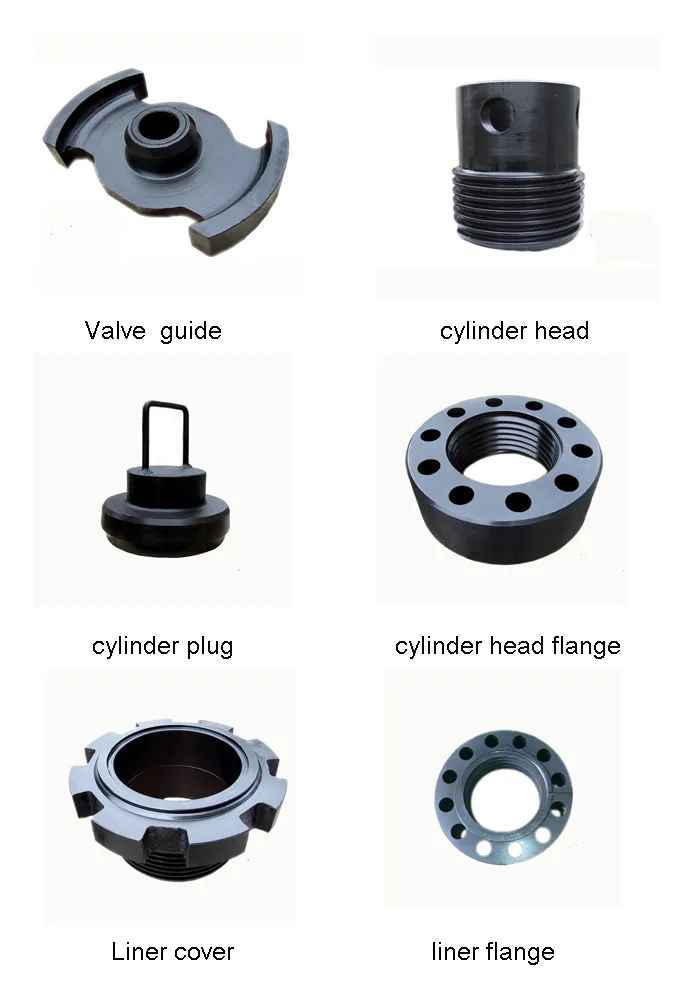

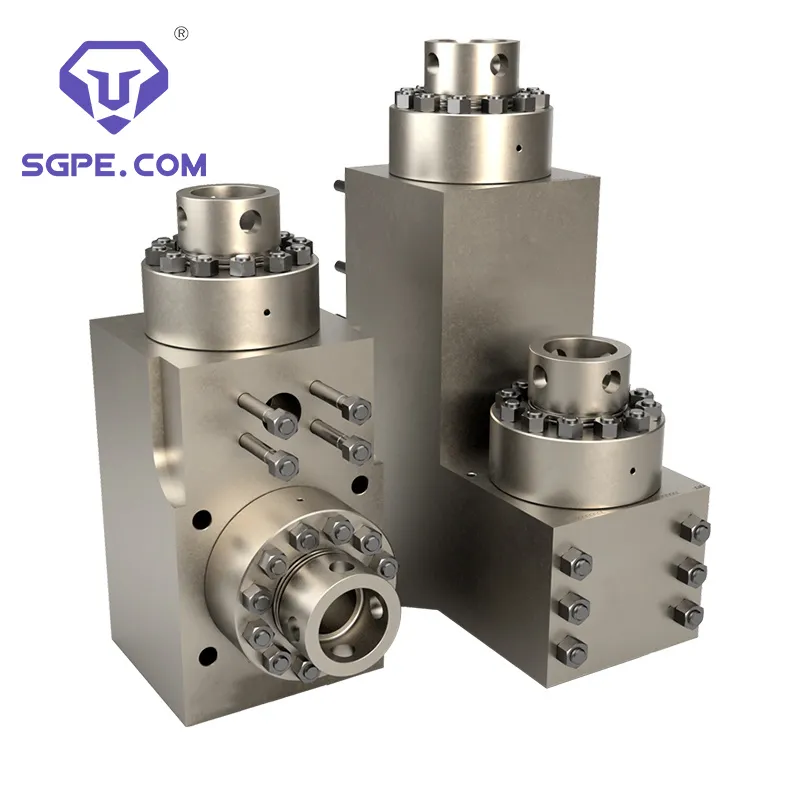

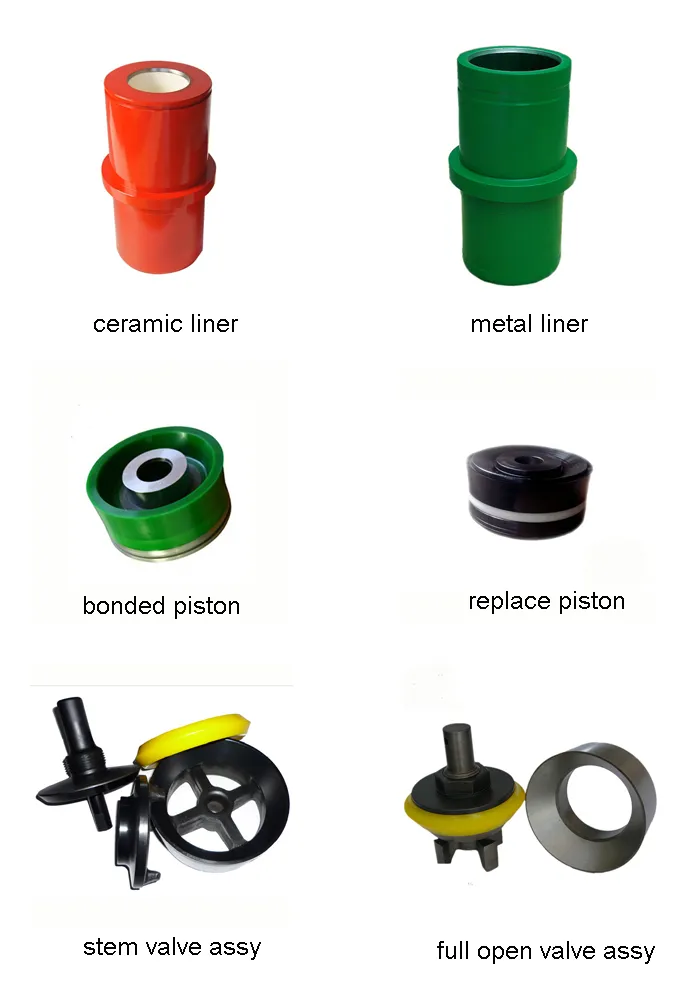

| Efficient Fluid End Design | Interchangeable cylinders with high volumetric efficiency and corrosion resistance. |
| Reliable Sealing | Double-sealing structure for superior performance. |
| Lubrication System | Combined pressure and splash lubrication for continuous cooling. |
| Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
|---|---|---|---|---|---|
| Type | Triplex Single Acting | Triplex Single Acting | Triplex Single Acting | Triplex Single Acting | Triplex Single Acting |
| Max. Liner size | 170 x 191mm | 170 x 229mm | 170 x 254mm | 180 x 305mm | 180 x 305mm |
| Power Rating | 373kW | 596kW | 746kW | 969kW | 1193kW |
| Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
| Valve Pots | API#5 | API#6 | API#6 | API#7 | API#7 |
| Approx. Weight | 9770kg | 14500kg | 18790kg | 24572kg | 24791kg |
