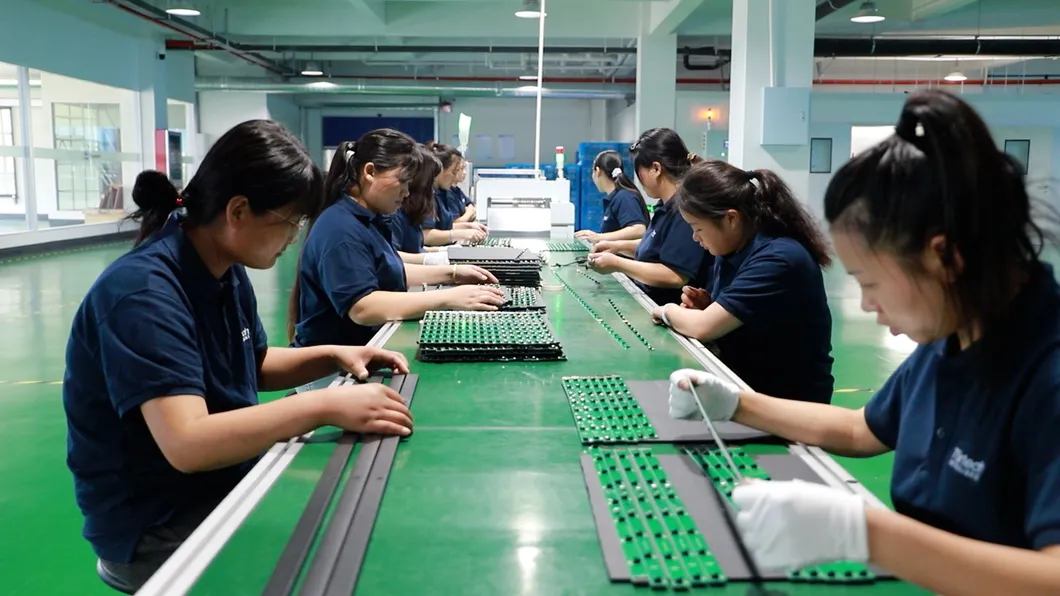

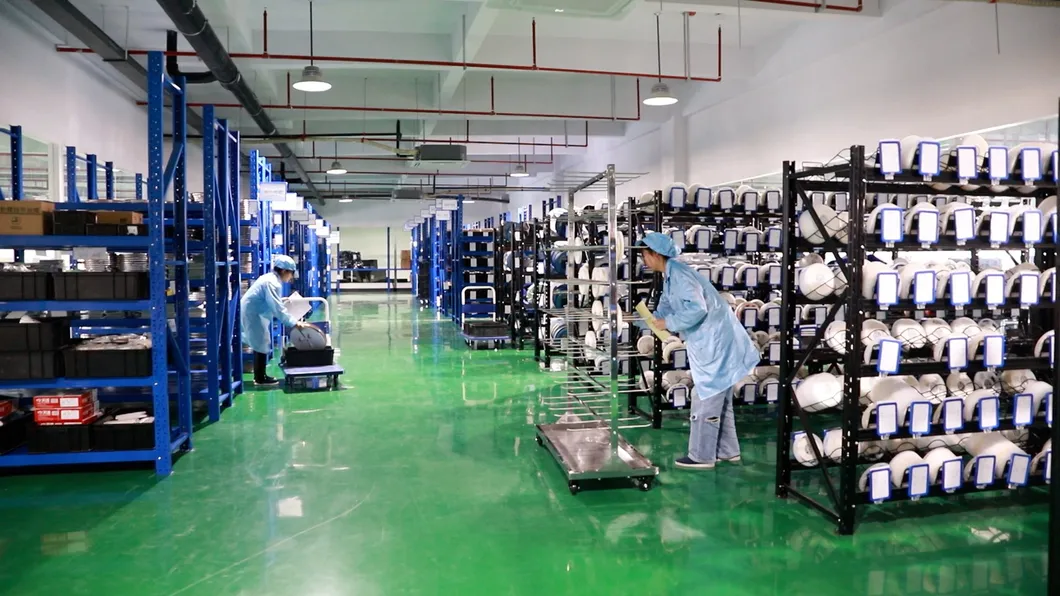

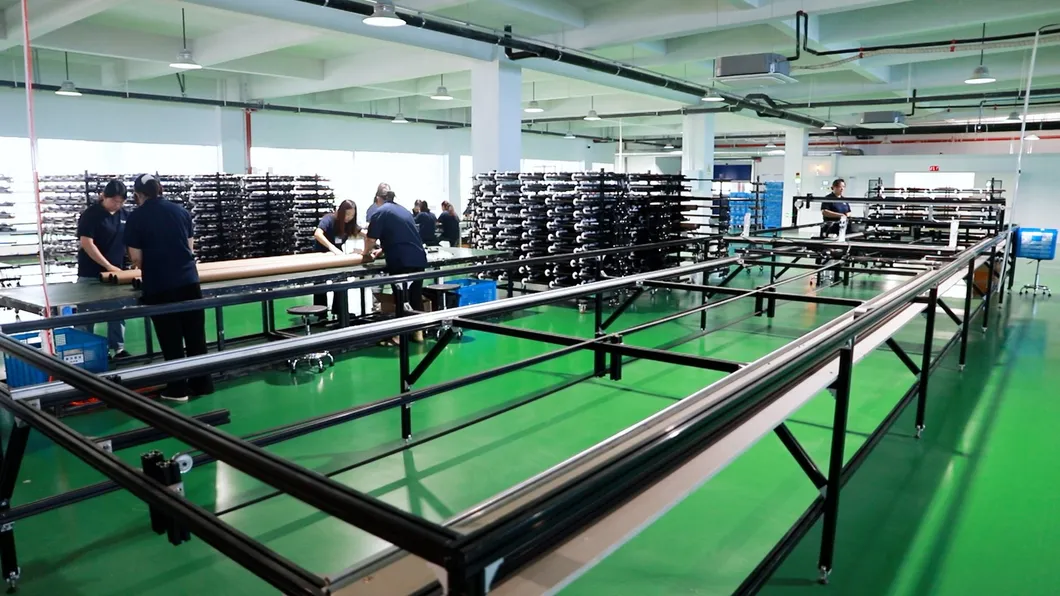

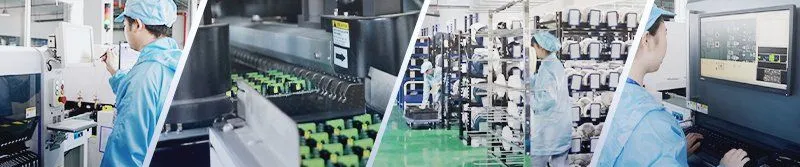

Equipped with 3 SMT lines and 2 DLP lines, producing 200,000 controllers annually. 3 Automatic winding machines for 120,000 motors per year.
Dedicated Hardware and Electric program teams providing OEM & ODM one-stop customization, program modification, and new product development.

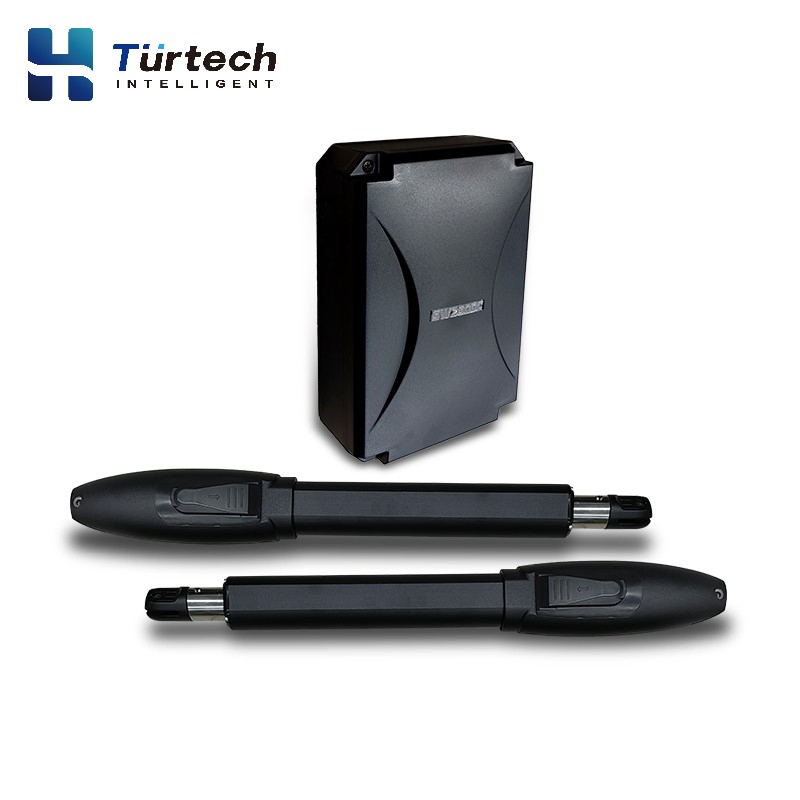

Automatic Swing Gate Motor (Max Loading: 300/400kg Optional)

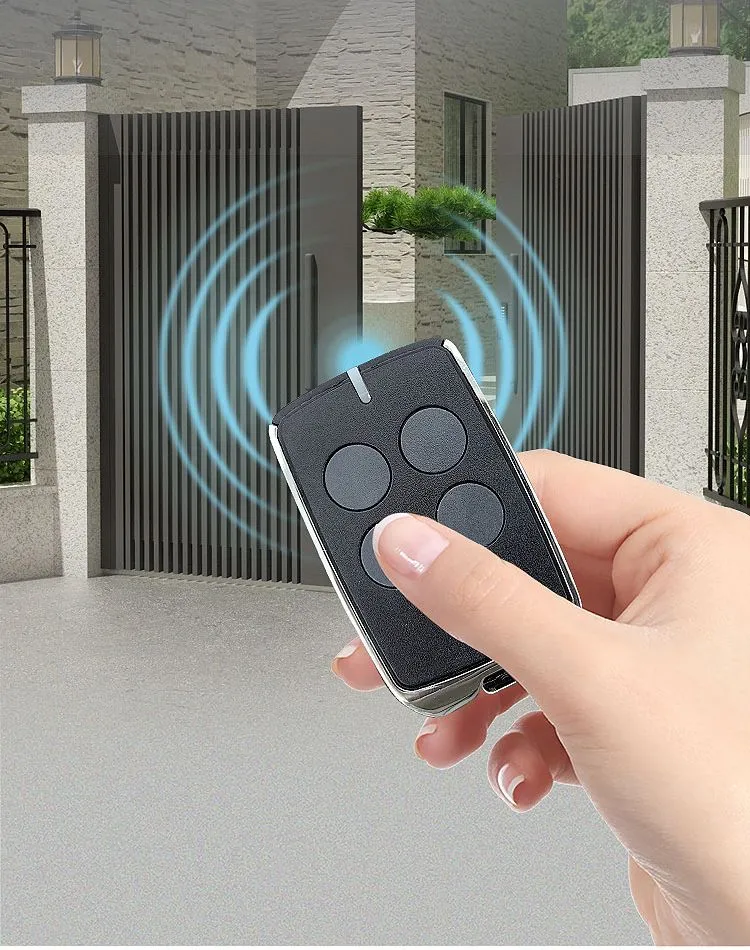

Bluetooth electronic tags allow automatic opening/closing without manual operation. Supports WiFi module for mobile phone remote control.

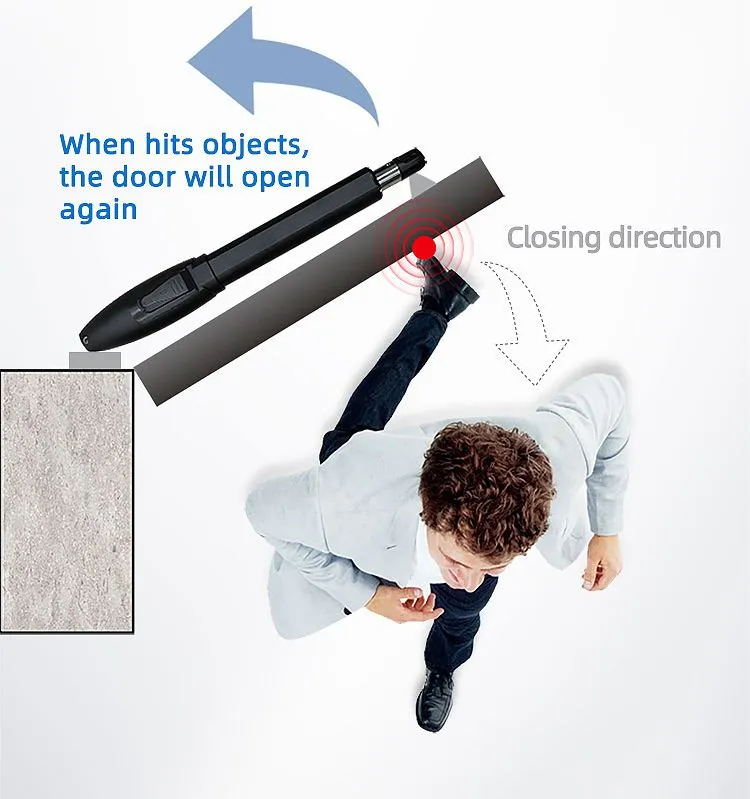

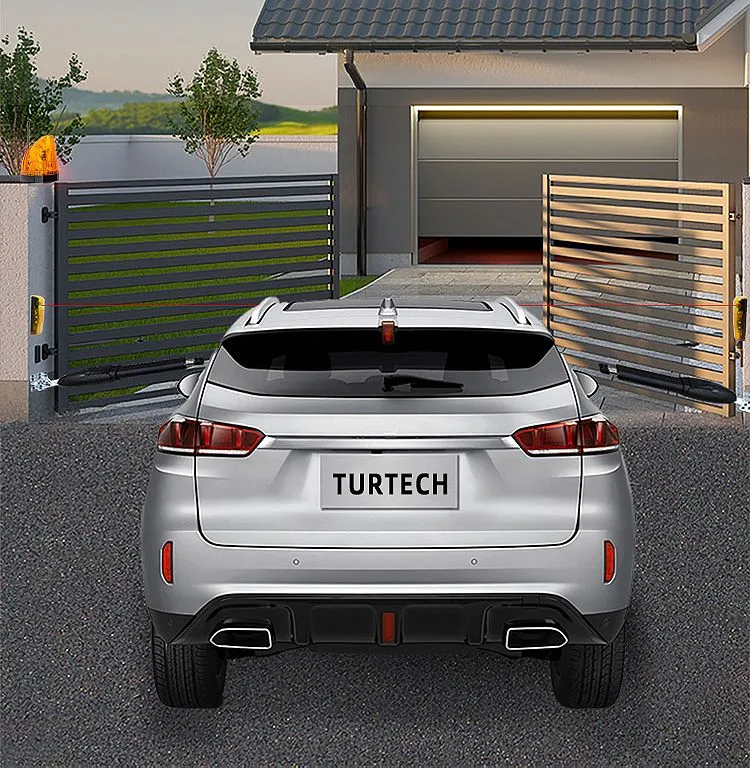

Anti-pinch technology and resistance bounce: the door reopens automatically if it hits an object. Supports alarm lamps and photo beam interfaces.

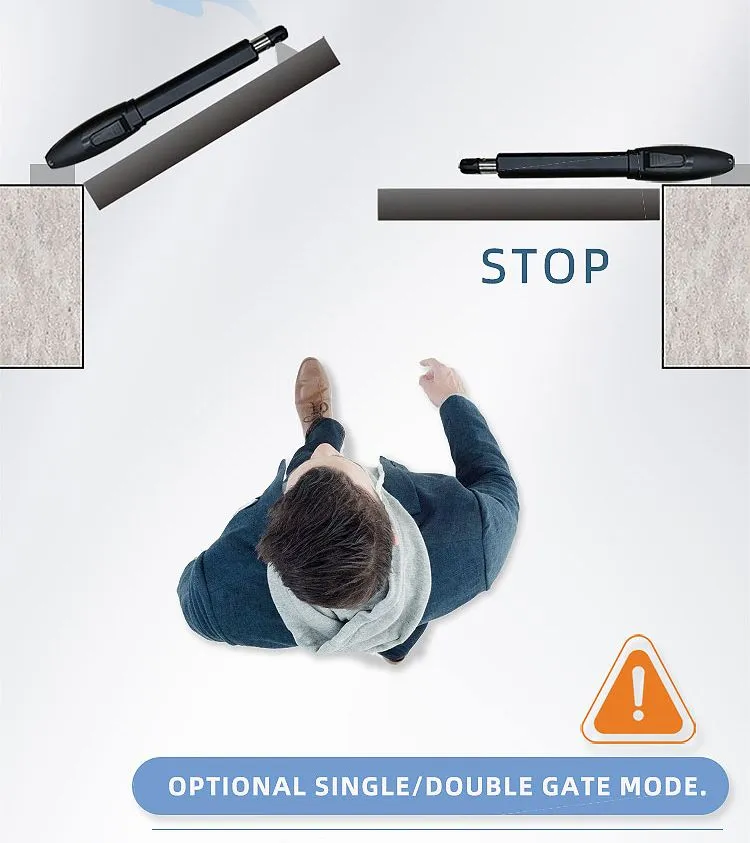

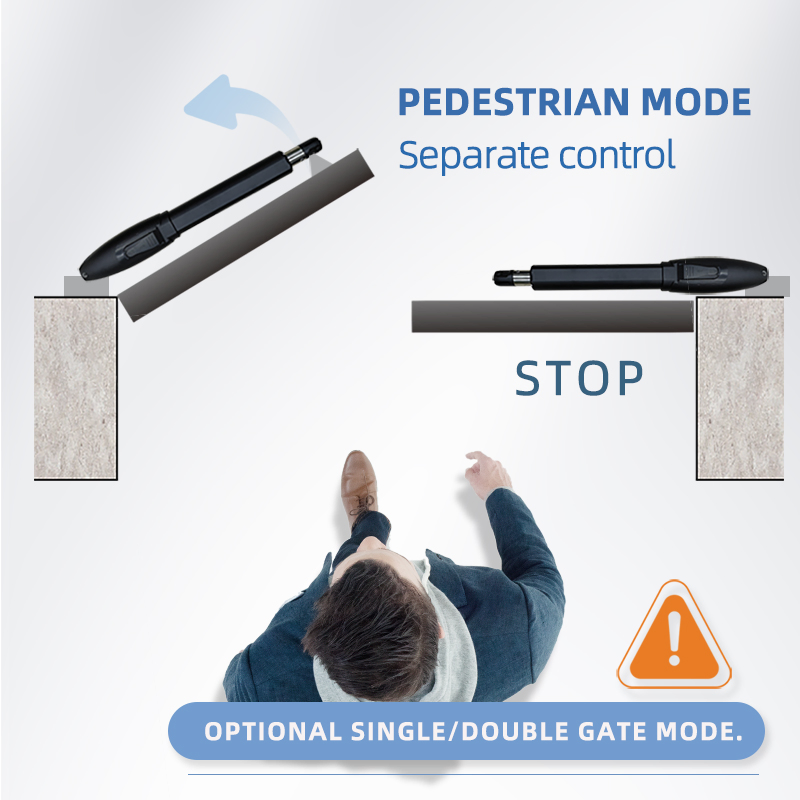

Supports external switches or special remotes to open only a single door for pedestrian access.

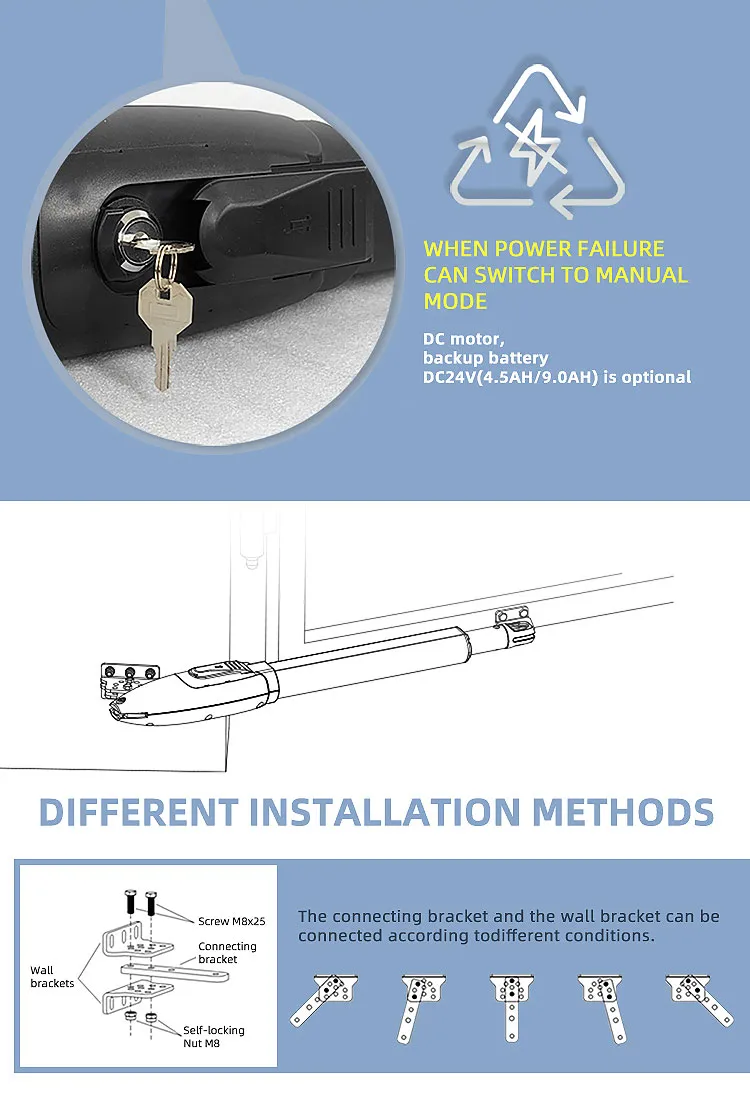

Switch to manual mode easily during power outages. Optional DC24V (4.5AH/9.0AH) backup battery support.
| SWG-B-300-DC Technical Specifications | |
|---|---|
| Power Supply | AC220V/50Hz; AC110V/60HZ |
| Maximum Loading Weight | 300KG/Leaf |
| Motor Power | DC24V/50W |
| Max. Single-Leaf Length | 3.0m |
| Gate Moving Speed | 2.5cm/sec. |
| Working Temperature | -20ºC~70ºC |
| SWG-A-300-DC Technical Specifications | ||
|---|---|---|
| Model | SWG-A-300a-DC | SWG-A-300b-DC |
| Motor power | 80W | |
| Max. single-leaf weight | 300Kg | |
| Max. piston stroke | 34cm | 54cm |
| Package weight | 17Kg | 19Kg |
Specializing in the research, development, production, and sales of automatic doors for over 15 years. Main products include automatic doors, gates, windows, customized motors, and control systems. Our products are widely exported to Europe, America, the Middle East, and Southeast Asia.
Committed to the highest quality and safety requirements, we actively participate in industry standard improvements to ensure reliable performance.
