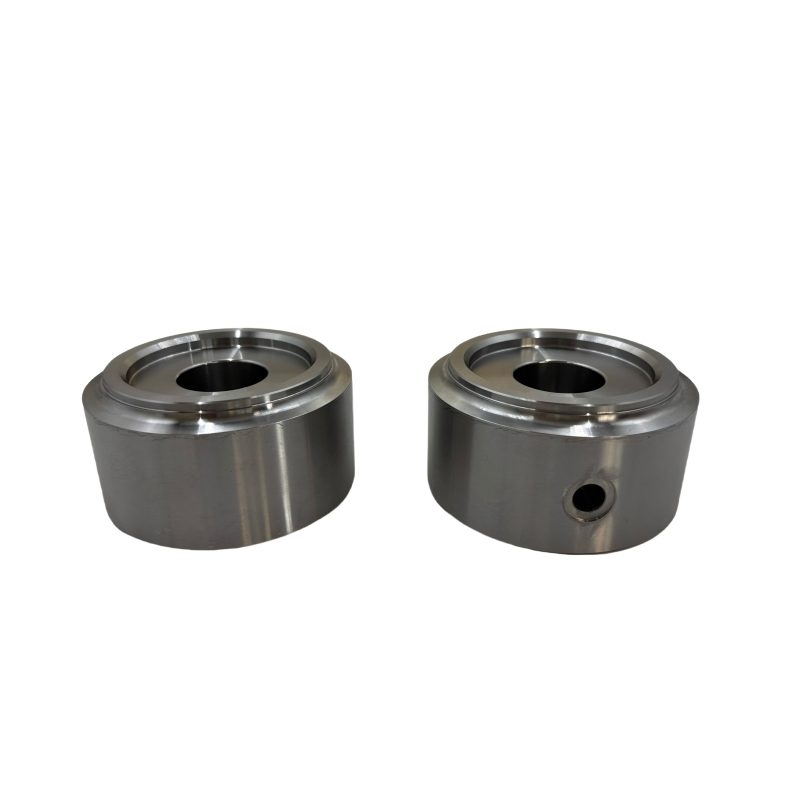

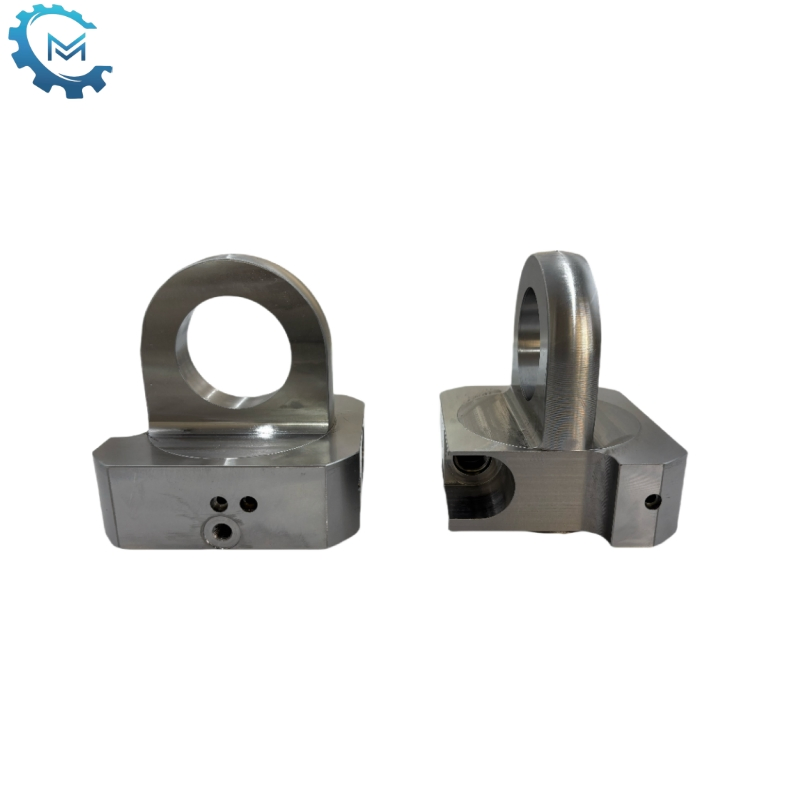

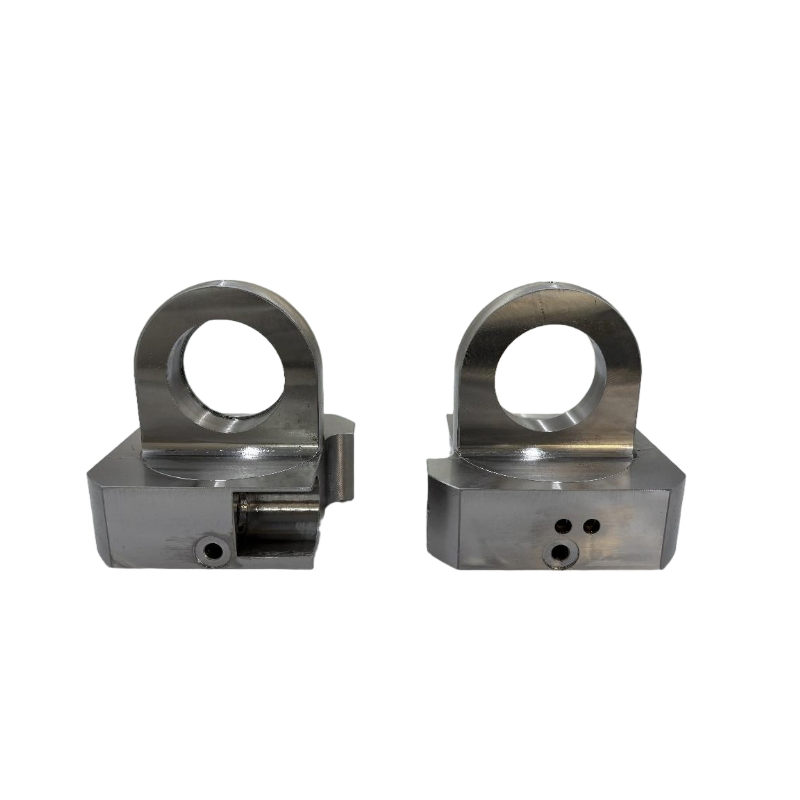

Welded Cylinder Base End Hydraulic Components for Relief Valve

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Overview

Work Temperature:Normal Temperature
Acting Way:Single Acting
Working Method:Straight Trip
Adjusted Form:Switching Type
Structure:Thin-Film Type
Material:Carbon Steel
OD/mm:up to 420mm
ID/mm:up to 350mm
Height Range:up to 350mm
Customized:Available
Business Type:OEM & ODM
Warranty:12 Months
QC System:100% Inspection Before Shipment
Capacity:50000PCS/Year
⚙️

Product Description

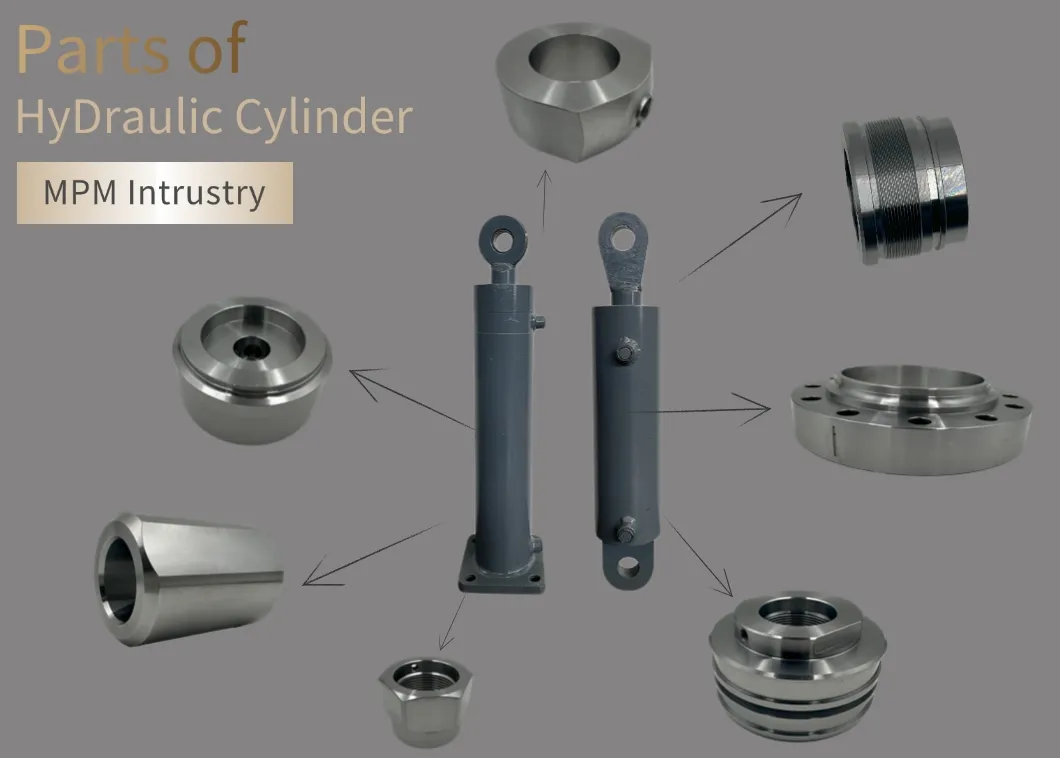

Hydraulic Components Overview
No Item Description
1Business TypeOEM & ODM Manufacturer (Custom CNC Machining Services)
2Products RangeCylinder Head, Cylinder Base, Cylinder Piston, Cylinder Flange, Cylinder Ring, Cylinder Bushing
3MaterialsAlloy Steel, Copper Alloy (Brass, Silicon Bronze), Stainless Steel, Aluminum, Casting and Forging
4MachiningCleaning, Turning, Milling, Drilling, Grinding
5Surface TreatmentPolishing, Zn/Ni/Cr-Plating, Anodizing, Powder Coating, Anti-rust Oil, etc.
6Producing EquipmentCNC machine tools, CNC lathes, Automatic Lathes, CNC multi-axis machining center, etc.
7Drawing FormatPro/E, Auto CAD, Solid Works, UG, CAD/CAM, PDF
8Testing EquipmentHexagon CMM, Height Gauge, Projector, Micrometer, etc.
📊

Product Parameters

Specifications ID Range (mm) OD Range (mm) Height Range (mm)
Cylinder Head10-3508-42010-300
Cylinder Base10-3508-4205-300
Cylinder Ring10-3508-4208-350
Cylinder Bushing10-3508-4208-350
Cylinder Nut10-3508-4208-350
Cylinder Flange10-3508-4208-300
Deviation: Inner hole H9, outer circle h9, special tolerances can be customized (ISO 2768-mK).
📸

Detailed Photos & Display

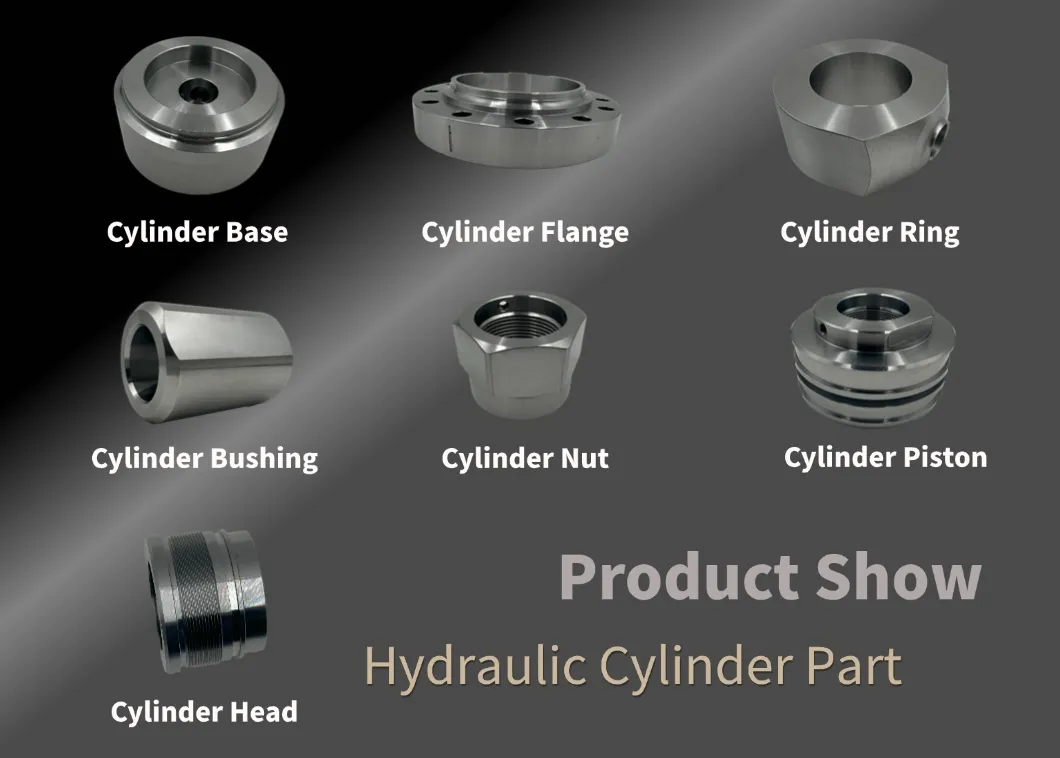

Detailed Photo 1

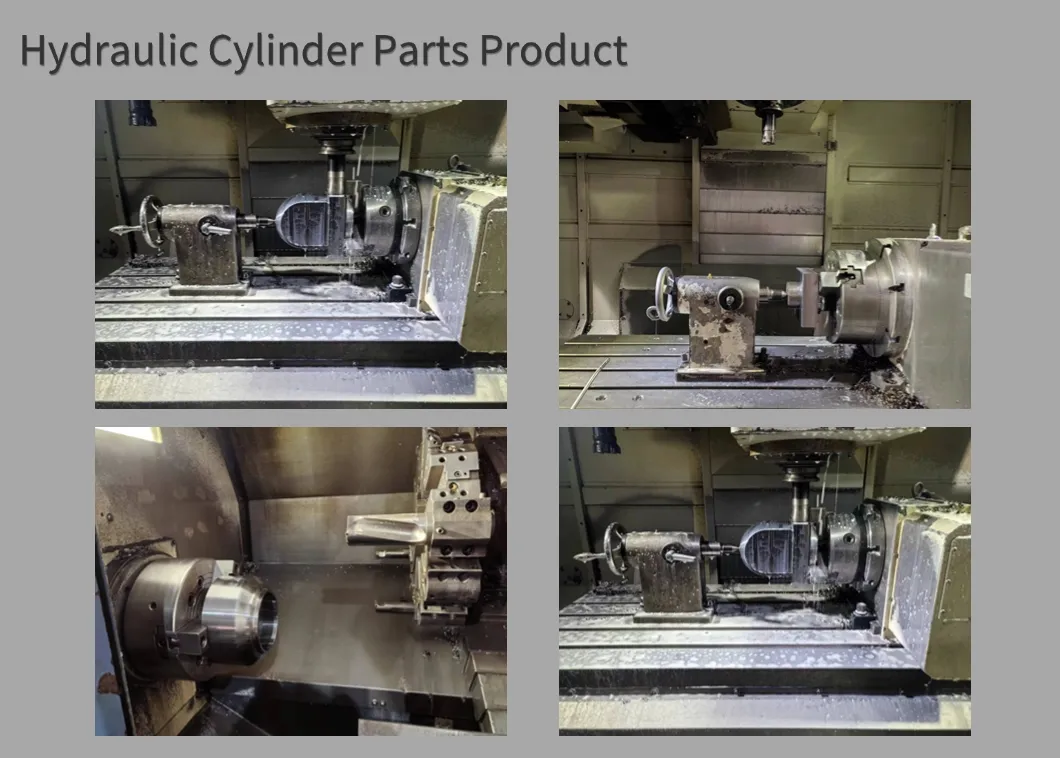

Production Display
📦

Packaging & Delivery

Package Size:120.00cm * 80.00cm * 60.00cm
Gross Weight:600.000kg
Package Type:Standard Wooden Package
Shipping Package 1
Shipping Package 2
📜

Certifications & Quality

Certifications

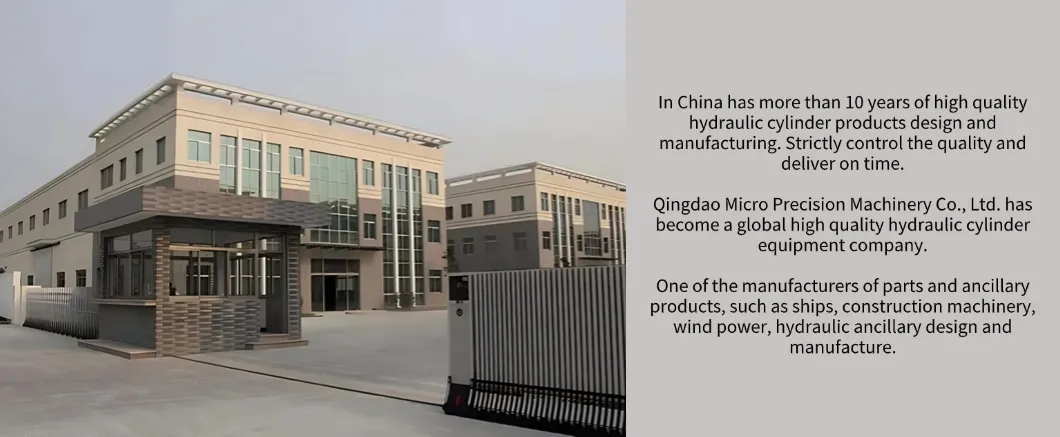

Production Capacity

Frequently Asked Questions

1. Why choose our hydraulic components?
Mechanized production ensures dimensional accuracy, professional electroplating provides a long service life, and every product undergoes 100% quality inspection before shipment.
2. Are you a manufacturer?
We are an integration of industry and trade with 18 years of manufacturing experience, supported by a professional design and production team.
3. Do your products come with a warranty?
Yes, we provide a 1-year warranty. During this period, if any quality issues arise, we offer free repair services.
4. Can you assist with technical design or selection?
Yes, our experienced engineering team can help design or recommend the exact hydraulic cylinder or power pack suitable for your specific machinery needs.
5. What is the standard delivery time?
Samples are typically delivered within 15 days. Bulk production takes approximately 25-30 days, depending on order complexity and quantity.
6. What payment terms do you accept?
We accept T/T and L/C. Other payment methods may be available upon request.
