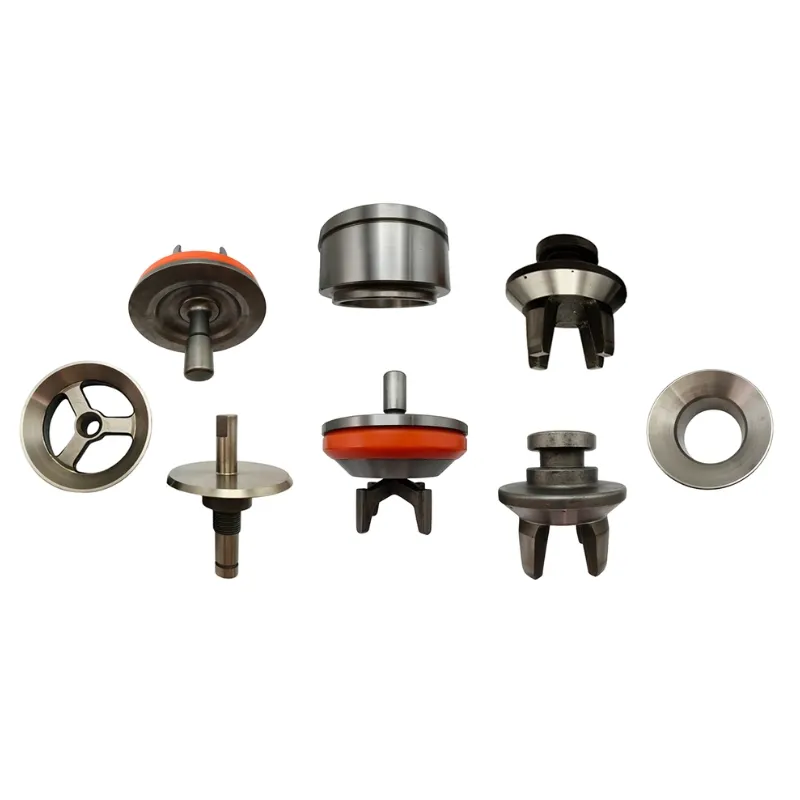

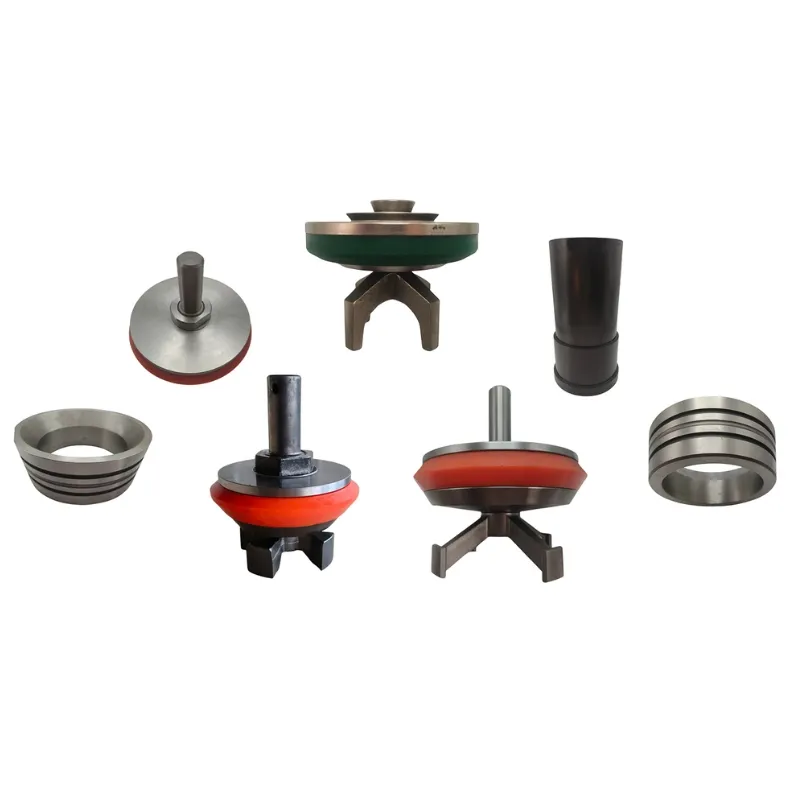

Valves and Seats are a critical component of the mud pump hydraulic end, engineered to withstand high-frequency operation and severe impact loads. Forged as a single piece from premium 20CrMnTi alloy steel, it undergoes advanced heat treatment with a carburization depth exceeding 1.8 mm, achieving a working surface hardness of HRC60 or higher for exceptional strength and toughness. Its PU, NBR, or HNBR sealing elements deliver outstanding wear resistance, ensuring over 300 hours of effective service and long-term reliable performance in harsh drilling conditions.

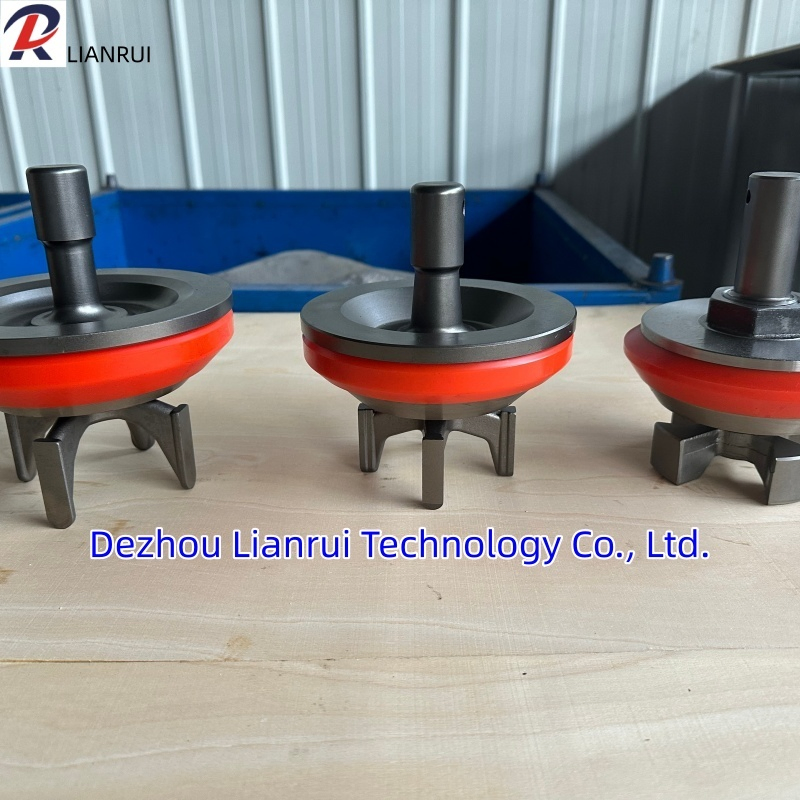

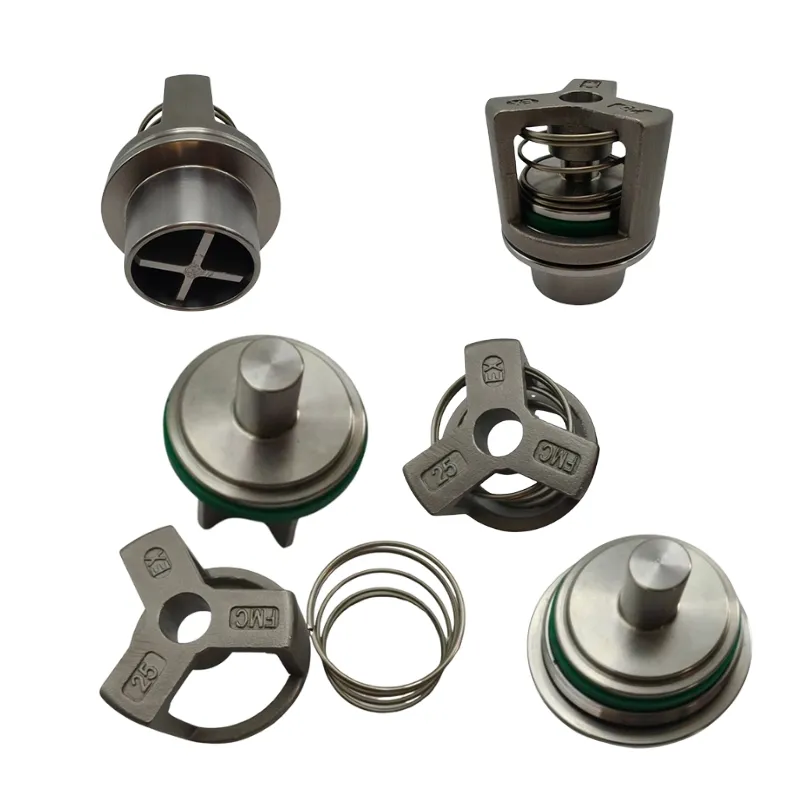

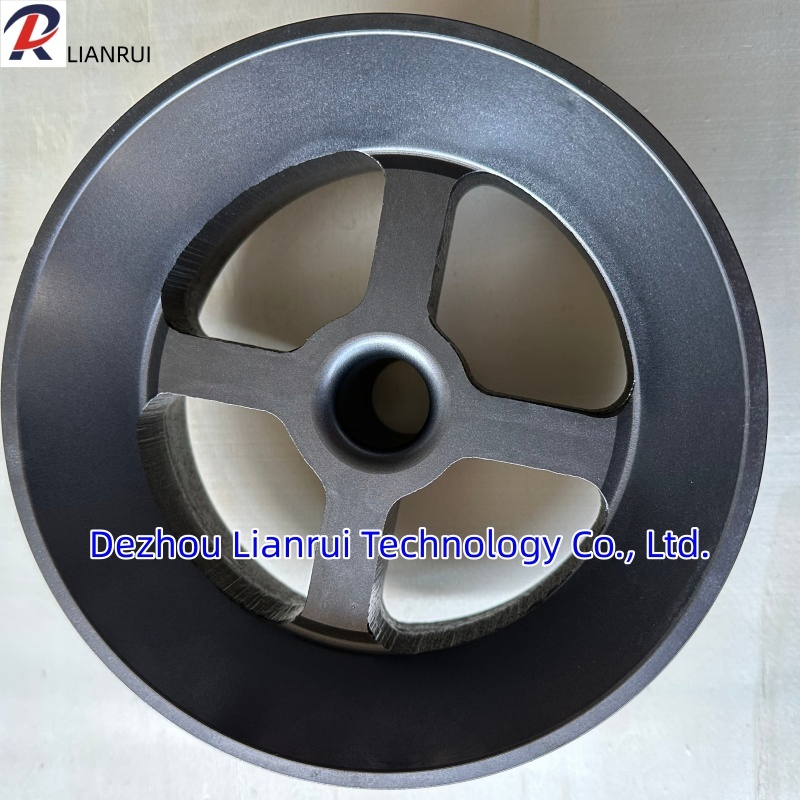

The valve comes with a full open seat featuring four guide wings. These are either inertia welded to the valve body or uniformly forged with the valve body. The urethane insert can be easily snapped on for quick maintenance.

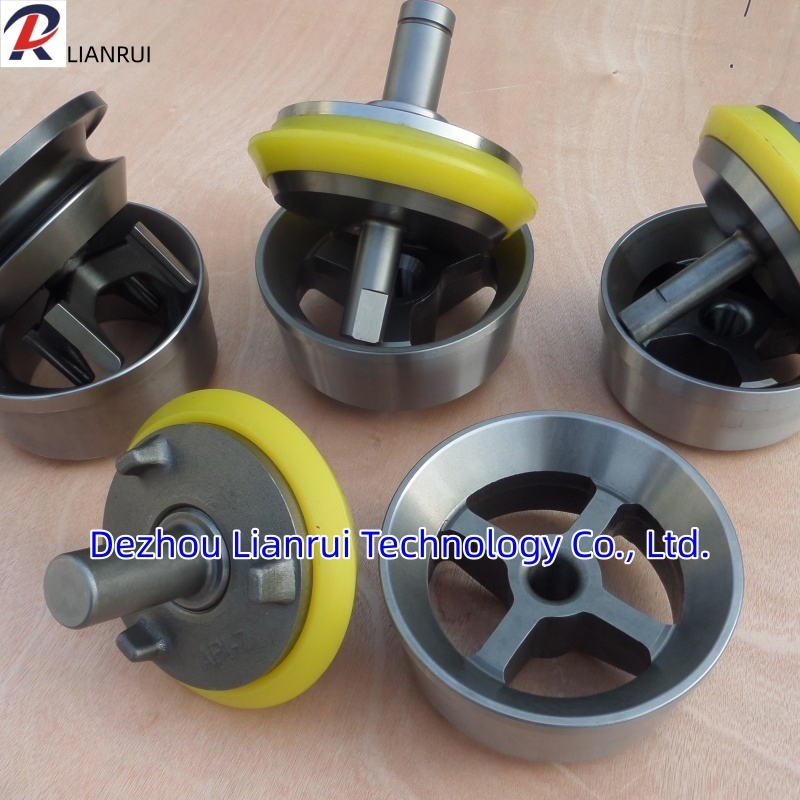

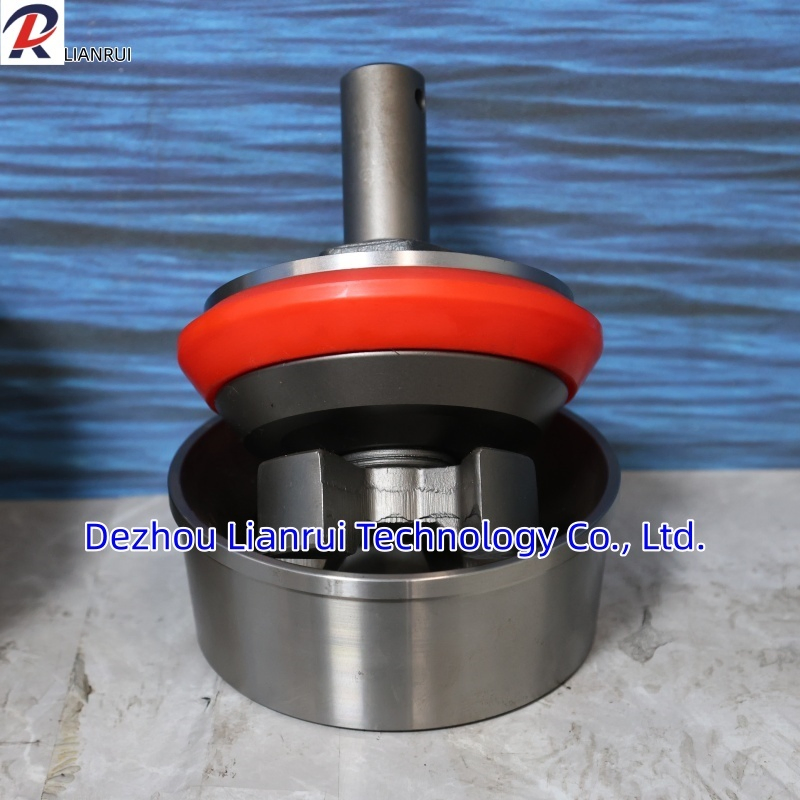

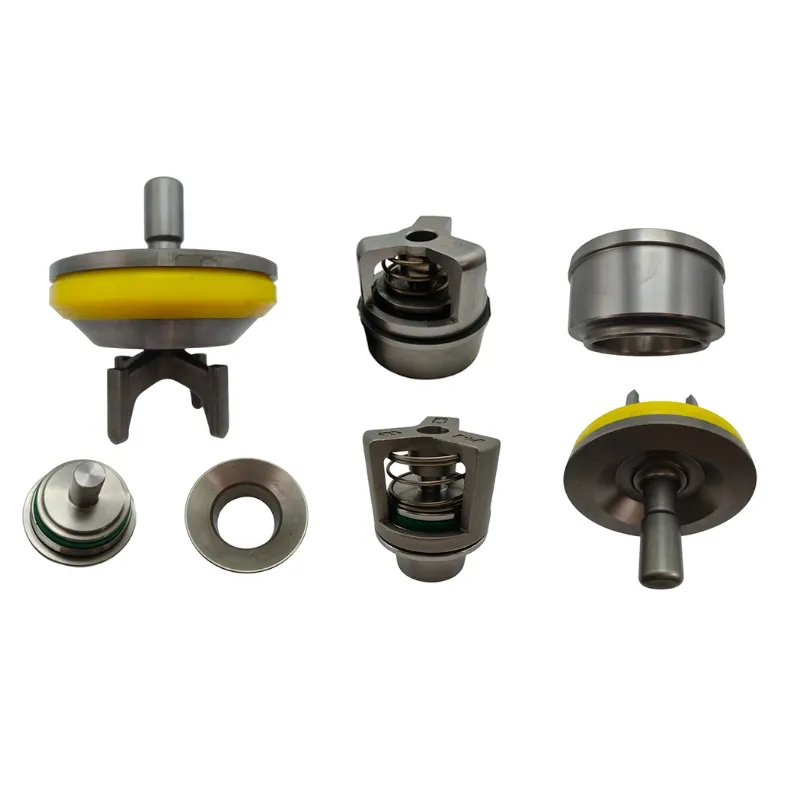

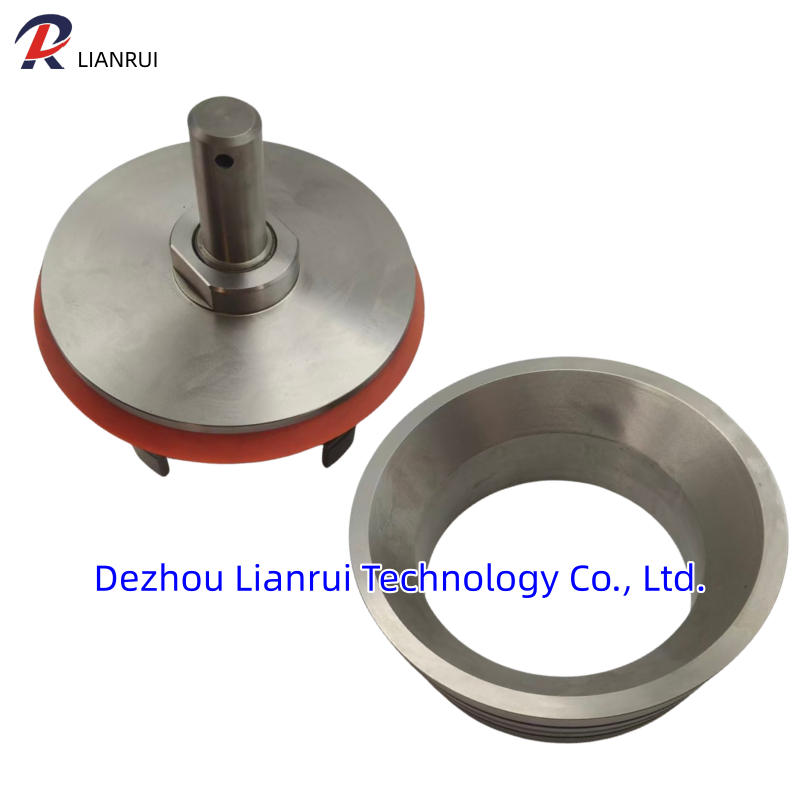

The 3 web / 4 web seat comes with a stem-guided valve. The urethane insert is tightened by a steel plate and nut. It can be easily replaced with minimum downtime, offering long-lasting service life under harsh service conditions.
| Brand / Series | Suitable Models |
|---|---|
| American Block | K-800, K-1000, K-1300, K-1600, K-2200 |
| Bomco / RG | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL |
| Emsco | F-500, F-800, F-1000, F-1300, F-1600, FD-1000, FC-2200 |
| Gardner Denver | PAH, PZ-7, PZ-8/9, PZ-10/11, PXL, PX-11, PZL, FY-FXD |
| National | 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| Oilwell | A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| Ideco | T-500, T-800, T-1000, T-1300, T-1600 |

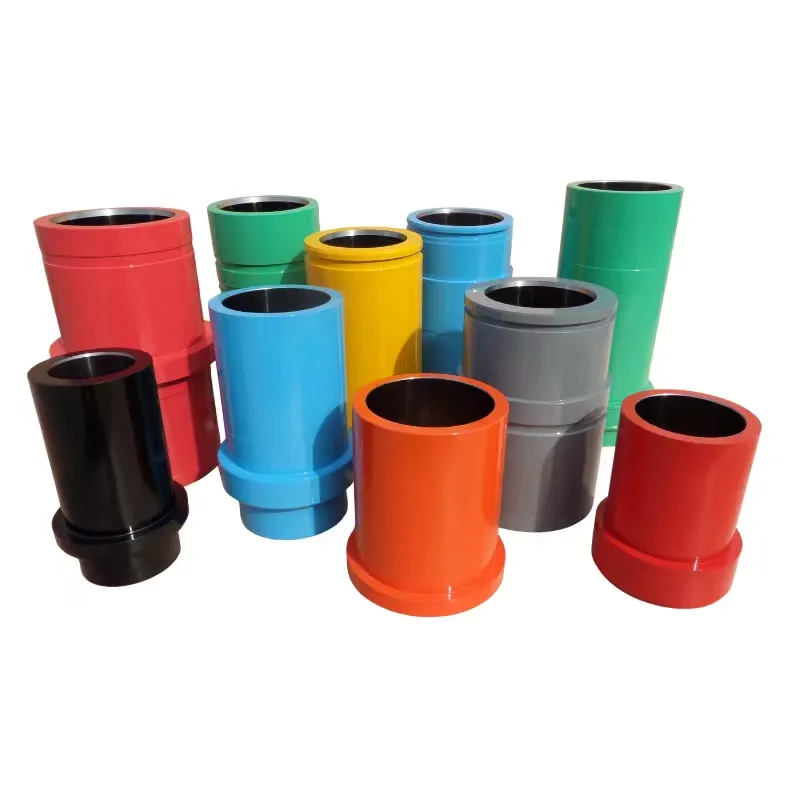

Chrome Sleeve Liners

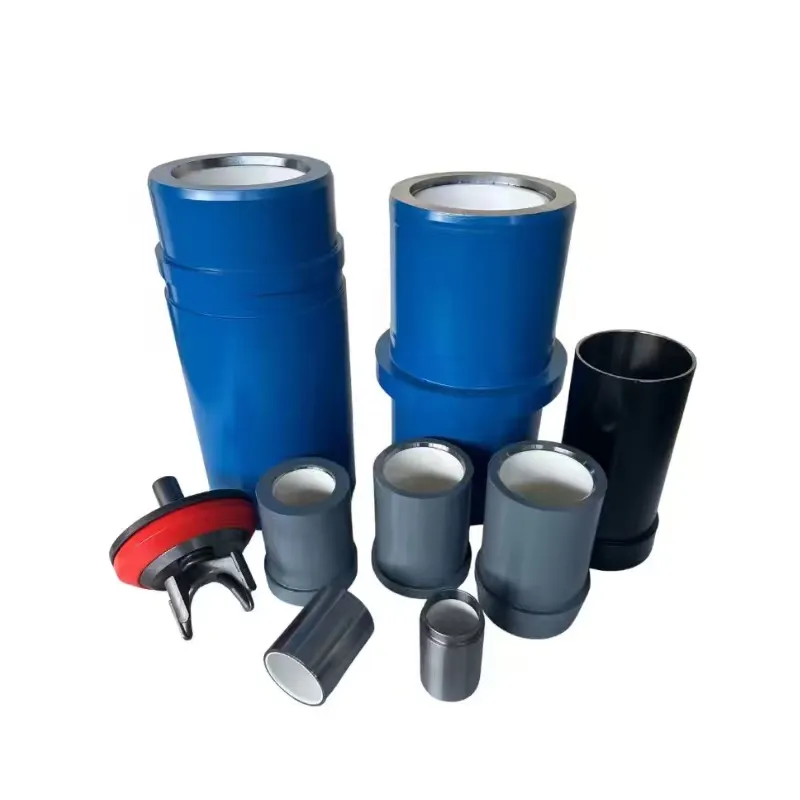

Ceramic-Zirconia Liners

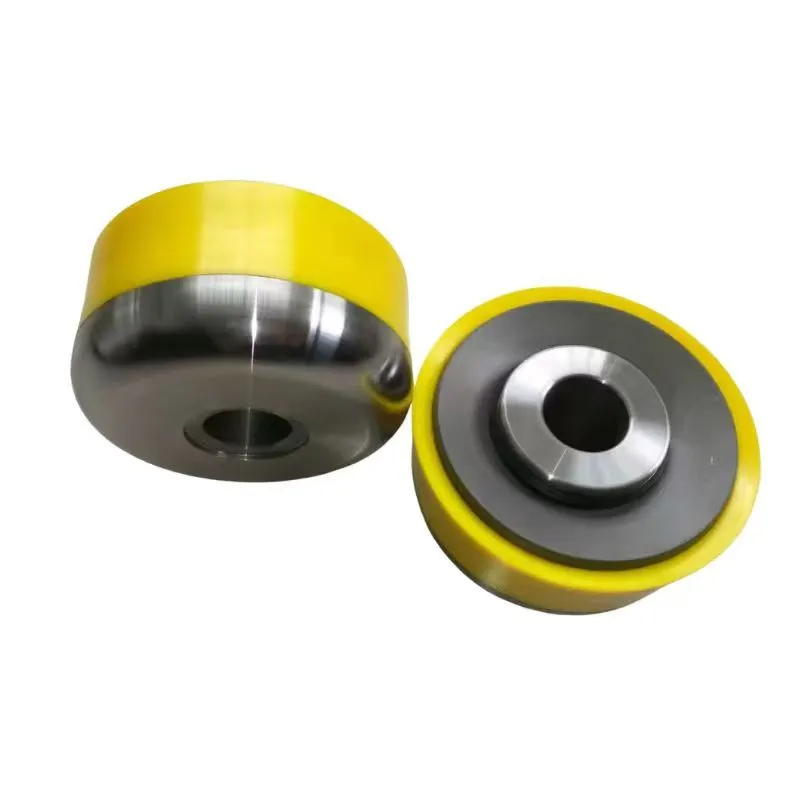

Pistons

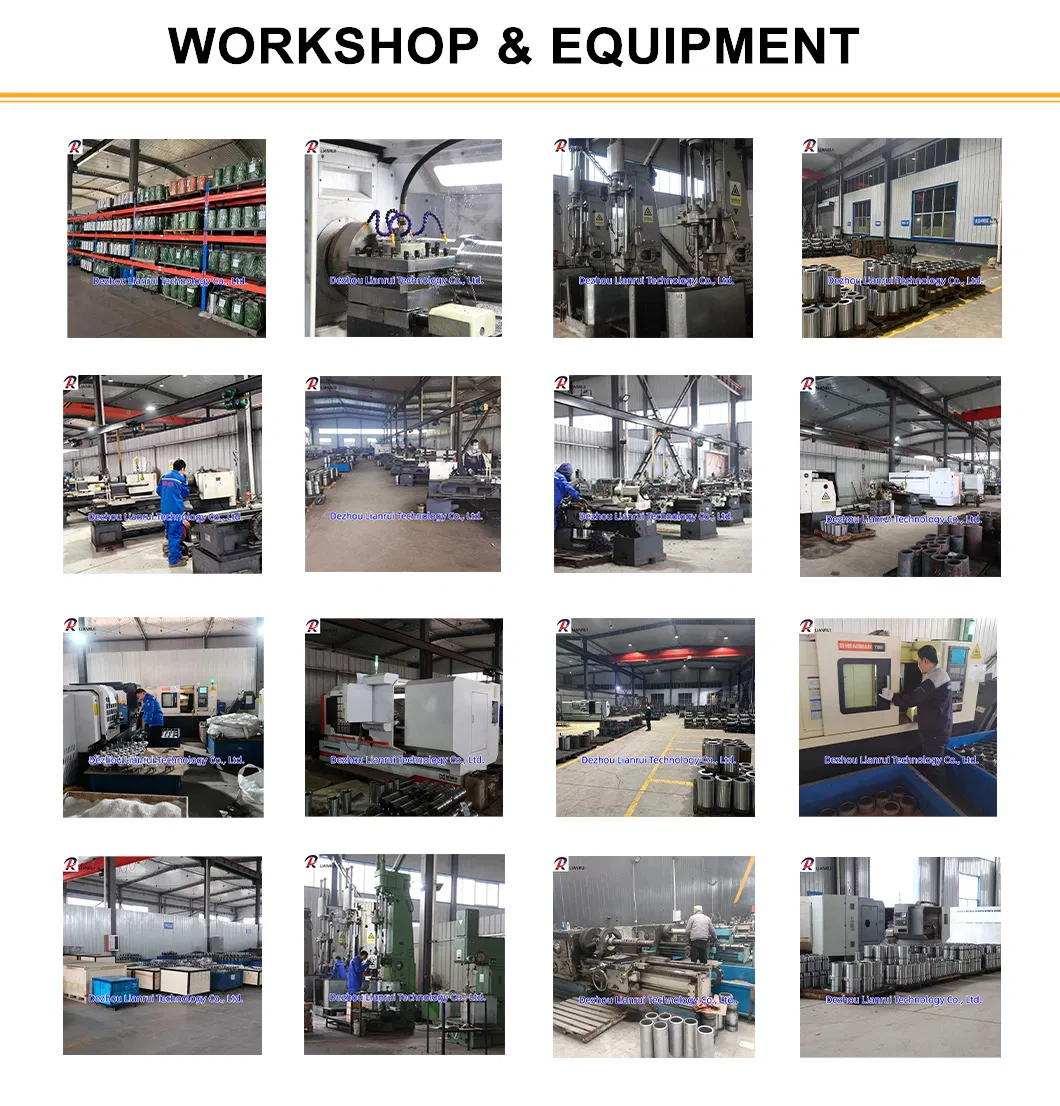

Specializing in the R&D of hydraulic end accessories for oil drilling pumps, we integrate product design, precision manufacturing, and technical services. Our comprehensive range includes valve boxes, cylinder liners, valve bodies, valve seats, intermediate rods, and more. These high-performance components are widely deployed across onshore and offshore oilfields worldwide, exported to key energy markets including the United States, Canada, Indonesia, and Saudi Arabia. With seasoned technical professionals, we deliver tailor-made solutions for global mud pump requirements.
