Basic Information
Model NO.54-2000
TemperatureOrdinary Temperature
ConnectionThread
Valve SeatSingle-Seat
StructureSpring Diaphragm
MaterialStainless Steel
Transport PackageWooden
Specification5.3 lbs / 2.4 kg
HS Code8481100090
Production Capacity50,000 pieces/Year
Product Description

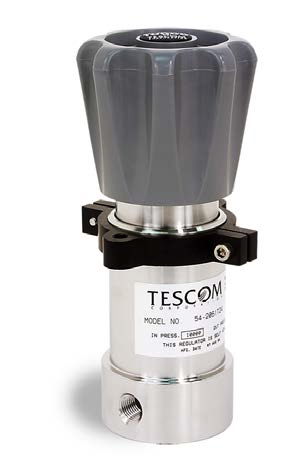

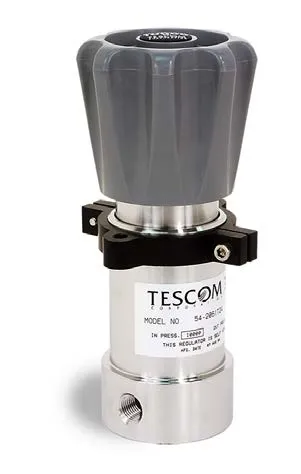

The 54-2000 Series pressure-reducing regulator is a paragon of engineering excellence, crafted to dominate in high-pressure hydraulic applications. With an astonishing capacity to handle up to 10,000 psig / 690 bar, this regulator serves both inlet and outlet needs with unmatched precision. Its ingeniously segregated and captured vent offers seamless downstream pressure adjustments, empowering users with complete control. Built with a hardened Stainless Steel seat and stem, it stands resilient against wear and tear.
🚀 Key Applications
- Wellhead control panels
- Subsea valve actuations
- Hydraulic Power Units (HPU)
- Component testing scenarios
- Corrosive environment material integrity
- NACE compatible operations
Manufacturing Expertise
Our team is comprised of distinguished veterans with over two decades of expertise in automation engineering and digital solutions. We offer professional-grade products and comprehensive solutions meticulously tailored for sectors such as petroleum, chemicals, electric power, biomedicine, and metallurgy, guaranteeing exceptional quality throughout every phase of the lifecycle.
Frequently Asked Questions
How do I select the right regulator for my application?
Upon receiving your inquiry, we provide a technical dossier to verify process parameters. Based on these specifications, we recommend the model that aligns with your specific requirements.
What is the maximum pressure this series can handle?
The 54-2000 Series is designed for high-pressure hydraulic applications, supporting up to 10,000 psig / 690 bar. Special models can accommodate up to 20,000 psig.
Are these regulators compatible with corrosive environments?
Yes, they are designed to be NACE compatible, ensuring material integrity and reliability even in harsh or corrosive environments.
What materials are used for the main body and seats?
The body is crafted from premium 316 Stainless Steel, while the main valve and seats utilize resilient 17-4 Stainless Steel for longevity.
Can I get a confirmed model and price quotation?
Once you specify a model, we conduct a verification process. We will offer optimization suggestions if applicable and then provide a formal quotation tailored to your needs.
What is the weight and port size range?

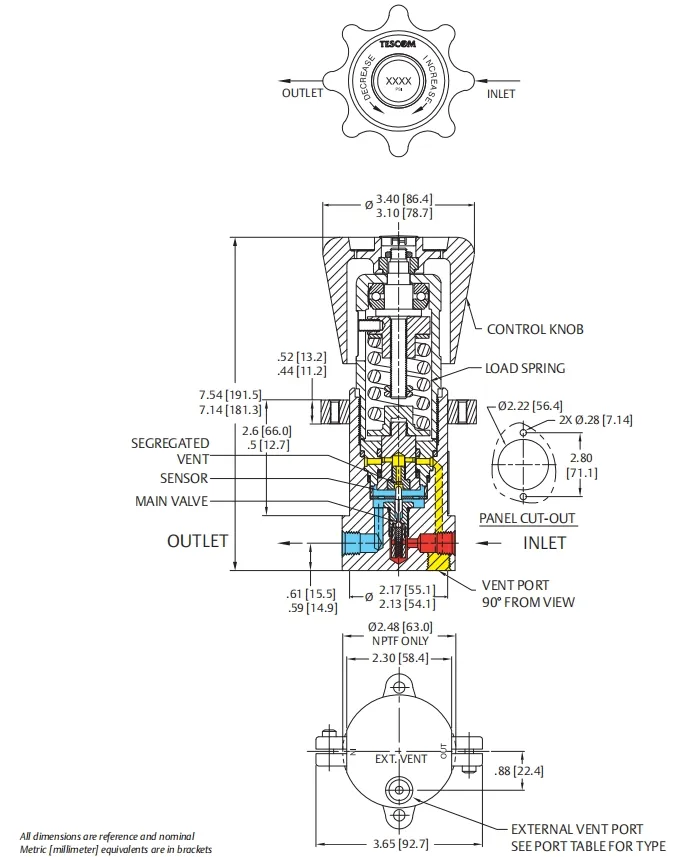

The regulator features a lightweight design of 5.3 lbs (2.4 kg) and supports port sizes of 1/4", 3/8", and 1/2" with SAE, NPTF, or MS33649 types.
