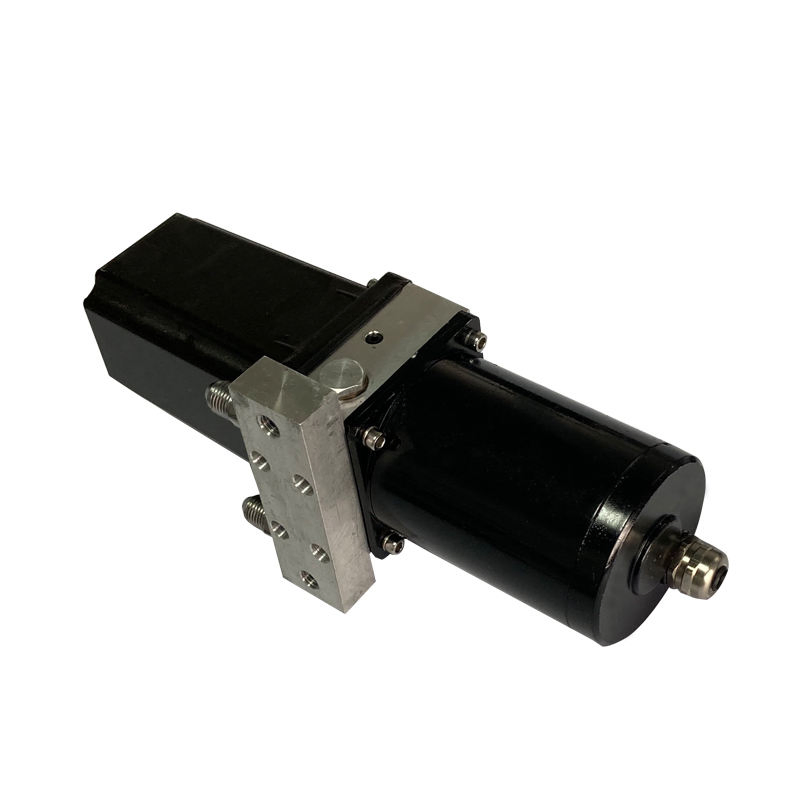

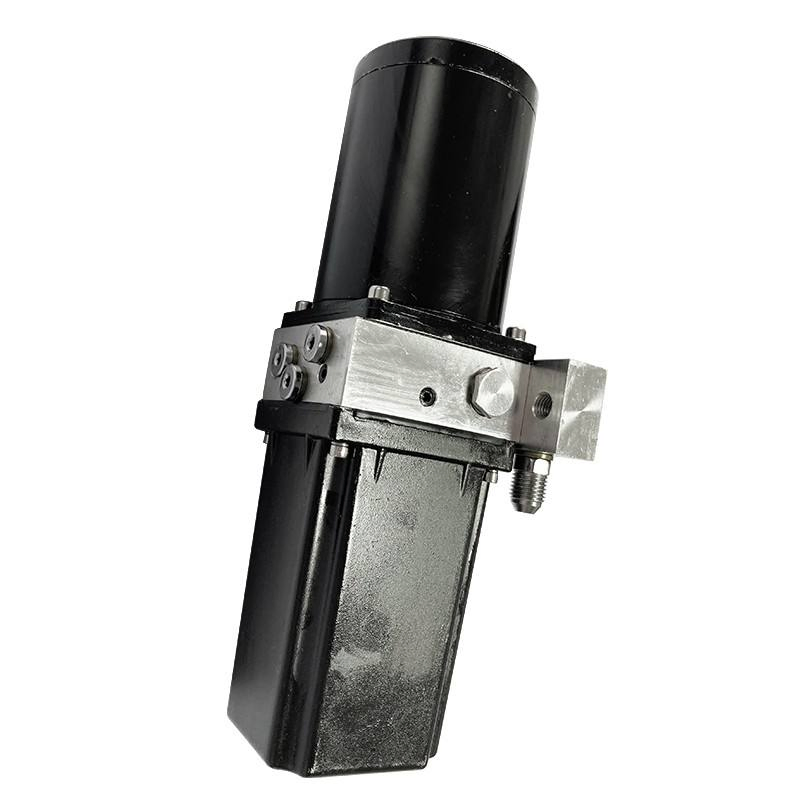

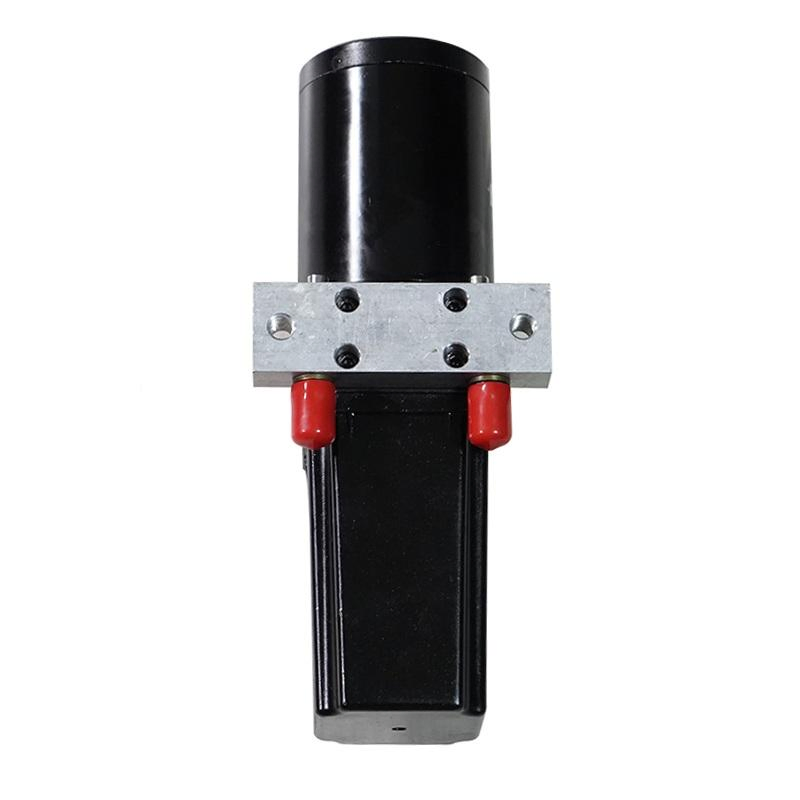

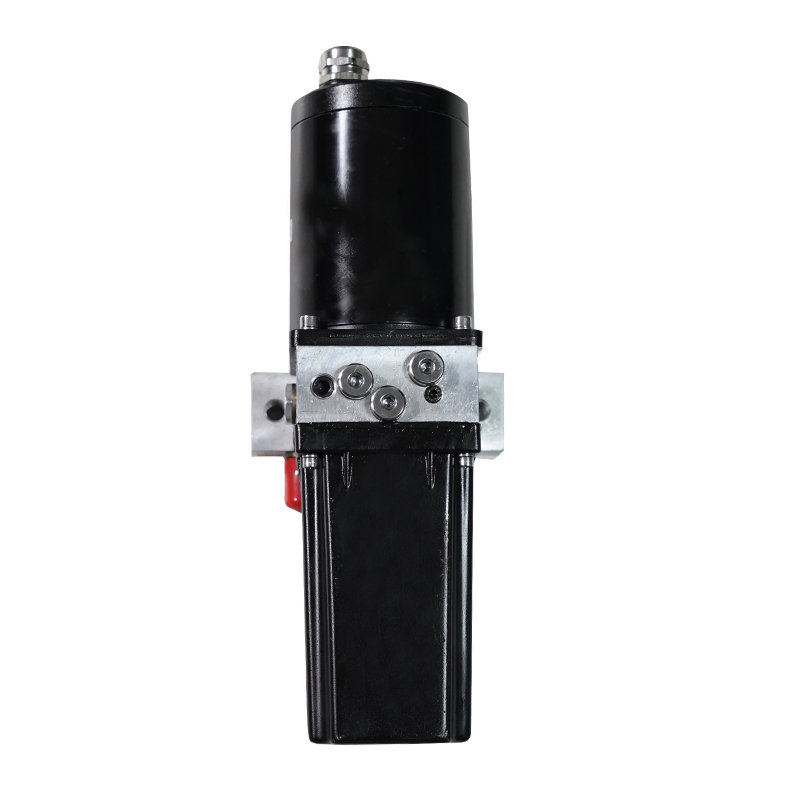

Small Putter Lifting Device Hydraulic Power Unit

1 / 5

Small Putter Lifting Device Hydraulic Power Unit

Customization:	Available
Certification:	CE, ISO9001
Pressure:	Hydraulic

Send Inquiry

Product Description

Overview - Basic Information

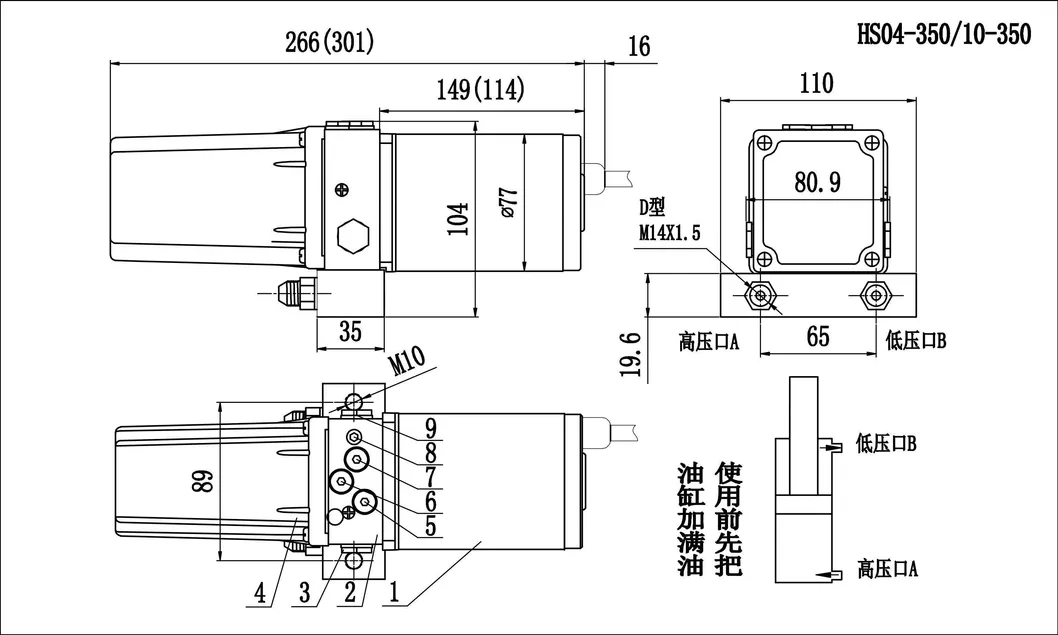

Model NO.

HS04-350/10-350

Voltage

AC220V DC12V/24V/48V

Condition

New

Warranty

1 Year

Oil Volume

350ml

Dimension

29X14X13 Cm

Weight

3kg

Displacement

9ml/S

Type

Hydraulic Power Units

Pump Type

Bi-Directional Gear Pump

Waterproof

IPX6.5

Power

300W

Max Pressure

15MPa

Package

Wooden Box or Tray

OEM/ODM Services

Product Technical Specifications

No	Item	Data
1	Voltage	AC220V/DC12V/24V/48V
2	Power	300w
3	Oil Volume	350ml
4	Max Pressure	15MPA
5	Displacement	9ml/S
6	Pump type	Bi-directional gear pump
7	Hydraulic Oil	L-HV46#
8	Waterproof Level	IPX6
9	Frequency of Use	Continuous 6 minutes for a long period
10	Noise Level	80DB

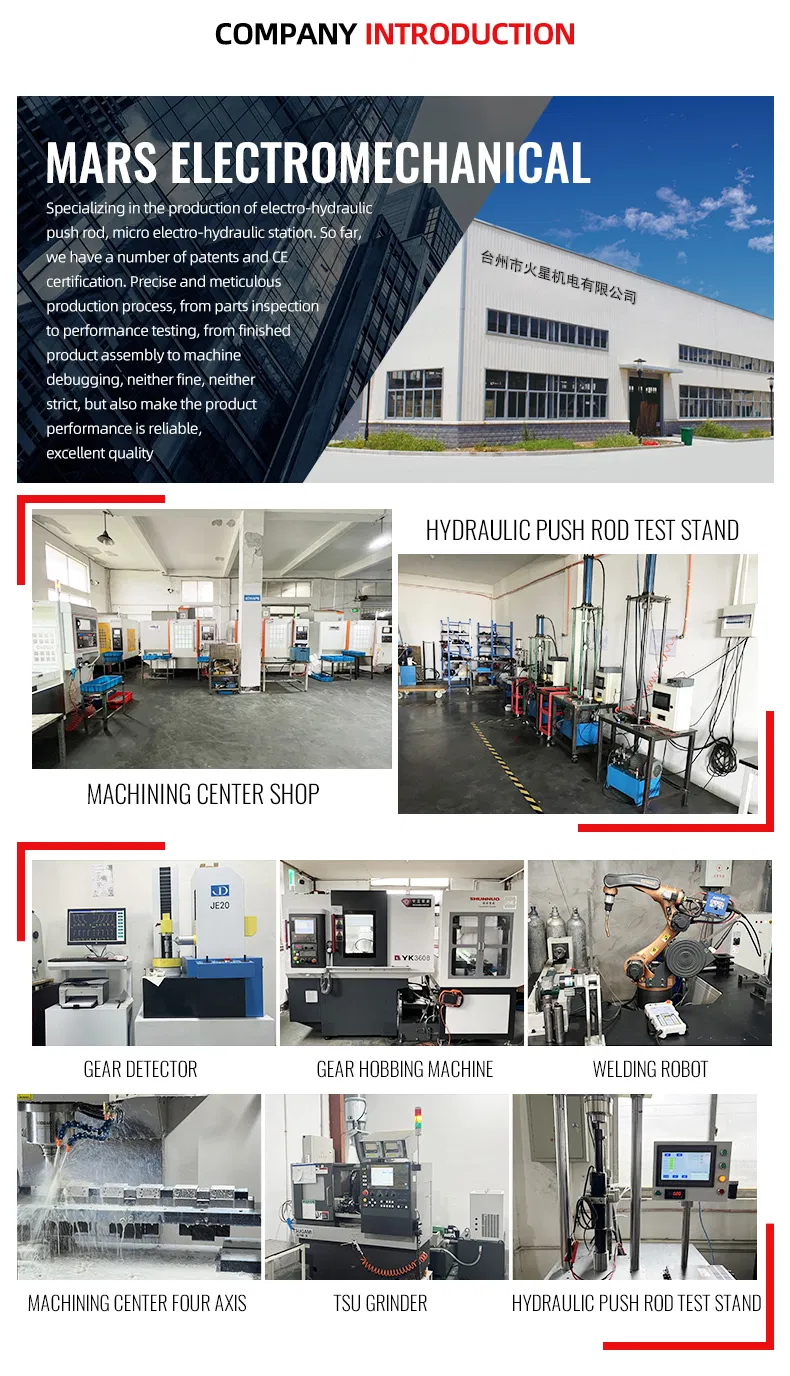

Professional Manufacturing

Field Application

Certificate & Exhibition

Packaging & Shipping

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a specialized electro-hydraulic push rod manufacturer with 8 years of experience.

What is the typical lead time for production and shipping?

Delivery time depends on the order quantity, but it usually takes approximately 7-10 working days.

What is the warranty period for this hydraulic power unit?

The product comes with a standard 1-year warranty from the date of purchase.

How can I place an order for your products?

The process involves: Inquiry → Quotation → Detail Negotiation → Sample Confirmation → Contract/Deposit → Mass Production → Cargo Ready → Balance/Delivery.

What payment methods do you accept?

We accept payment via T/T and PayPal. Other payment methods can also be discussed upon request.

What should I do if my package is missing products?

Please contact our support team immediately, and we will verify your order against the package contents to resolve the issue.
