Introduction: DPR1 series valve is a compact high purity two-stage cylinder regulator with tied diaphragms for low flows of toxic, flammable and pyrophoric gases. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity.
Key Features
Maximum Inlet Pressure: 3000 psig / 207 bar
Outlet Pressure: 0-25psig to 0-150 psig
Operating Temp: -40°F to 140°F (-40°C to 60°C)
Flow Capacity: Cv = 0.05
Design Proof Pressure: 150% maximum rated
Main Advantages
Excellent decaying inlet characteristic
Metal-to-metal diaphragm body seal
Convoluted diaphragms for accuracy
Captured bonnet ports & positive seal
Pneumatic Diaphragm Control Valve

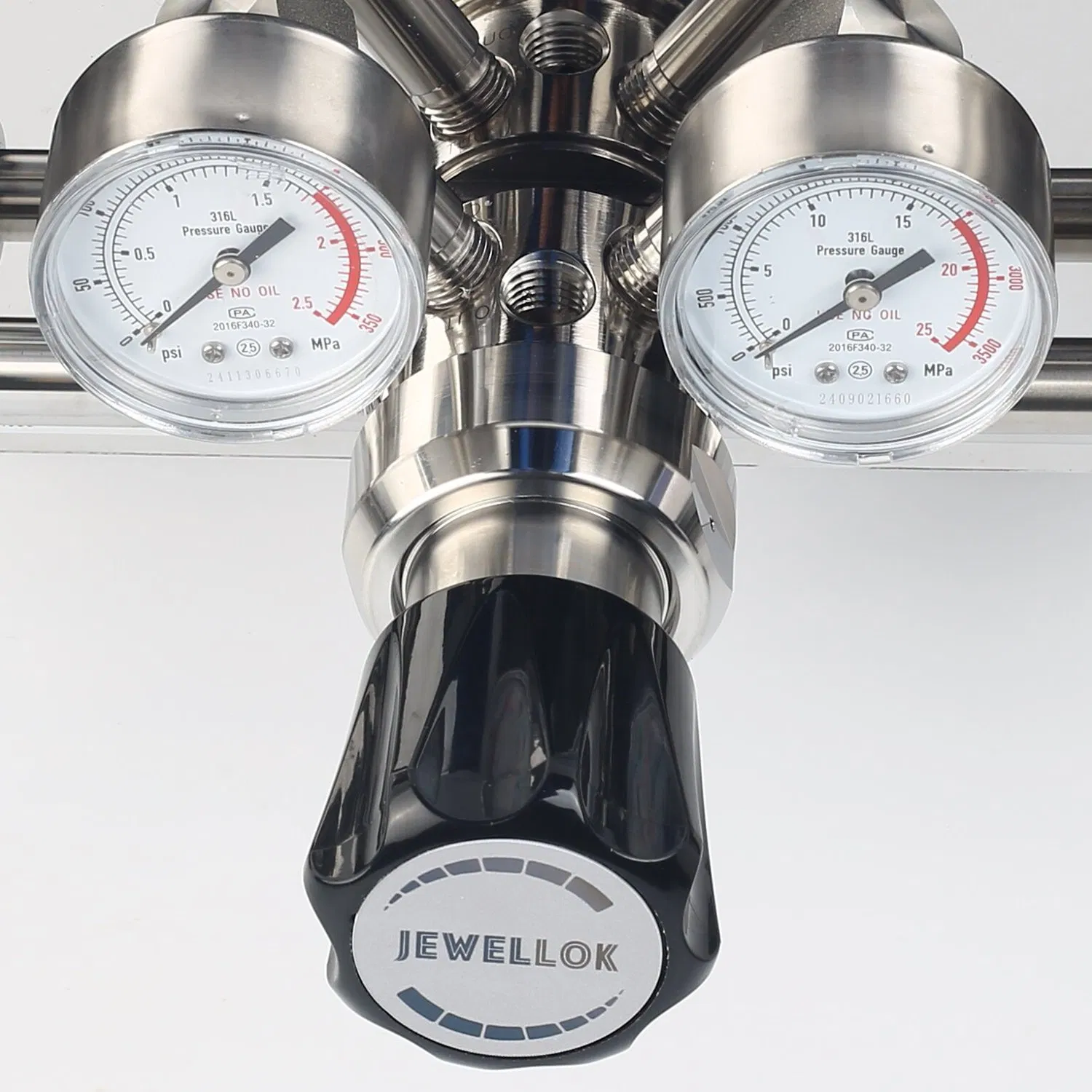

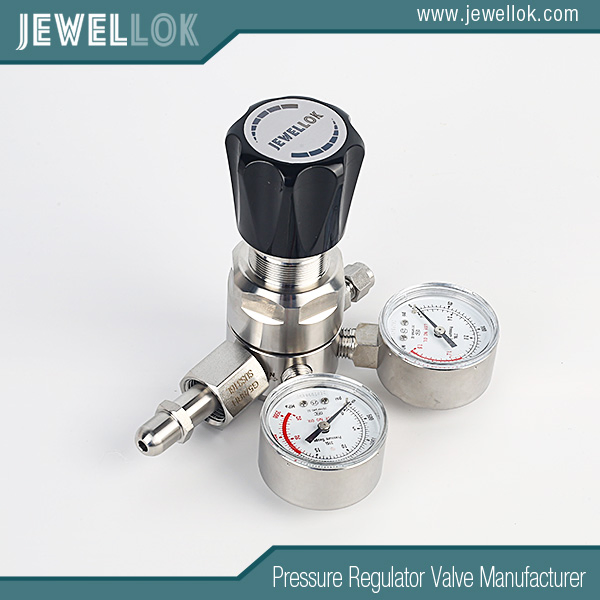

Dual Stage UHP Gas Regulator
"Ultra high purity regulators are designed to provide a maximum diffusion resistance. Metal diaphragms and high-purity seats minimize out gassing and inboard diffusion."

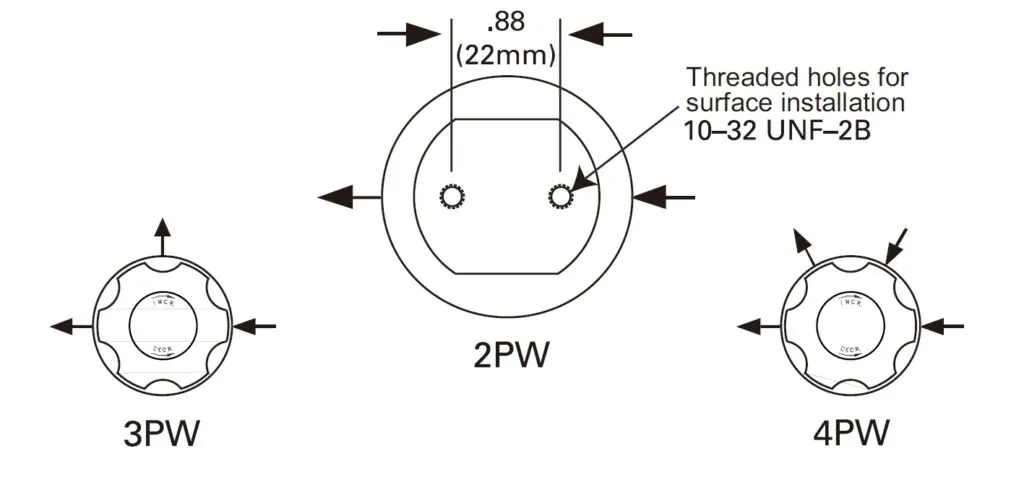

Flow Channel & Product Series

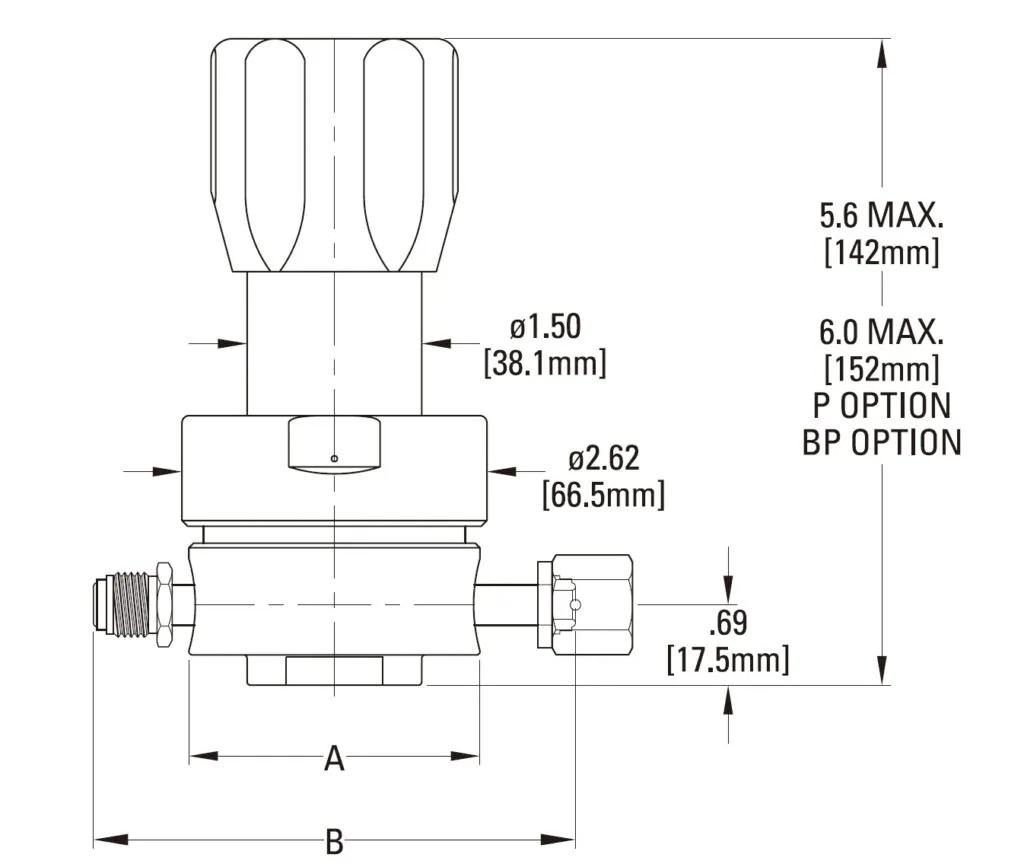

JSR-1E Series Pressure Reducing Valve
Applications: Critical flow control solutions for Industrial processes (Oil & Gas), Advanced manufacturing (Semiconductors), and Life sciences.

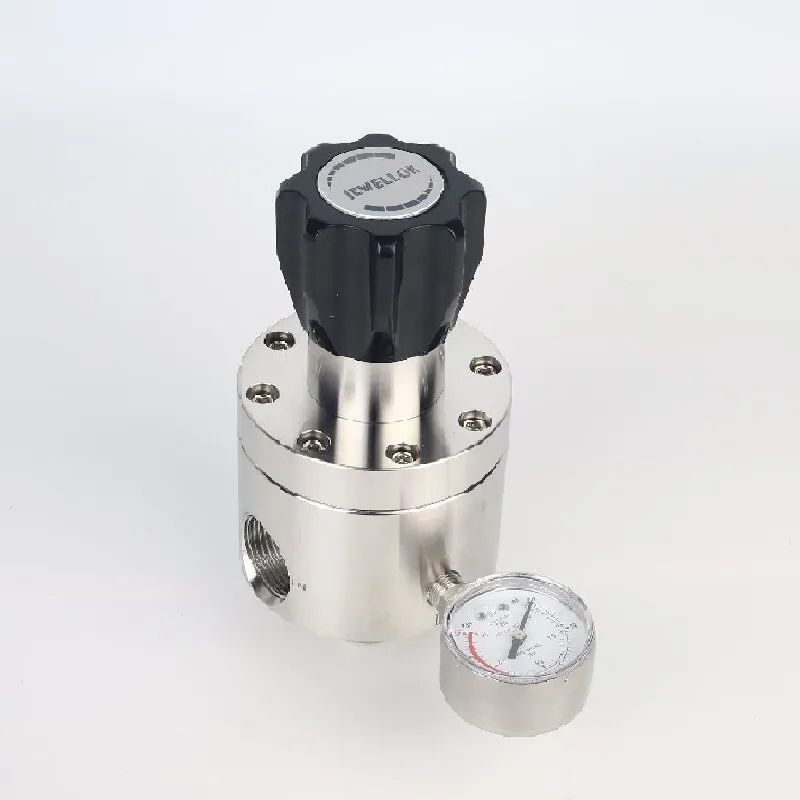

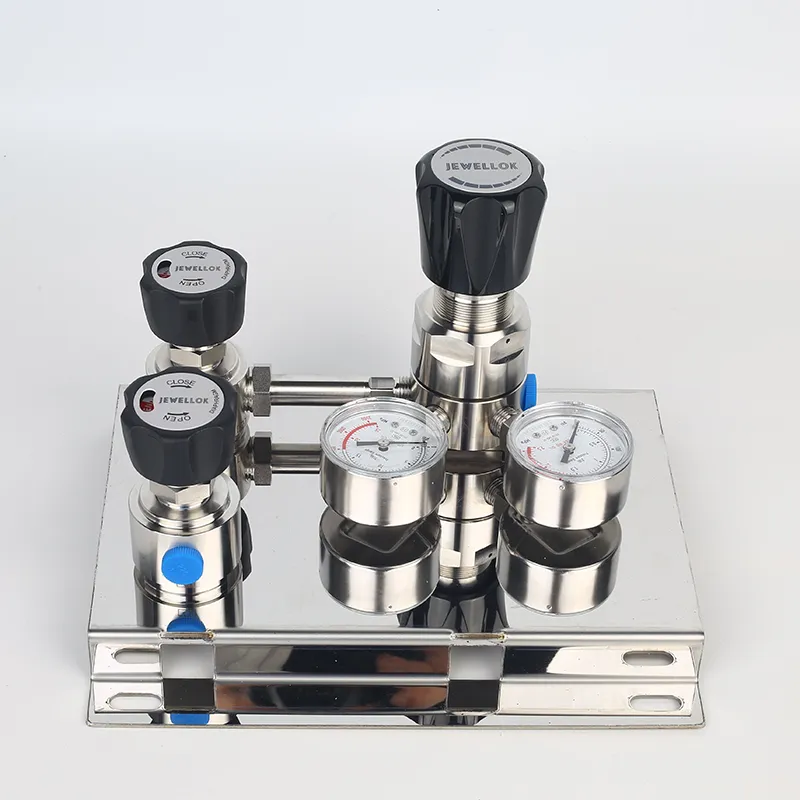

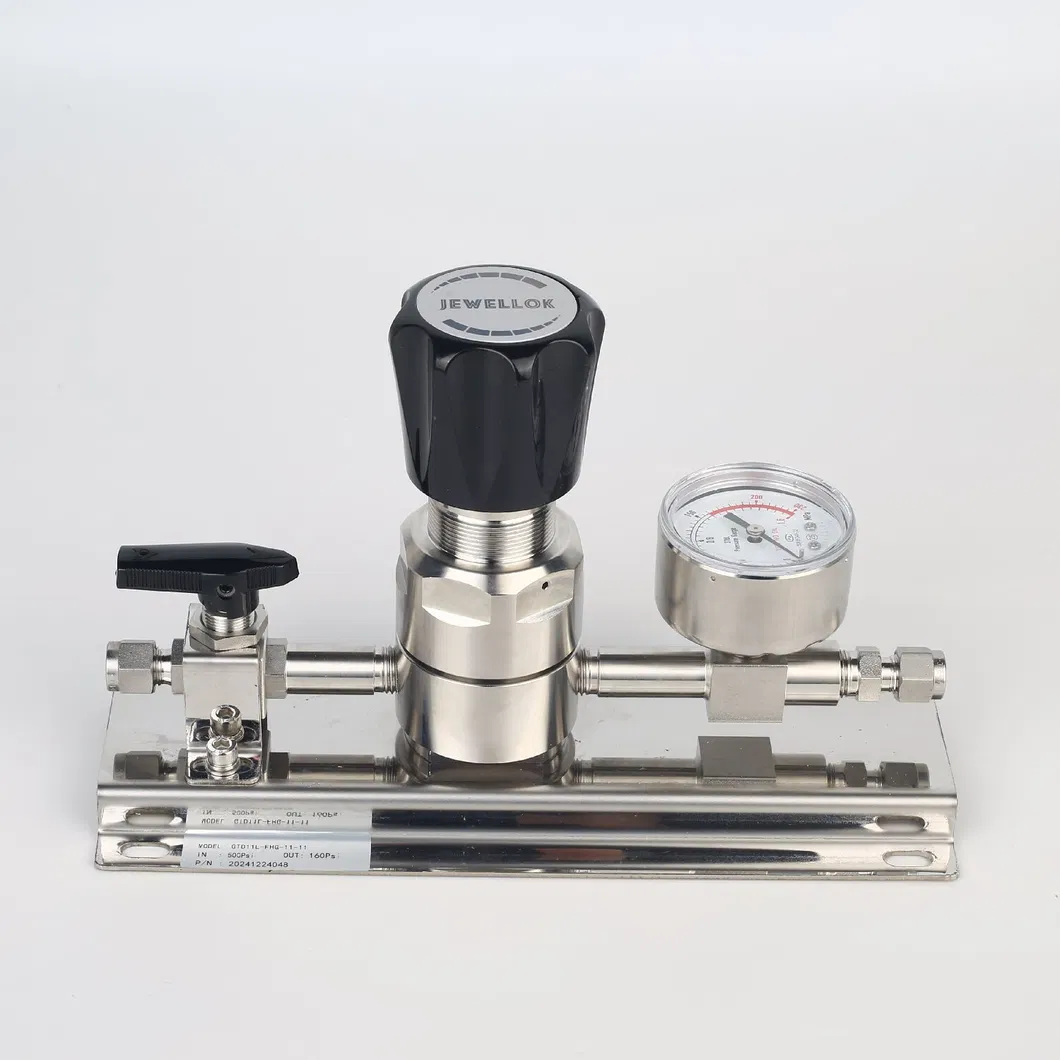

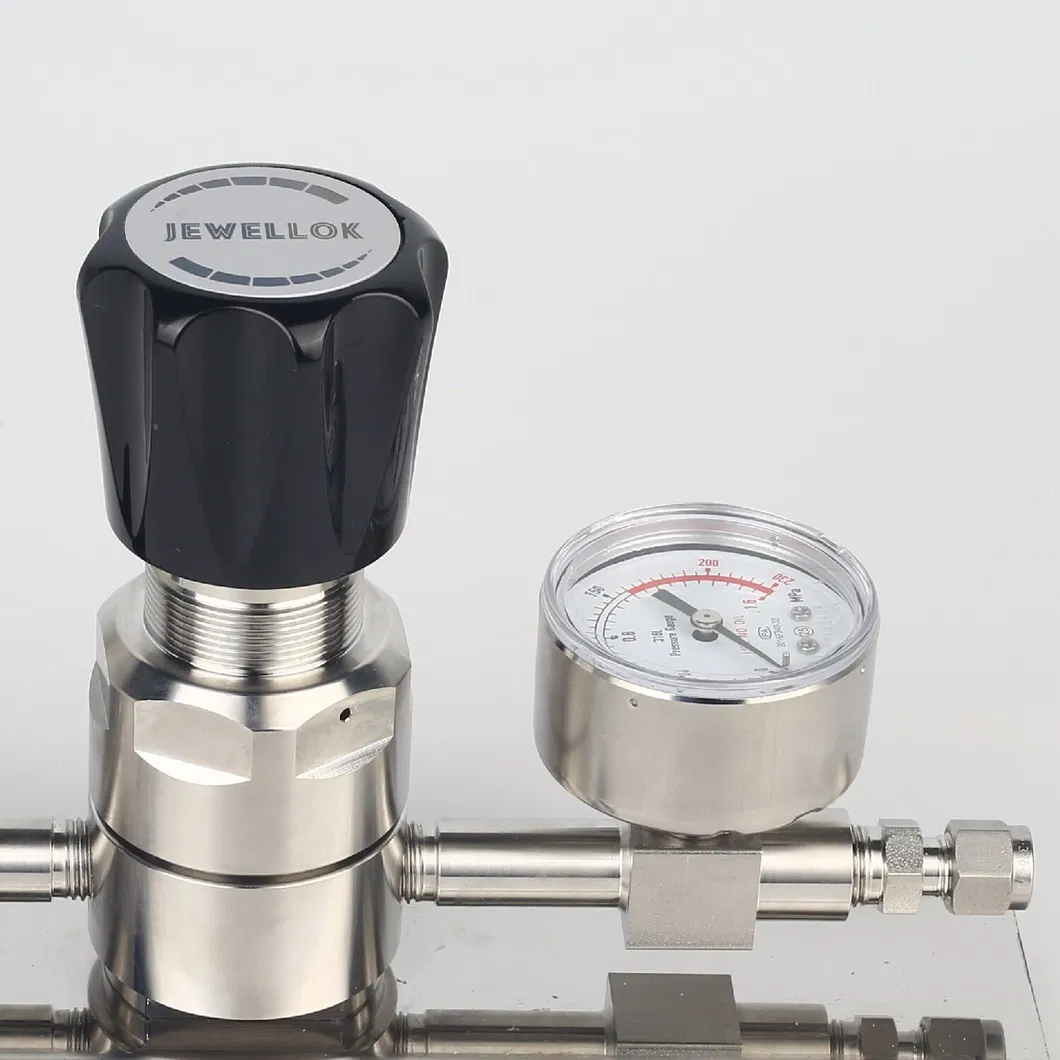

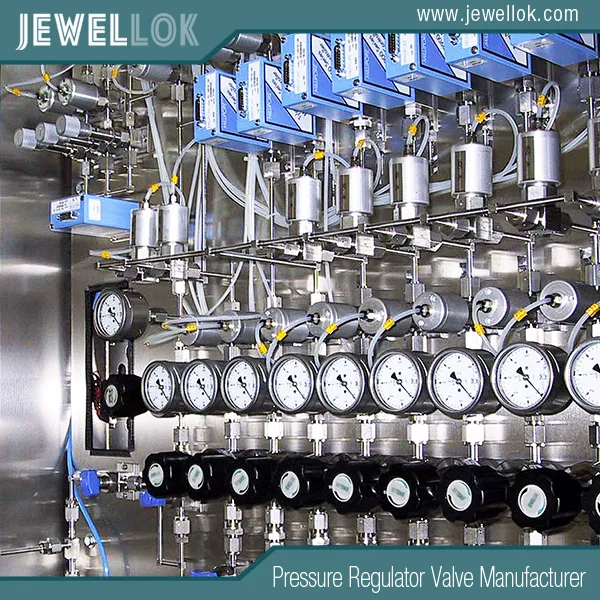

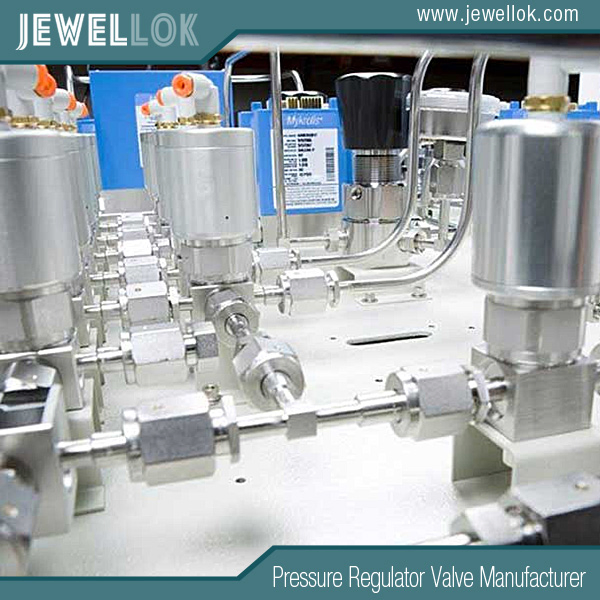

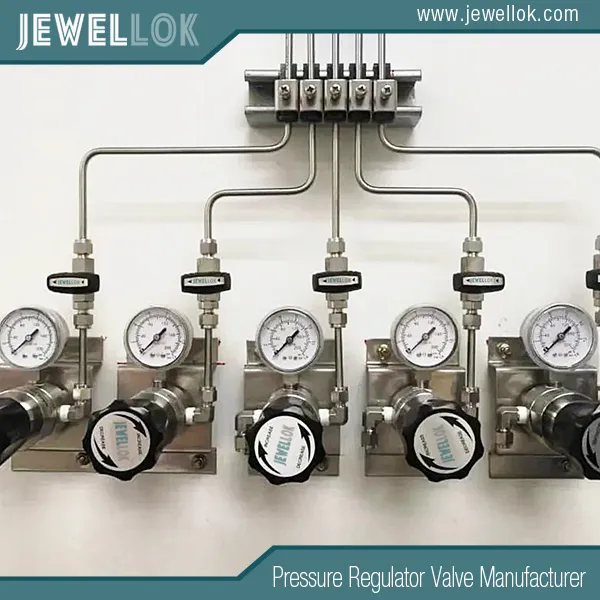

Application Scenarios
Related High Purity Components

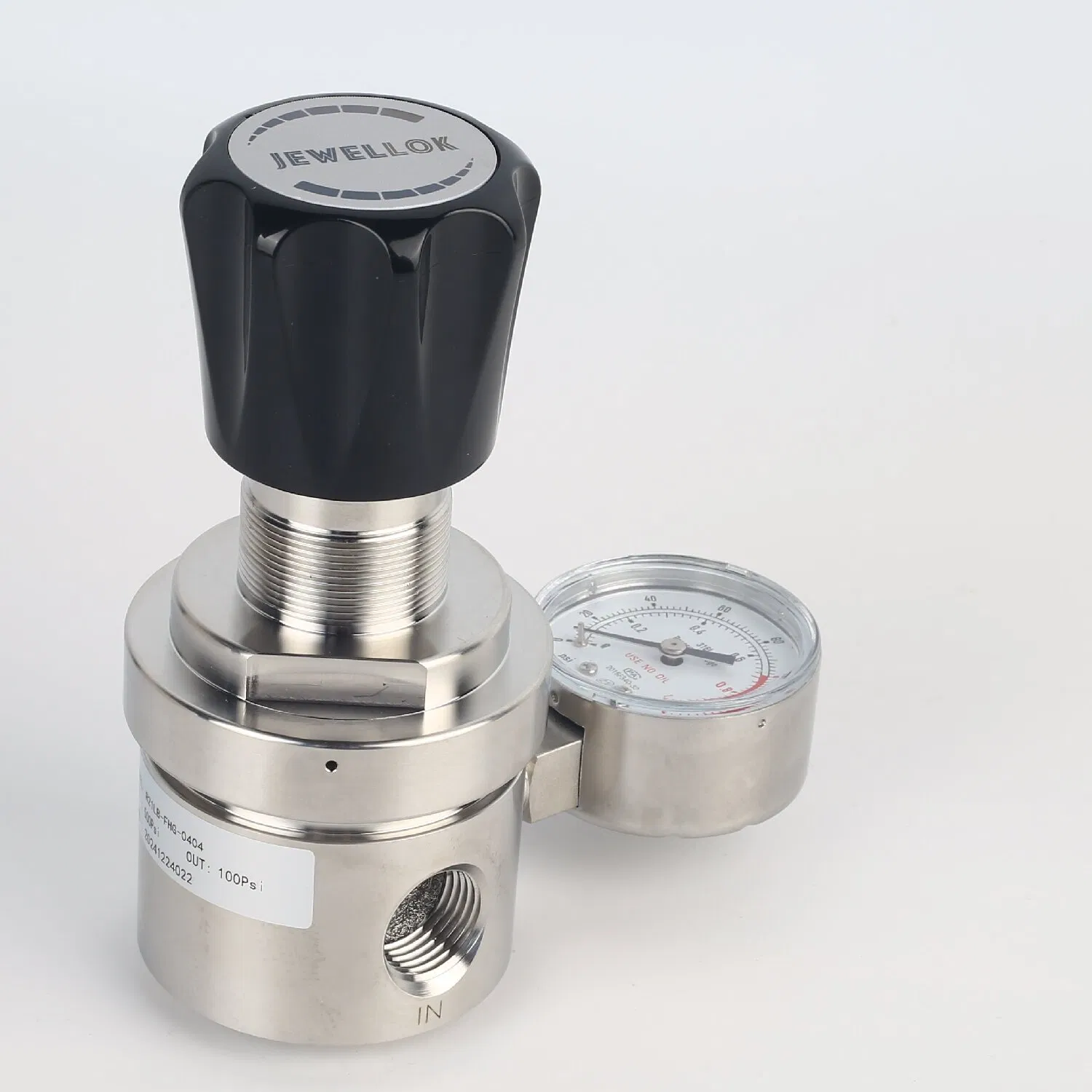

HP Gas Regulators
UHP Diaphragm Valves

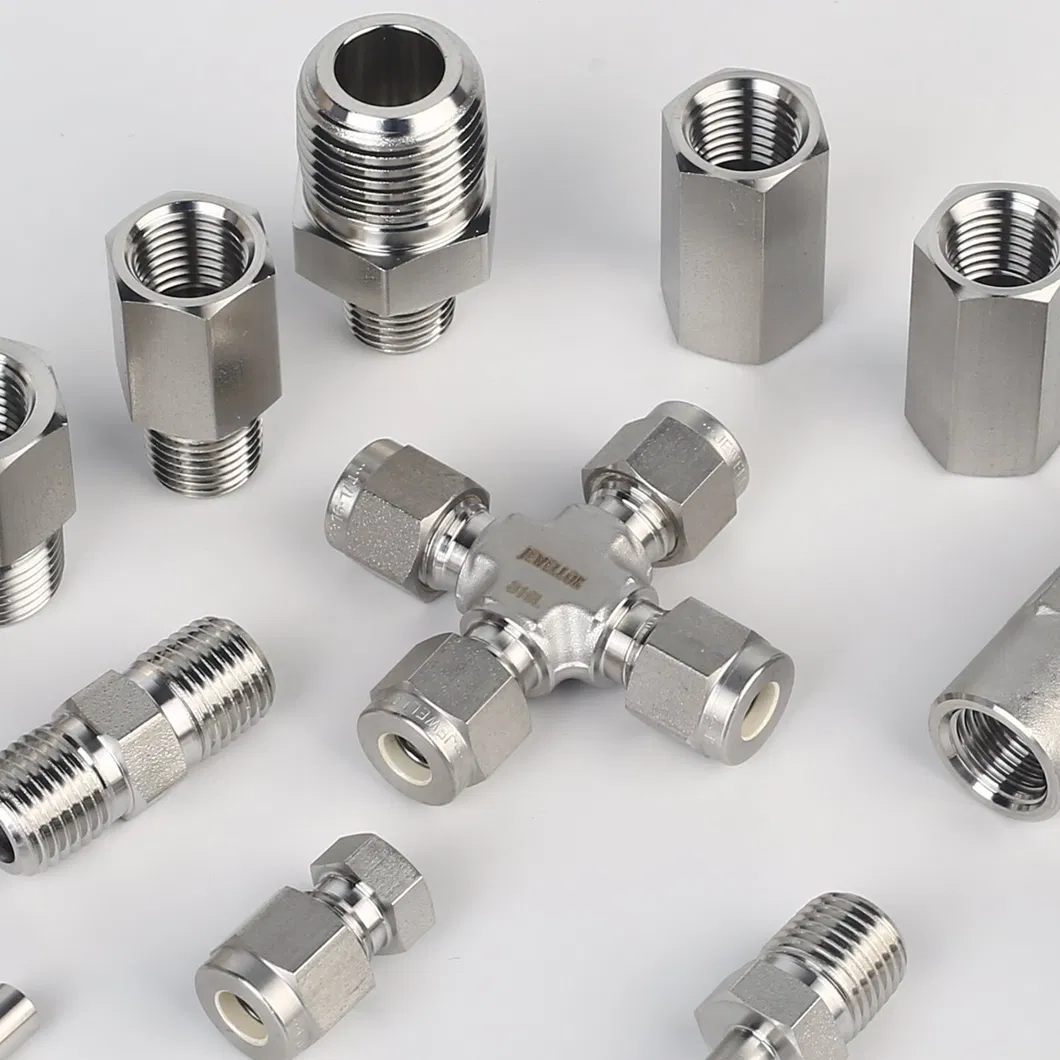

Tube Fittings & Tees
Pressure Gauges
Gas Cabinets

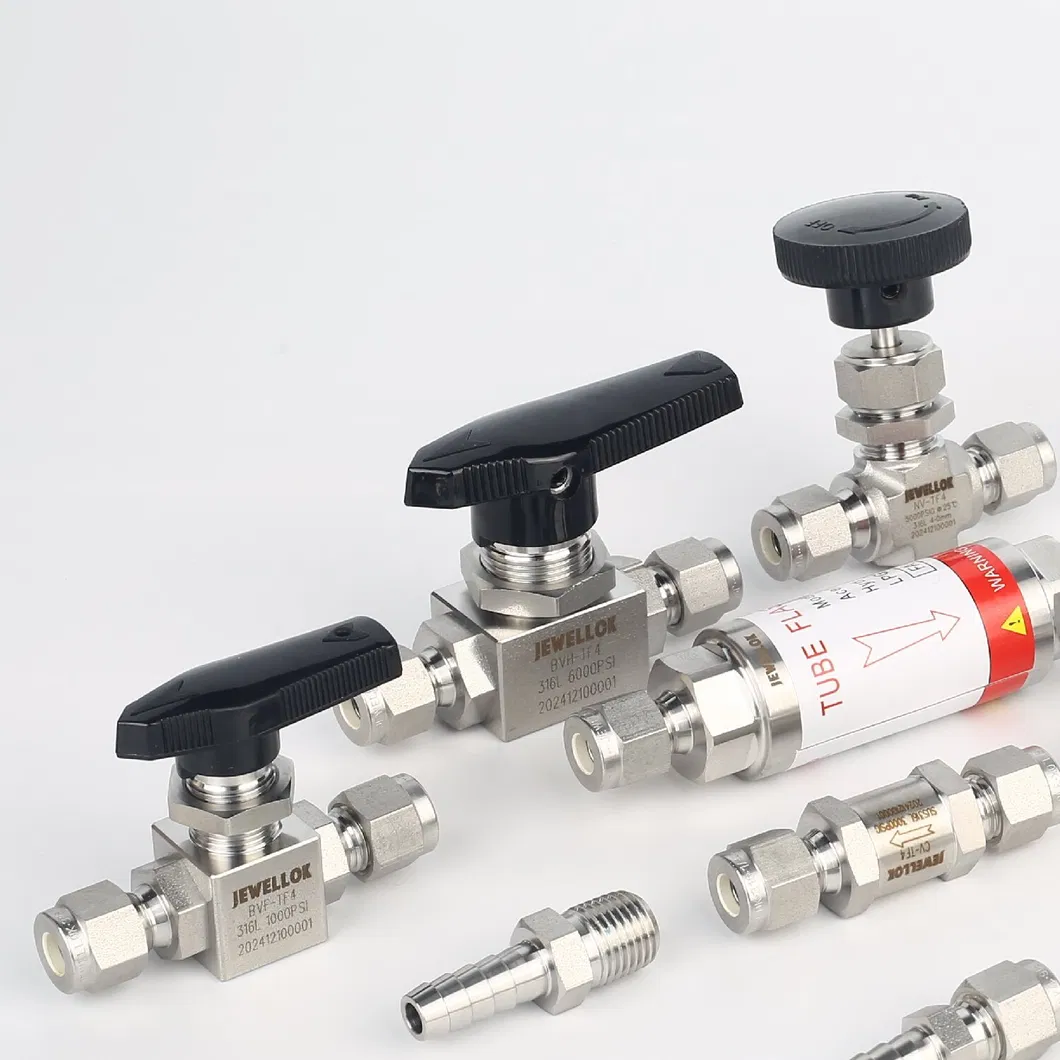

Ball & Check Valves
Frequently Asked Questions
1. What is the maximum inlet pressure for this regulator?
The maximum rated inlet pressure is 3000 psig (207 bar), with a design proof pressure of 150% of the maximum rating.
2. Which materials are used for the diaphragm construction?
The regulators utilize Hastelloy® C276 for the diaphragm to ensure excellent corrosion resistance and durability.
3. Is this regulator suitable for toxic or flammable gases?
Yes, the tied diaphragm design is specifically engineered for safe handling of toxic, flammable, and pyrophoric gases at low flow rates.
4. What is the standard leak rate for these units?
The external leak rate is designed to meet < 2 x 10-8 atm cc/sec He, while the atmosphere leak rate is 1×10-8 Mbar I/S He.
5. What industries typically use these UHP regulators?
These are primarily used in semiconductor manufacturing, photovoltaic production, oil and gas processing, and analytical laboratories.
6. Can the outlet pressure be customized?
Yes, multiple outlet pressure ranges are available including 0-25psi, 0-50psi, 0-100psi, and 0-150psi to suit specific application needs.
