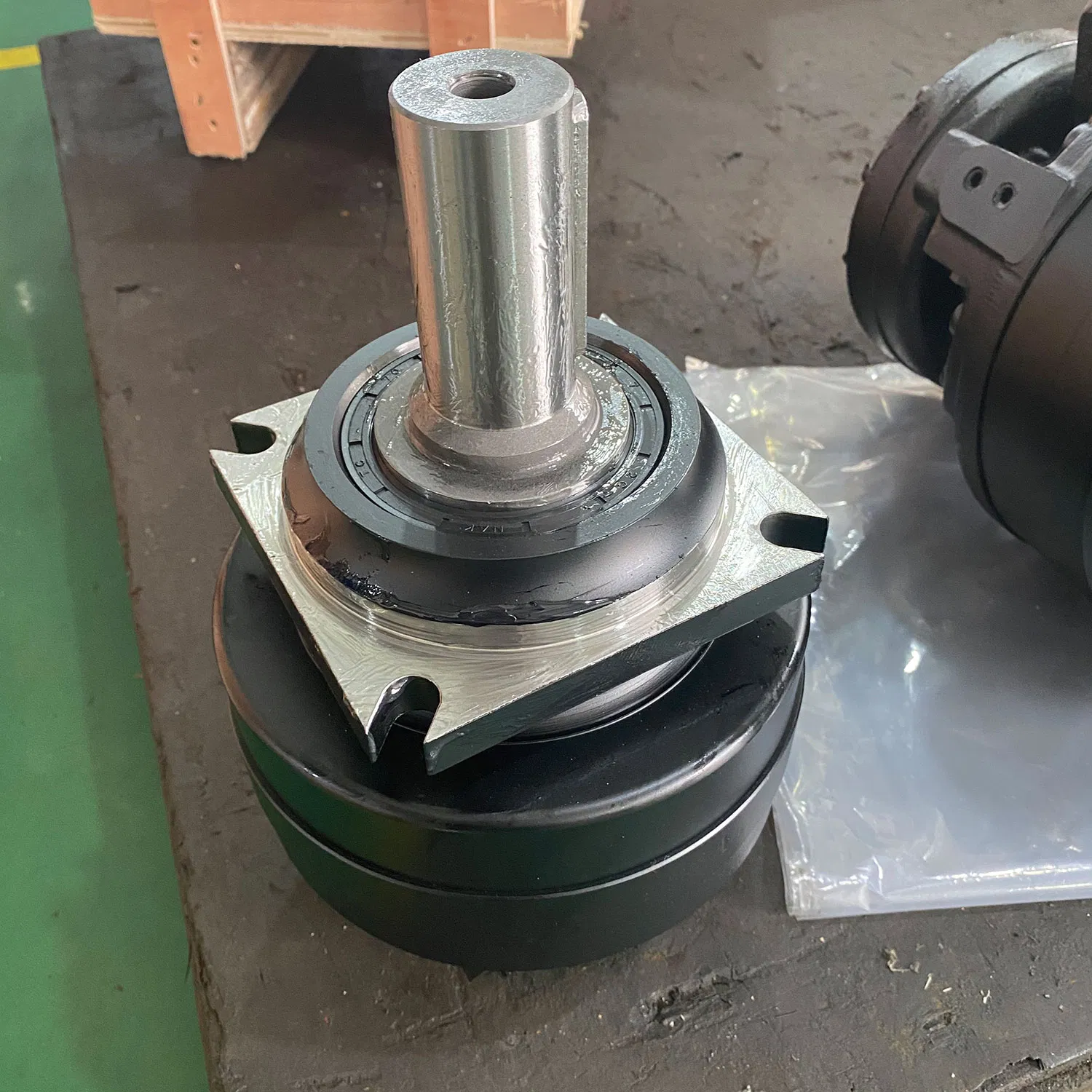

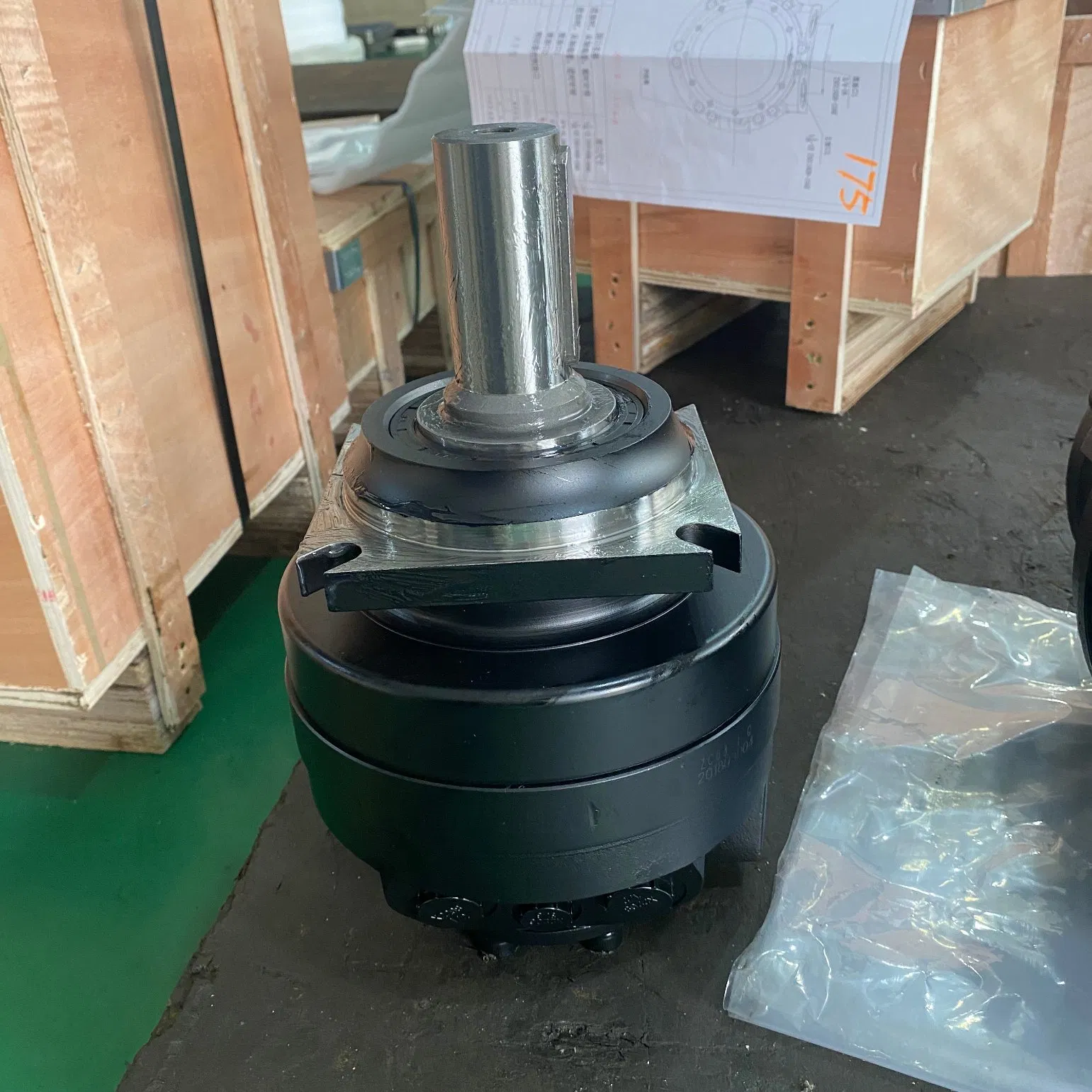

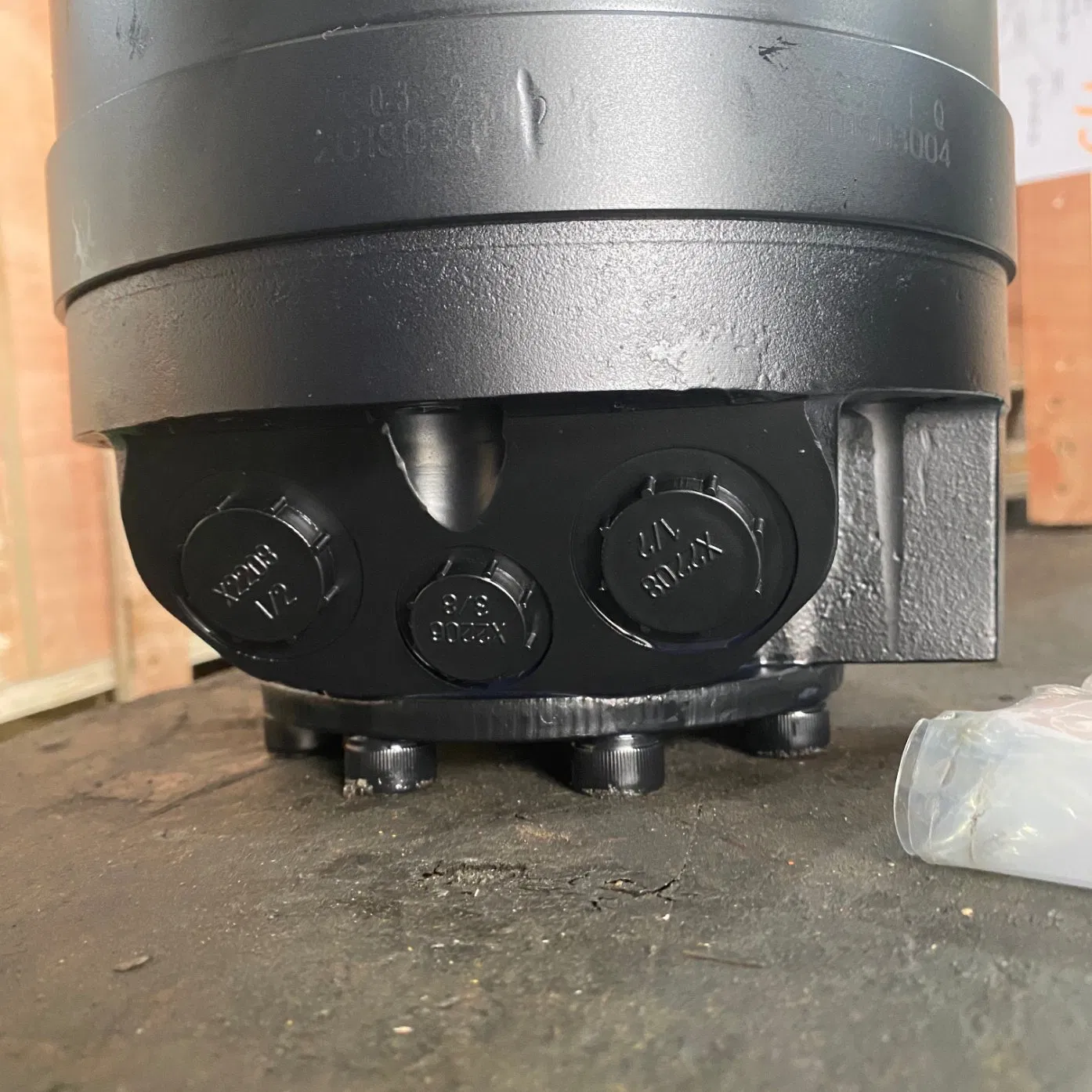

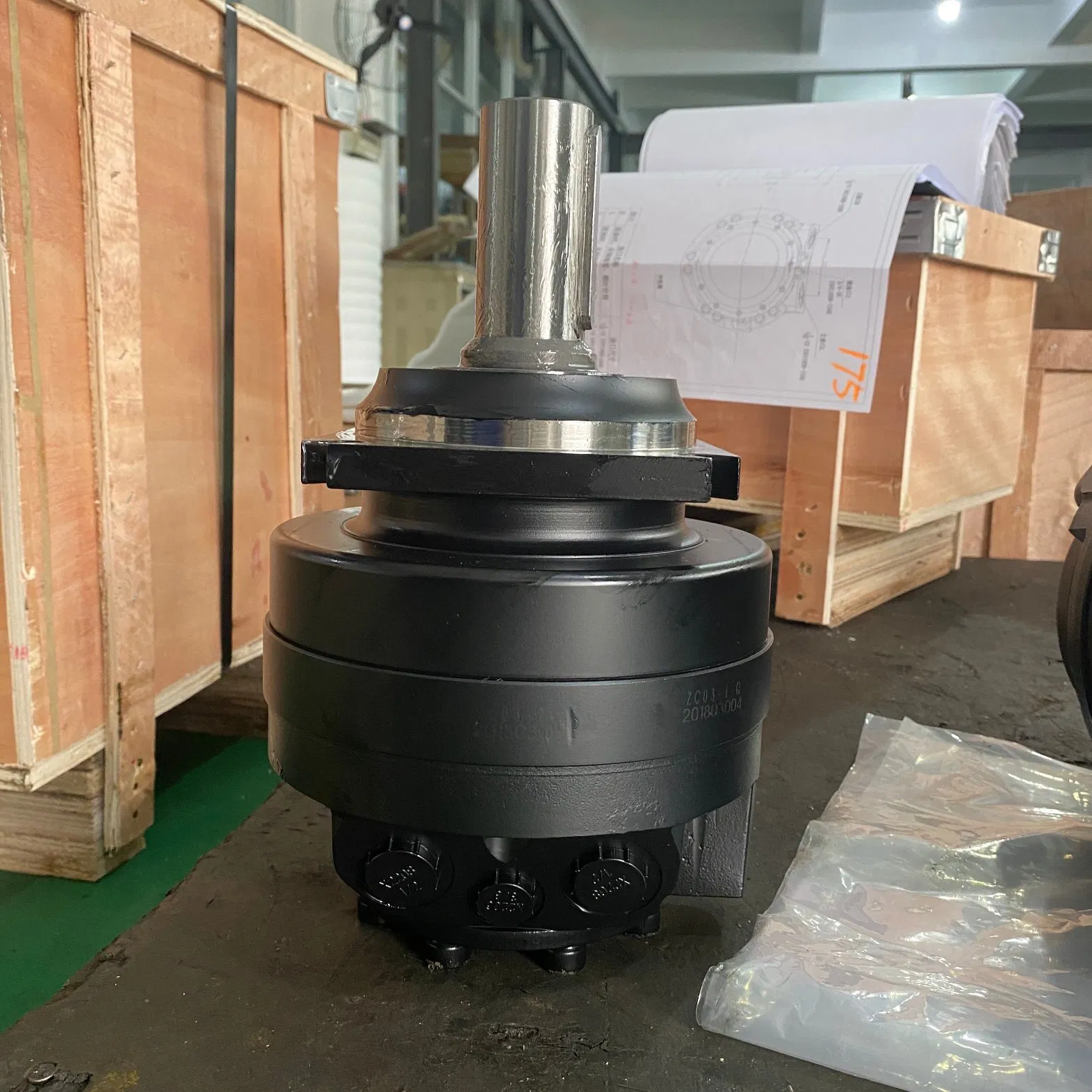

High-Performance Replacement for Rexroth Original Motors.

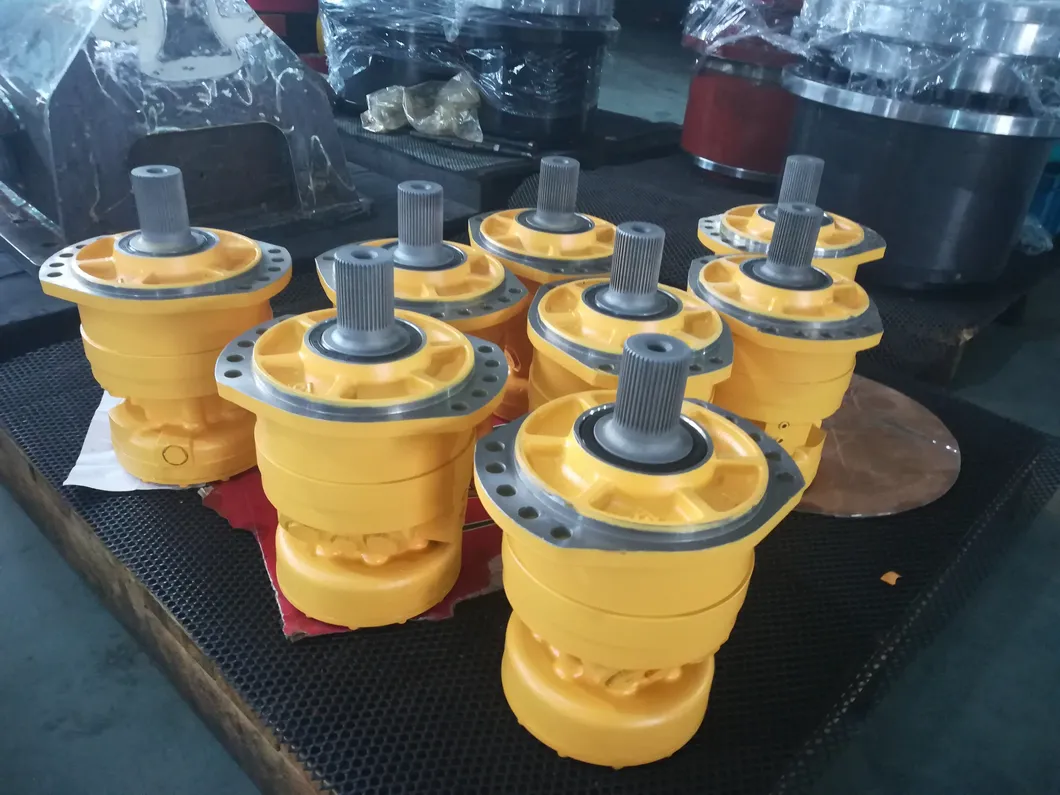

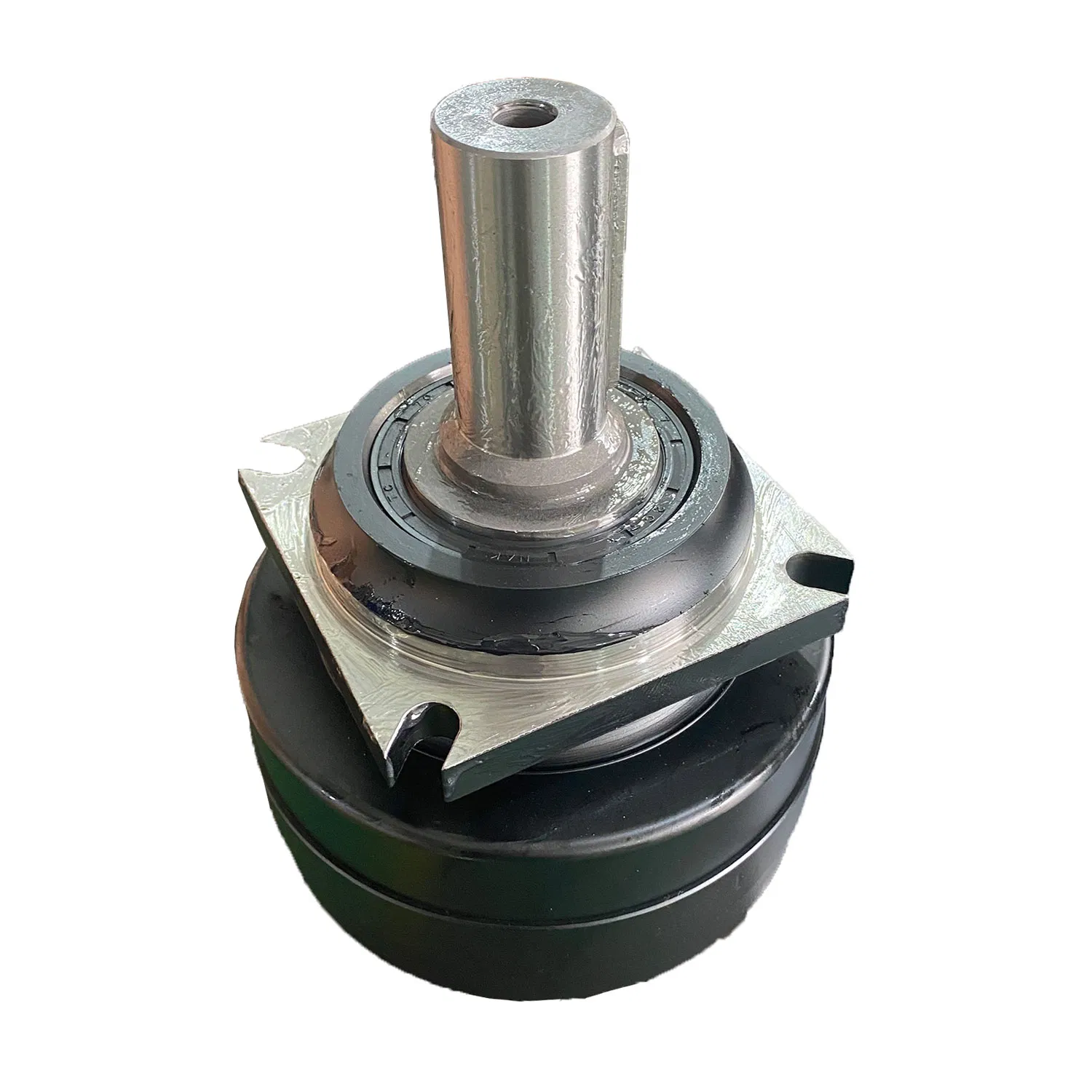

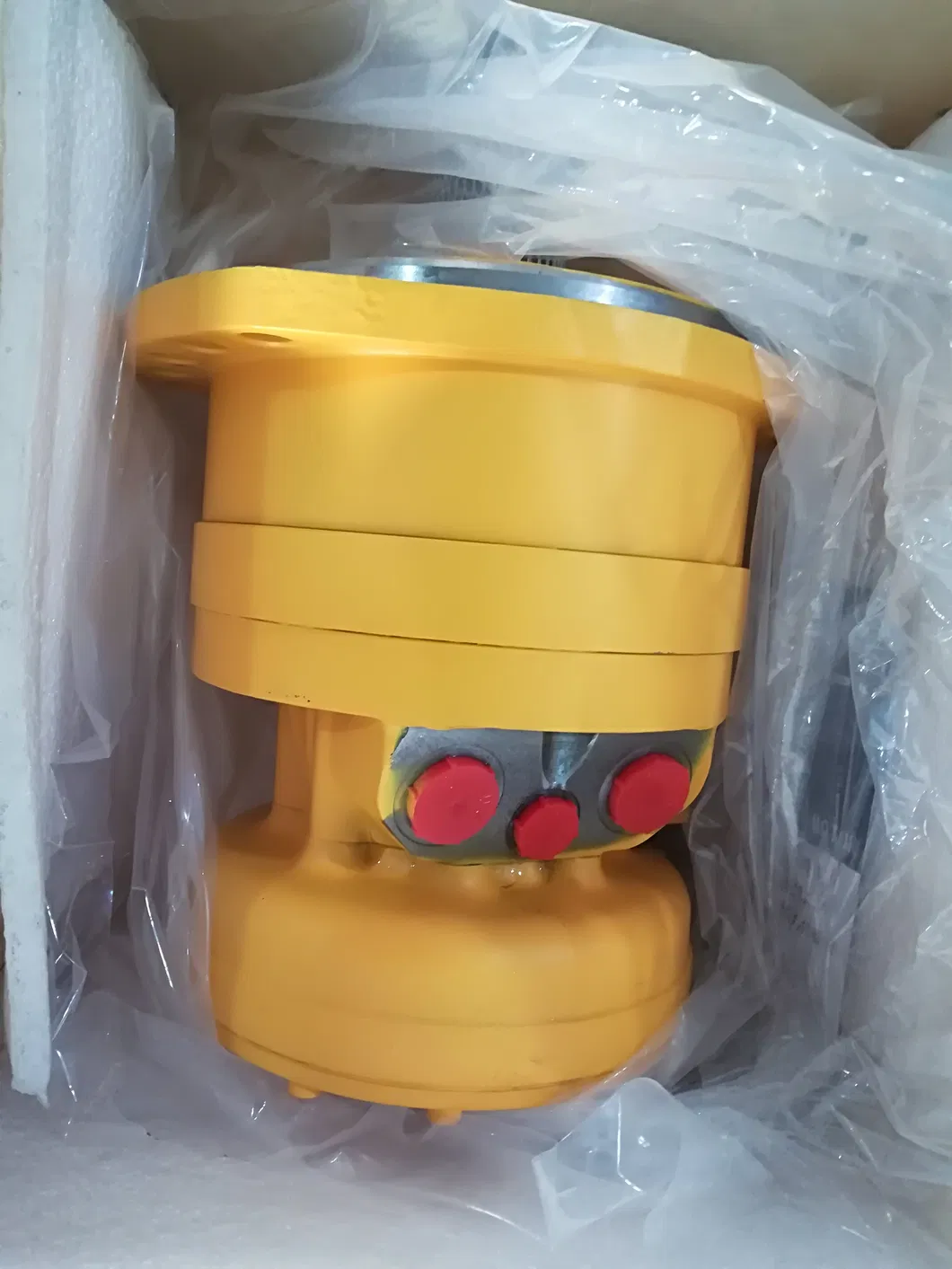

The MCR03/MCRE03 Series Hydraulic Motor is a low-speed, high-torque radial piston motor. It features an advanced design in disc distribution flow and piston structure, ensuring high pressure ratings and smooth operation even at very low speeds. It is available with various valves and integrated brakes.
Main Applications:
| Code | MCR03 | |||
|---|---|---|---|---|
| Displacement Group | 7 | 0 | 1 | 2 |
| Displacement (ml/r) | 160 | 225 | 255 | 280 |
| Theoretical Torque at 10 MPa (N.m) | 254 | 357 | 405 | 445 |
| Rated Speed (r/min) | 250 | 160 | 160 | 125 |
| Rated Pressure (Mpa) | 25 | 25 | 25 | 25 |
| Rated Torque (N.m) | 530 | 740 | 830 | 920 |
| Max Pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max Torque (N.m) | 650 | 910 | 1030 | 1130 |
| Speed Range (r/min) | 0-670 | 0-475 | 0-420 | 0-385 |
| Max Power (kW) | 18 | |||
| Code | MCRE03 | ||
|---|---|---|---|
| Displacement Group | 0 | 1 | 2 |
| Displacement (ml/r) | 325 | 365 | 400 |
| Theoretical Torque at 10MPa (N.m) | 516 | 580 | 636 |
| Rated Speed (r/min) | 160 | 125 | 125 |
| Rated Pressure (Mpa) | 25 | 25 | 25 |
| Rated Torque (N.m) | 1060 | 1200 | 1310 |
| Max Pressure (Mpa) | 31.5 | 31.5 | 31.5 |
| Max Torque (N.m) | 1310 | 1470 | 1620 |
| Speed Range (r/min) | 0-330 | 0-295 | 0-270 |
| Max Power (kW) | 22 | ||
