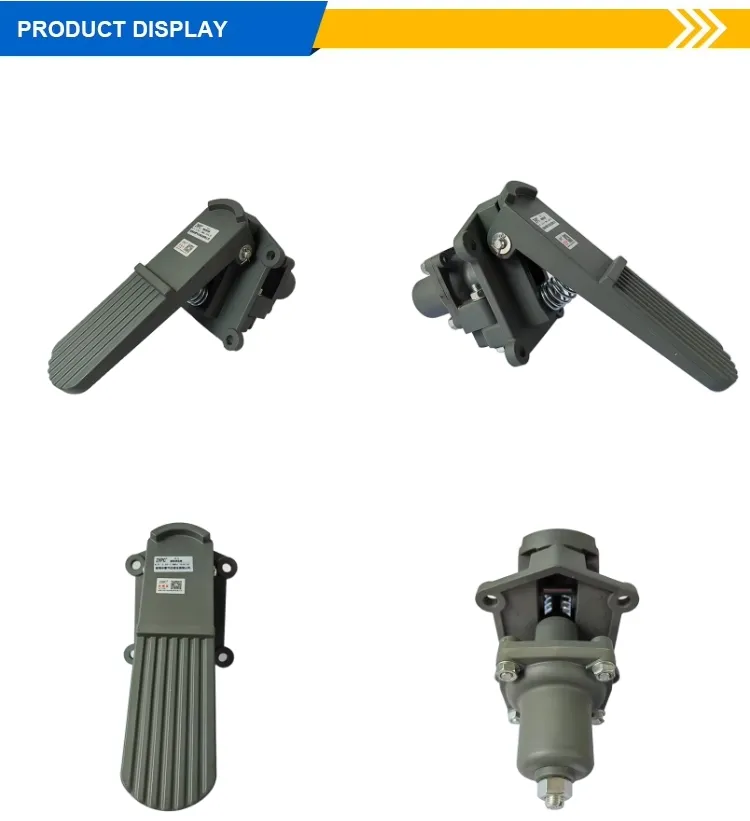

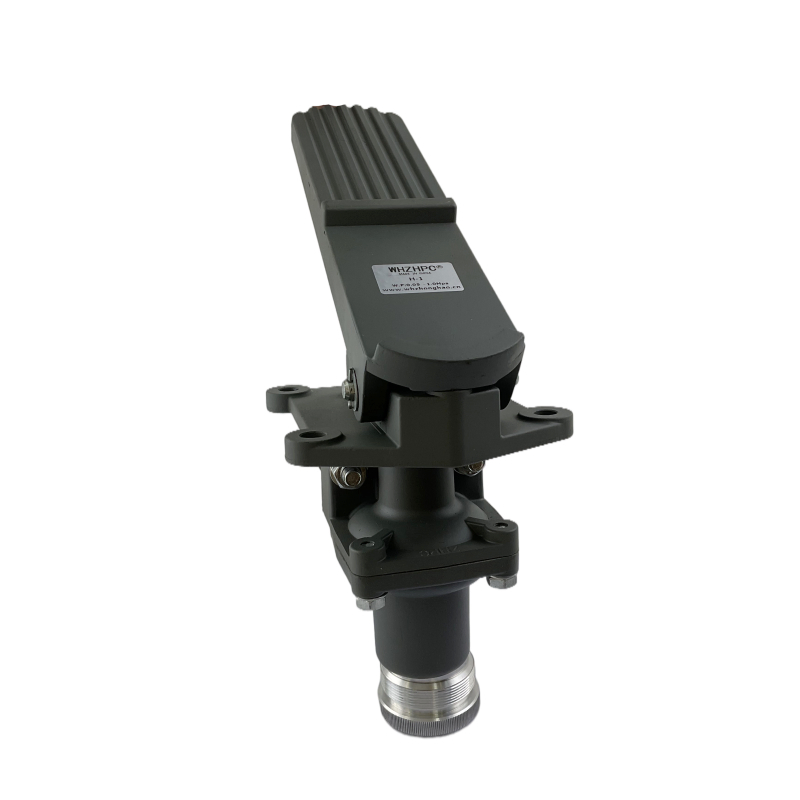

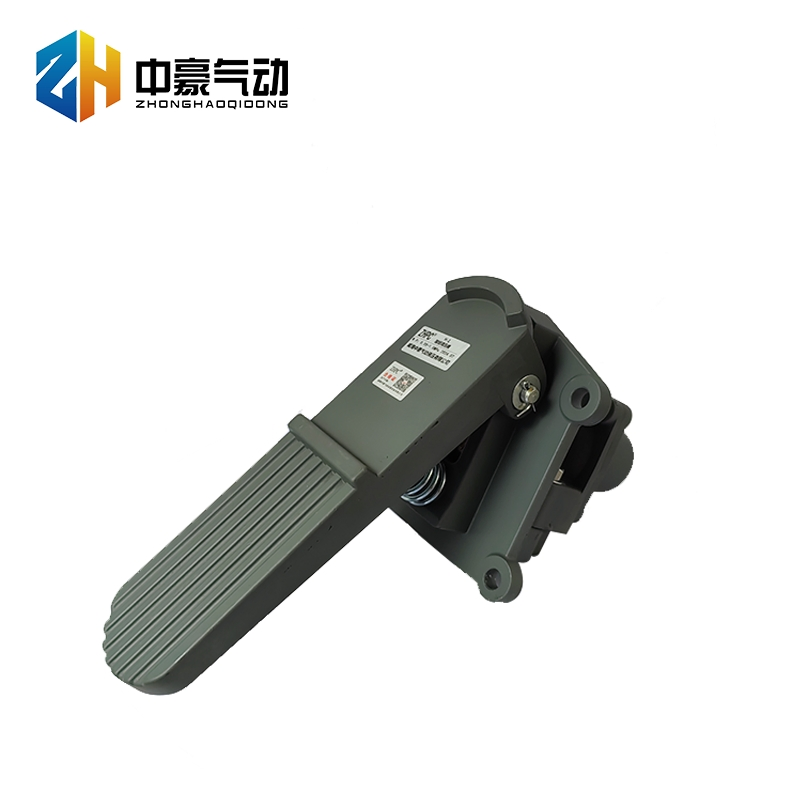

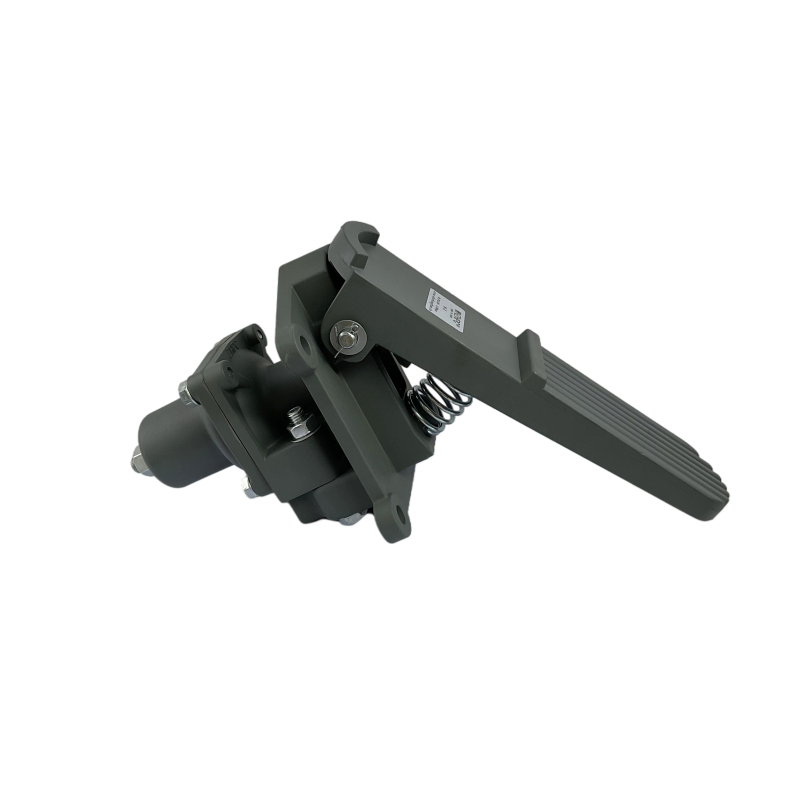

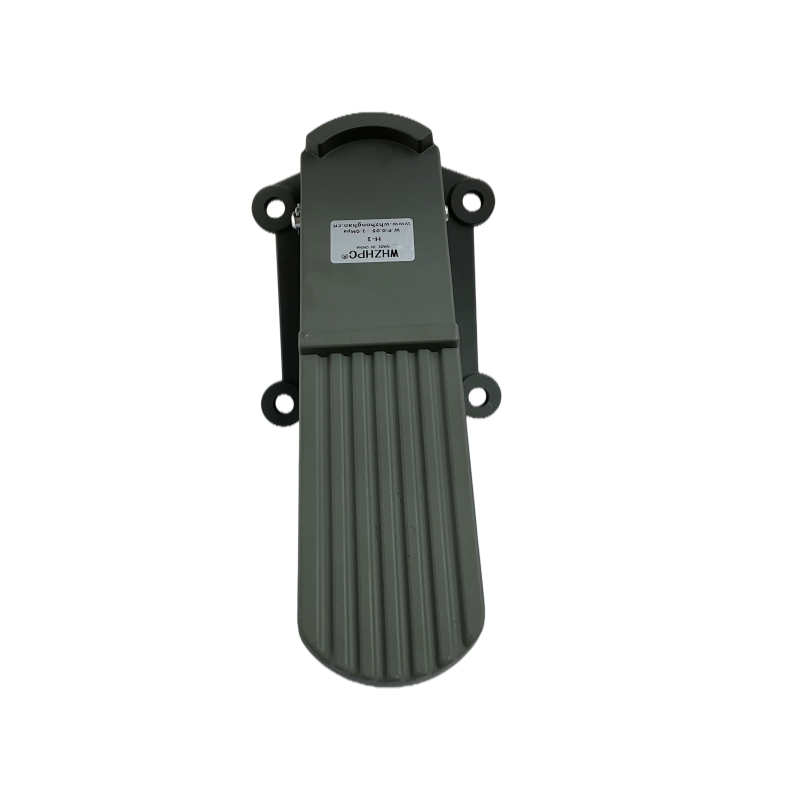

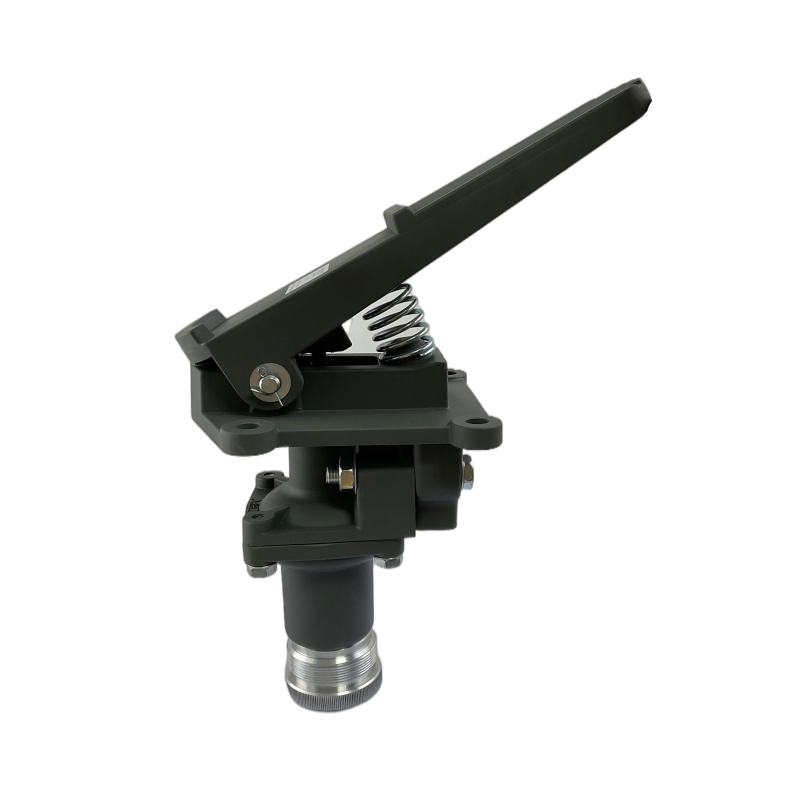

H-1 (TMR7-L6) Control Air Valve is a series of pneumatic pressure regulated, directional valves. By manual, foot or mechanical operation, the valve can control the pressure and flow of air.
These functions can be controlled in a single air path. The control air valve is a pedal-actuated, three-way pressure regulator designed for installations where the operator is standing or where the valve section cannot be lower than the ground.
Operation Mechanism:
• Pressing the pedal increases the outlet pressure.
• Lifting the pedal reduces the outlet pressure.
• The pedals return automatically.

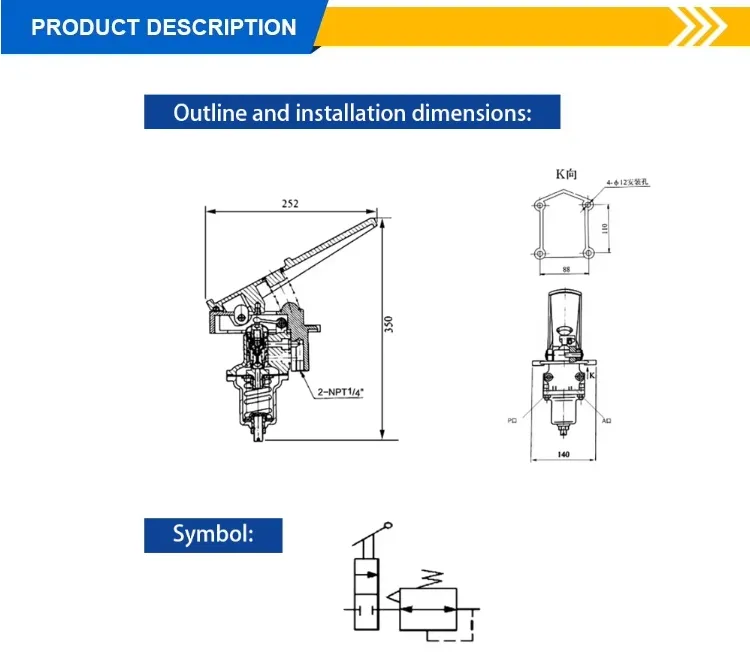

The valve is suitable for industrial control and any occasion that requires foot pressure control. The pipe connection P port is the input port, and the A port is the output port, providing a graded pressure proportional to the pedal descent.
