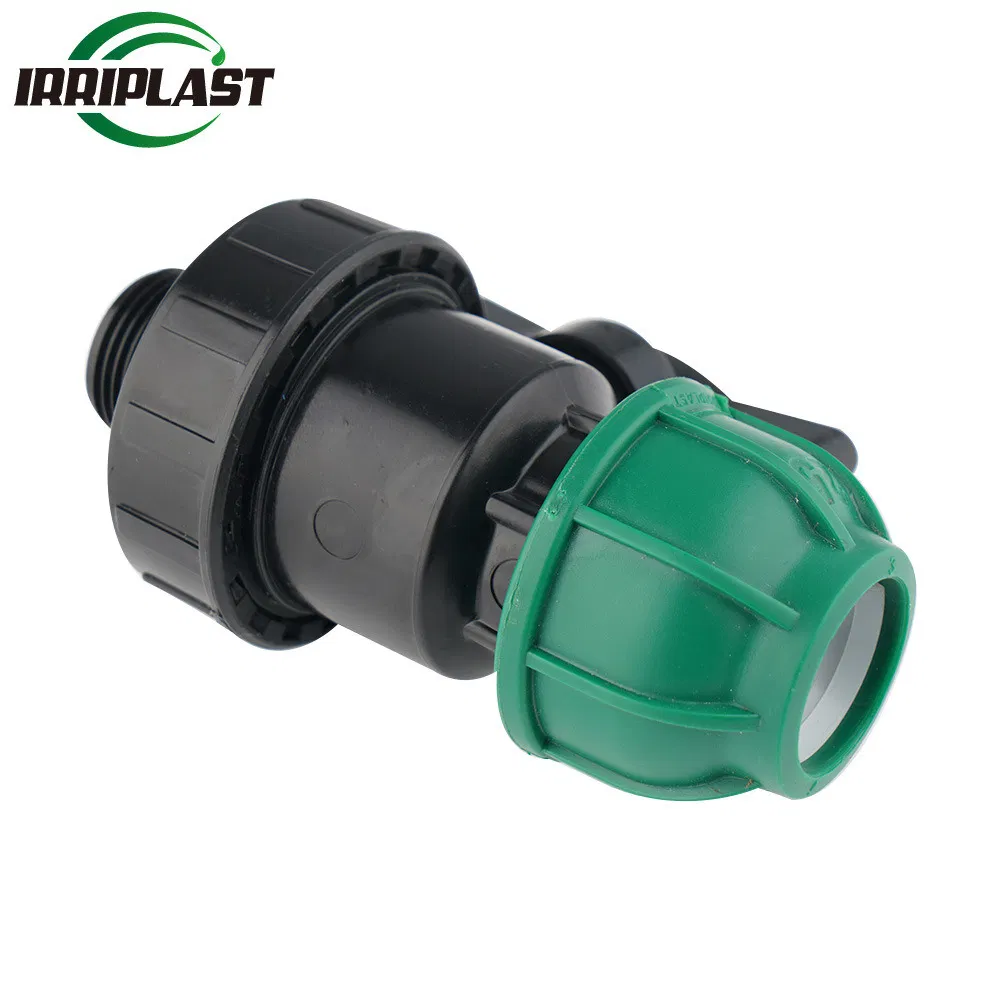

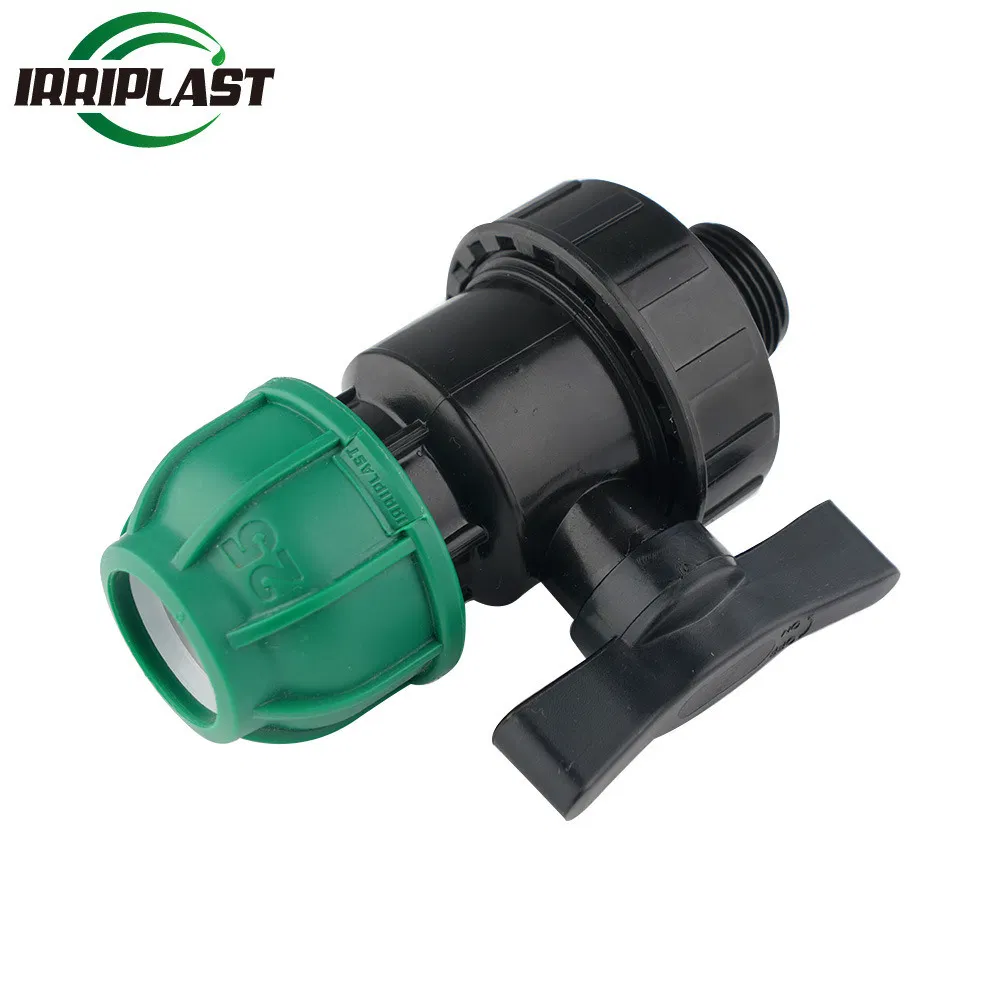

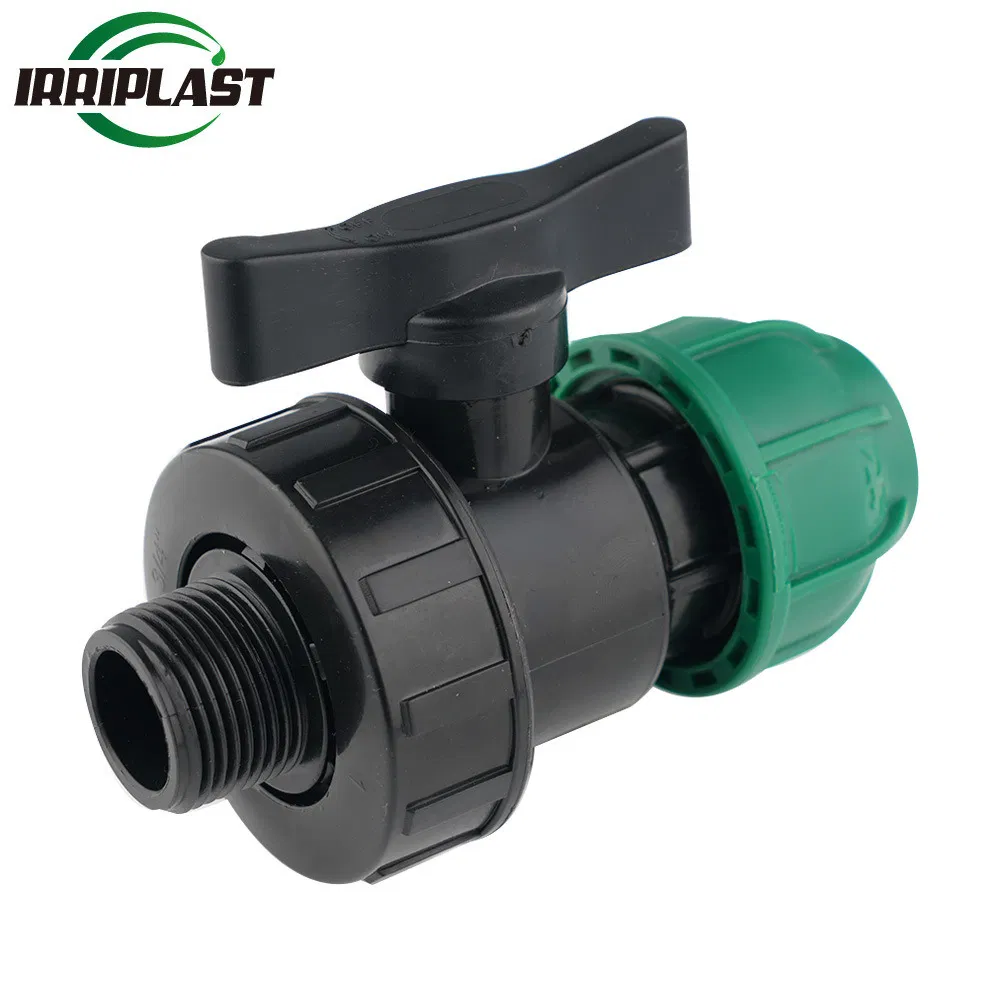

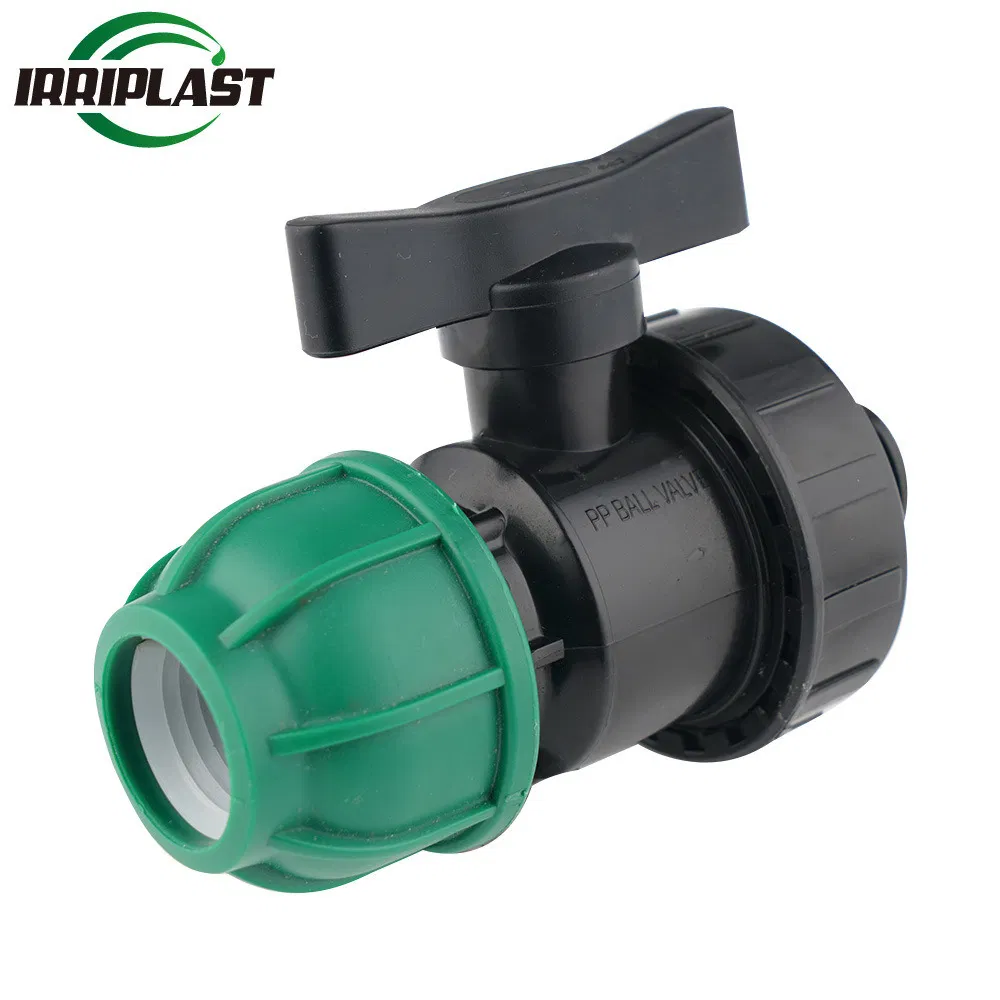

Polypropylene Hydraulic Water Systems Connection Ball Valve for Potable Distribution
Our PP compression fittings line is specifically engineered for the conveyance of fluids at high pressures, ensuring reliable water distribution for potable systems and thermo-hydraulic applications. This product line strictly adheres to international standards for mechanical properties and food-grade compatibility.

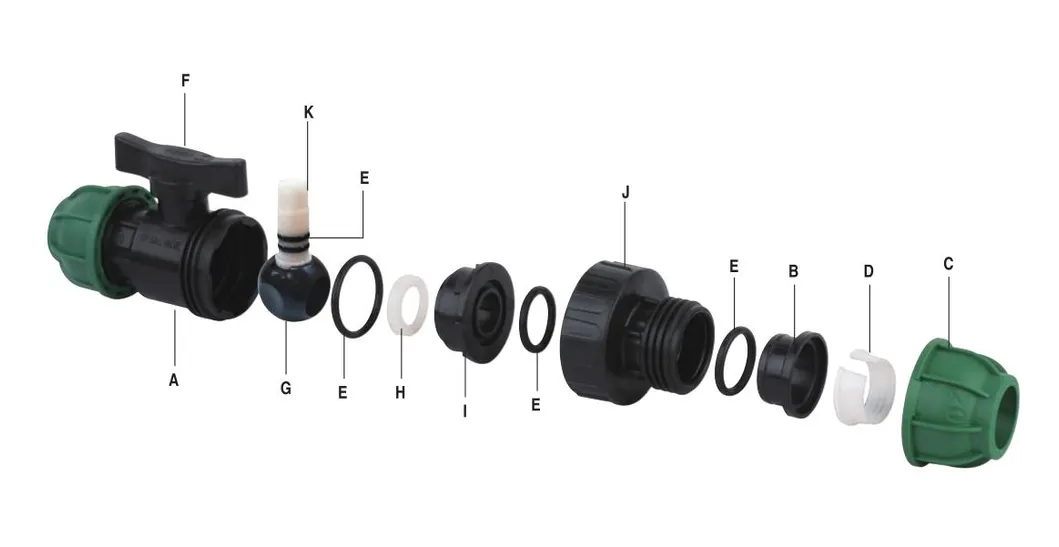

| Part Component | Material Description |
|---|---|
| Body (A) | (PPB) Polypropylene of exceptional mechanical properties |
| Blocking bush (B) | Polypropylene (PPB) |
| Nut (C) | (PPB) Polypropylene with high UV and heat stability |
| Clinching ring (D) | (POM) Polyacetal resin with high hardness |
| O-ring gasket (E) | Acrylonitrile elastomeric Rubber (NBR) |
| Handle (F) | Polypropylene (PPB) |
| Ball (G) | Polypropylene (PPB) |
| Seal ring (H) | Thermoplastic Elastomer (TPE) |
| Ball stem (K) | Polyacetal resin (POM) |

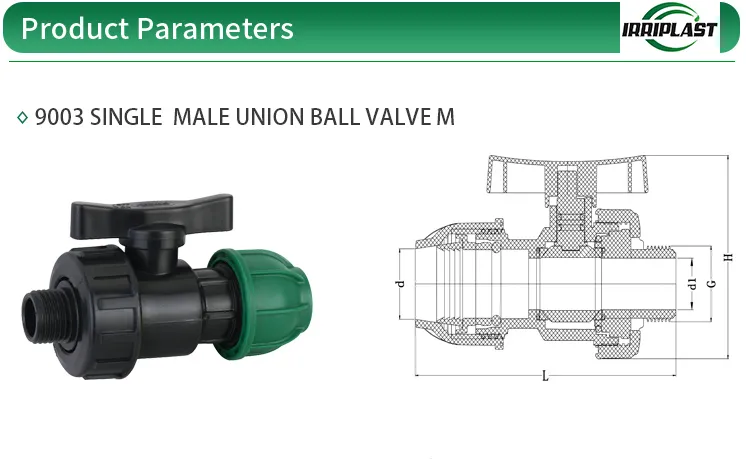

| Model | Size | Weight (g/pc) | PCS/CTN |
|---|---|---|---|
| 9003 | 20x1/2" | 89 | 200 |
| 9003 | 25x3/4" | 144 | 120 |
| 9003 | 32x1" | 216 | 80 |
| 9003 | 40x1 1/4" | 289.6 | 60 |
| 9003 | 50x1 1/2" | 497 | 36 |
| 9003 | 63x2" | 823 | 19 |
Maximum working pressure (PN) of 10 bar (UNI 9562) for diameters from 20mm to 63mm at 20°C.
| Dn (mm) | PFA* | PMA* | PEA* |
|---|---|---|---|
| 20-63 | 16 | 20 | 24 |
