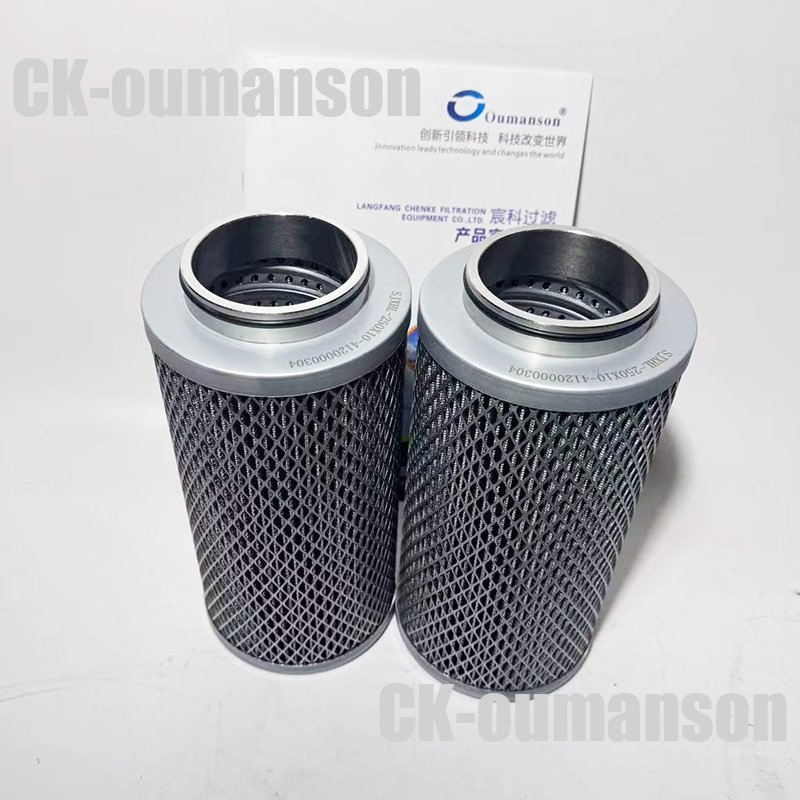

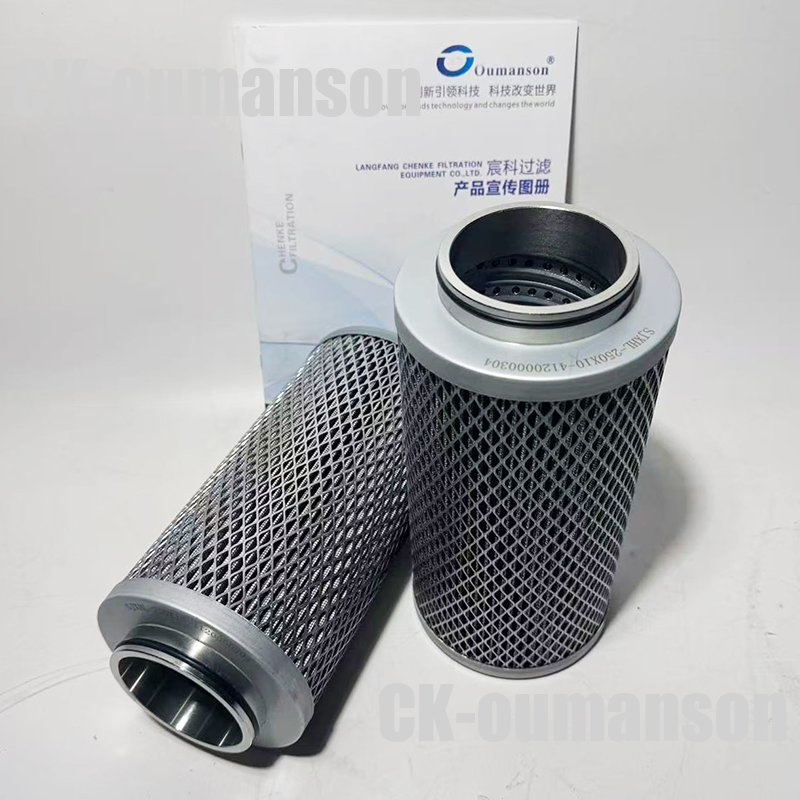

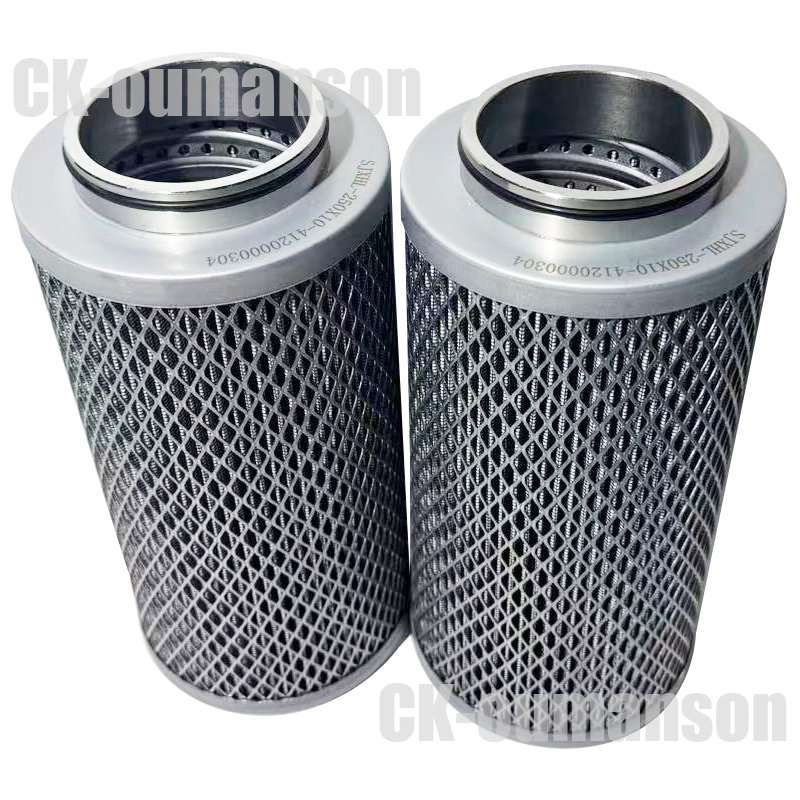

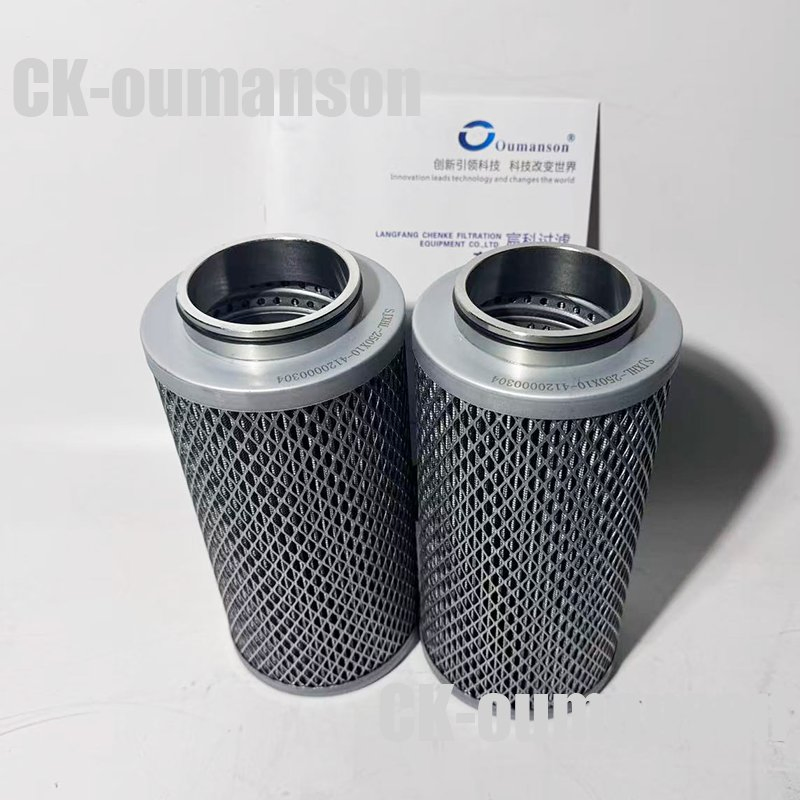

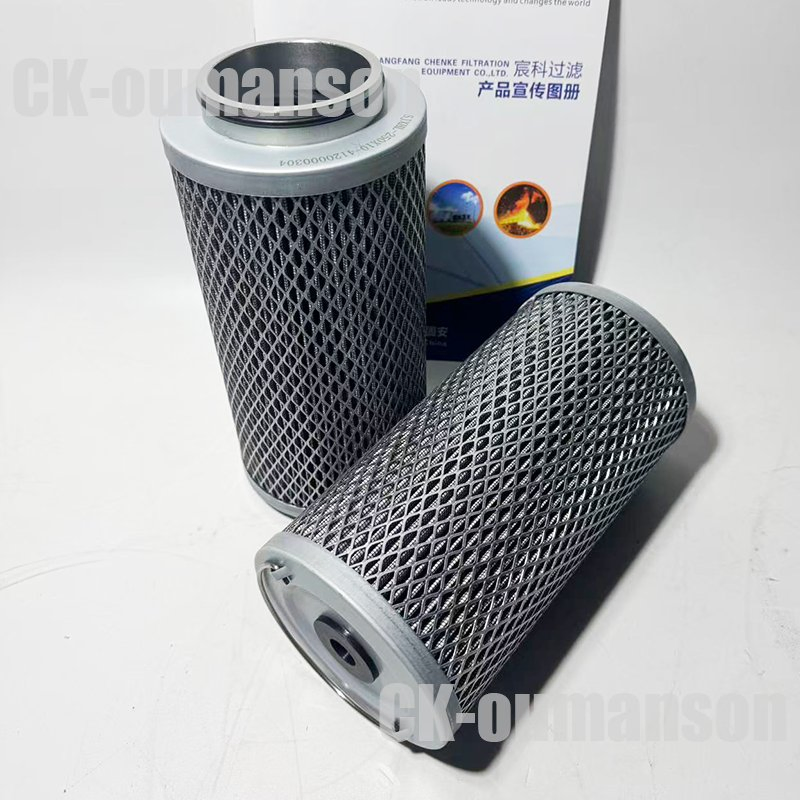

The hydraulic oil filter element is the core component used in hydraulic systems to filter impurities and pollutants. Its main function is to purify hydraulic oil, prevent impurities from entering precision components such as hydraulic pumps, cylinders, and valves, ensuring stable operation.
| Type | Installation Position | Filtration | Major Role |
|---|---|---|---|
| Oil absorbing filter | Hydraulic pump suction port | 50-200μm | Protect pump from large particle impurities |
| Return oil filter | Return oil pipeline | 10-30μm | Filter impurities generated during operation |
| High pressure filter | Pump outlet / Valve front | 1-10μm | Protect precision components under high voltage |
| Offline filter | Fuel tank bypass circuit | 5-20μm | Continuously purify fuel tank fluid |
Filter material: Includes glass fiber, composite filter paper, metal mesh, or non-woven fabric.
Skeleton: Metal or plastic frame to prevent deformation under pressure.
End cap: Ensures oil passes completely through the filter material.
Seals: O-rings and gaskets to avoid bypass leakage.

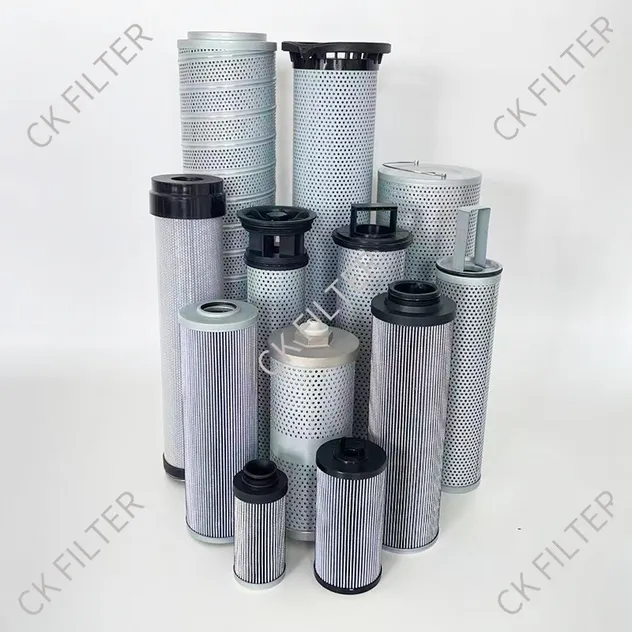

Hydraulic Filter Series

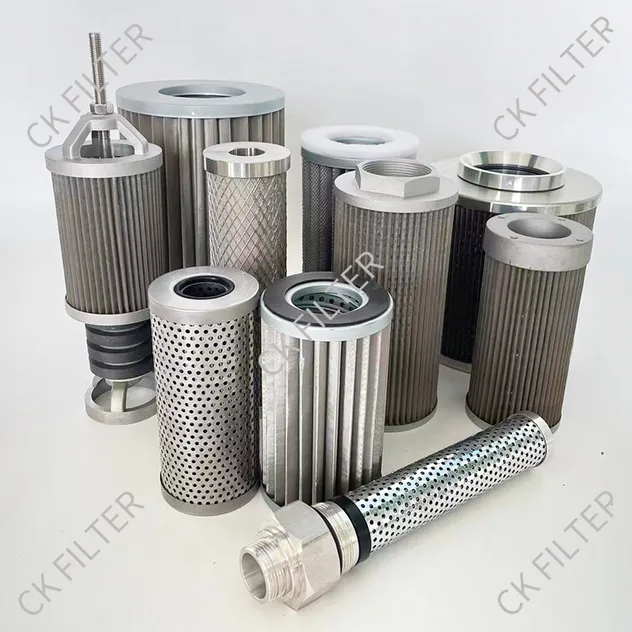

Stainless Steel Series

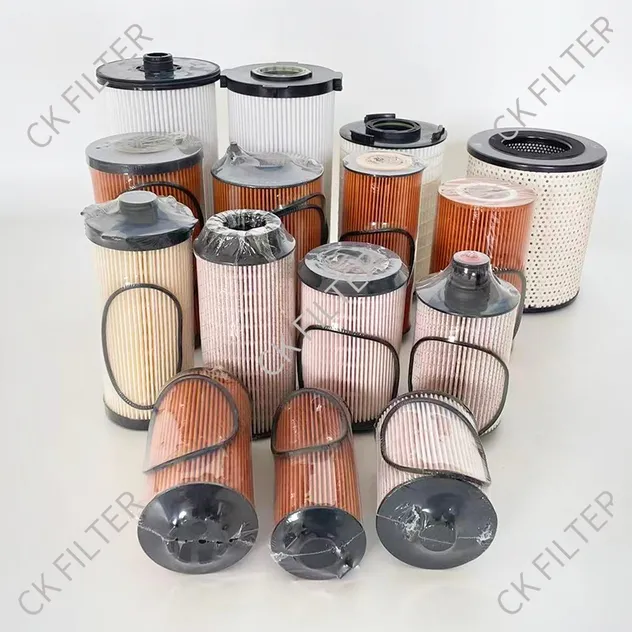

Diesel Engine Series

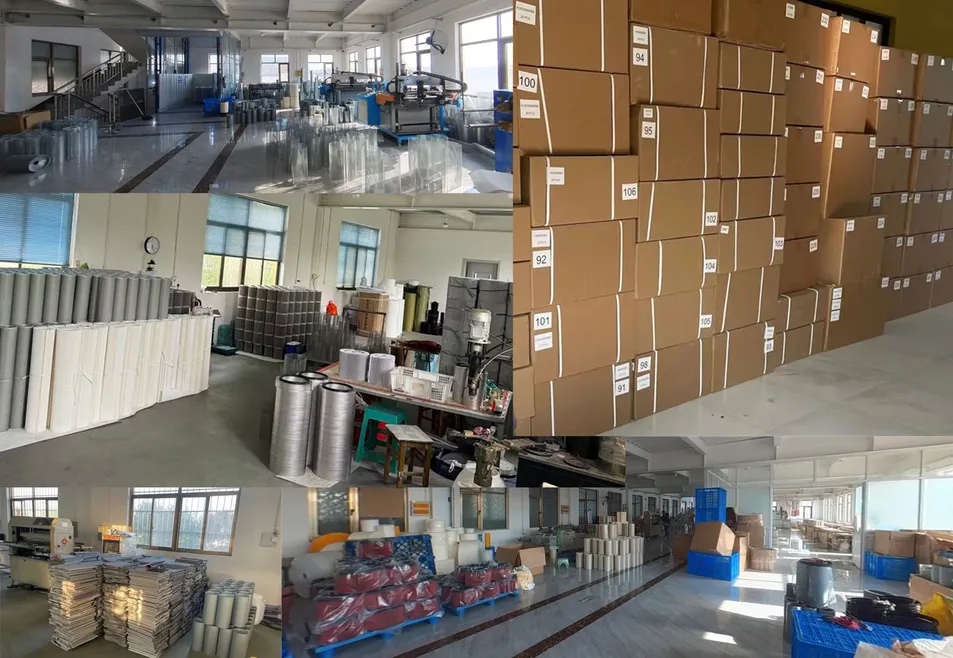

OEM/ODM Capabilities
Customized Solutions
Specializing in the production of various paper filters, rotary filters, air filters, fuel filters, and oil-gas separation filters. We offer over 1500 different specifications and can customize shaped filter cartridges according to specific requirements.
Warranty: 6 months or 2000 working hours.
