Aksurion Hydraulic
1 / 5

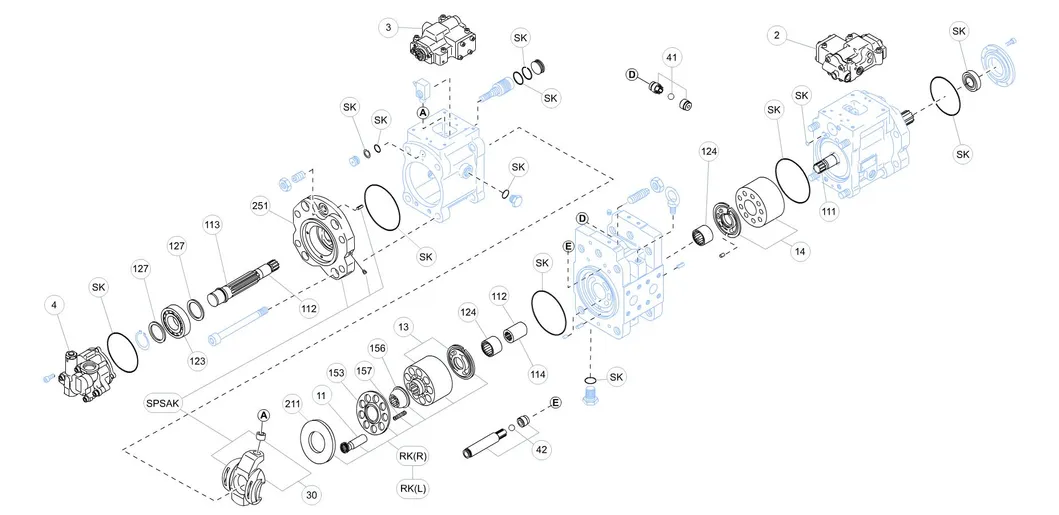

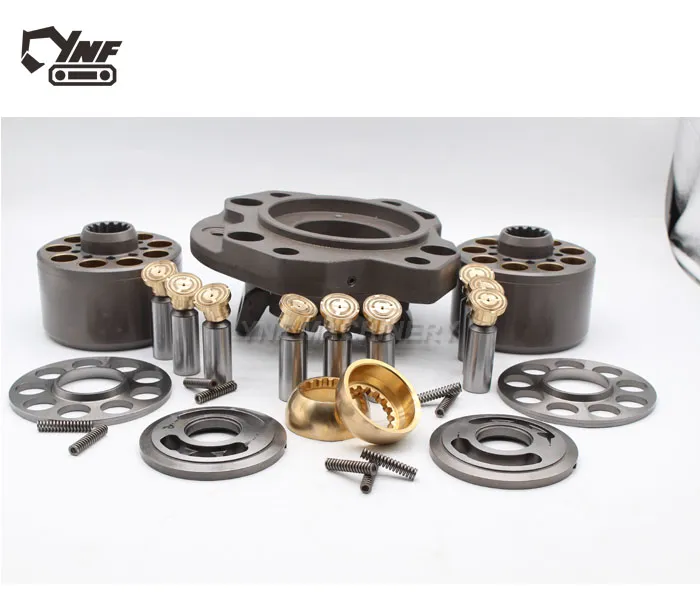

Description:

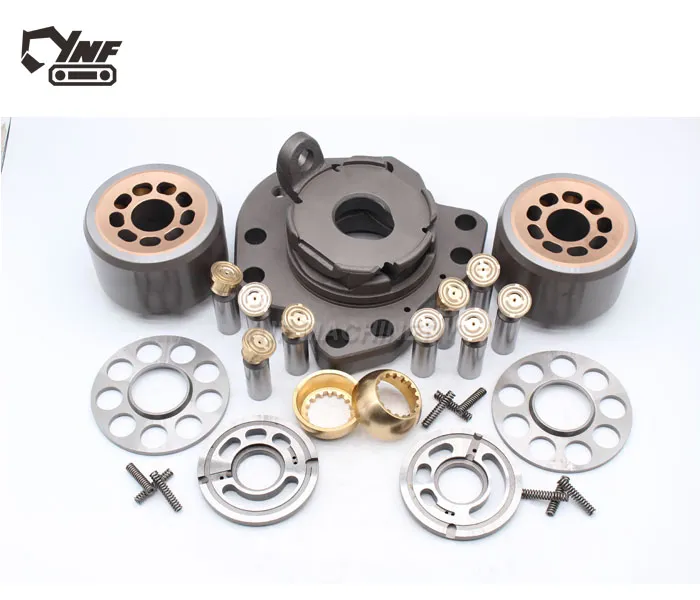

| Item No. | Description | Quantity |
|---|---|---|

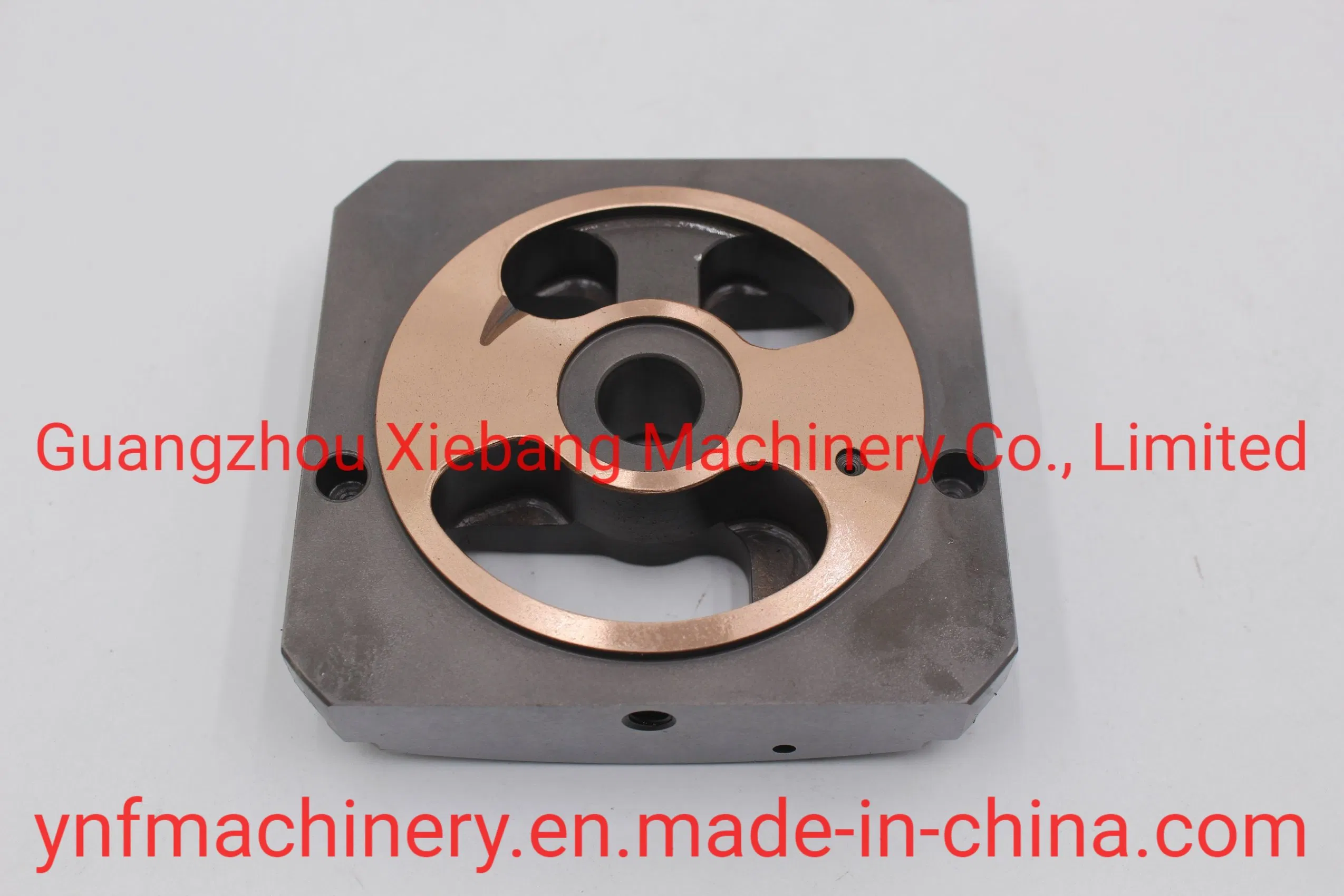

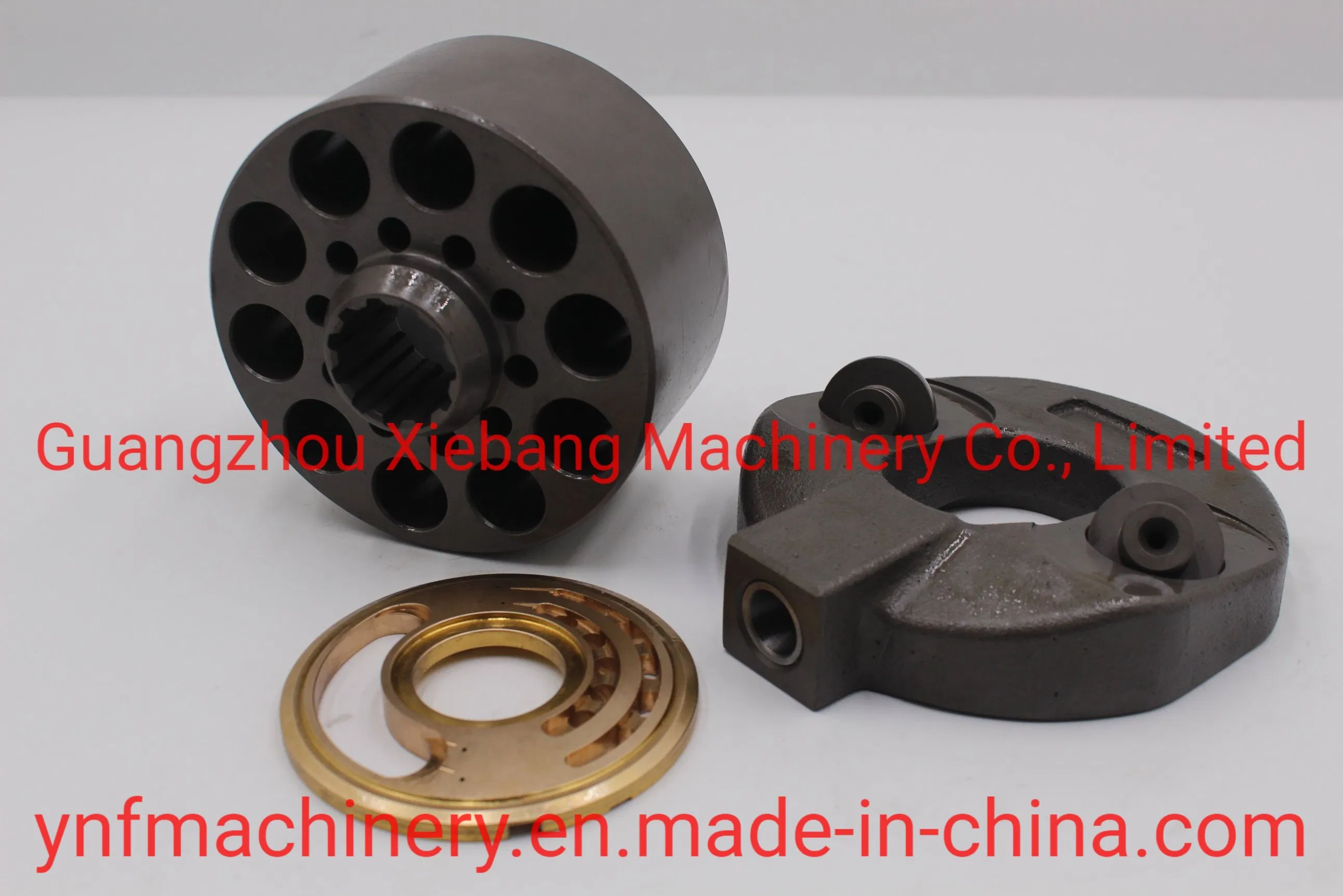

| 1 | Cylinder block + valve plate (L) | 1 |
| 2 | Cylinder block + valve plate (R) | 1 |
| 3 | Ball guide | 1 |
| 4 | Retain plate | 1 |
| 5 | Piston | 9 |
| 6 | Shoe plate | 1 |

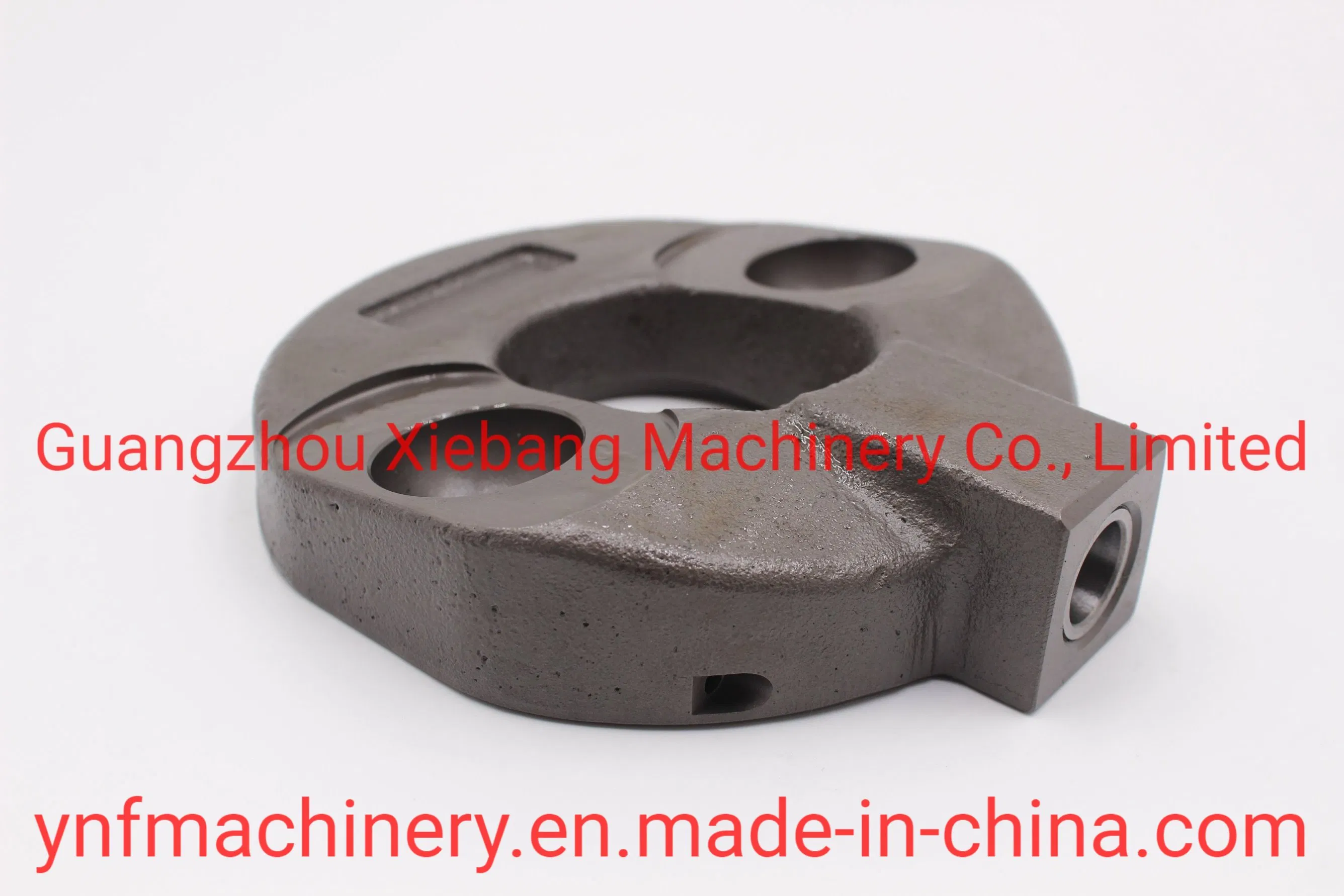

| 7 | Yoke ass'y | 1 |
| 8 | Drive shaft (L) | 1 |
| 9 | Drive shaft (R) | 1 |
| 10 | Coil spring | 9 |
| 11 | Servo piston pin | 1 |
| 12 | Servo piston | 1 |

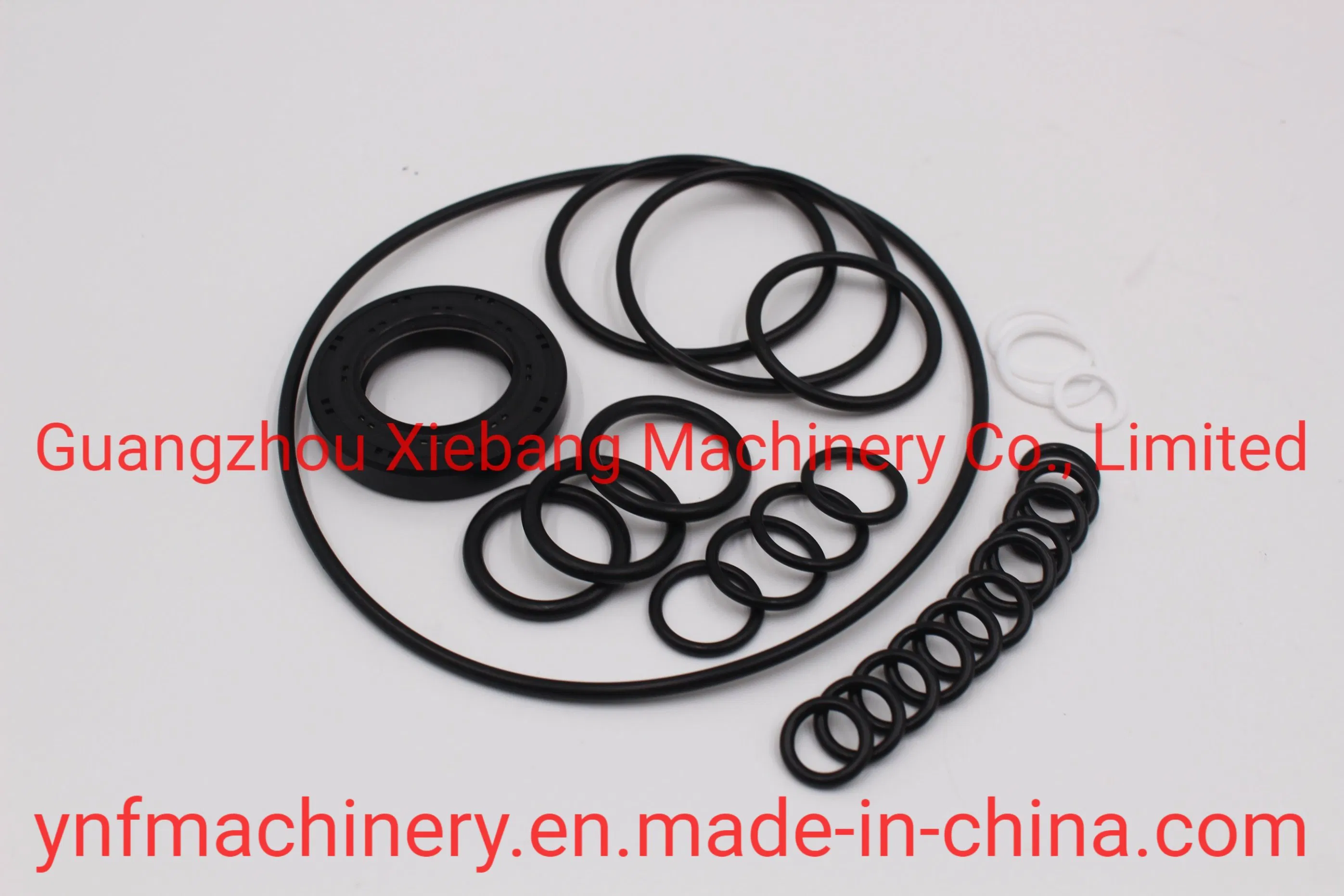

| 13 | Seal Kit | 1 |
| M341028 | 9101530 | 087-5189 | SOCKET BOLT | PUMP DEVICE | 3046916 | 9091652 |
| 984054 | 2028036 | 094-1875 | WASHER SPRING | PUMP DEVICE | 4249345 | 9116399 |
| 4114402 | 4244693 | 094-1881 | WASHER SPRING | CASING GEAR | 4244689 | 9116400 |
| 4317633 | A811100 | 9150726 | ADAPTER | PILOT GEAR | 4116307 | 9116401 |
| 4234782 | 4248609 | 9152668 | PLUG | GEAR SHAFT | 4269480 | 9116375 |
| 4340855 | 4244691 | 1020336 | GAUGE LEVER | BRG BALL BEARING | 3046917 | 9116379 |
| 9743977 | 1014526 | 3063840 | PIPE | GEAR | 4244541 | 9116383 |
Additional Support:
• Hydraulic Breaker Seals, Seal Kits, and Hammer Parts.
• Spare Parts for Hydraulic Cylinders, Swing Motors, Travel Motors, Main Control Valves (MCV), and Diesel Engines.
