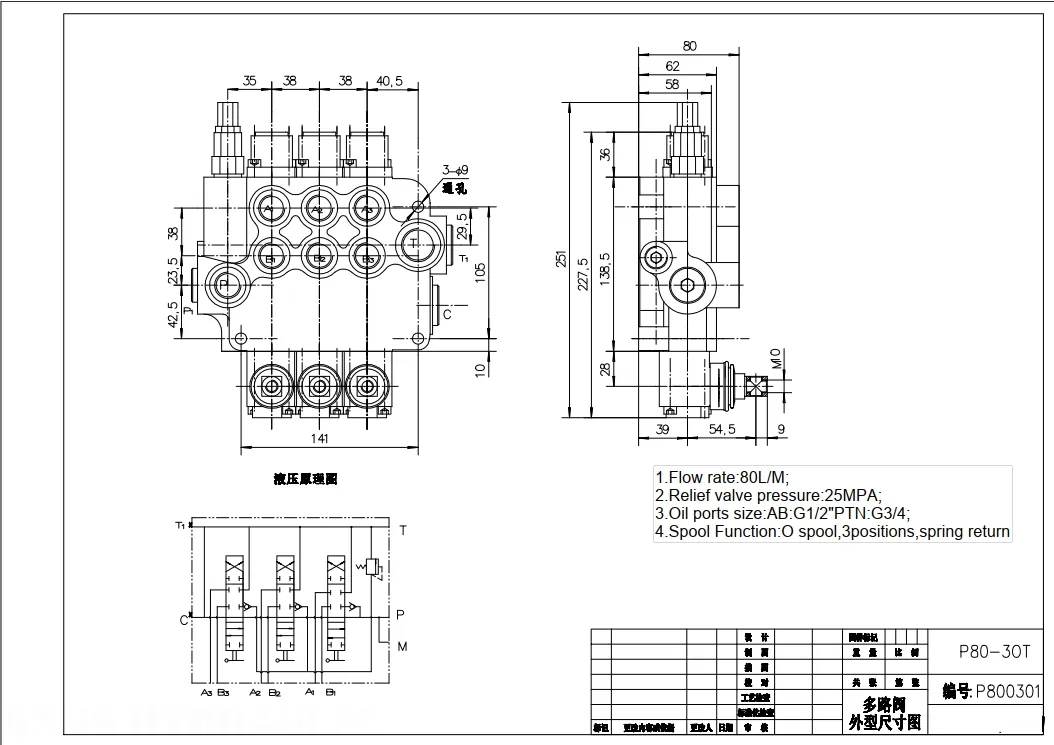

| Model NO. | P80-G34-G12-3OT Manual |
| Drive | Electric Hydraulic |
| Type | Directly Operated Type |
| Control Method | Manual |
| Section | 3 Section |
| Structure Type | Monoblock Valve |
| Rated Flow | 80 L/Min (21.2 Us Gpm) |
| Max Pressure | 250 Bar (3600 Psi) |
| Operating Viscosity Range | 15 - 75 mm²/S (15 Cst to 75 Cst) |
| Ambient Temperature Range | -40°c to +80°c (-40°f to +176°f) |
| Spool | 3 Spool |
| Package Size | 26.00cm * 23.00cm * 11.00cm |
| Package Gross Weight | 10.700kg |
| Transport Package | Plastic Bag-Carton Box-Pallet-Wooden Box |

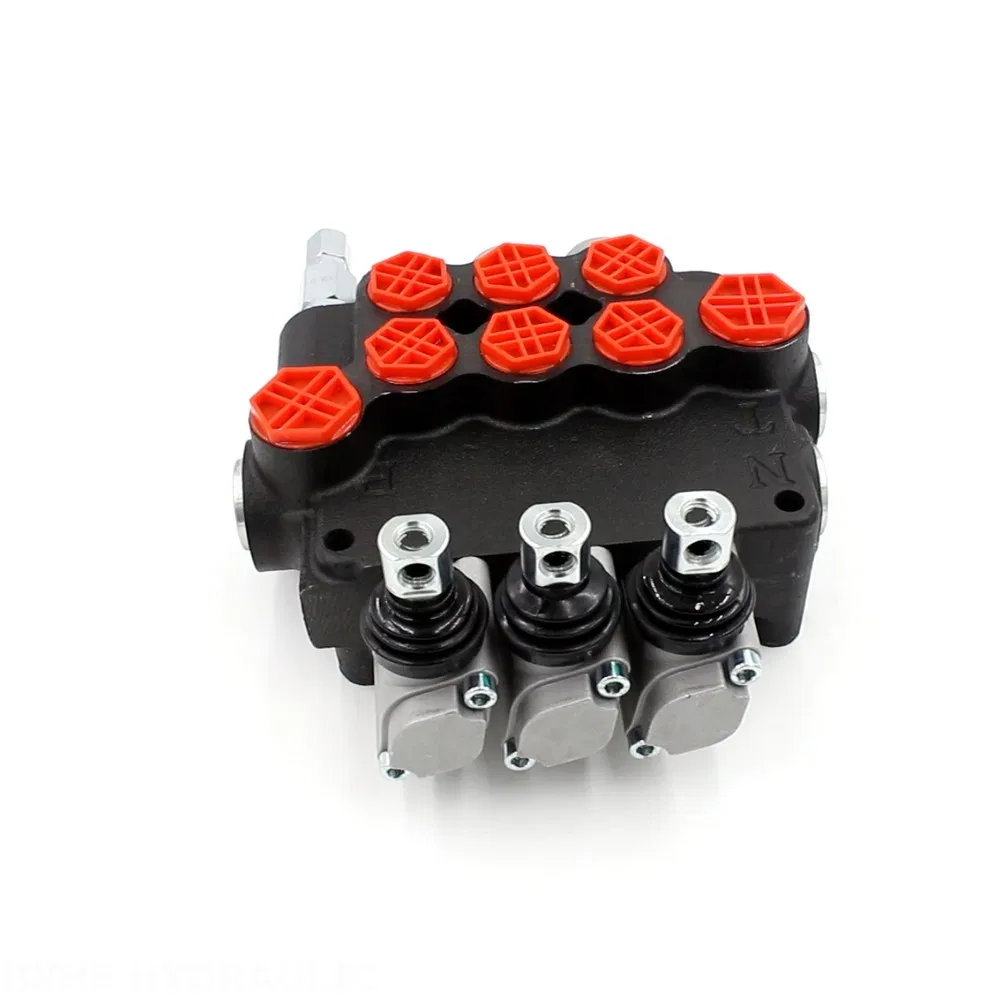

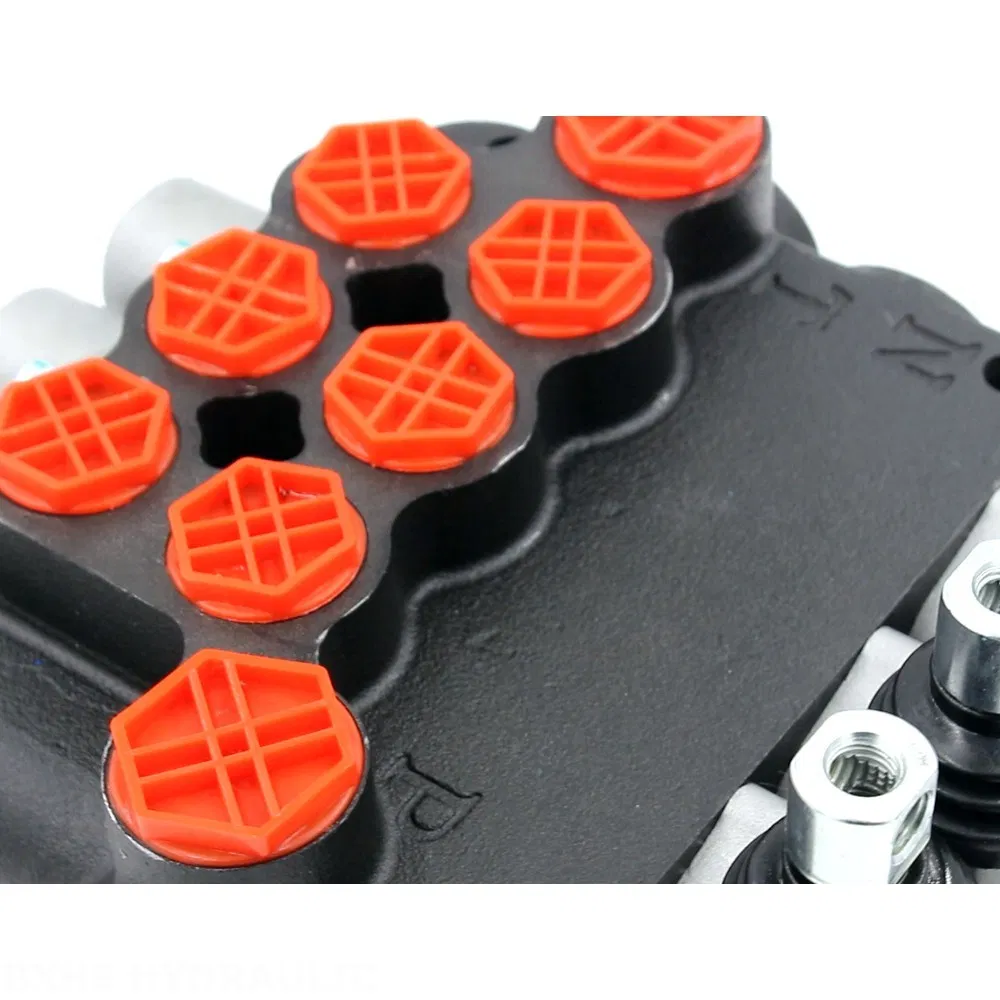

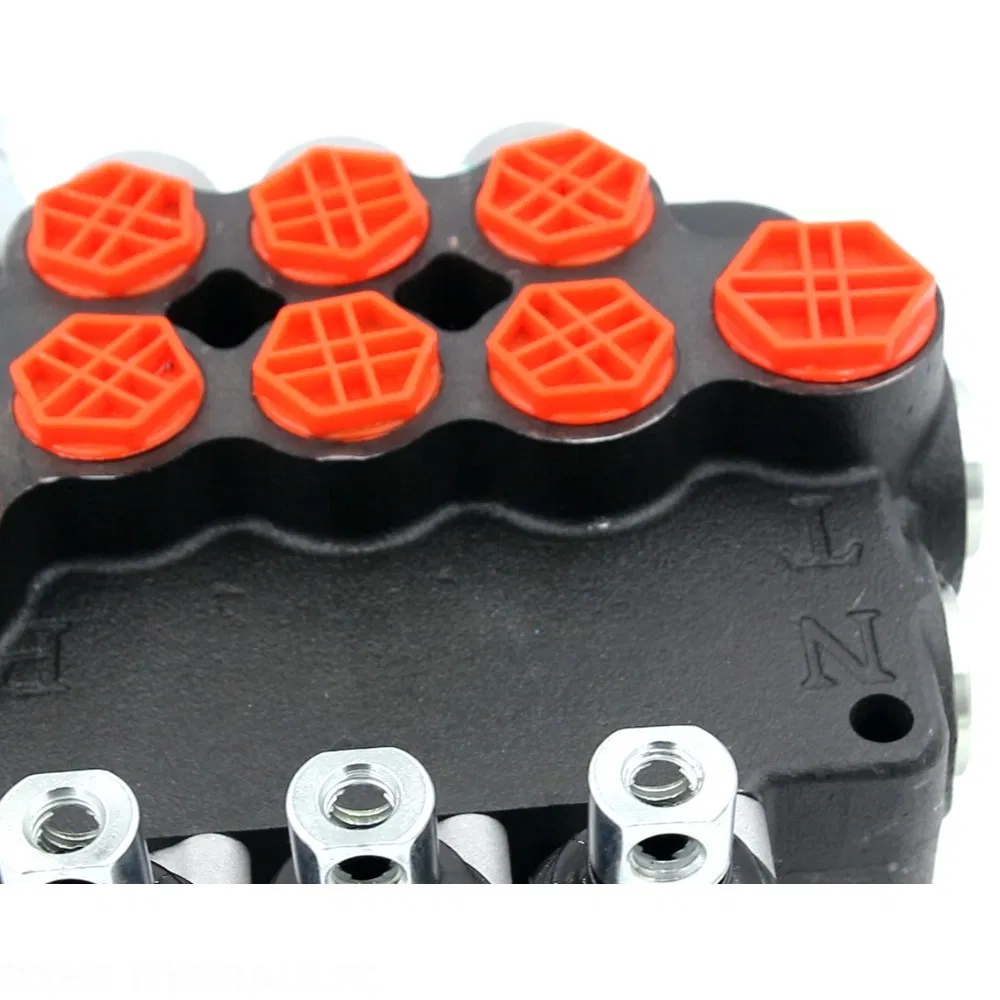

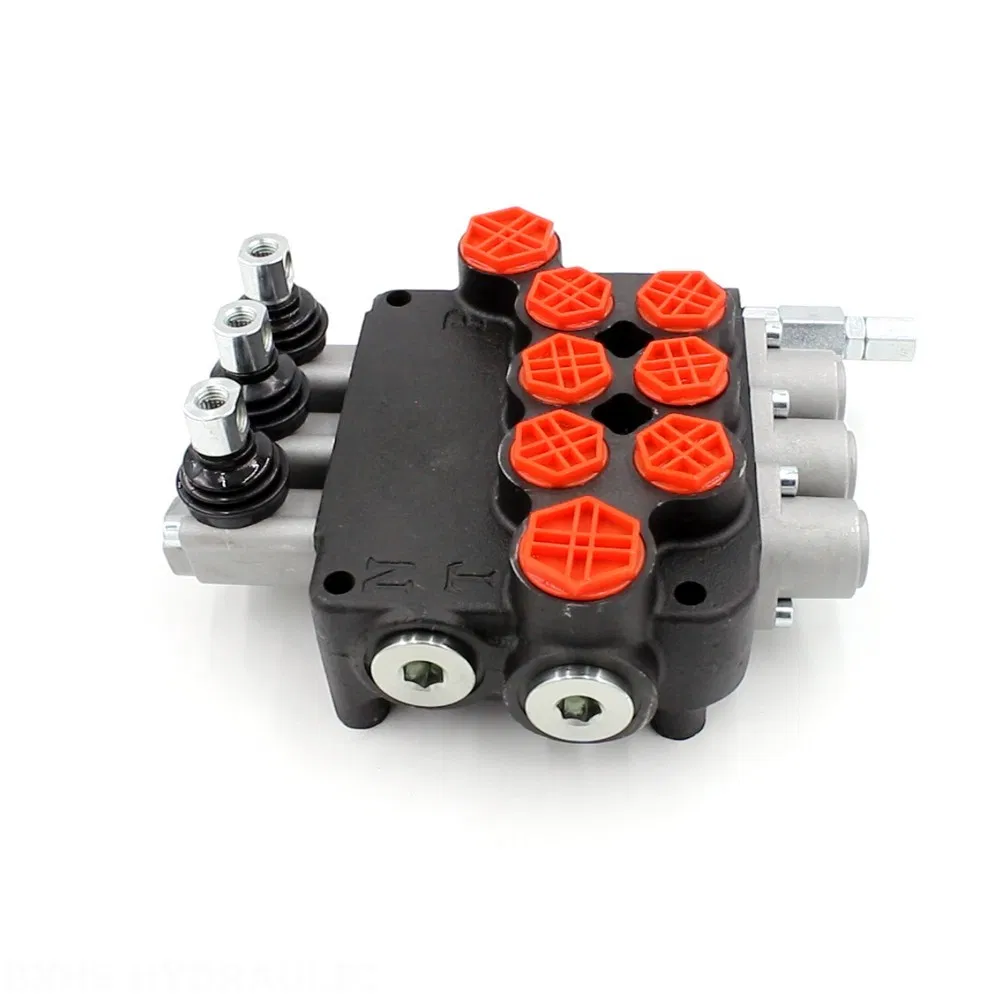

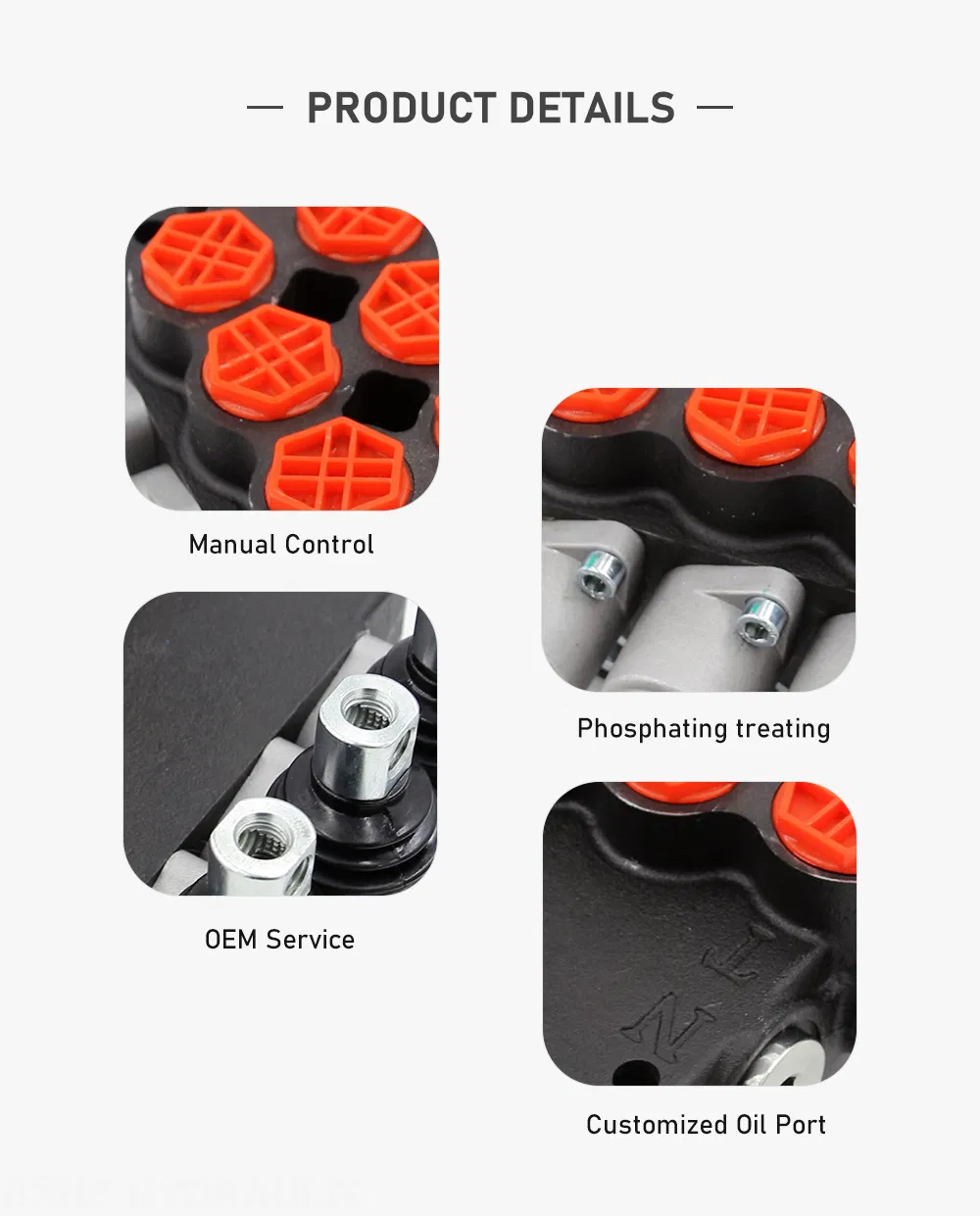

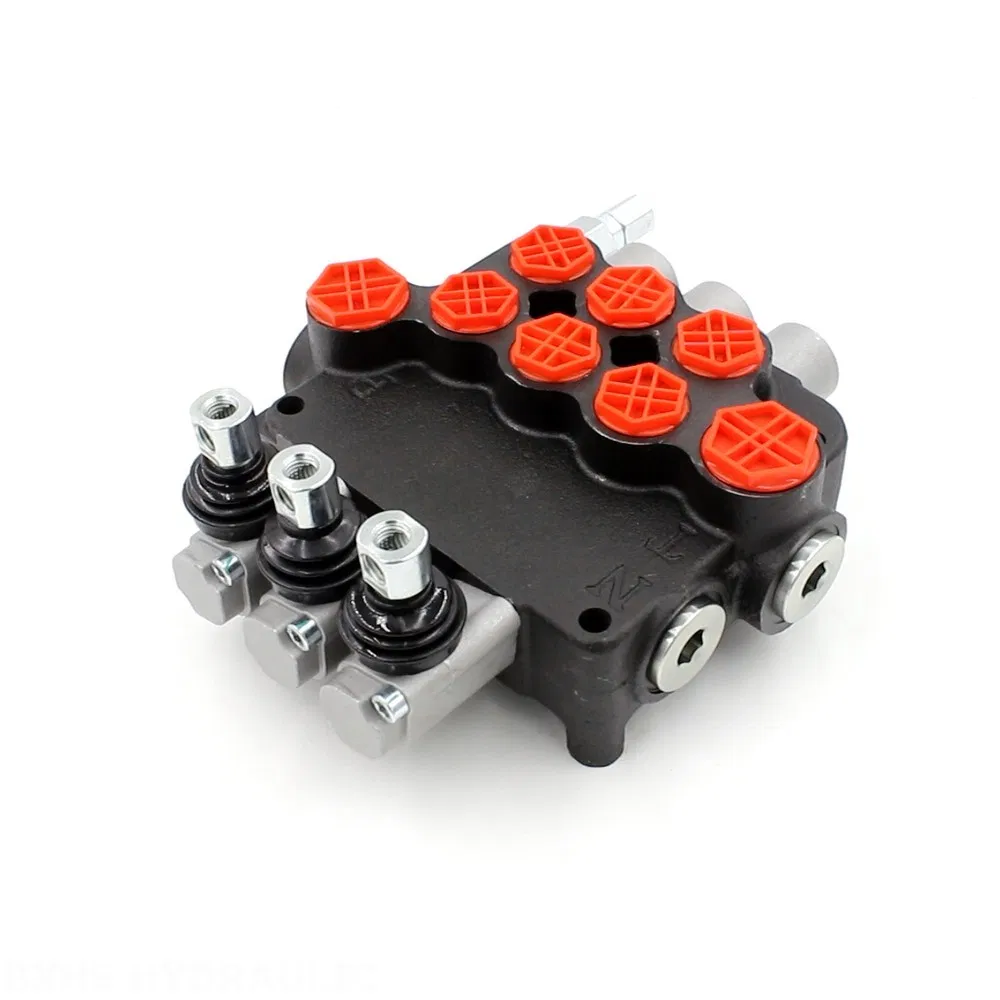

The Hydraulic Pneumatic Control Valve 3-Spool P80A Monoblock Directional Control Valve is a heavy-duty, high-performance valve designed for use in a wide range of construction, material handling, and industrial applications. Featuring a 3-spool design, rated flow of 80 L/min, and maximum pressure of 315 bar, this valve offers reliable operation and exceptional durability.
This 3-Spool P80A Monoblock Directional Control Valve is designed for demanding applications in construction, material handling, and industrial equipment. It features a robust monoblock construction, rated flow of 80 L/min (21.2 US gpm), and maximum pressure of 315 bar (4600 psi). The valve operates with a manual control method and is suitable for a wide range of operating viscosities and ambient temperatures.
| Structure Type | Monoblock valve |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
Compatible with various applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
