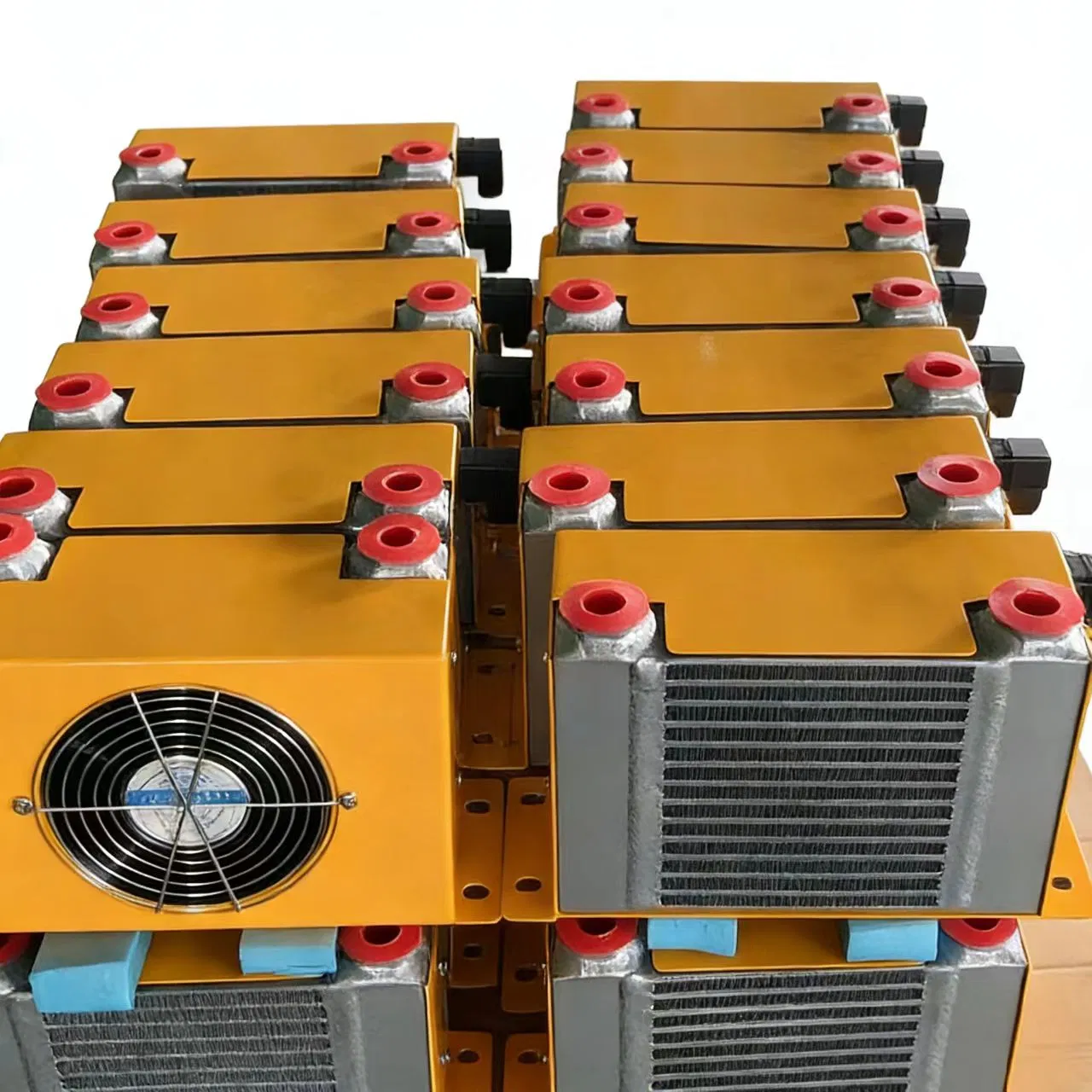

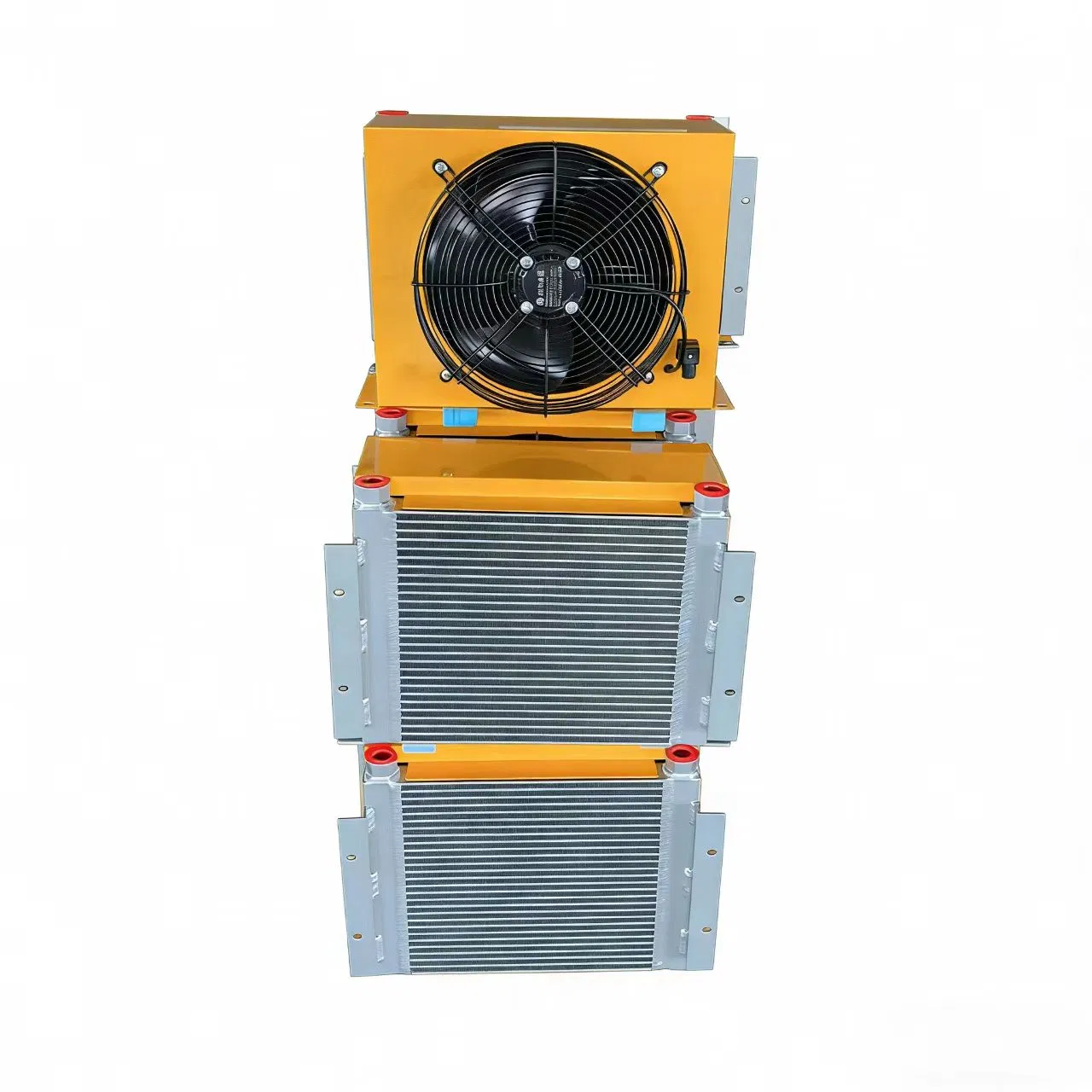

Hydraulic Oil Cooler Excavator Oil Radiator

📋 Basic Information

Certification:CE, ISO

Application:Cooler

Principle:Mixing Heat Exchanger

Style:Plate Type

Material:Aluminium

Type:Plate Fin Heat Exchanger

Test:100% Passed

Power Range:2kw-40kw

Working Pressure:5-40bar

Transport Package:Wooden Case

⚙️ Product Description

Air compressor cooler working principles remain consistent whether adopting air cooling or oil cooling. The fins of air-cooled coolers can be susceptible to dust accumulation, which may impact cooling efficiency and cause exhaust temperatures to rise. Regular maintenance and cleaning using specialized liquid soaking methods are essential for optimal performance. Our cooling system utilizes high-efficiency heat transfer technology to ensure the entire machine operates within a stable temperature range.

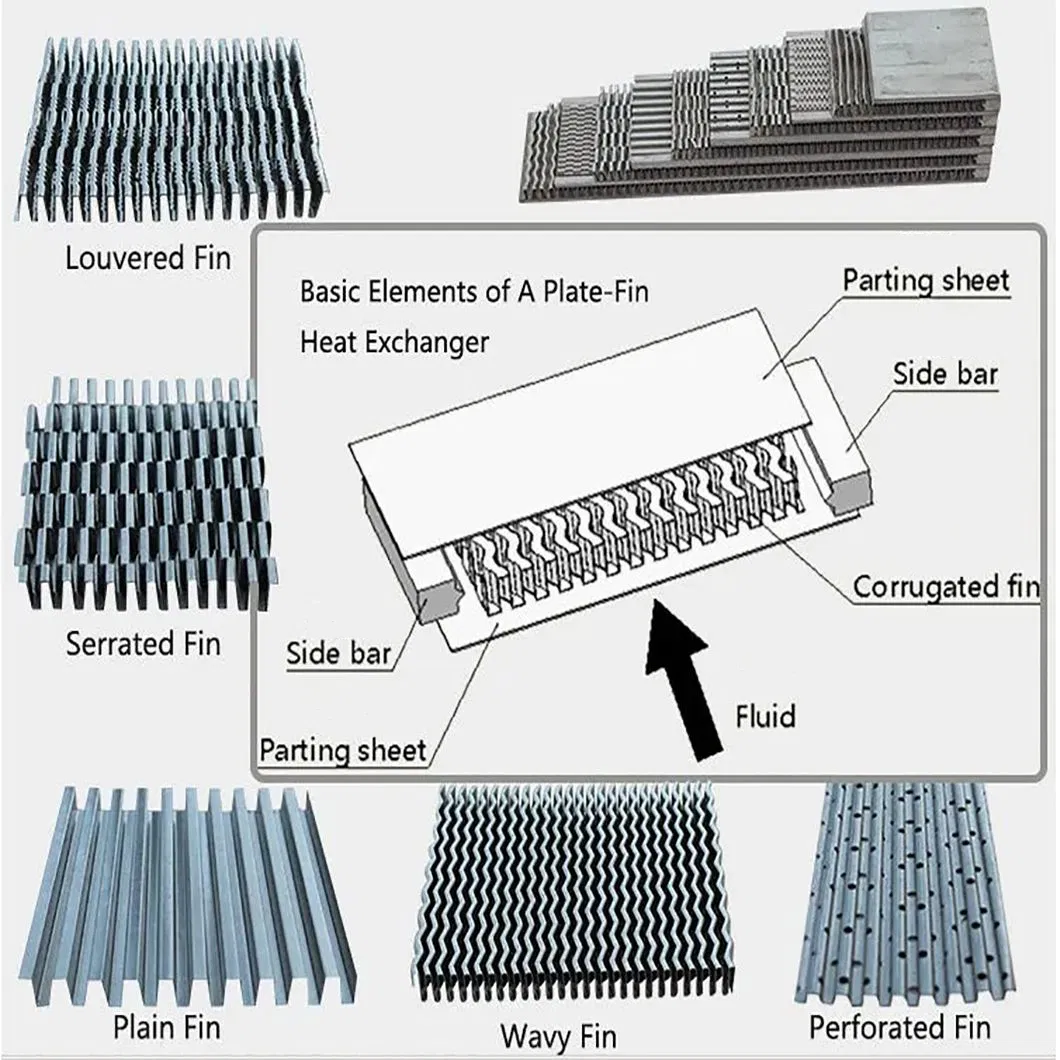

The plate-fin cooler consists of a core, heads on both sides, connecting pipes, and mounting brackets. The core is manufactured through vacuum brazing, integrating cover plates, partition plates, and various fin types into a single robust unit. The baffle serves as the primary heat transfer surface, while fins enhance secondary heat transfer.

📊 Specifications

Medium	Air, Oil, Water, Wind
Fin Types	Application	Features	Width Series (mm)
BW (Wavy-fin)	External fin	Widely used, better heat emission	2.0, 2.5, 3.0, 3.8, 4.7, 5.6, 6.5, 8.0, 9.0, 9.5, 10.3, 11.3, 11.7, 12.0
JC (Serrated-fin)	Internal & External	High heat emission, large resistance
DK (Perforated-fin)	Internal fin	Standard efficiency
PZ (Plain-fin)	Internal & External	Construction machinery use
BY (Louvered-fin)	External fin	Enhanced airflow

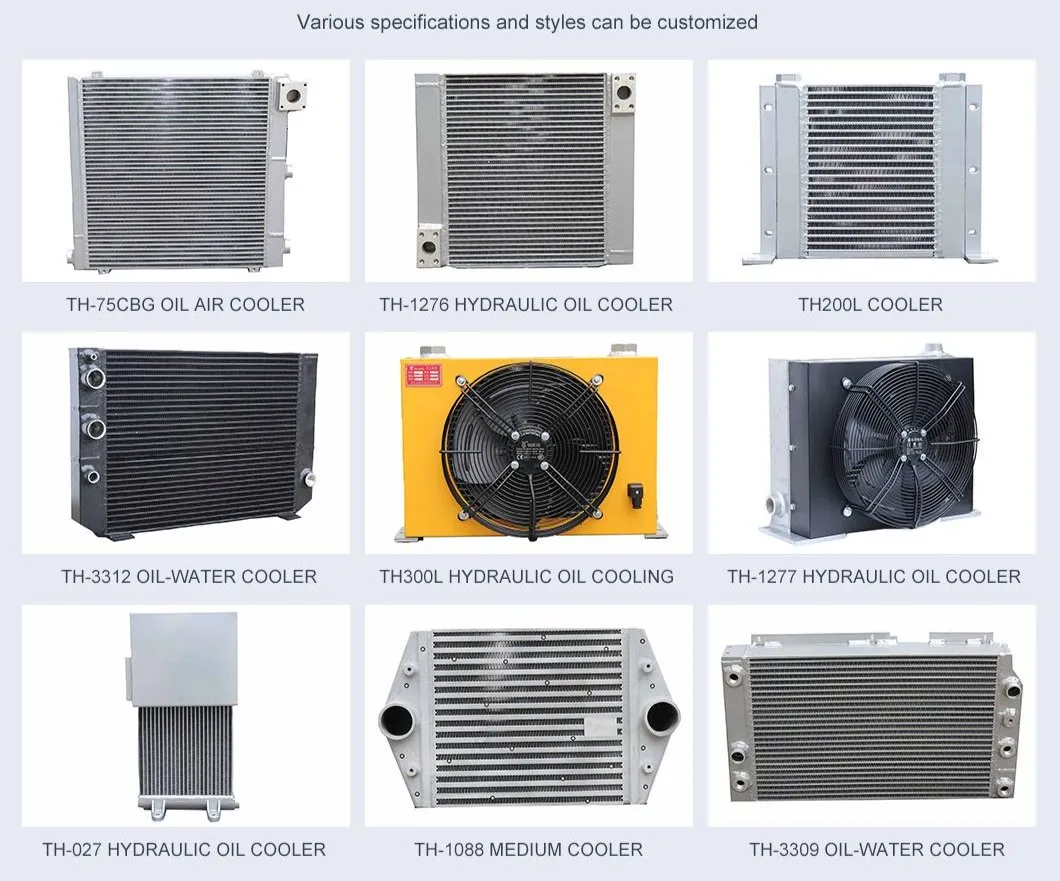

🔍 Product Details

🏆 Our Advantages

We focus on the R&D and export of heat exchangers, oil coolers, and aluminum cores. Our products serve engineering machinery, diesel engines, generators, automotive, wind power, and hydraulic facilities.

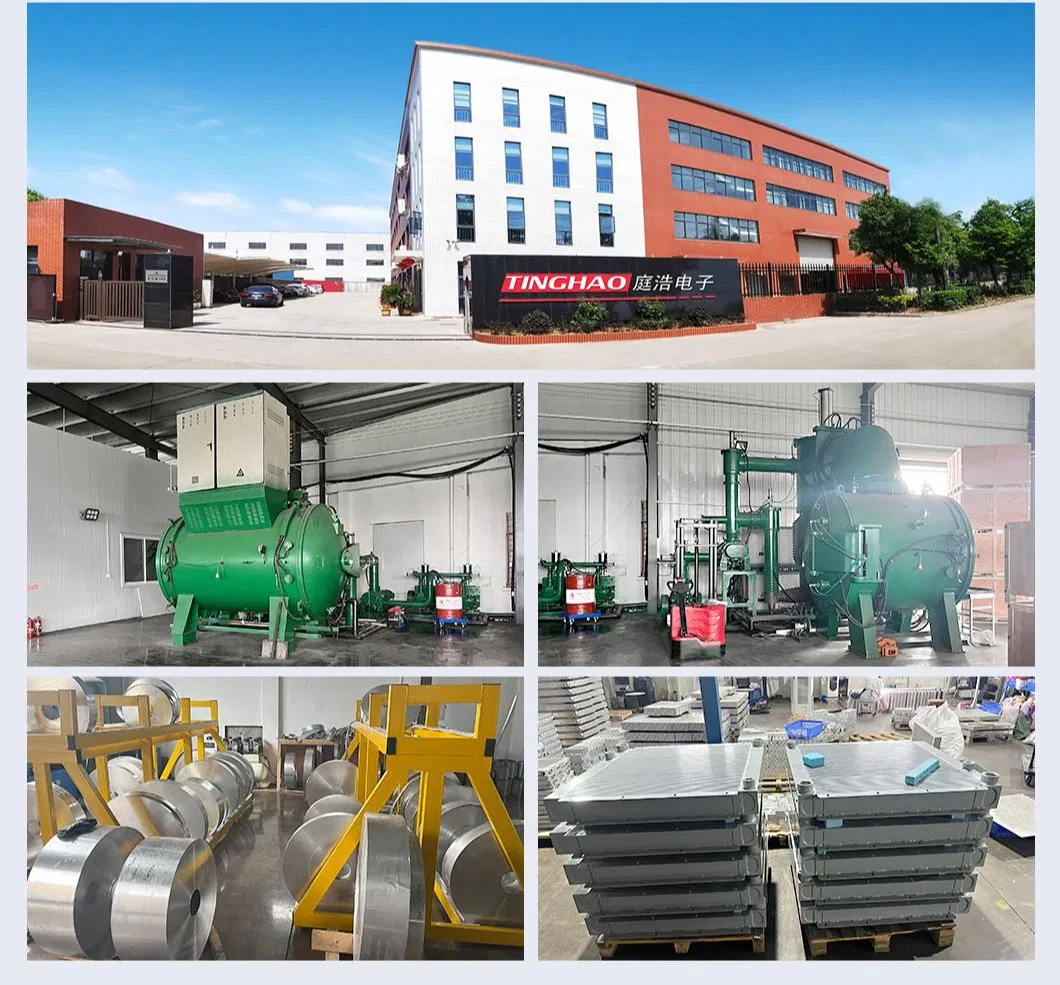

Advanced vacuum brazing technology with 4 dedicated furnaces.
Strong plate bar structure designed for harsh environments.
High-quality Aluminum 3003 and 6063 materials.
Superior heat transfer capability compared to tube fin types.
Custom design and OEM services based on drawings or samples.
Traceable quality assurance system and professional support.

📦 Packaging & Shipping

🛡️ Quality Control & Delivery

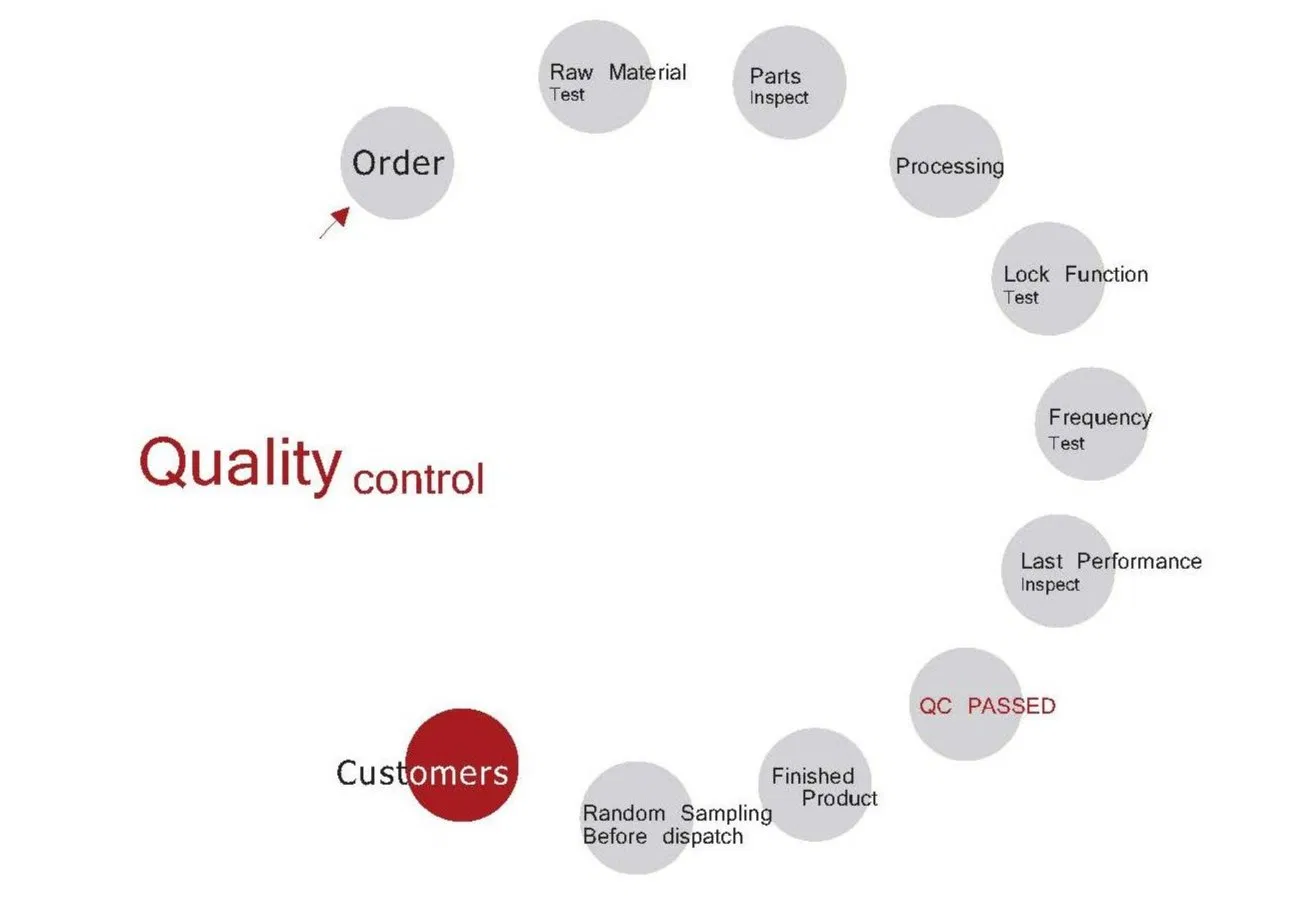

Quality is our core lifeline. From raw material procurement to final manufacturing, we implement a multi-level comprehensive testing process. We adhere to the "Quality First" concept to ensure product reliability, stability, and durability.

📜 Certifications

❓ Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in robust wooden boxes. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.

How about your delivery time?

Generally, it takes approximately one month after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

What are your terms of payment?

Our standard terms are T/T 30% as a deposit, and 70% before delivery. We provide photos of the products and packages before you pay the final balance.

Can you produce according to samples?

Yes, we can produce based on your physical samples or technical drawings. We also have the capability to build molds and fixtures.

Do you test all goods before delivery?

Yes, we perform 100% testing on all products before they leave our facility to ensure maximum reliability.

What is your sample policy?

We can supply samples if we have ready parts in stock, but customers are responsible for the sample cost and courier fees.
