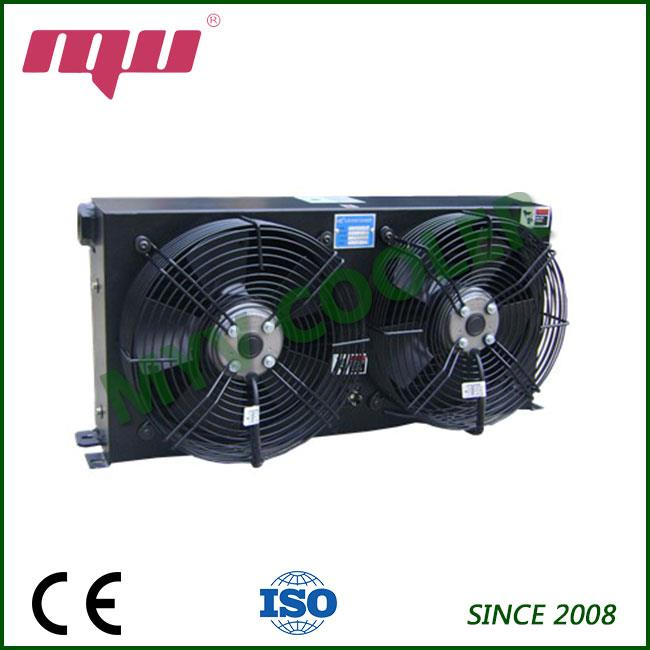

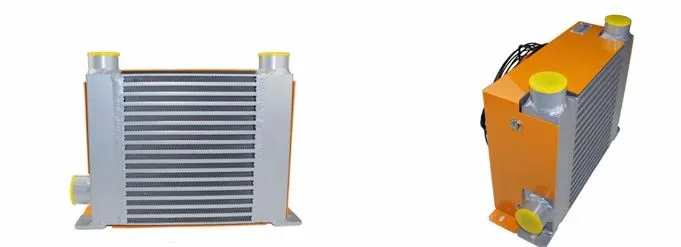

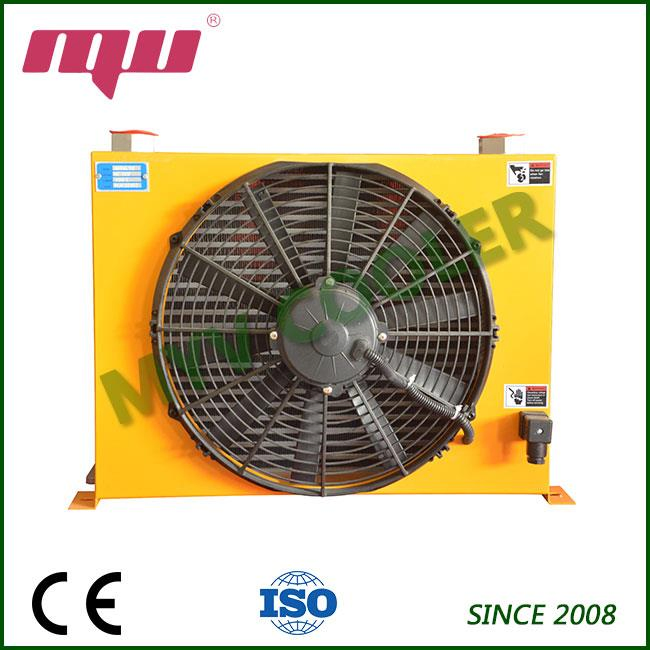

Hydraulic Air Oil Cooler Heat Exchanger Aluminum Plate Radiator Thermal System

ℹ️

Basic Information

Model NO.

AH series

Application

Cooler

Principle

Regenerative Heat Exchanger

Style

Plate Type

Material

Aluminum

Heat Exchanger

Oil Cooler

Transport Package

Plywood Box

Trademark

MYV

Origin

Made in China

HS Code

84186190

📋

Product Description

Color	Silver / Black	Application	Hydraulic system
Seal Process	Vacuum Brazed	Certification	ISO9001 and CE
Packing	Wooden pallet	Warranty	1 year
Item Name	Hydraulic oil cooler	Fin Type	Perforated, Wavy, Serrated, Plain, Louvered fin
Structure	Bar and Plate	Port	Shanghai
Test	Air tightness and Pressure Text	MOQ	5 Units

Main Features:

Higher heat transfer coefficient: The material of the plate is made of higher thermal conductivity.
Compact Design: Heat transfer plates are closely arranged with small spacing and corrugated metal surfaces, significantly increasing the effective heat transfer area per unit volume.
Durable and Reliable: High efficiency, simple structure, small heat loss, and flexible assembly for a long service life.

⚙️

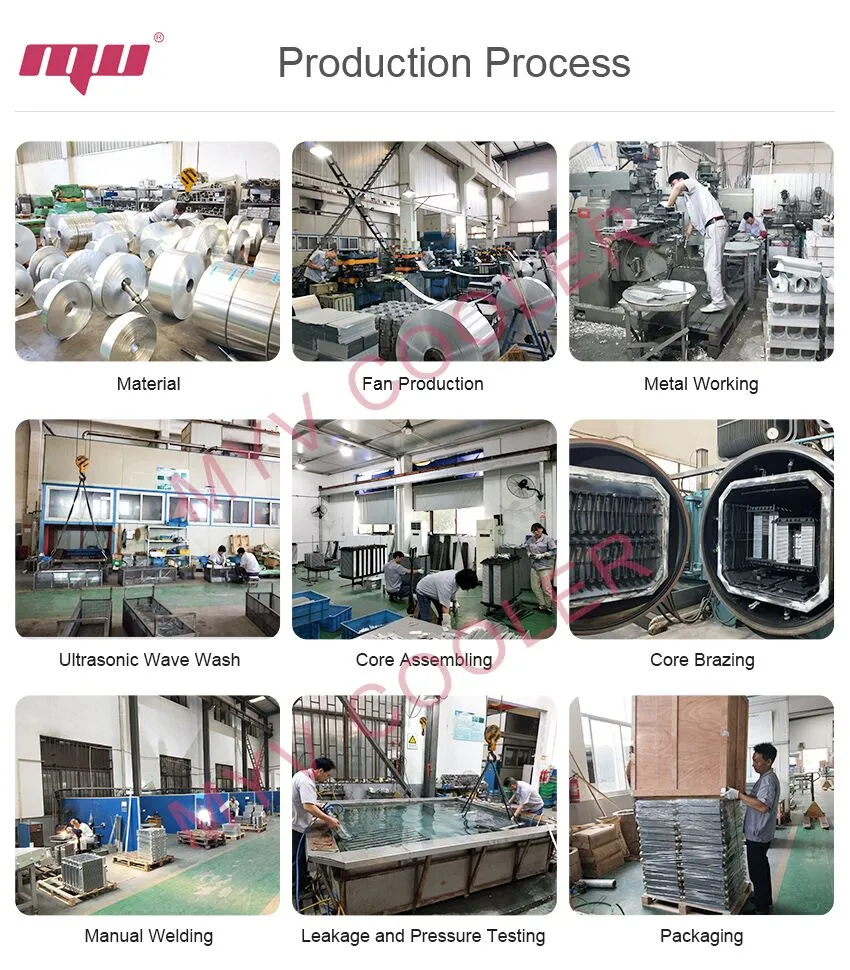

Manufacturing Process

Blanking ➔ Fin punching ➔ Cleaning ➔ Core components ➔ Vacuum brazing ➔ Parts processing ➔ Welding ➔ Pressure testing ➔ Drying ➔ Overall inspection ➔ Painting ➔ Packaging

⭐

Why Choose Us?

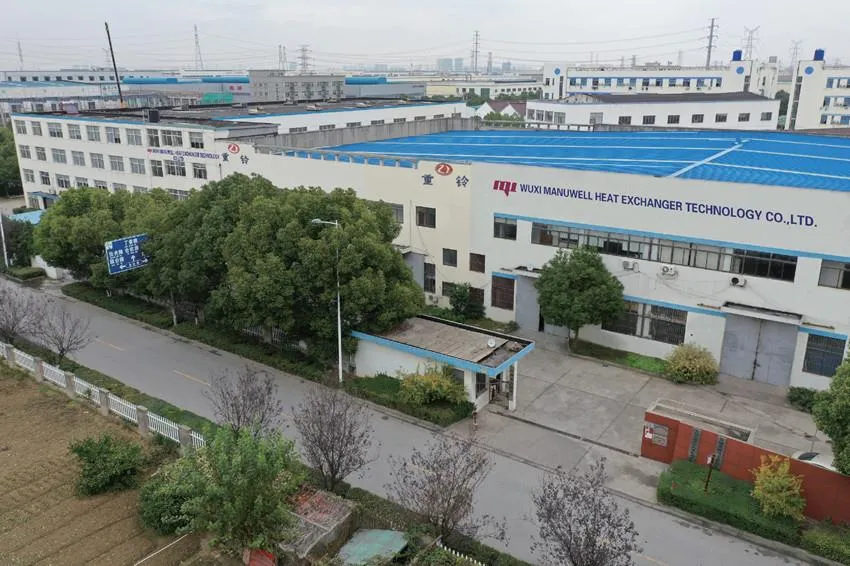

Professional factory of aluminum bar and plate heat exchangers.
Strict Quality Control through the whole manufacturing process.
General Inspection on fixing before Packing.
All products passed ISO 9001 and CE certification.
Accept minimum orders to guarantee your interests.
Full follow-up service from order placement to shipping tracking.

🚀

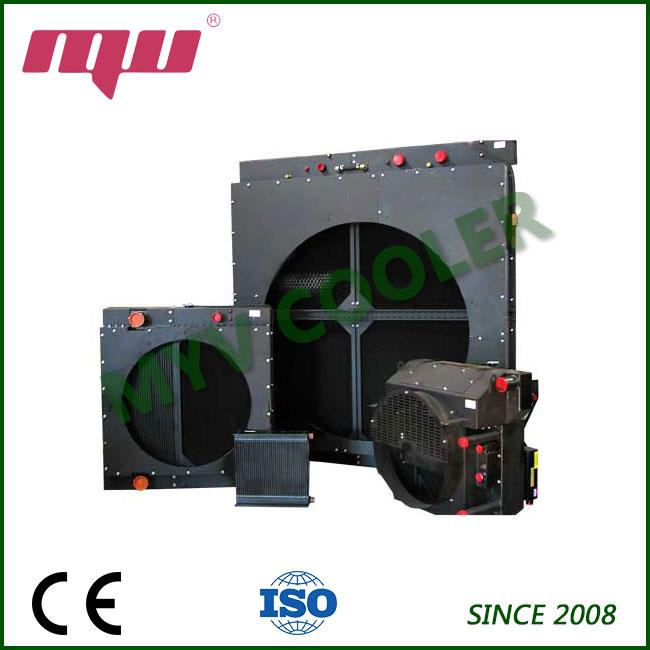

Product Applications

Our aluminum plate-fin heat exchangers are widely utilized in various fluid cooling systems, including:

Hydraulic & Lubrication systems

Air compressors

Engineering & Construction machinery

Power systems & Transmission oil cooling

Marine and Vehicle engine water tanks

Mobile crane heat exchangers

📊

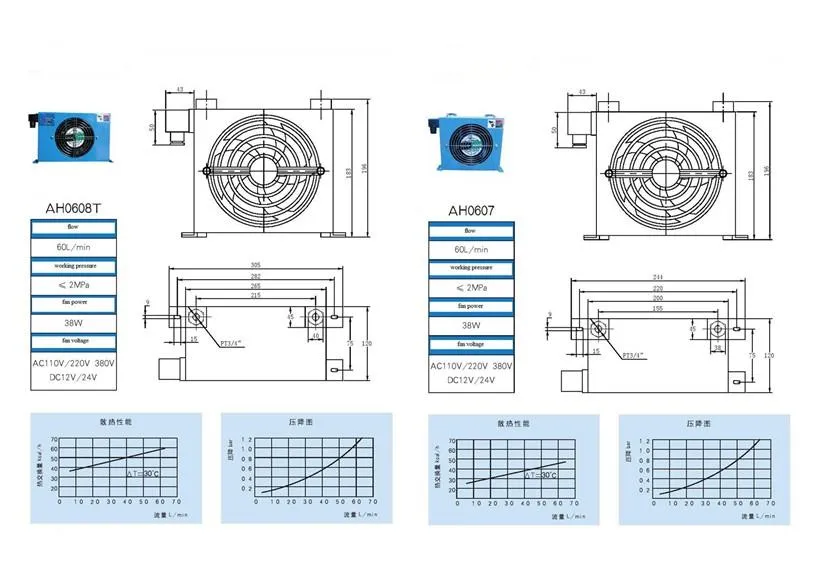

Technical Specifications

Model	Flow	Working Pressure	Fan Power	Fan Voltage
AW0607	25L/min	2Mpa	38W	AC110/220V 380V DC12/24V
AW0608	25L/min	2Mpa	38W	AC110/220V 380V DC12/24V
AH0607	60L/min	2Mpa	38W	AC110/220V 380V DC12/24V
AH1012	100L/min	2Mpa	80W	AC110/220V 380V DC12/24V
AH1417	150L/min	2Mpa	160W	AC110/220V 380V DC12/24V
AH1680	300L/min	2Mpa	250W	AC220V/380V
AH2490	600L/min	2Mpa	780W	AC220V/380V

❓

Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in sturdy wooden boxes. For patented items, we can use your branded boxes after receiving proper authorization.

What is the expected delivery time?

Typically, it takes about one month after receiving your advance payment. The specific time depends on the items and order quantity.

What are the terms of payment?

We accept T/T 30% as a deposit, with the remaining 70% due before delivery. We provide photos of products and packages before final payment.

Can you produce items based on samples?

Yes, we can produce according to your physical samples or technical drawings. We also have the capability to build custom molds and fixtures.

Do you test all goods before delivery?

Yes, we conduct 100% rigorous testing on all products before they are dispatched to ensure quality and performance.

How do you maintain long-term business relationships?

We maintain high quality and competitive pricing to ensure our customers' benefit, while treating every client as a friend through sincere business practices.
