We specialize in manufacturing hydraulic power units and hydraulic systems. Our commitment lies in the development of innovative products and advanced technologies. Through superb craftsmanship, sophisticated materials, and a strict quality assurance system, we provide solutions with outstanding performance.
In cooperation with international hydraulic technology leaders, we provide high-quality AC and DC hydraulic power units and various functional hydraulic valves, including cartridge valves. We aim to deliver cost-effective and high-standard products to customers worldwide, growing together to develop the future.

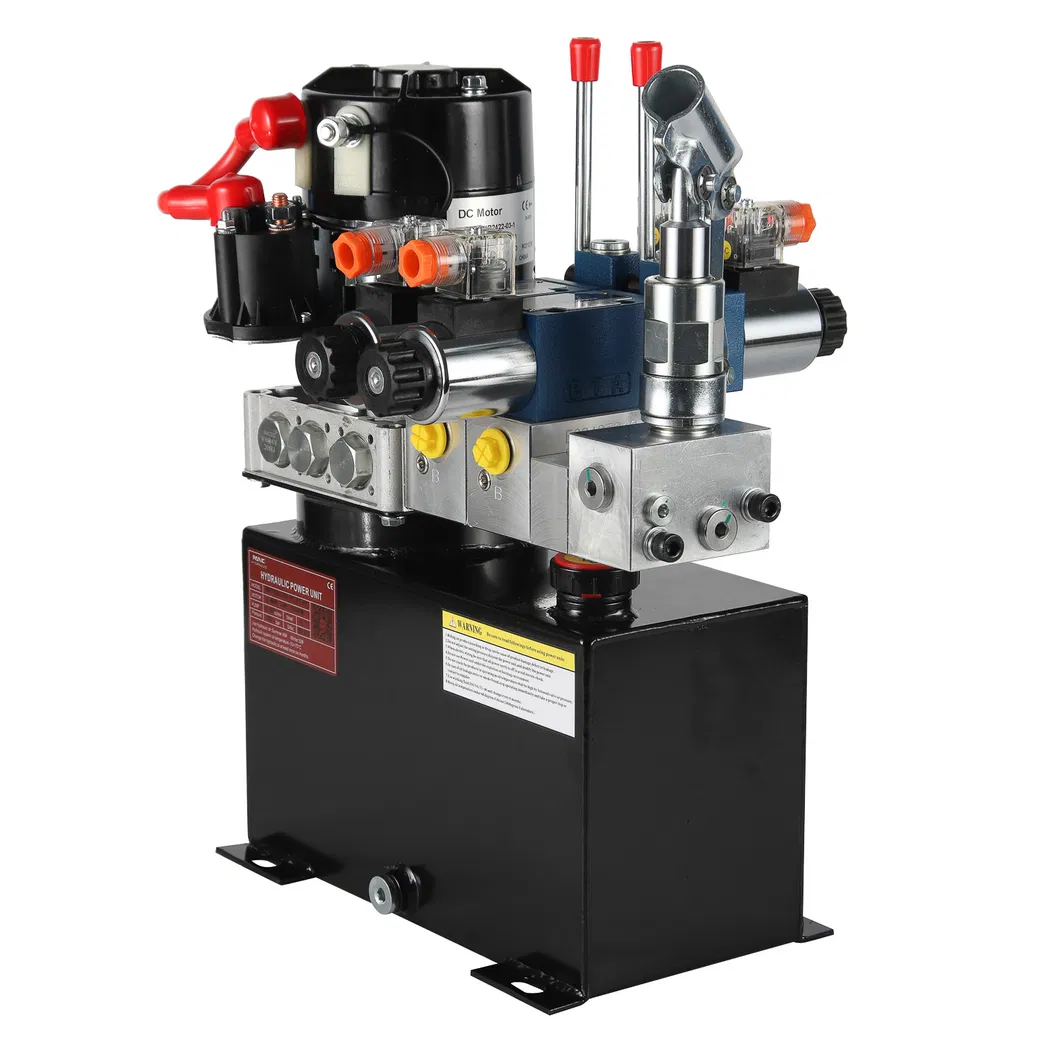

| Model | Volt | Power | Speed | Displacement | Pressure | Tank | Solenoid Valve |
|---|---|---|---|---|---|---|---|
| PNC-0.5-D12-0.5/0.38-16-1/W-Y2 | 12VDC | 0.5KW | 2800RPM | 0.38CC/REV | 16MPA | 1L | 12VDC |
| PNC-0.8-D12-0.5/0.65-16-1/W-Y2 | 12VDC | 0.8KW | 3100RPM | 0.65CC/REV | 16MPA | 1L | 12VDC |
| PNC-0.5-D24-0.5/0.38-16-1/W-Y2 | 24VDC | 0.5KW | 2800RPM | 0.38CC/REV | 16MPA | 1L | 24VDC |
| PNC-0.8-D24-0.5/0.65-16-1/W-Y2 | 24VDC | 0.8KW | 3400RPM | 0.65CC/REV | 16MPA | 1L | 24VDC |
| PNC-0.8-D48-0.5/0.65-16-1/W-Y2 | 48VDC | 0.8KW | 3100RPM | 0.65CC/REV | 16MPA | 1L | 48VDC |
The unit is primarily constructed from high-quality Carbon Steel for durability and strength.
We offer a variety of options including 12VDC, 24VDC, and 48VDC to suit different power requirements.
Yes, this specific model is designed for vertical installation as standard.
Absolutely. Both OEM and ODM services are supported to meet your specific technical requirements.
The standard maximum pressure for these specific models is 16MPA.

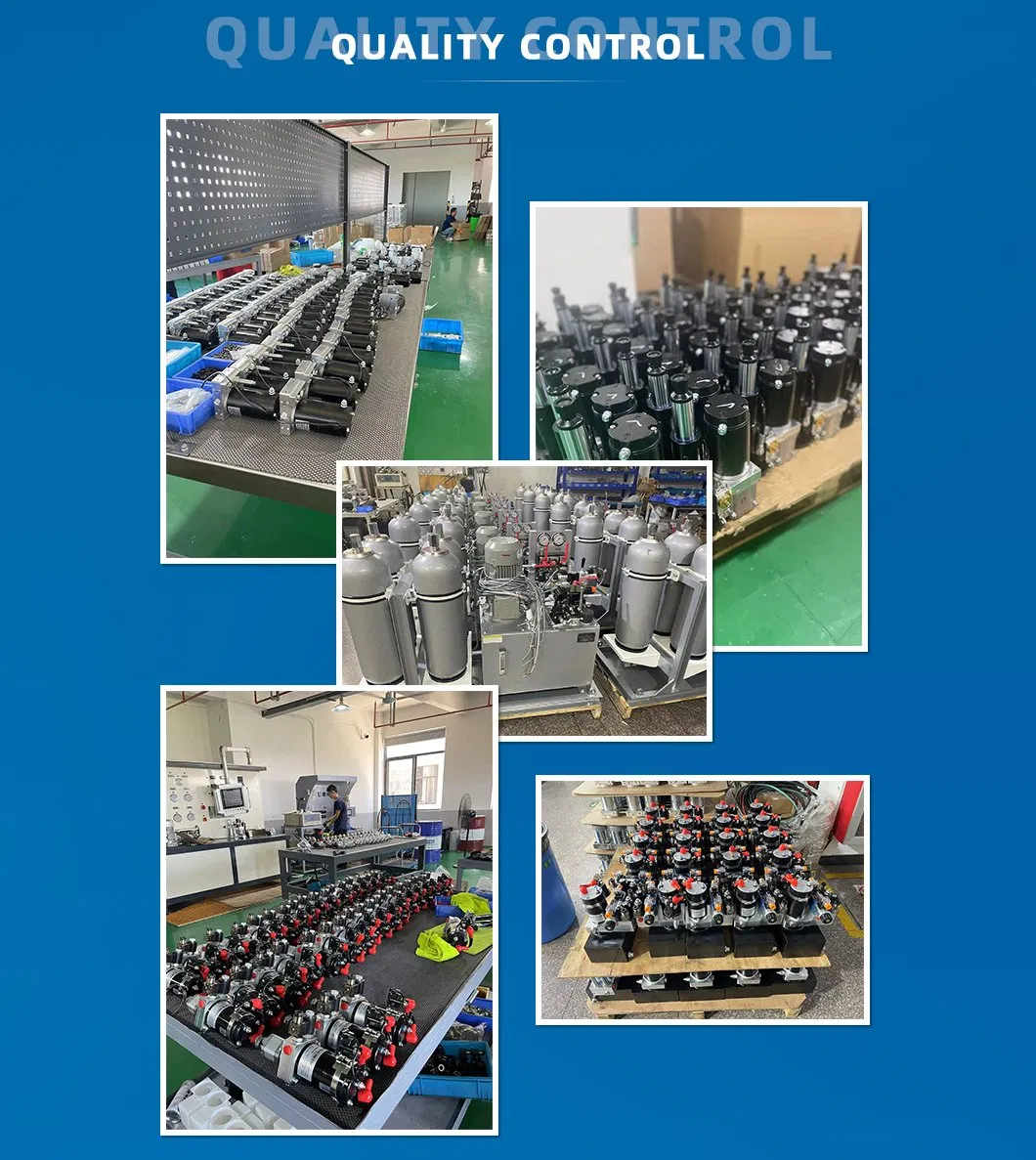

Our monthly production capacity is approximately 10,000 units, ensuring timely delivery for large orders.
