⚙️ Basic Info.
Applications
Machinery Manufacturing
Certification
ISO9001:2008
Product Name

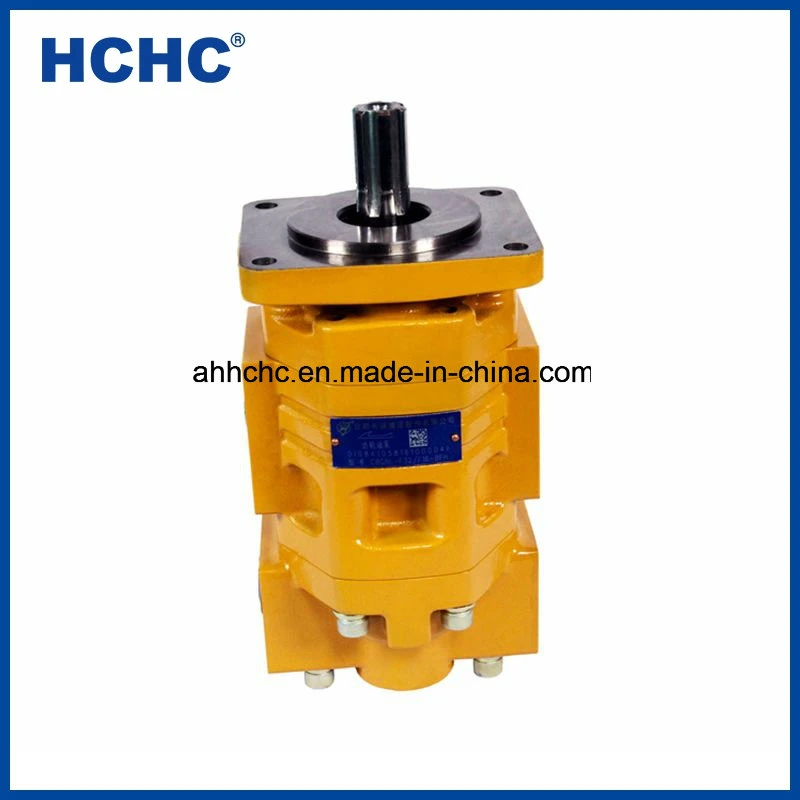

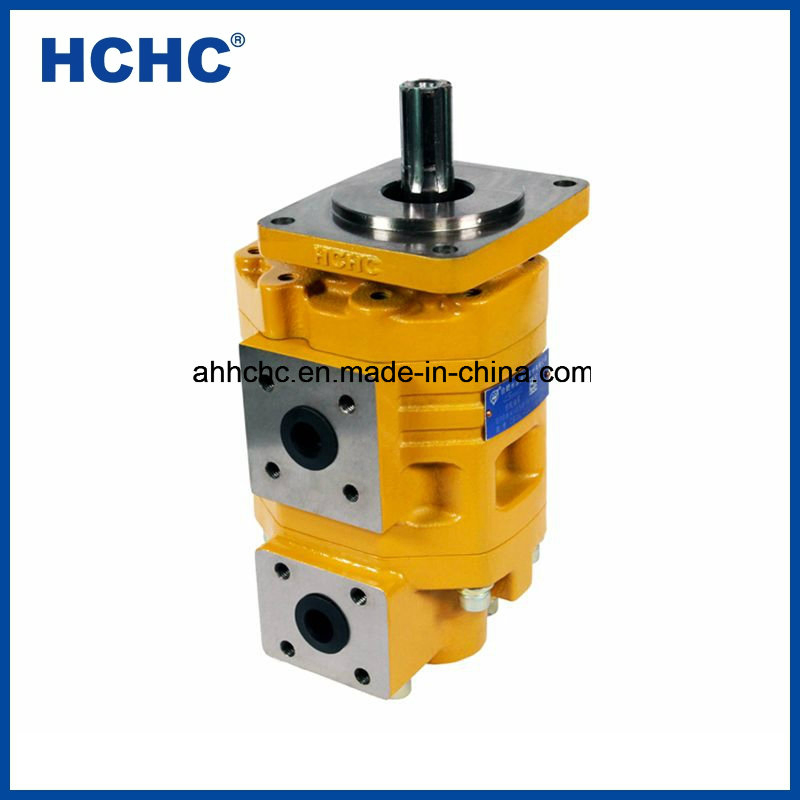

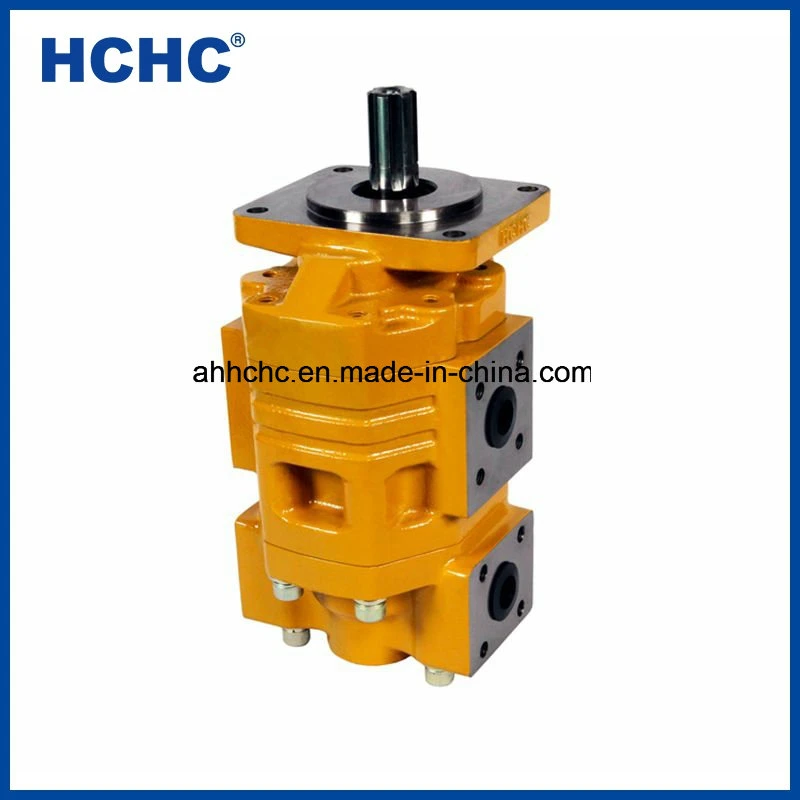

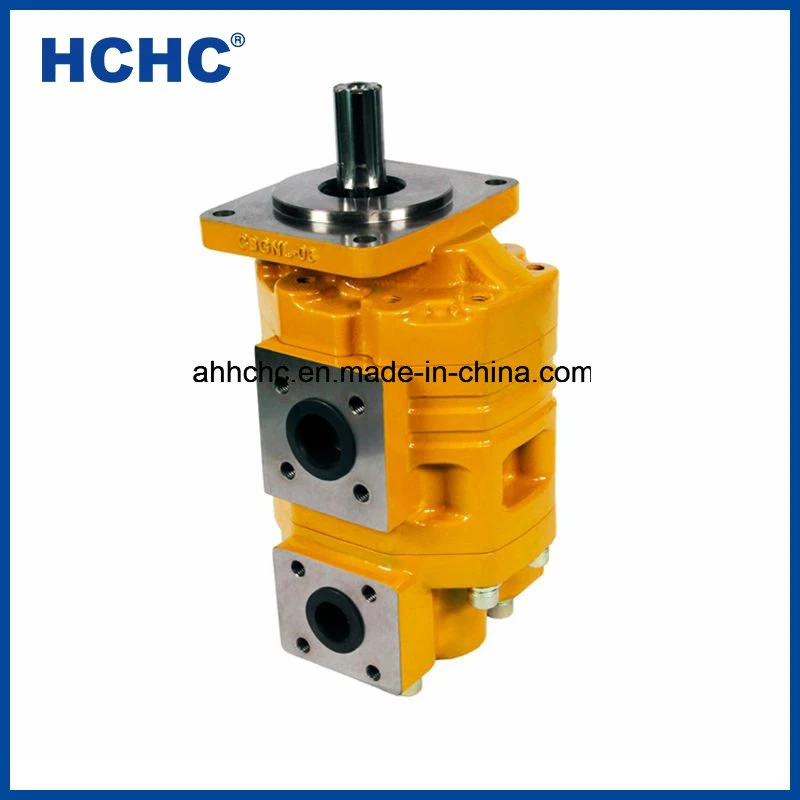

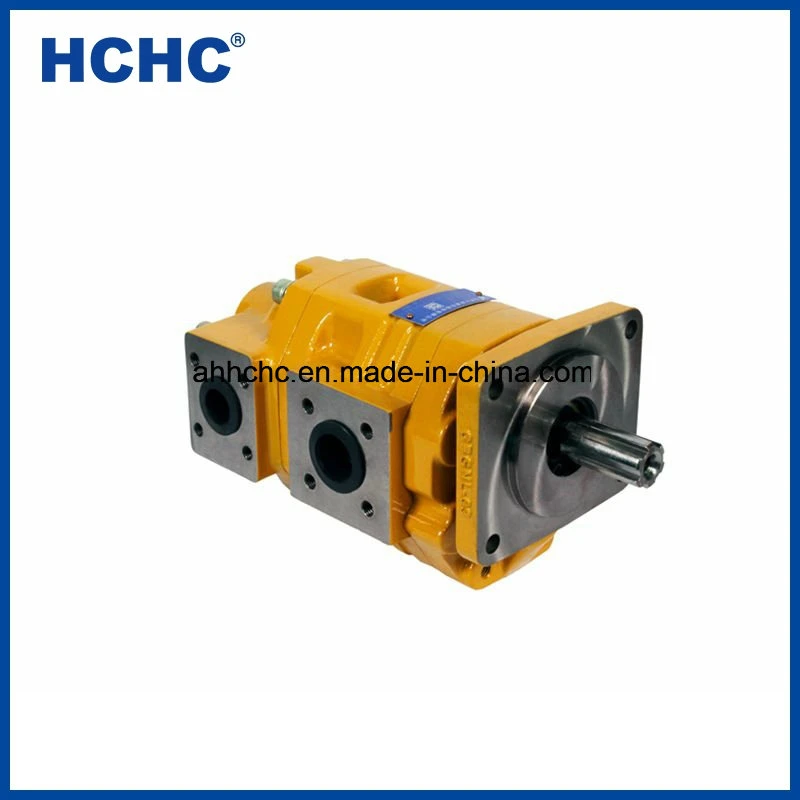

Hydraulic Double Gear Pump
📋 Performance Characteristics
✔
Housing: High strength cast iron material housing makes stronger bearing capacity.
✔
Technology: The technology of radial asymmetric design makes long service-life and high reliability.
✔

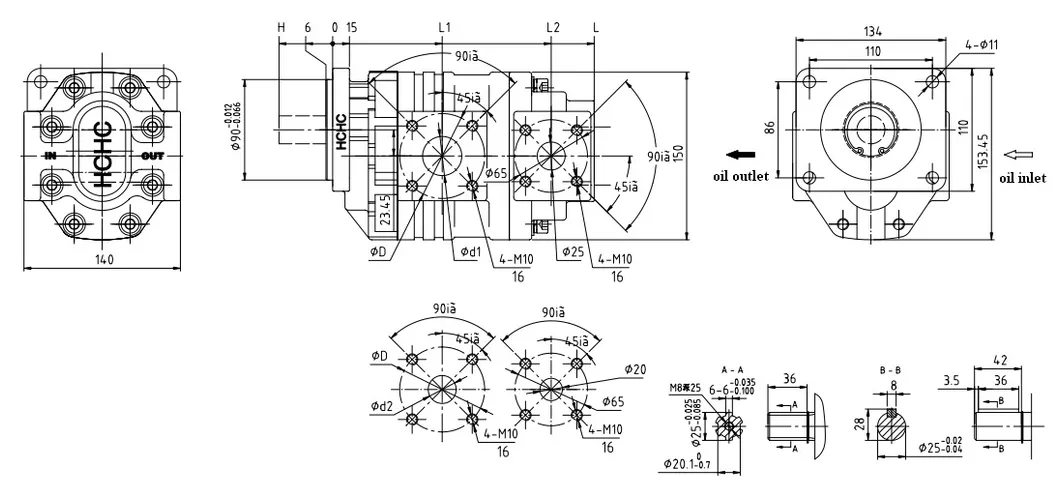

Inlet/Outlet: Joining types include flange (F) and thread (L).
✔
Shaft End: Multiple types available: plain key (P), rectangular spline (H), SAE spline, and involute spline.
✔
Efficiency: Auto-compensation unit of axial clearance ensures high volume efficiency.

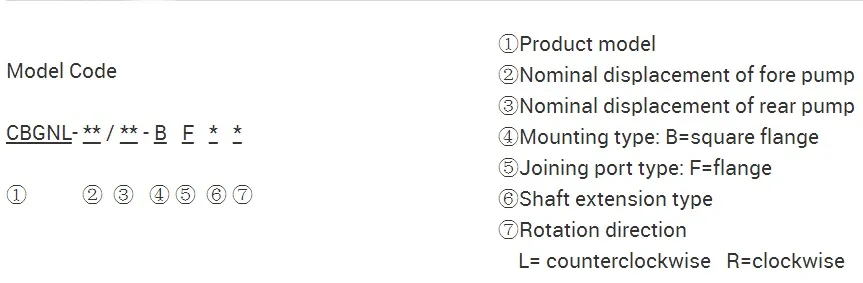

| Model |
Nominal Displacement (mL/r) |
Pressure (MPa) |
Speed (r/min) |
Vol. Efficiency (≥%) |
| Rated |
Max. |
Min. |
Rated |
Max. |
| CBGNL-F63/F20-BF** | 63/20 | 25 | 28 | 800 | 1500 | 2000 | 90/90 |
| CBGNL-F63/F10-BF** | 63/10 |
| CBGNL-F50/F25-BF** | 50/25 |
| CBGNL-F50/F20-BF** | 50/20 |
| CBGNL-F50/F16-BF** | 50/16 |
| CBGNL-F50/F10-BF** | 50/10 |
| CBGNL-F46/F10-BF** | 46/10 |
| CBGNL-F40/F25-BF** | 40/25 |
| CBGNL-F40/F20-BF** | 40/20 |
| CBGNL-F40/F16-BF** | 40/16 |
| CBGNL-F32/F20-BF** | 32/20 |
| CBGNL-F32/F16-BF** | 32/16 |
| CBGNL-F32/F10-BF** | 32/10 |
❓ Frequently Asked Questions
1. What materials are used for the CBGNL pump housing?
The pump features a high-strength cast iron material housing, which significantly enhances its bearing capacity and durability under high-pressure conditions.
2. What are the available shaft end types for this series?
We offer a variety of shaft ends to suit different machinery, including plain key (P), rectangular spline (H), SAE spline, and involute spline.
3. How does the pump maintain high volume efficiency?
The pump is equipped with an auto-compensation unit for axial clearance, which ensures it maintains a high volume efficiency of 90% or more.
4. What are the rated and maximum pressure specifications?
The CBGNL series is designed for a rated pressure of 250 Bar (25 MPa) and can handle a maximum pressure of up to 280 Bar (28 MPa).
5. Can the inlet and outlet positions be customized?
Yes, the pump supports different joining types for inlet and outlet positions, specifically flange (F) and thread (L) types.
6. What certifications does this hydraulic pump have?
The product is manufactured in compliance with ISO9001:2008 standards, ensuring high quality and reliability for machinery manufacturing applications.
