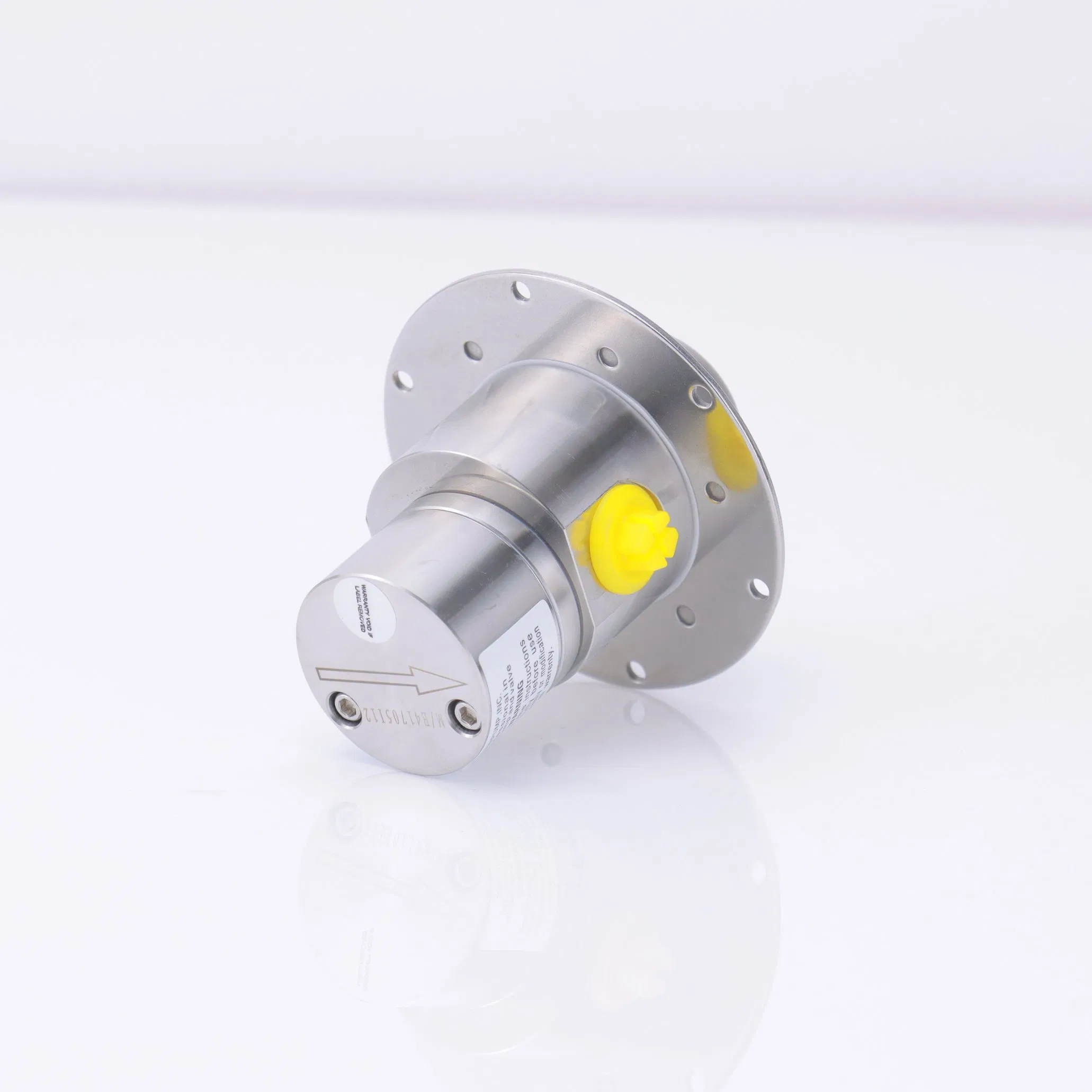

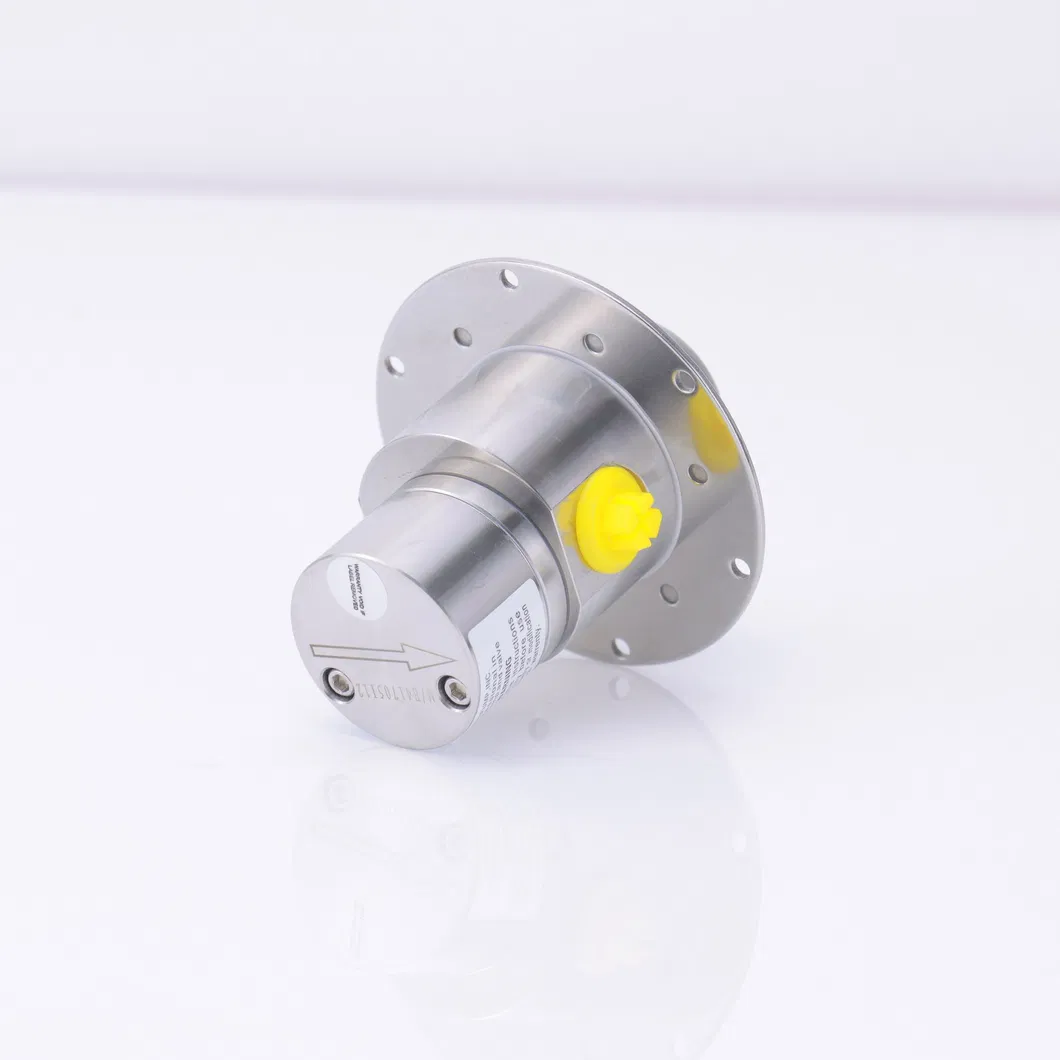

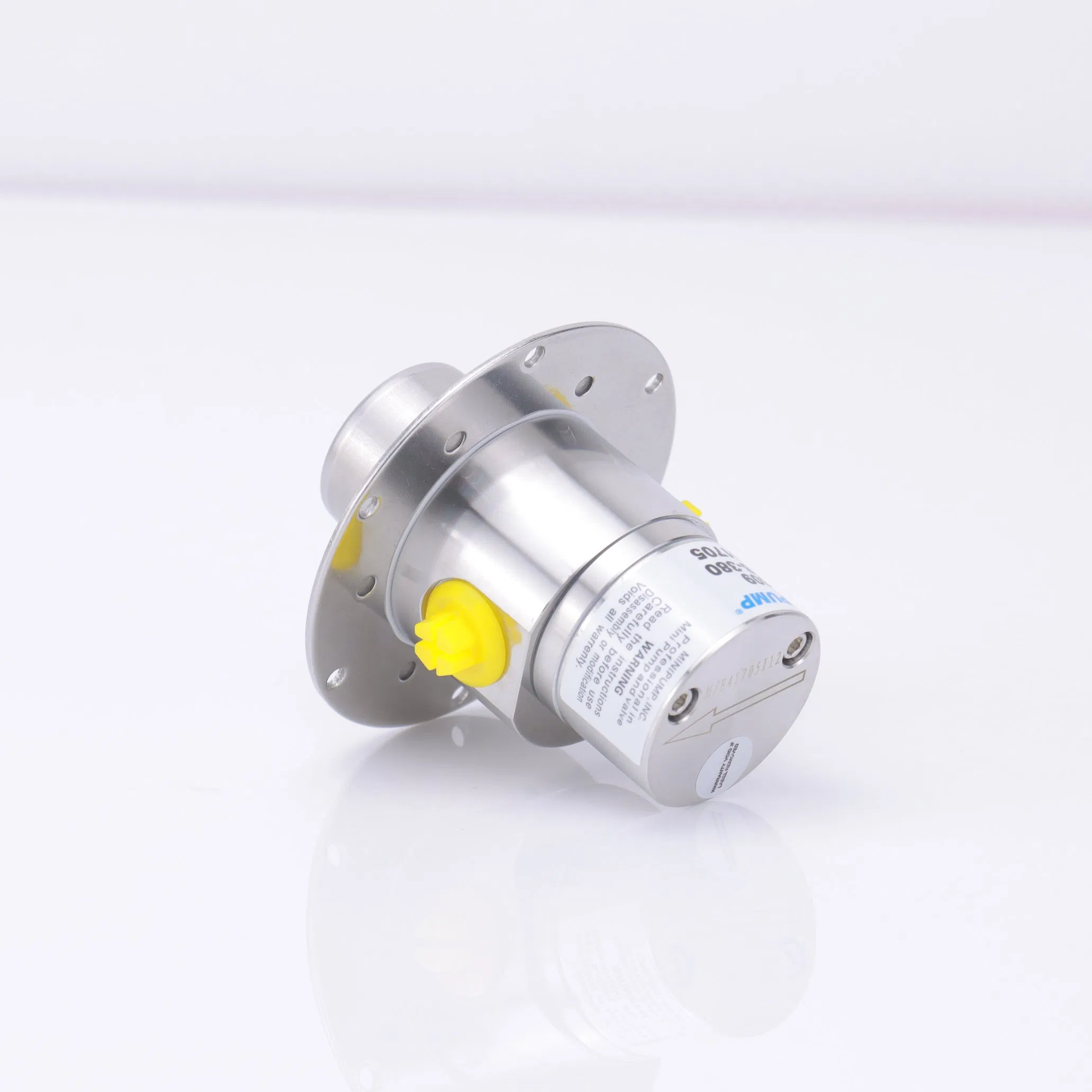

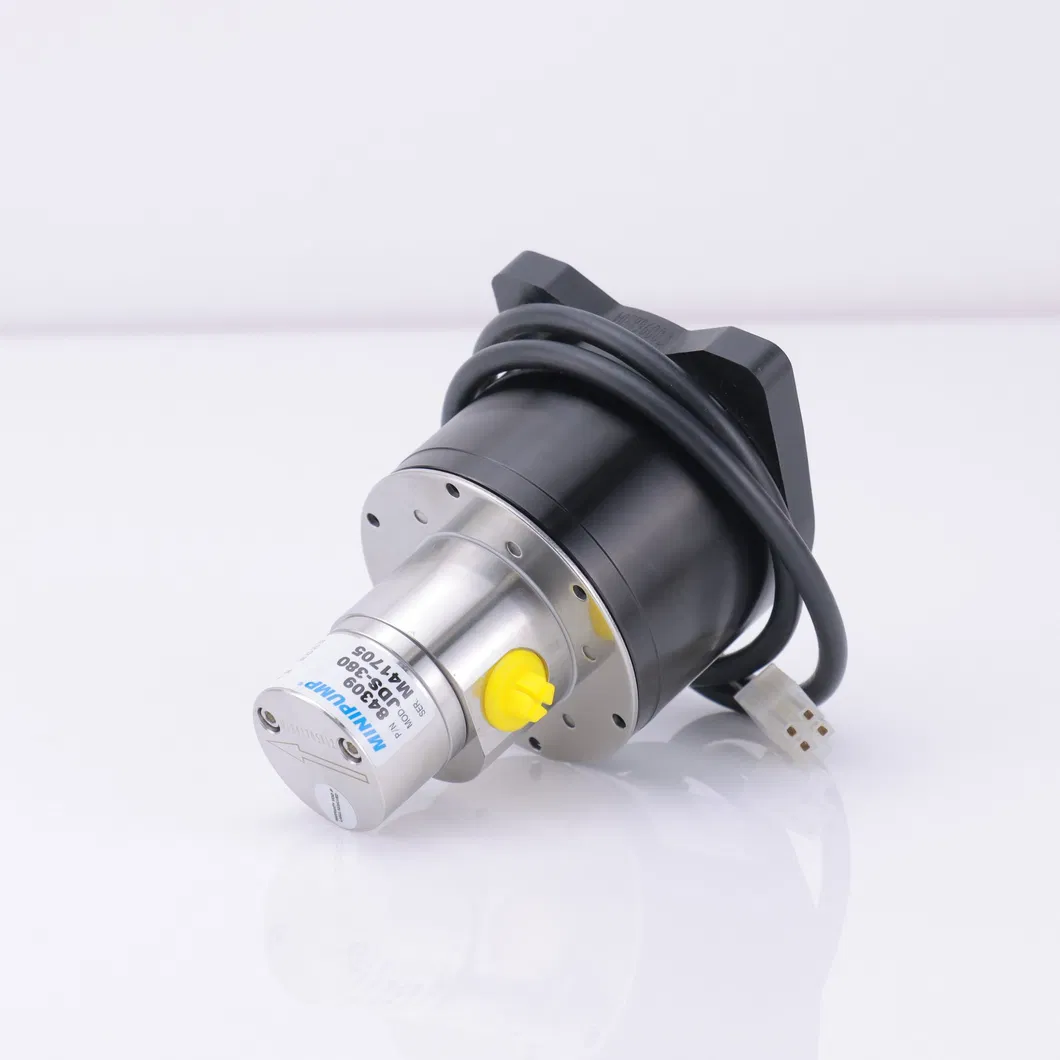

| Nominal Displacement | 0.32mL/rev |
| Maximum Flow Rate | 1.4L/min (water as medium) |
| Maximum Pressure | 1.2MPa |
| Viscosity Range | 0.5 to 1500CP |
| Operating Speed | 500-4500rpm |
| Rated Voltage | 24VDC |
| Rated Power | 40W |
| Gear Material | PEEK (high wear resistance) |
| Shaft Material | Stainless Steel (corrosion-resistant) |

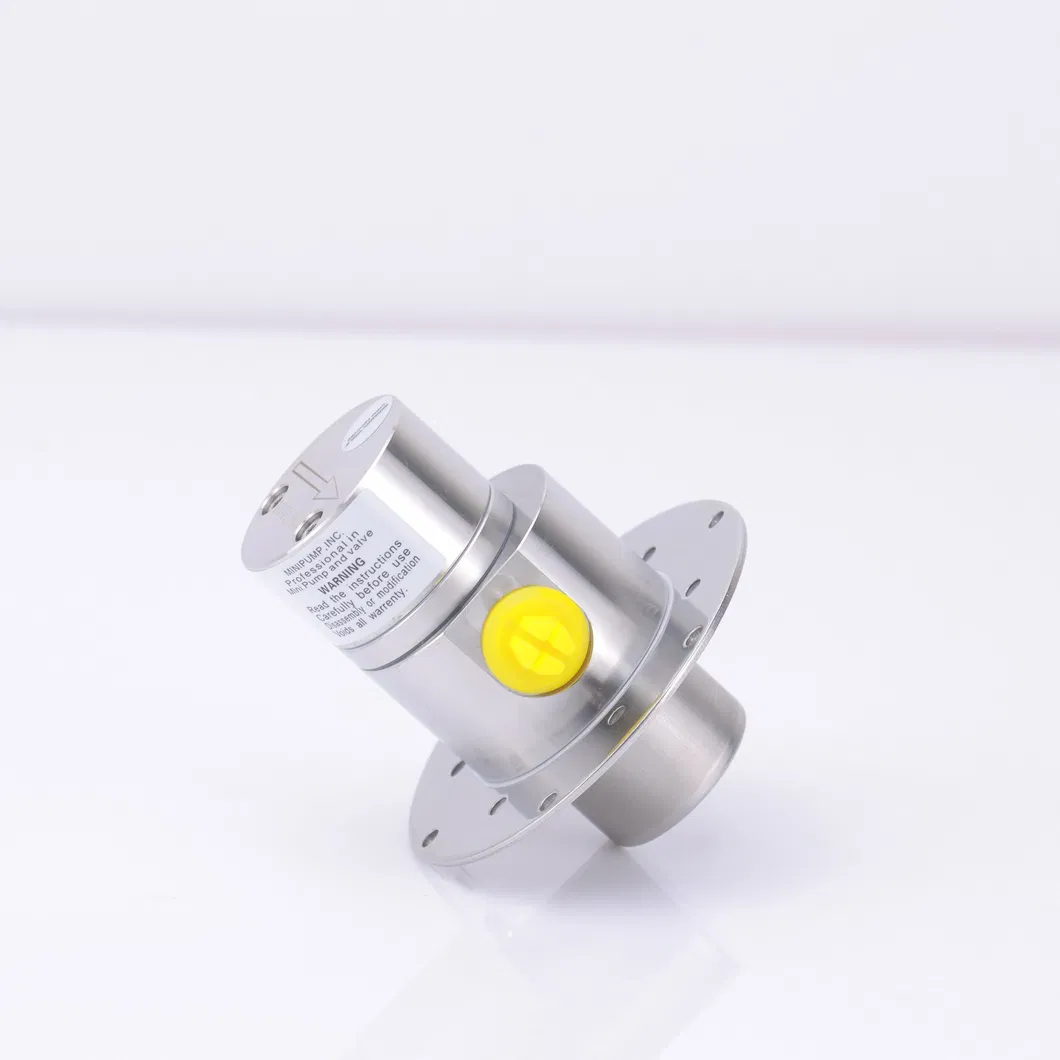

| Pump Body Material | SUS316L (food/chemical grade) |
| Sealing Components | PTFE (gasket) + EPDM (O-ring) |
| Thread Specification | G1/8-28 (customizable) |

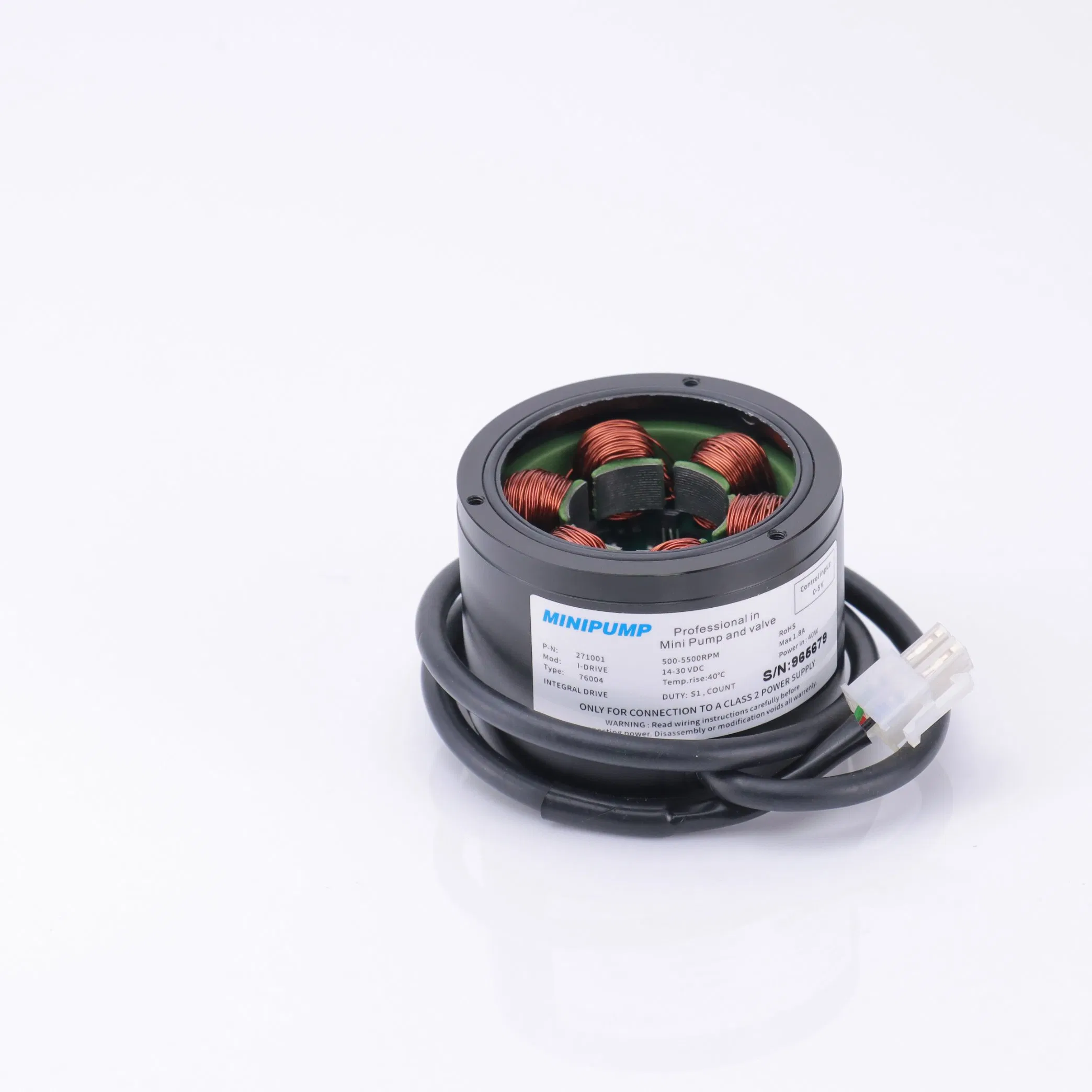

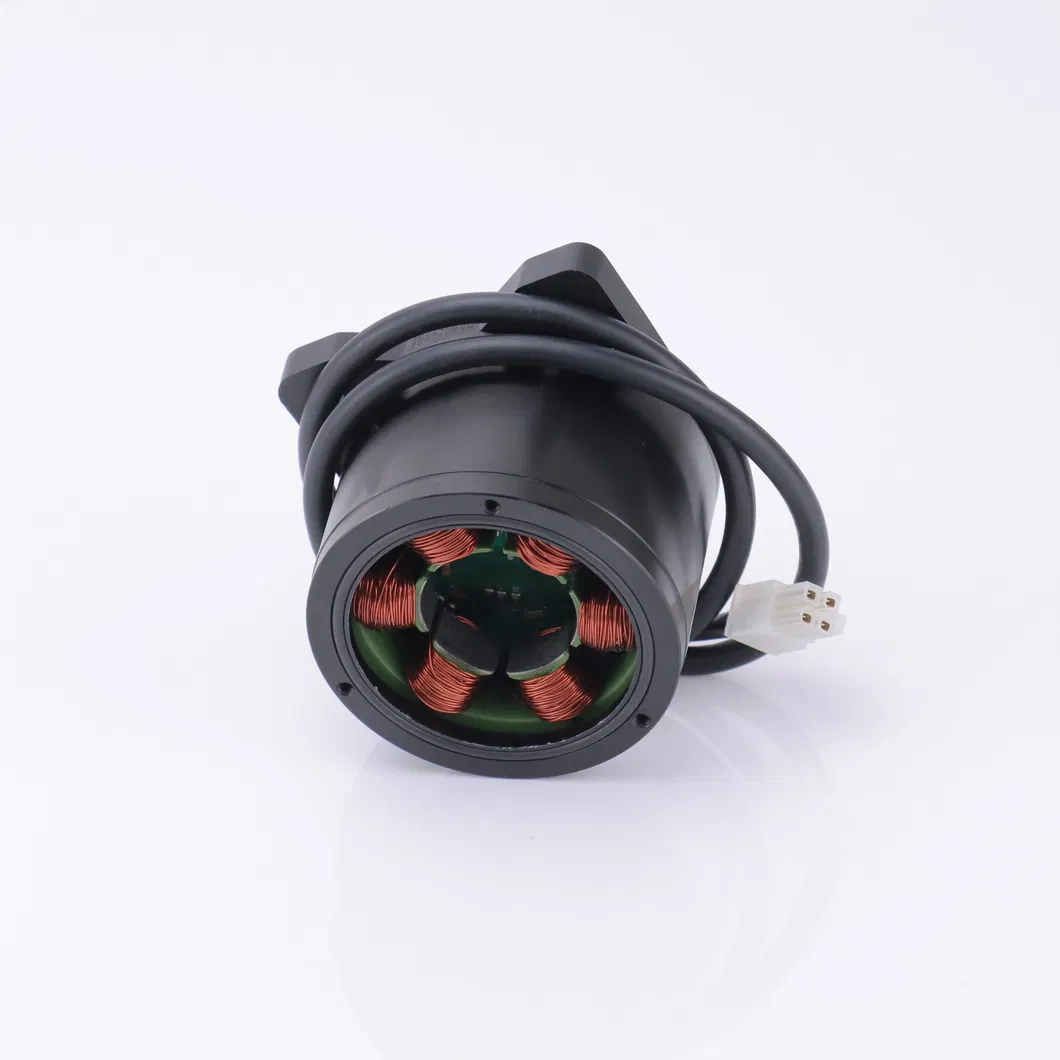

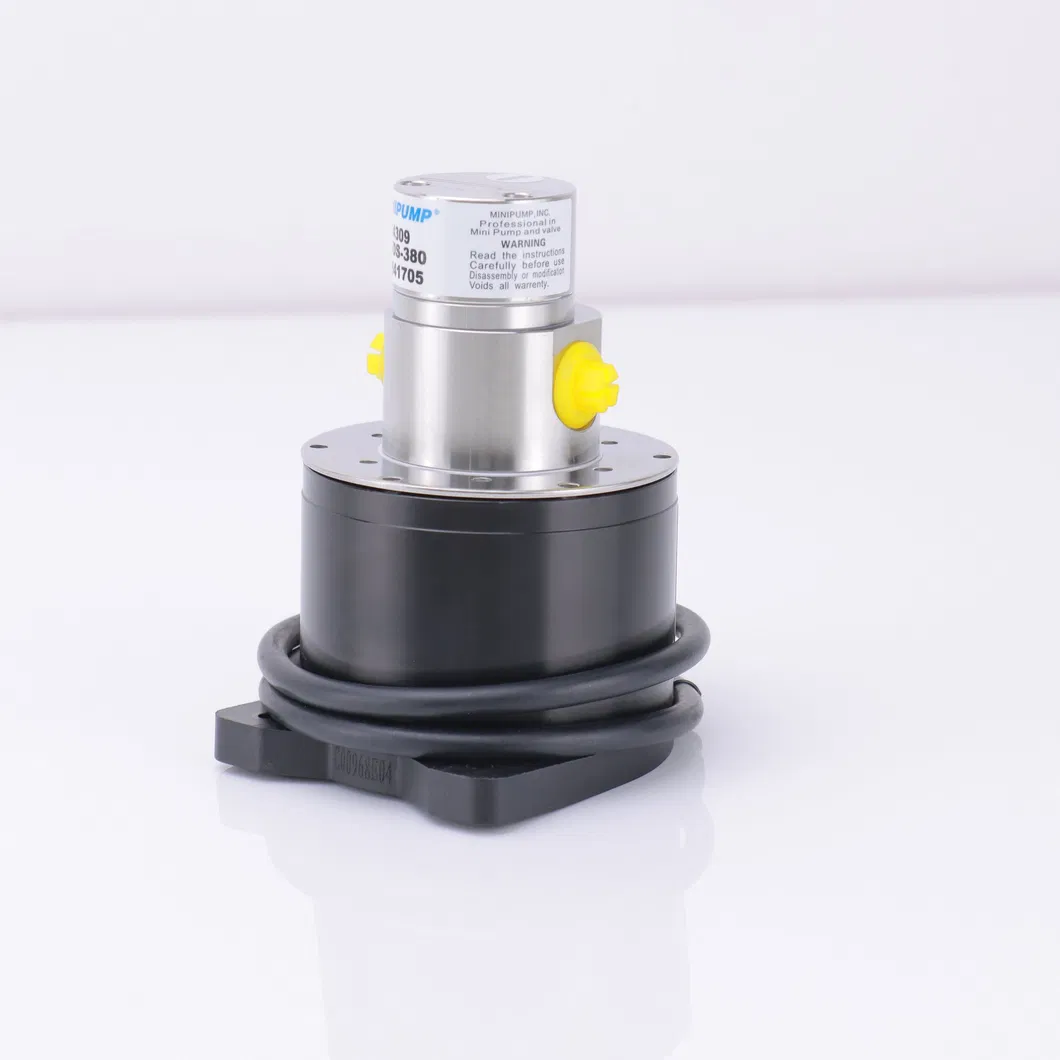

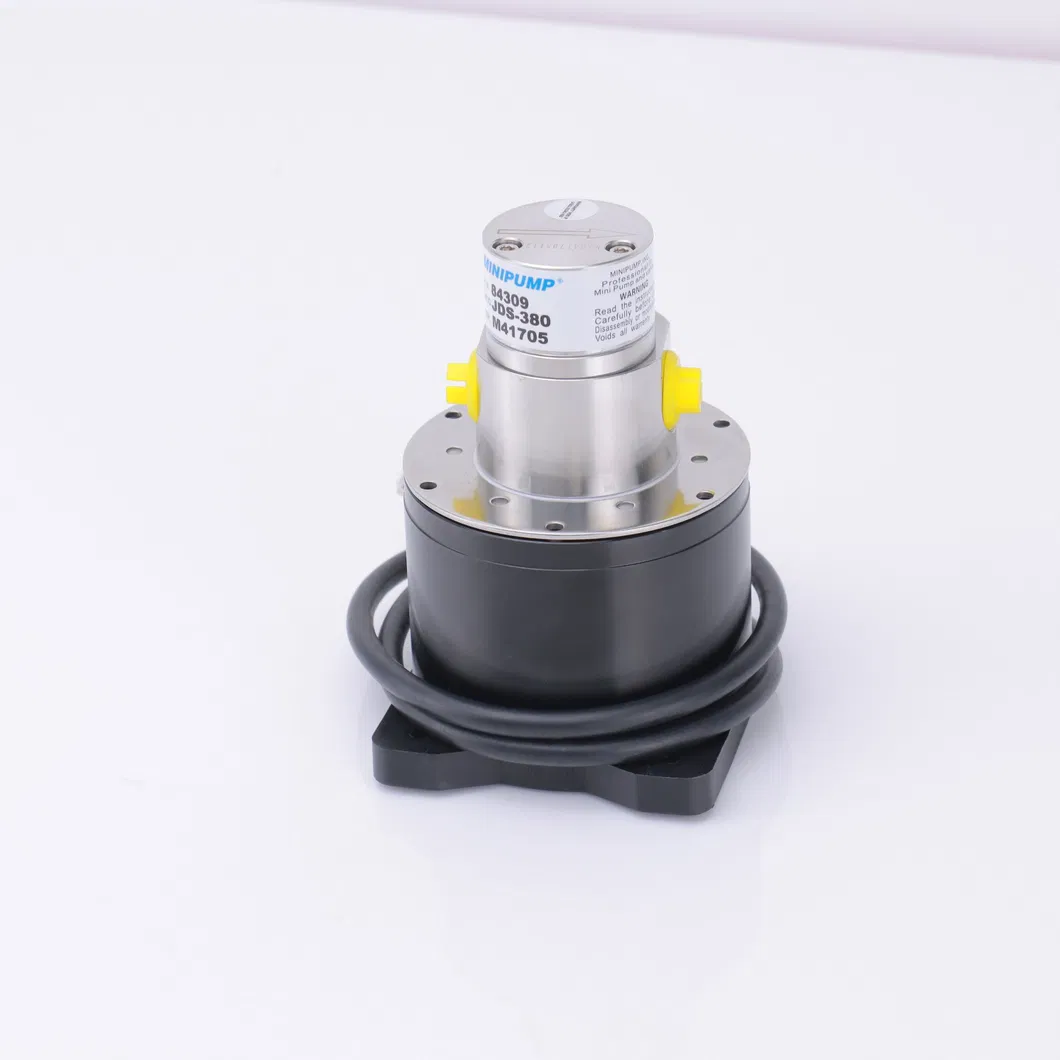

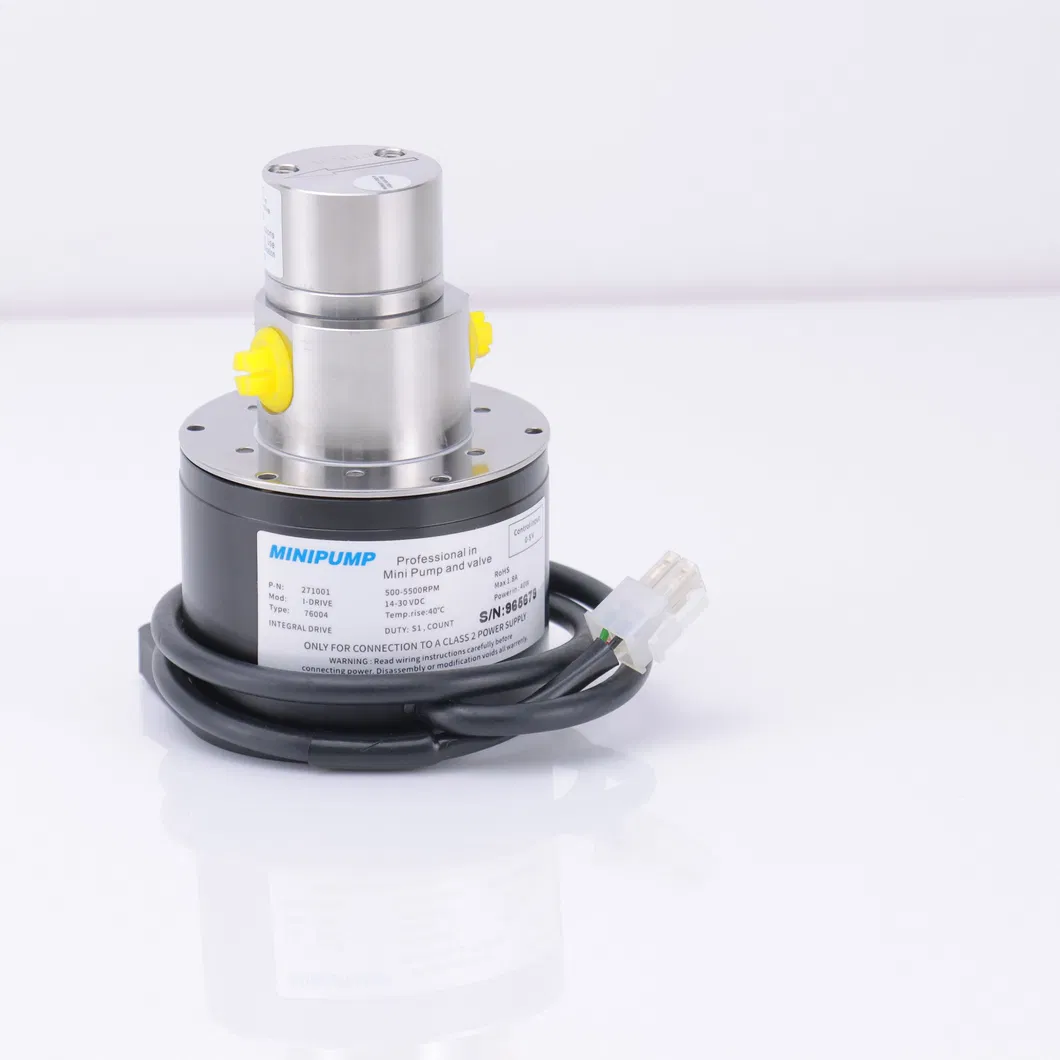

| Compatible Drives | Brushless DC/Stepper/Servo motor |
| Temperature Resistance | -40 to 105°C |
Stable Displacement: Boasts a nominal displacement of 0.32mL/rev, ensuring consistent fluid delivery for precision-dependent tasks such as chemical dosing and inkjet printing.
Reliable Flow & Pressure: Delivers a maximum flow rate of 1.4L/min and sustains up to 1.2MPa pressure, adapting to various transfer scenarios.
Broad Viscosity Range: Handles fluids from 0.5 to 1500CP, compatible with water, oils, solvents, and viscous additives.
Extreme Temperature Resistance: Functions seamlessly from -40°C to 105°C, suitable for both cold storage and high-temperature industrial environments.
Food/Chemical-Grade: SUS316L stainless steel body and PEEK gears offer high wear resistance and chemical stability.
Leak-Proof: PTFE gaskets and EPDM O-rings ensure no leakage and environmental compliance.
