Basic Information
Mesh Form
External Engaged
Tooth Flank
Straight Tooth
Type
Normal Line Gear Pump
Transport Package
Carton/Wooden
Specification
37.5cm*18.5cm*16.2cm
Production Capacity
20000/Year

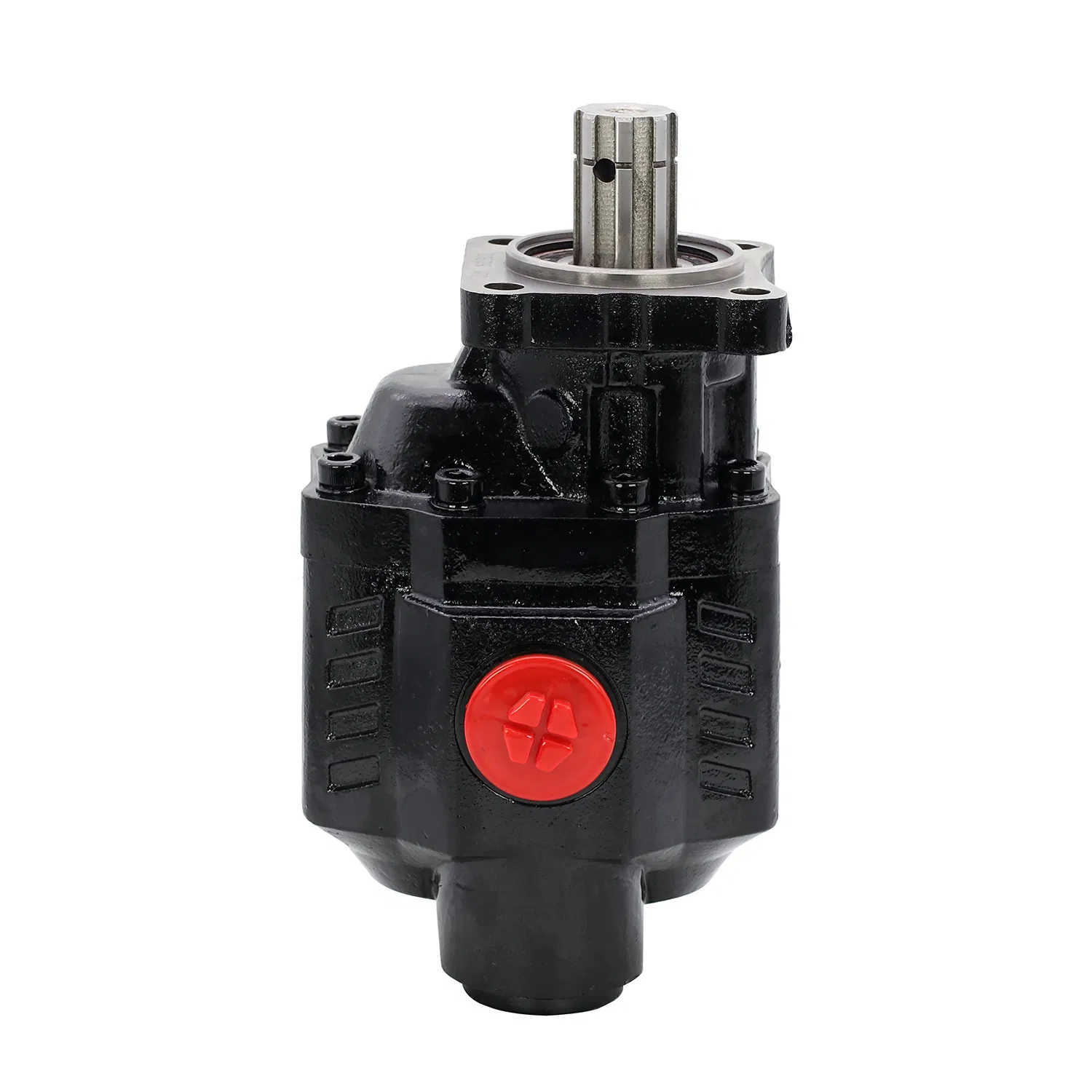

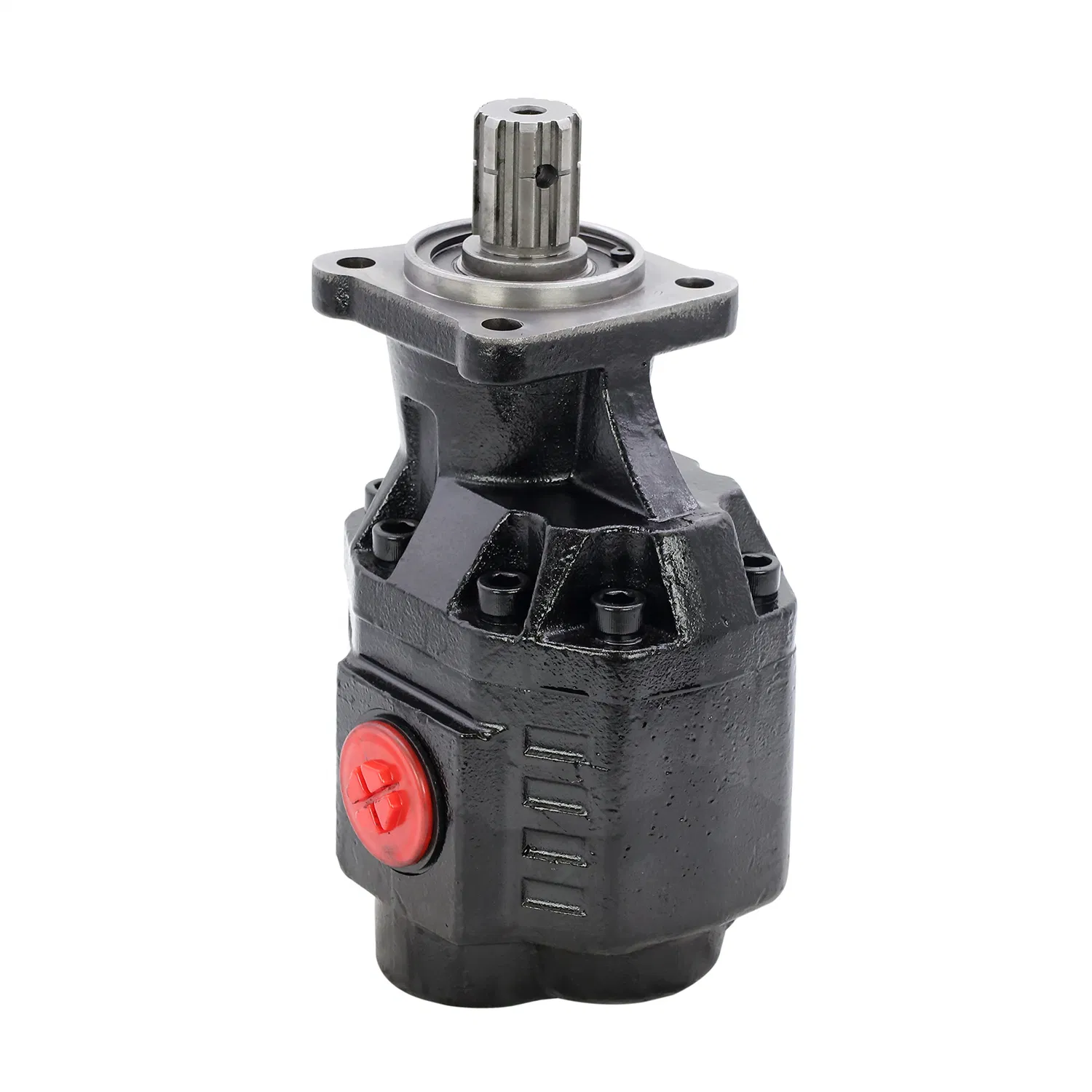

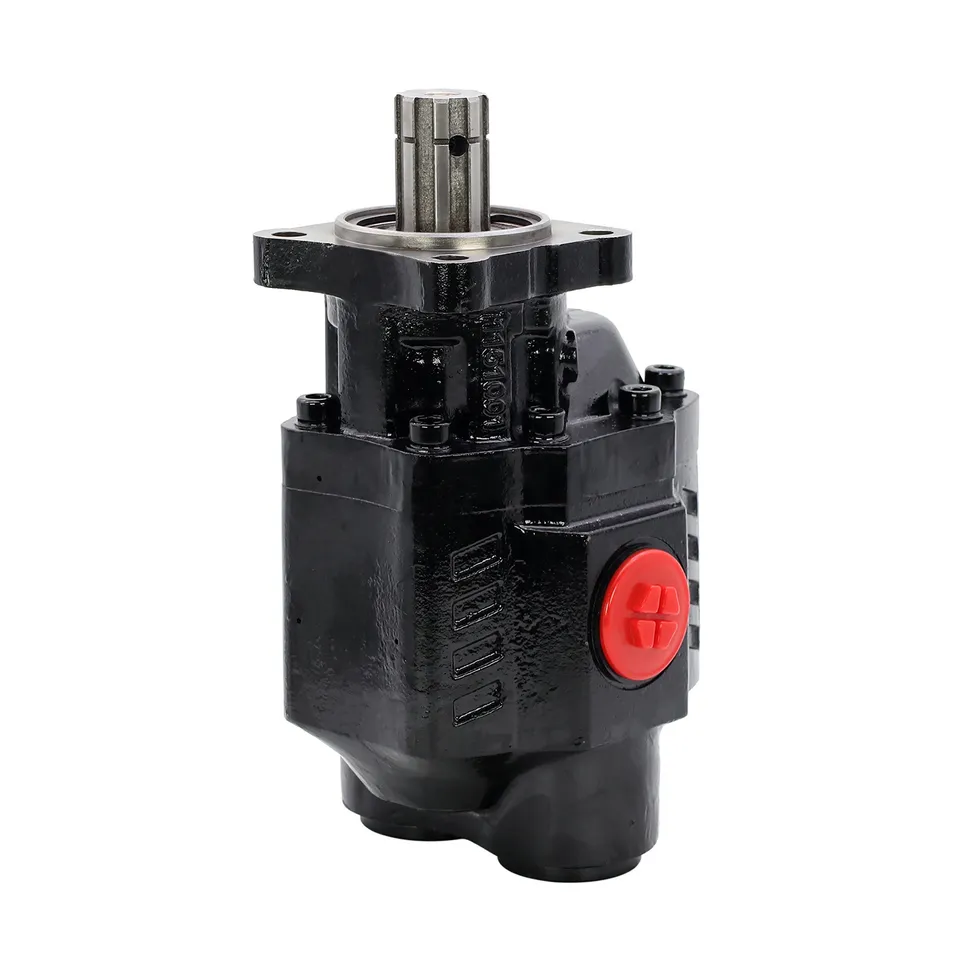

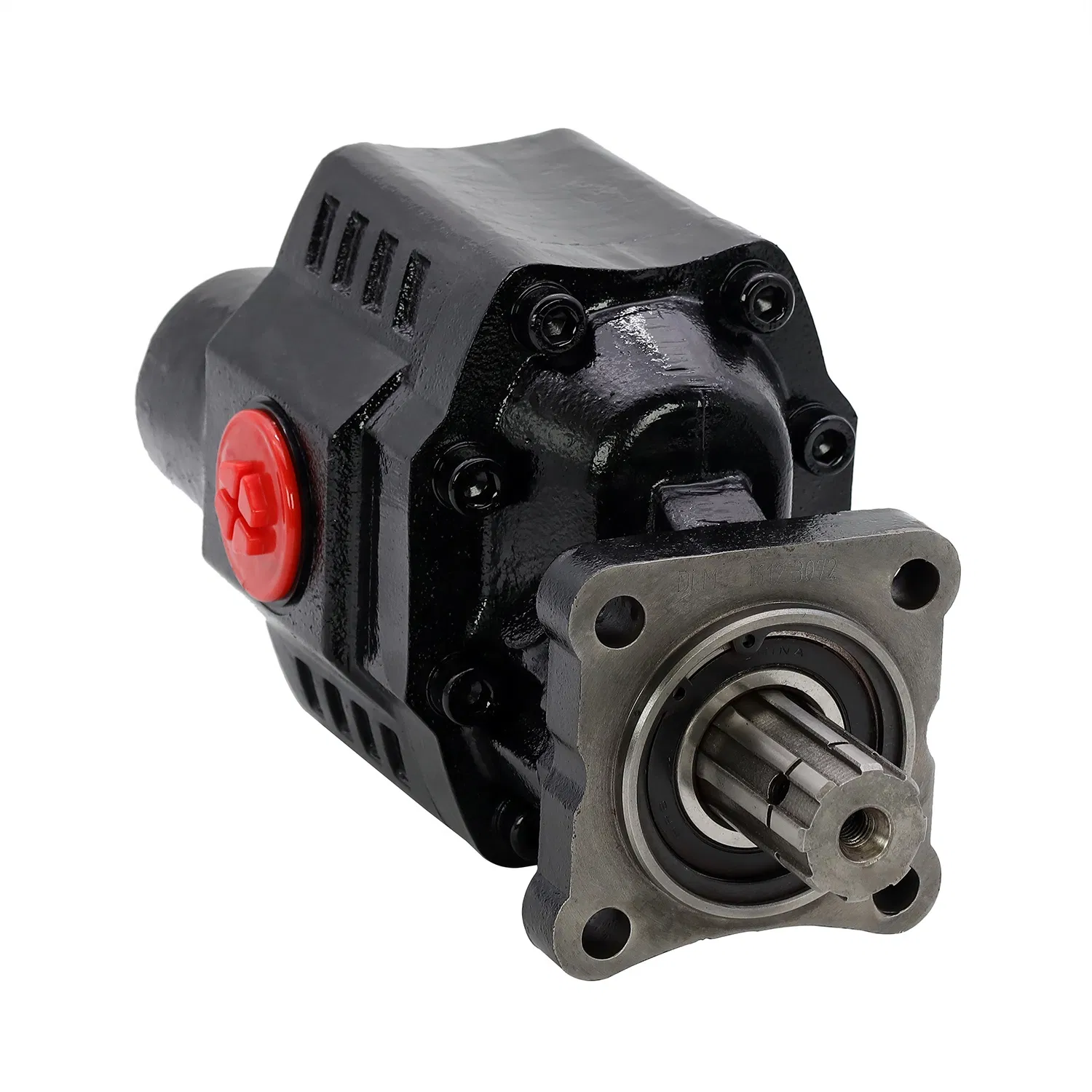

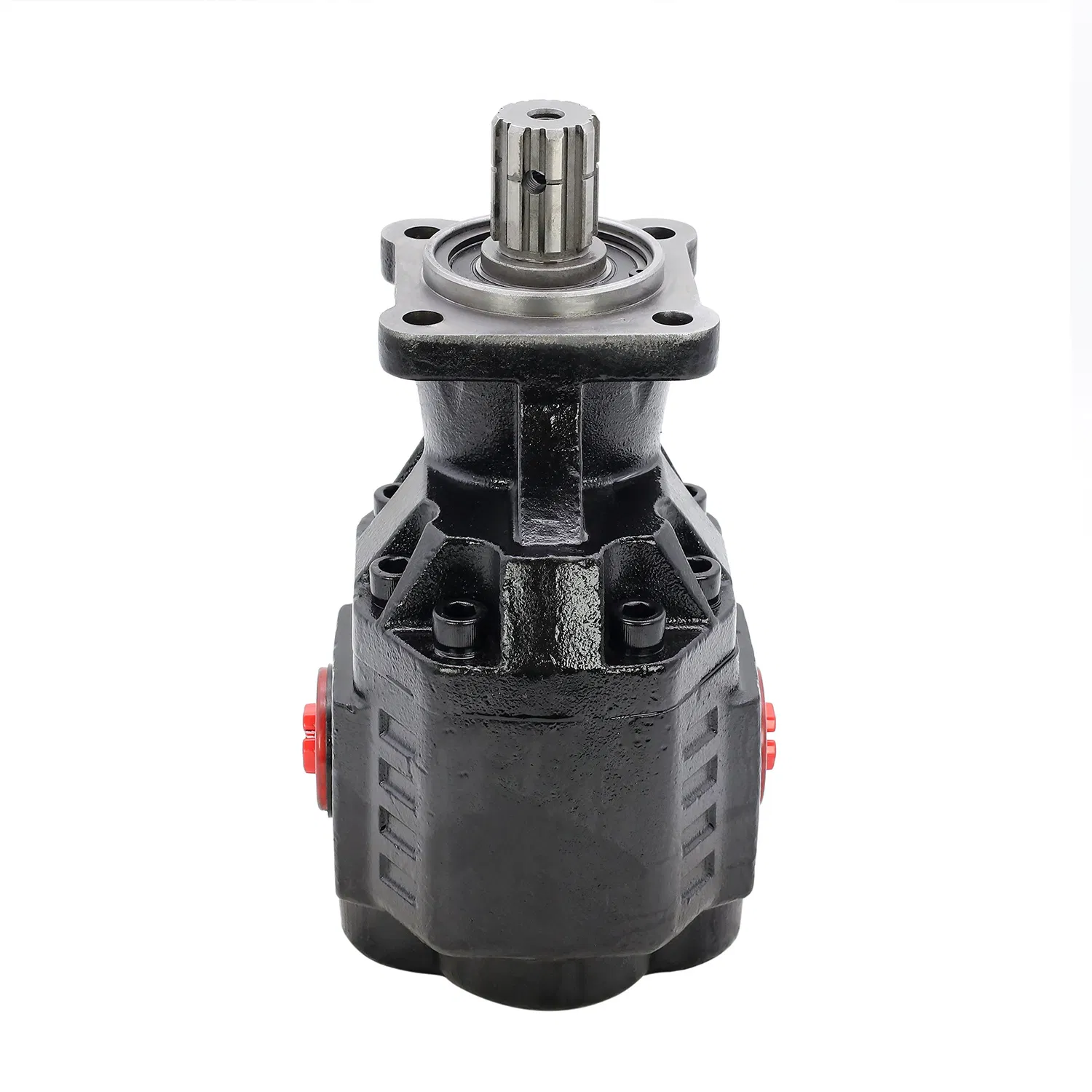

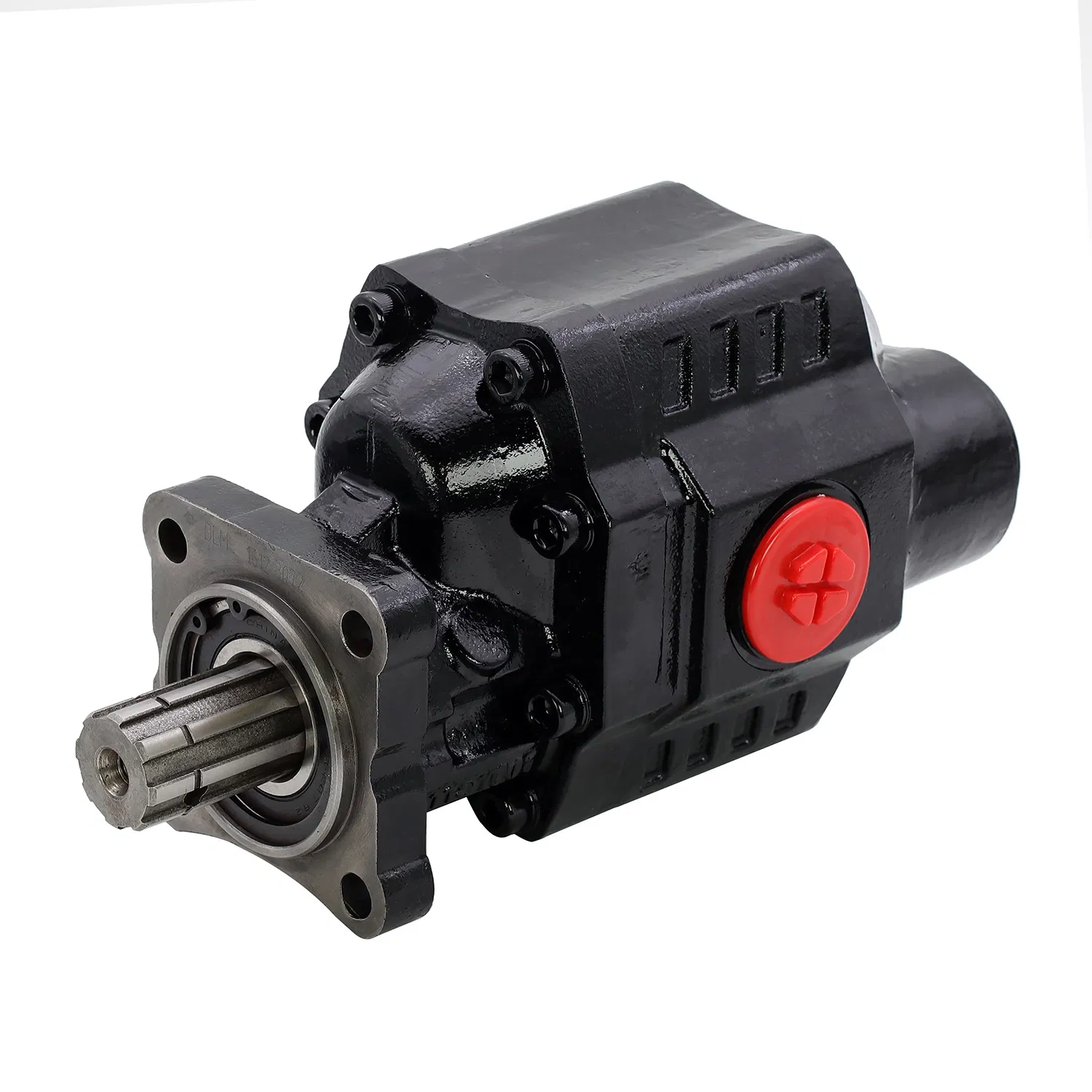

High-Performance Hydraulic Gear Pump
Our pump is a new designed gear pump for vehicle systems, featuring a strengthened pump body, special treated surface, and double row needle roller bearings.
Product Key Features
- Loader capacity is greatly strengthened, the service life is increased by 30%.
- Low cleanness requirements for hydraulic oil, strong anti-pollution ability.
- 30mm/36mm rectangle spline shaft type options available.
- Various types of oil inlet and outlet: side in/side out, side in/bottom out, bottom in/bottom out, bottom in/side out.
- Rotation direction can be configured as left, right, or bidirectional.

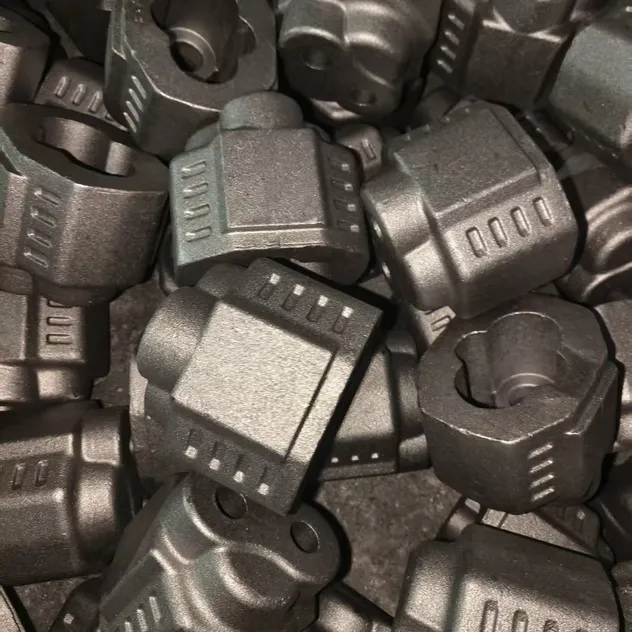

Shell
The front cover and pump body are made of cast iron, which increases the overall strength and anti-deformation ability of the product.

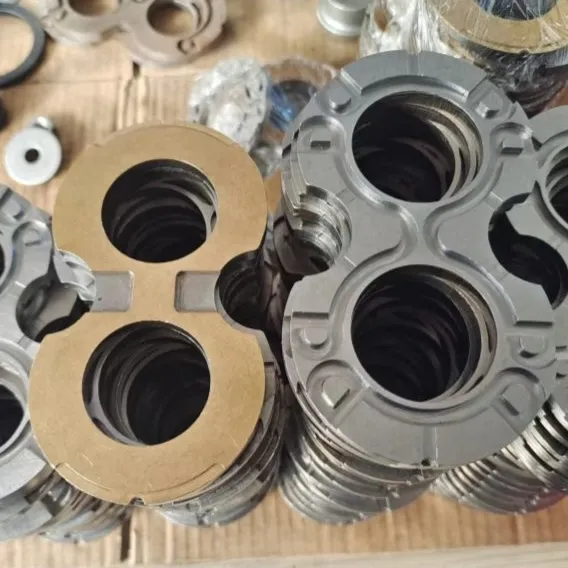

Side Plates
Made of special high-density copper alloy, the thickness of the wear-resistant copper layer is increased for enhanced durability.

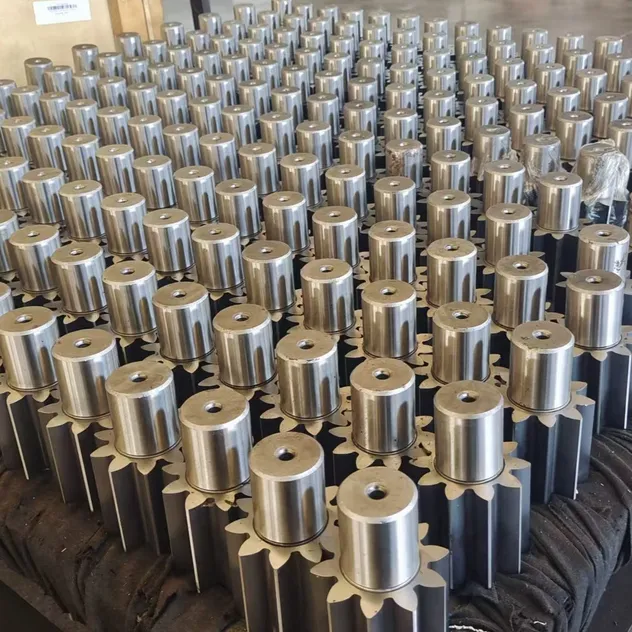

Gears
Ground gears improve processing accuracy and ensure a complete involute tooth profile, reducing noise and maximizing volumetric efficiency.

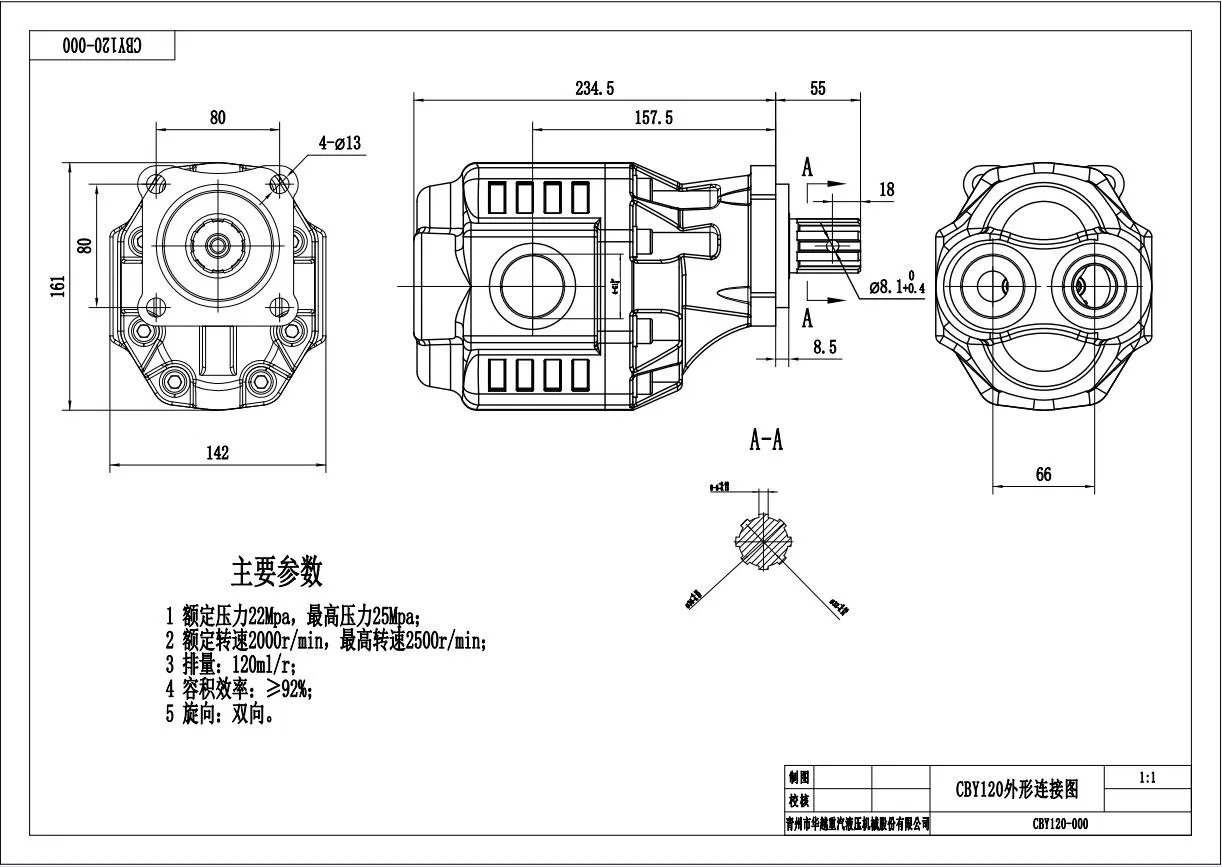

Drawings & Dimensions
Detailed drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.
Technical Specifications
| Type |
Displacement (cm³/r) |
Continuous Pressure (bar) |
Max. Pressure (bar) |
Continuous Speed (r/min) |
Max. Speed (r/min) |
Inlet |
Outlet |
| ISO110L-BI-4H |
110L |
220 |
250 |
2000 |
2500 |
G1.1/4 |
G1.1/4 |
| ISO120L-BI-4H |
120L |
220 |
250 |
2000 |
2500 |
G1.1/4 |
G1.1/4 |

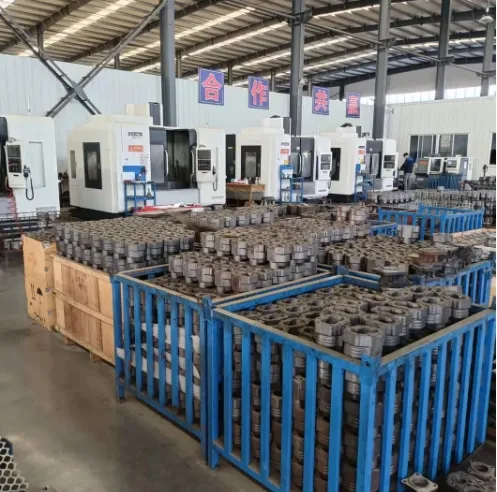

Workshop & Stock

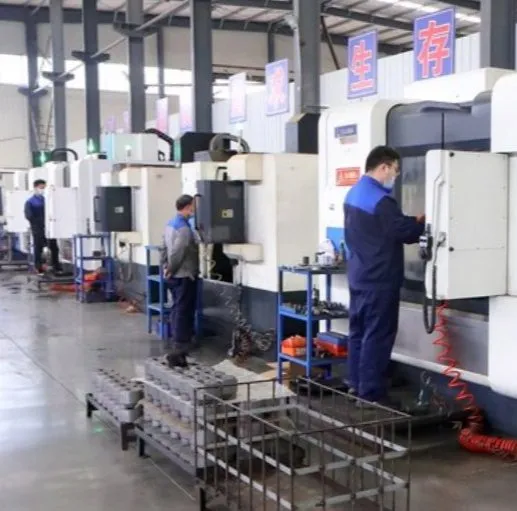

Equipped with advanced static pressing production lines and imported horizontal/vertical machining centers. Quality is ensured through spectrometers, coordinate testers, and specialized test benches.

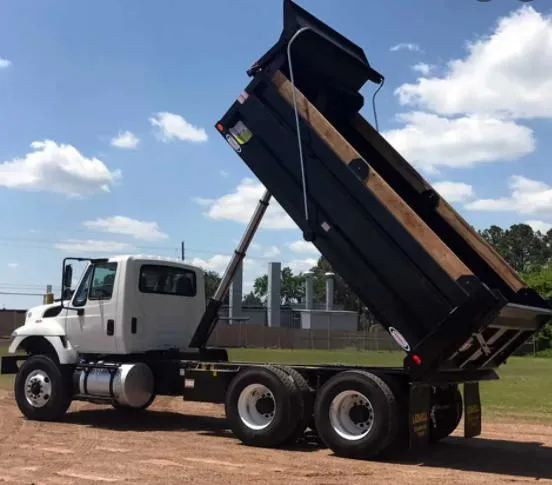

Application Areas
Widely used in construction, mining, drilling, agricultural machinery, and special vehicle industries.
Packaging & Shipping
Products are packed in individual cartons and secured in external export-grade wooden cases for safe delivery to destination ports.
Frequently Asked Questions
Why choose our hydraulic gear pumps?
With 20 years of experience in independent research and production, we are a leading hydraulic parts manufacturer in China, ensuring high durability and efficiency.
What is the production warranty?
We provide a standard 6-month warranty on all our gear pump products.
Do you offer custom services?
Yes, we provide comprehensive OEM/ODM services, including technology support, production design, and full after-sale service.
What is your daily production capacity?
Our current daily production capacity is approximately 500 sets of valves and 500 sets of pumps.
What is the standard delivery time?
The typical delivery lead time is 10-15 days after payment is confirmed.
What materials are used in the pump construction?
The shell is made of high-strength cast iron, side plates are crafted from high-density copper alloy, and the gears are precision ground for maximum volumetric efficiency.
