Heat Exchanger Hydraulic Oil Air Cooler for Hydraulic Cooler Fan

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Certification

ISO

Application

Cooler

Principle

Mixing Heat Exchanger

Style

Plate Type

Material

Stainless Steel

Condition

New

Structure

Brazed Heat Exchanger

Plate Material

SS304/SS316L

Plate Thickness

0.4mm

Business Type

Manufacturer

Noise Level

Low

Welding

Good Quality

HS Code

84195000

Capacity

10000 pieces/Year

⚙️ Product Description

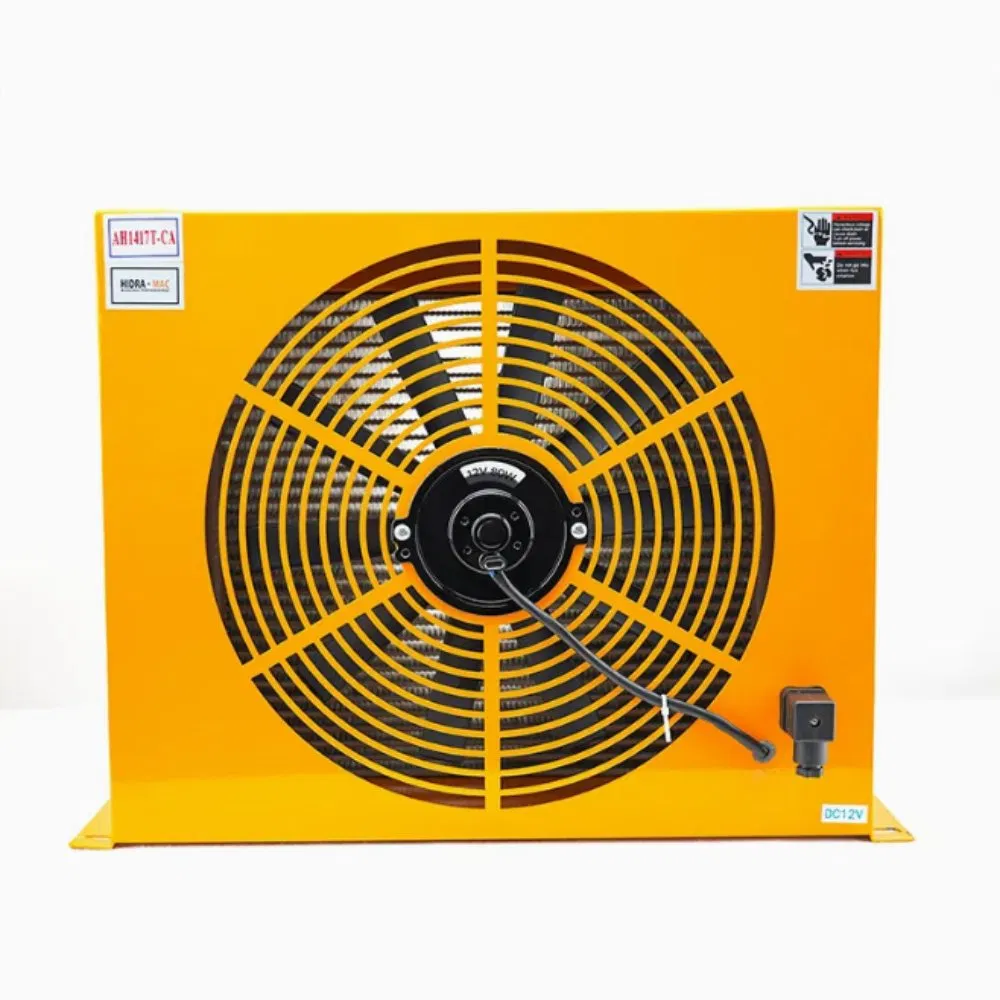

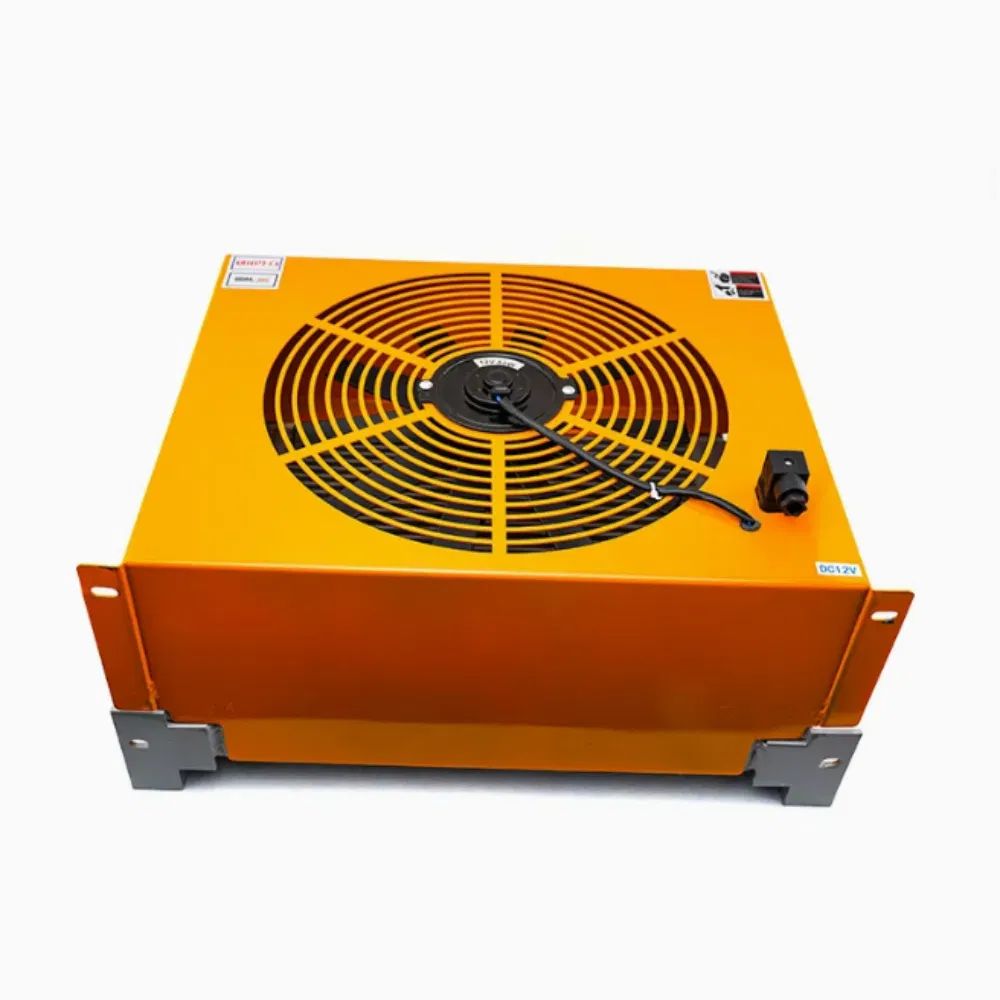

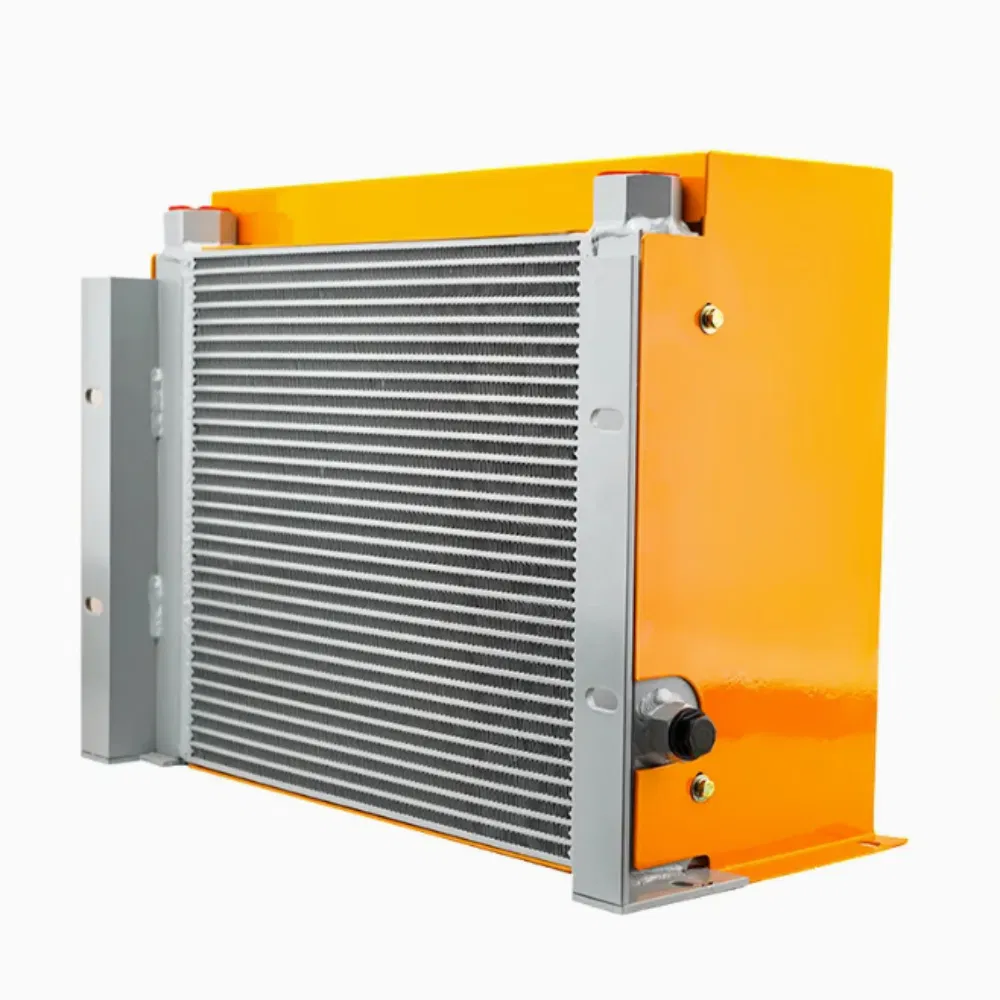

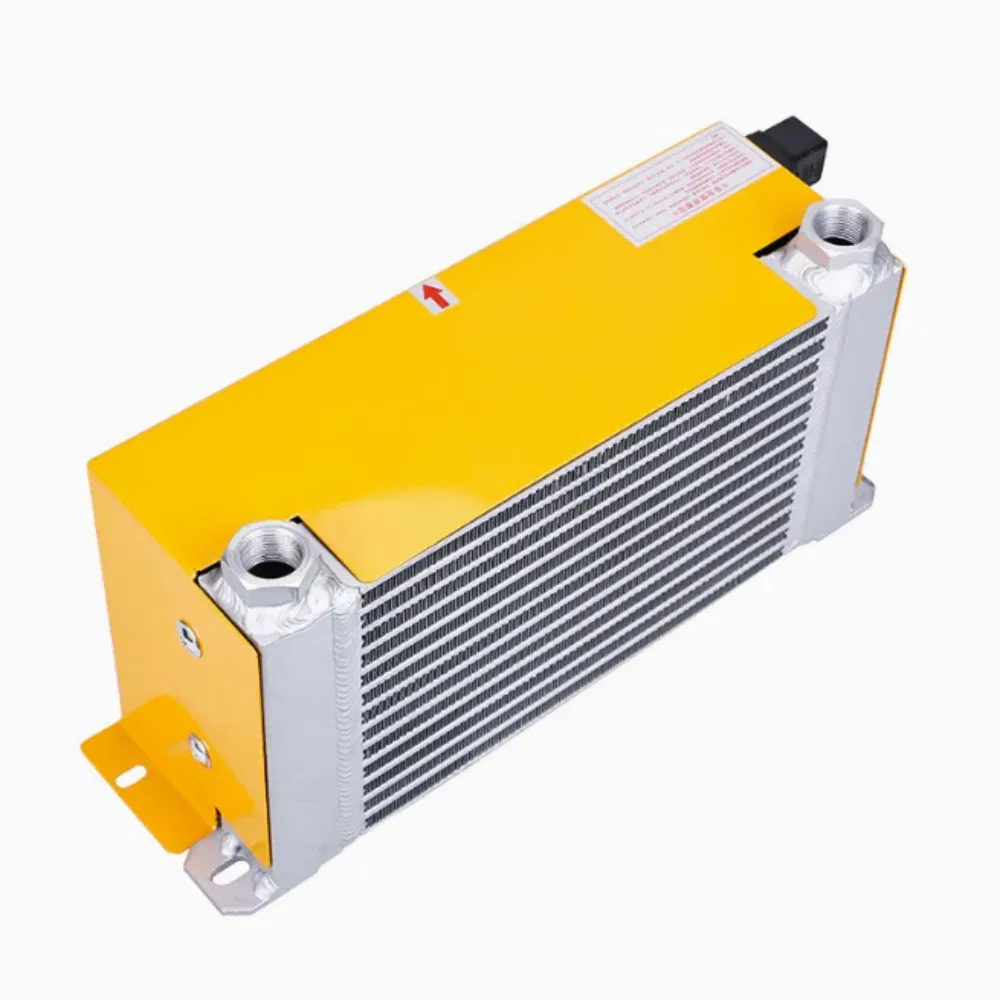

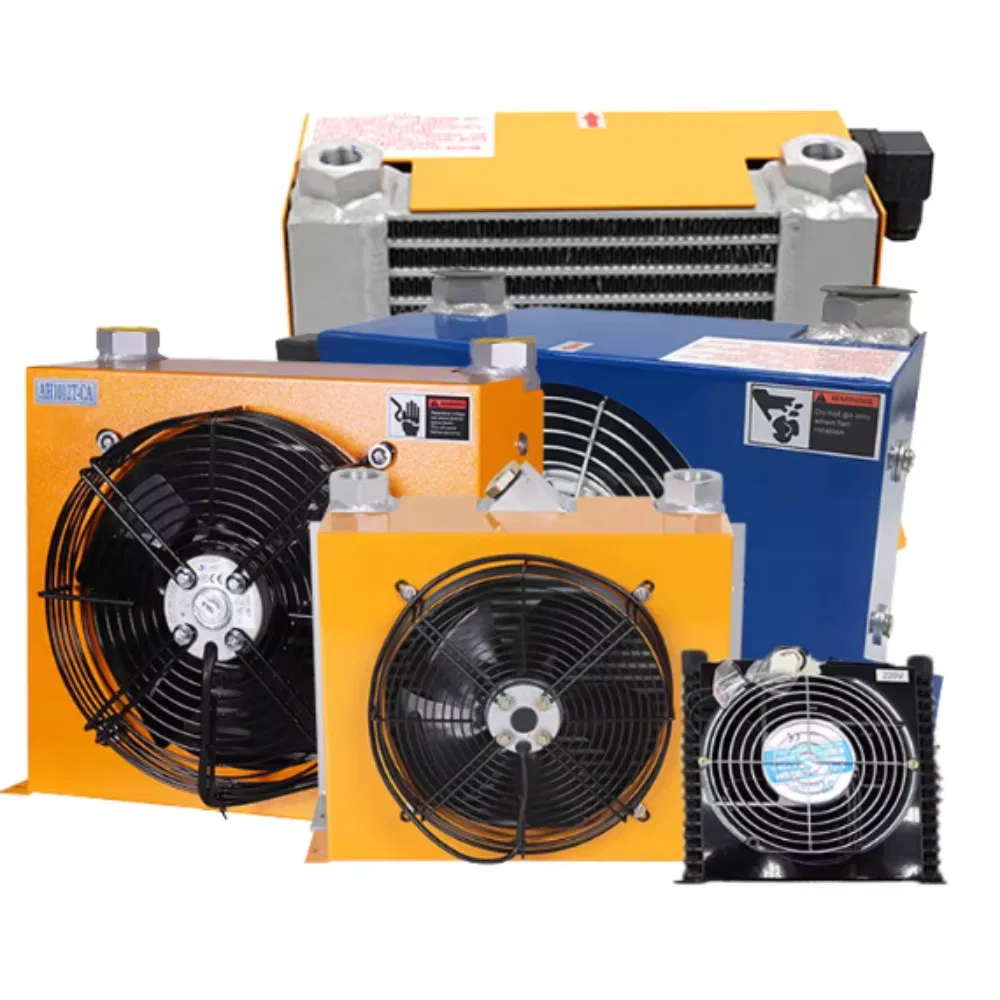

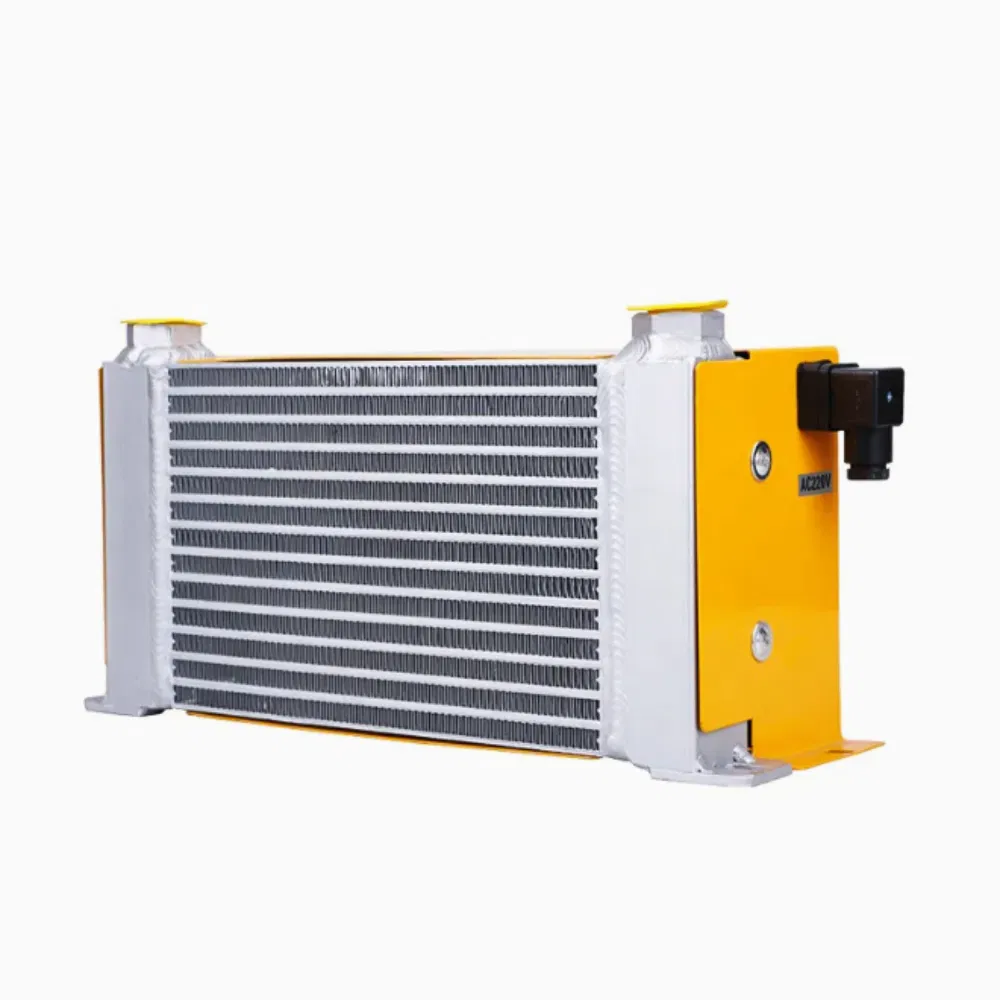

Air Cooler Fan

The air coolers are constructed from high-quality aluminum alloy, offering a lightweight design with excellent seismic intensity and superior heat transfer efficiency. The internal channel structure utilizes efficient fins to maximize the heat transfer area and increase the overall heat transfer coefficient.

High Efficiency: Aluminum alloy material ensures rapid heat dissipation.
Safety Guaranteed: Designed to prevent mixing of water and oil, protecting the system from fatal damage.
Cost-Effective: Energy-saving operation with low maintenance costs.
Compact Design: Small volume and easy installation for various environments.
Durability: Long service life with high working pressure resistance and low failure rate.
Wide Temperature Range: Suitable for fluid temperatures from 10℃ to 180℃ and ambient temperatures from -40℃ to 100℃.

📊 Technical Specifications

Cooler Type	Max Flow (L/min)	Pressure (Bar)	Cooling (Kcal/h)	Power (W)		Fan Speed (rpm)	Noise (dB)	Max Temp (℃)
Cooler Type	Max Flow (L/min)	Pressure (Bar)	Cooling (Kcal/h)	AC220V	AC380V	Fan Speed (rpm)	Noise (dB)	Max Temp (℃)
AH0607T	60	35	800	38	45	2700	50	130
AH0608T	60	35	1200	38	45	2700	50	130
AH1012T	100	35	4700	100	80	2500	60	130
AH1417T	150	35	12100	140	140	1420	60	130
AH1470T	200	35	15400	140	140	1420	60	130
AH1680T	300	35	26000	340	370	1400	70	130
AH22100T	500	35	57200	550	550	1420	76	130

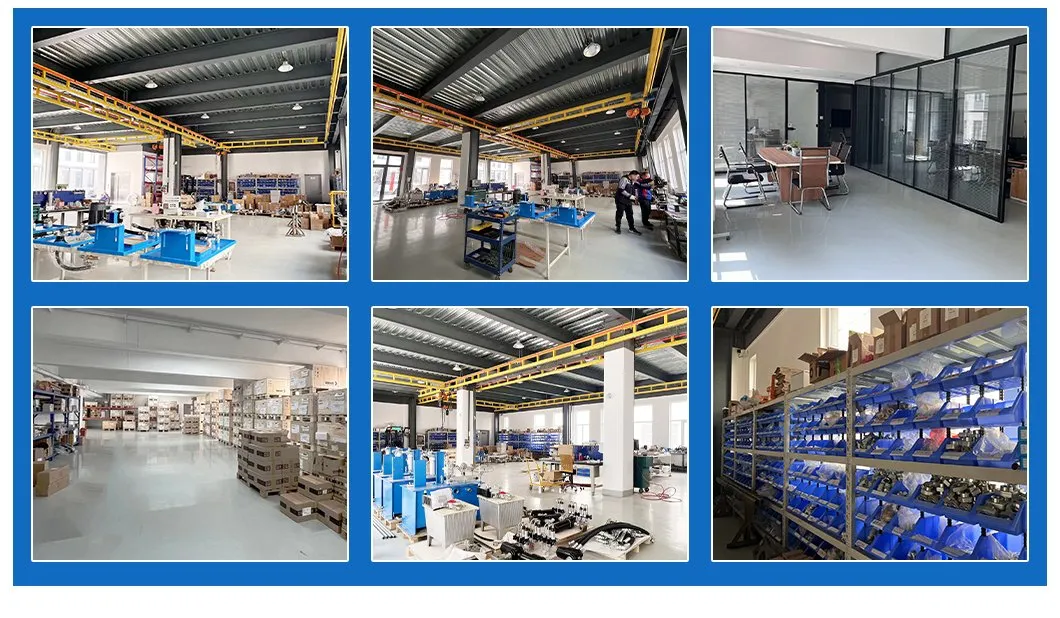

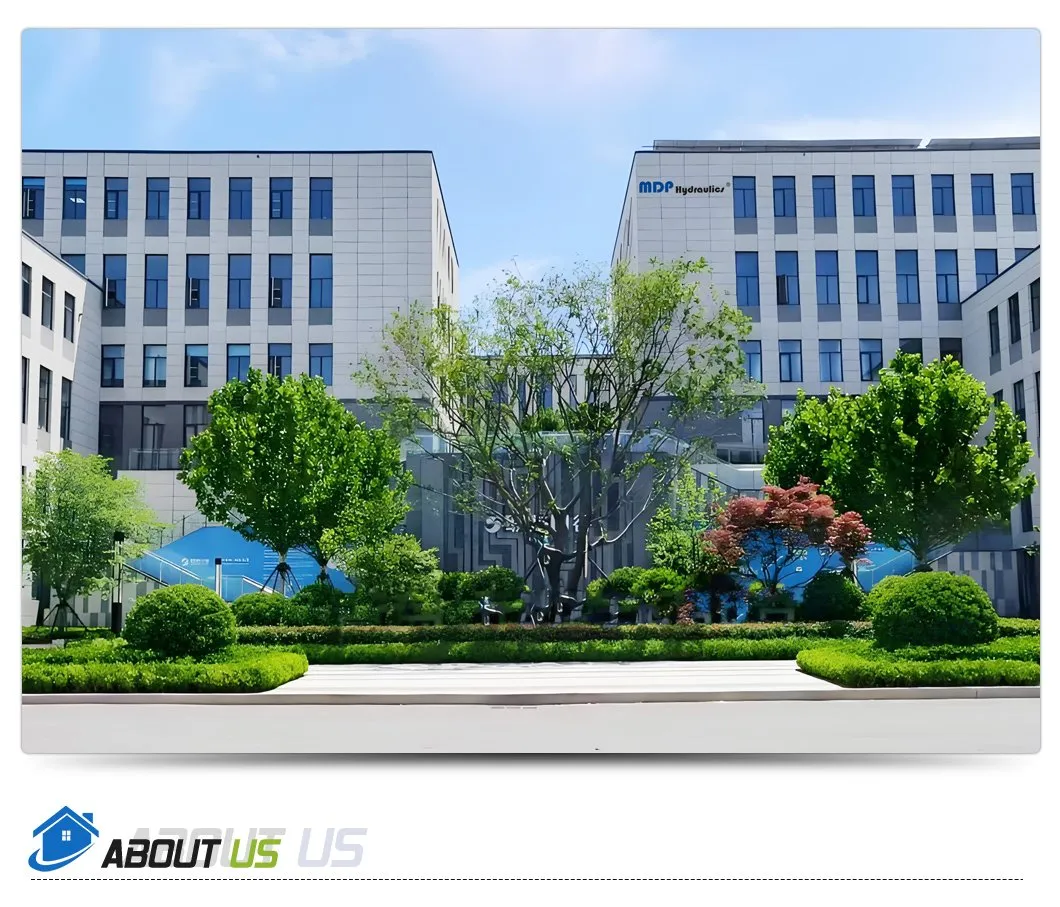

🏢 Professional Manufacturing

With extensive experience in the development and application of hydraulic and lubrication systems, we specialize in the design, manufacturing, and technical services of high-performance solutions. Leveraging decades of expertise, we are committed to delivering cost-effective, top-tier system solutions tailored to global client needs.

📜 Certifications

📦 Packing & Delivery

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

20.000kg

Package Type

Plywood Case

Frequently Asked Questions

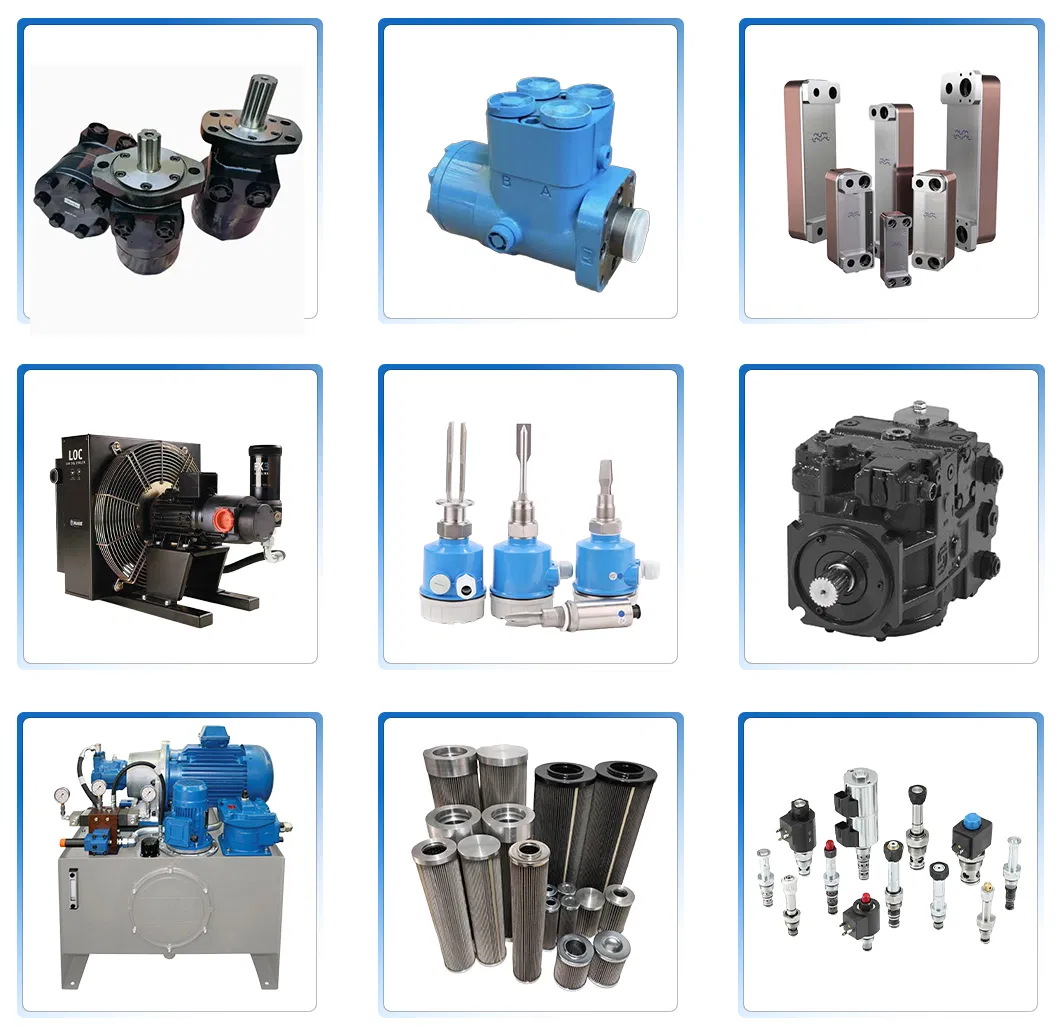

What products can I purchase from your range?

We offer a comprehensive range of hydraulic components including pumps, valves, motors, filters, filter elements, manifolds, and power packs.

What is the primary material used in the air coolers?

Our air coolers are made of high-grade aluminum alloy, which provides a lightweight structure and excellent heat transfer efficiency.

What is the typical delivery time for an order?

Normally, delivery takes about 7 days after payment is received. For items currently in stock, we can ship within 48 hours.

Can the products be customized with my own branding?

Yes, we support customization. Orders can be marked with your specific brand name and product codes as required.

What are the temperature limits for these coolers?

The appropriate fluid temperature range is 10℃ to 180℃, and they are designed to operate in ambient temperatures between -40℃ and 100℃.

Why choose your hydraulic solutions over other suppliers?

We have over 10 years of experience, a complete supply chain, our own manufacturing facility, and a professional technical team dedicated to ensuring high-quality original parts and systems.
