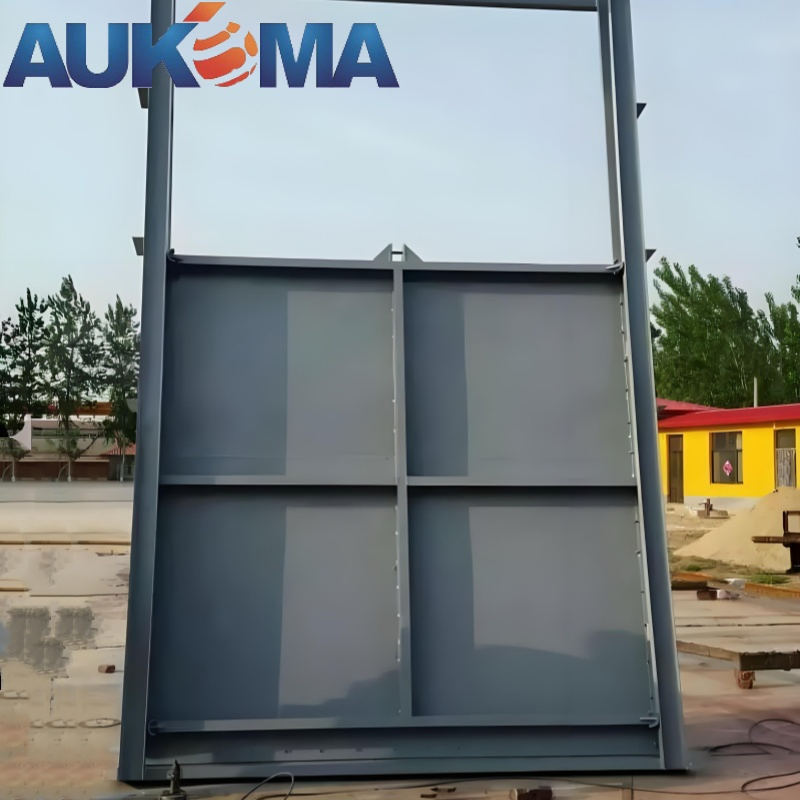

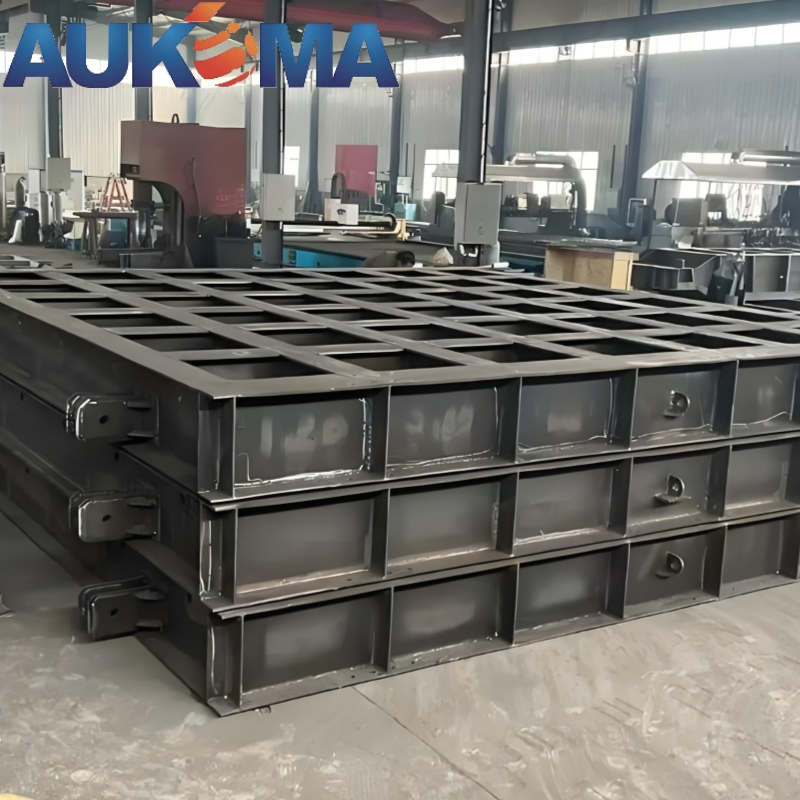

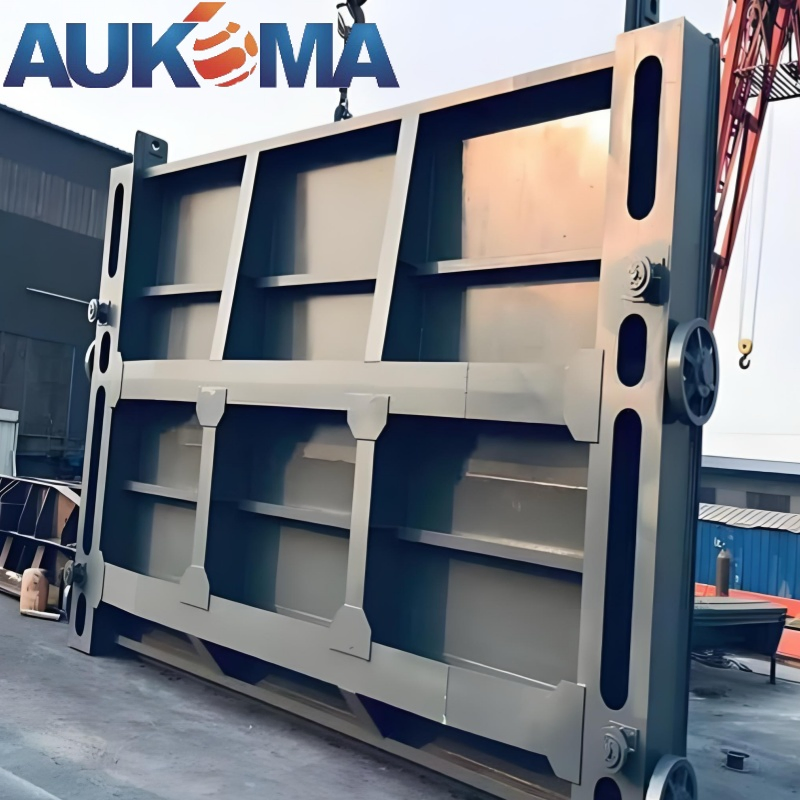

Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
1 / 5
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems
Flanged Penstock Valve for Large-Scale Water Distribution Systems

Flanged Penstock Valve for Large-Scale Water Distribution Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
MXF/PZW
Type
Direct-acting
Material
Stainless Steel
Connection Form
Clamp
Pressure
Ordinary Temperature
Actuator
Manual/Electric
Seal Surface
Wedge Gate Valve
Standard
DIN3354/DIN2501/DIN3202
DN
DN40-DN1000mm
Warranty Time
1 Year

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 8.00cm
Gross Weight
450.000kg

Product Description

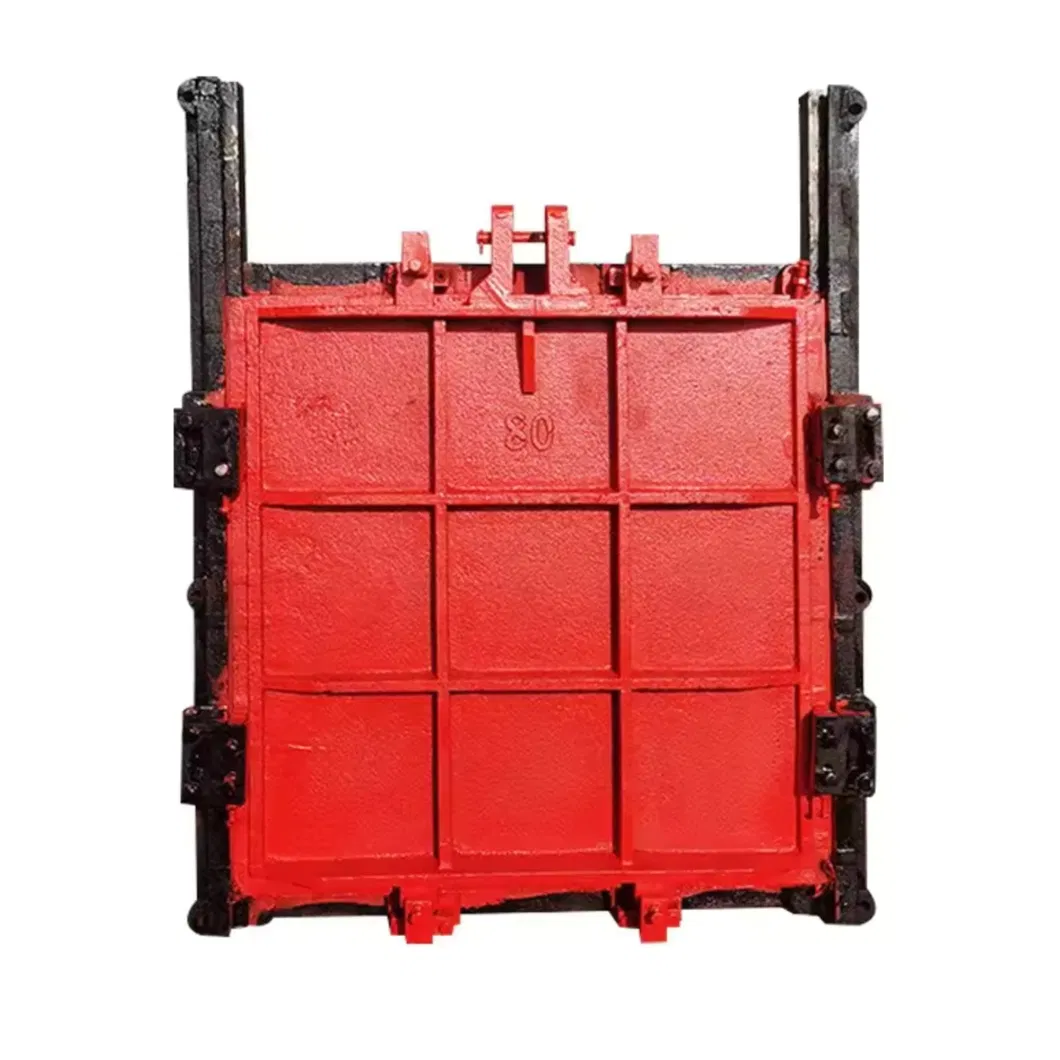

Sluice Gate Overview

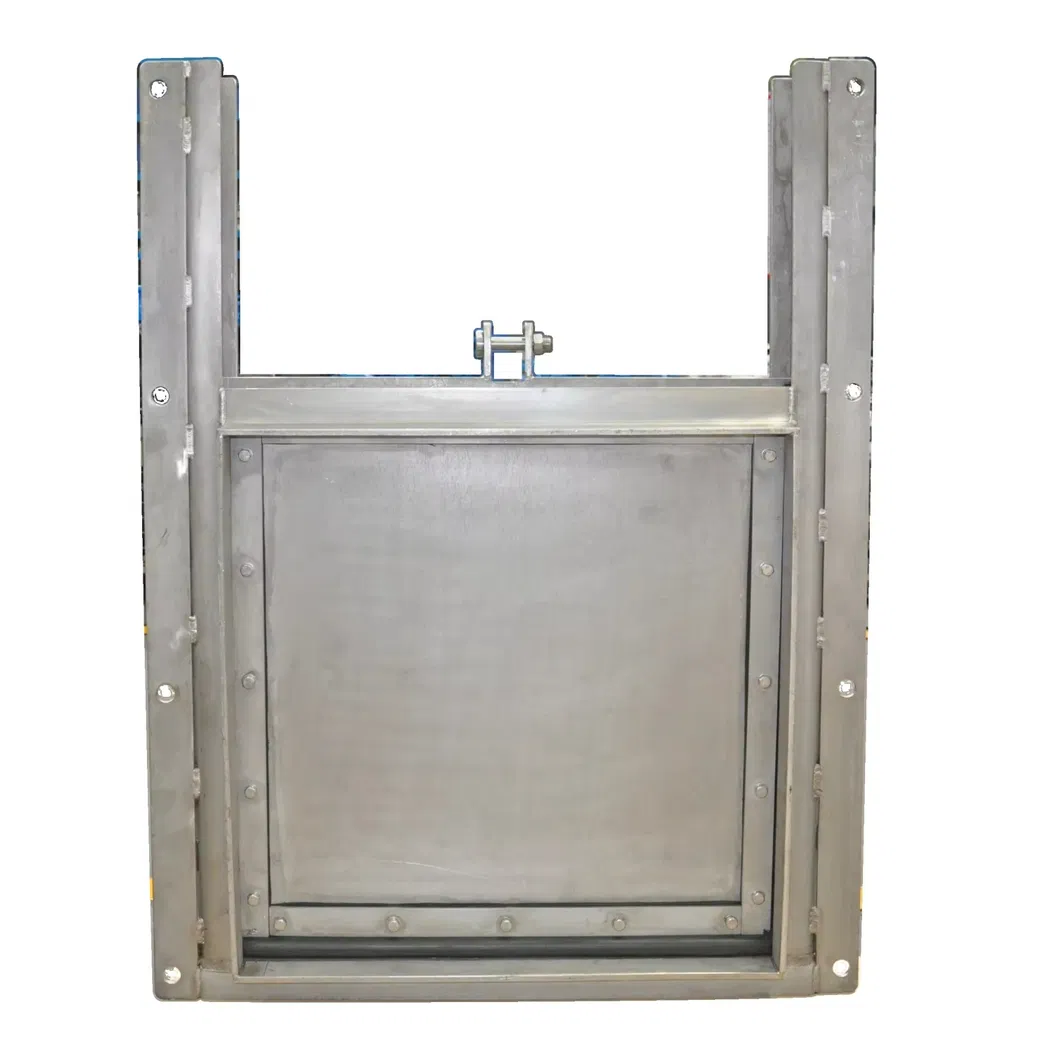

Sluice Gate Detail

1. MXF Carbon Steel/Stainless Steel Sluice Gate Overview

MXF/PZW sluice gate is mainly composed of door frame, gate plate, sealing ring and adjustable wedge-shaped pressure block. After the gate is worn out for a long time, its sealing surface can be adjusted by the wedge-shaped pressure block to ensure normal operation.

It has the characteristics of reasonable and solid structure, strong wear and corrosion resistance, reliable performance, easy installation, commissioning, use and maintenance. It is commonly used in water conservancy projects such as water supply, drainage, and flood control.

2. Main Characteristics

  • The gate should be installed with the gate plate located on the water-facing side;
  • Maximum allowable pressure (pressing against frame): 0.1MPa;
  • Maximum allowable pressure (pressing away from frame): 0.02MPa;
  • Leakage of sealing parts shall not exceed 1.25L/min.m.

Product Parameters & Dimensions

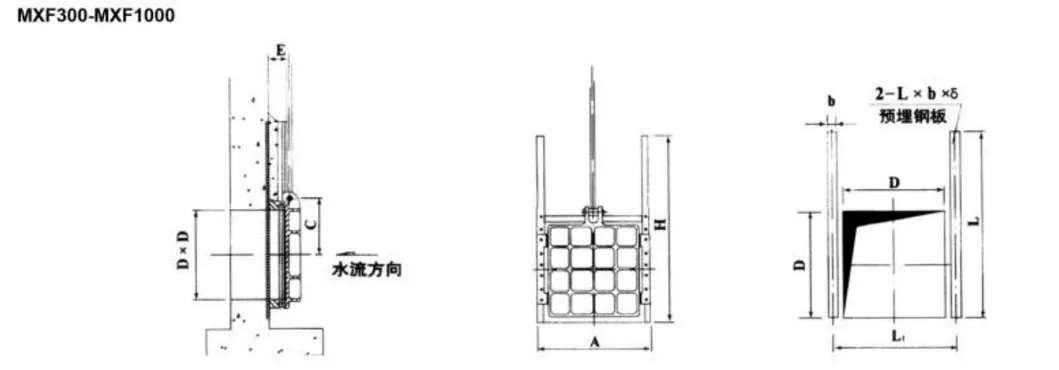

Dimensions Diagram 1
Dimensions Diagram 2
Model Gate Size (D×D) A b C E H L L1 ō
MXF-300300×3004561502008358058045612
MXF-400400×4005561502508368068055612
MXF-500500×5006561503108378078065612
MXF-600600×60079015036012390090079012
MXF-10001000×1000121015058016317001700121012

Manufacturing & Applications

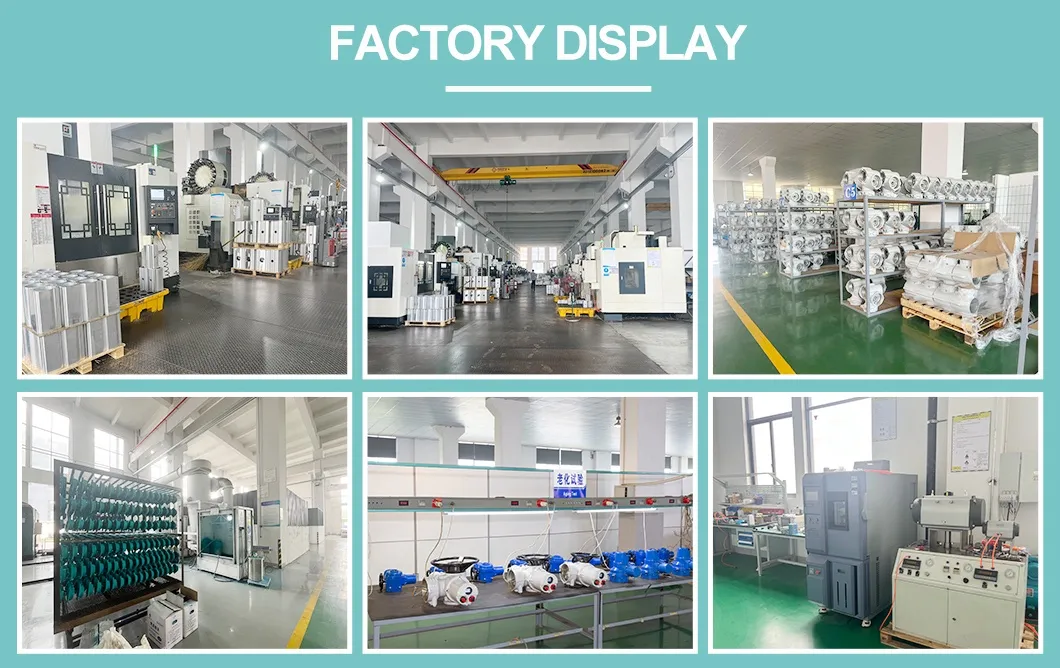

Company Overview

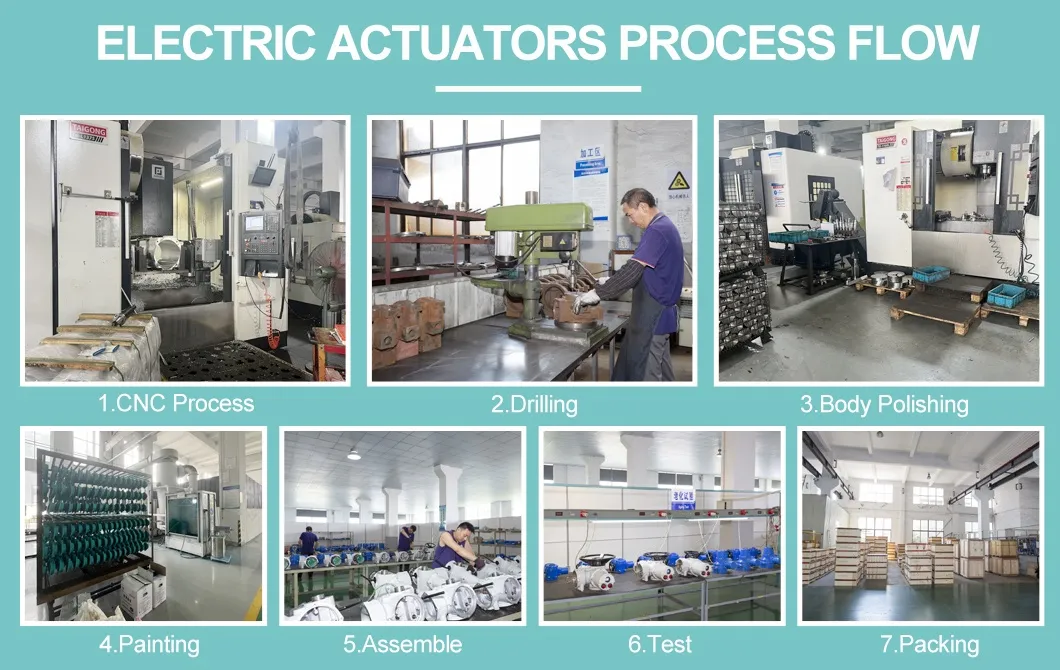

Manufacturing Process

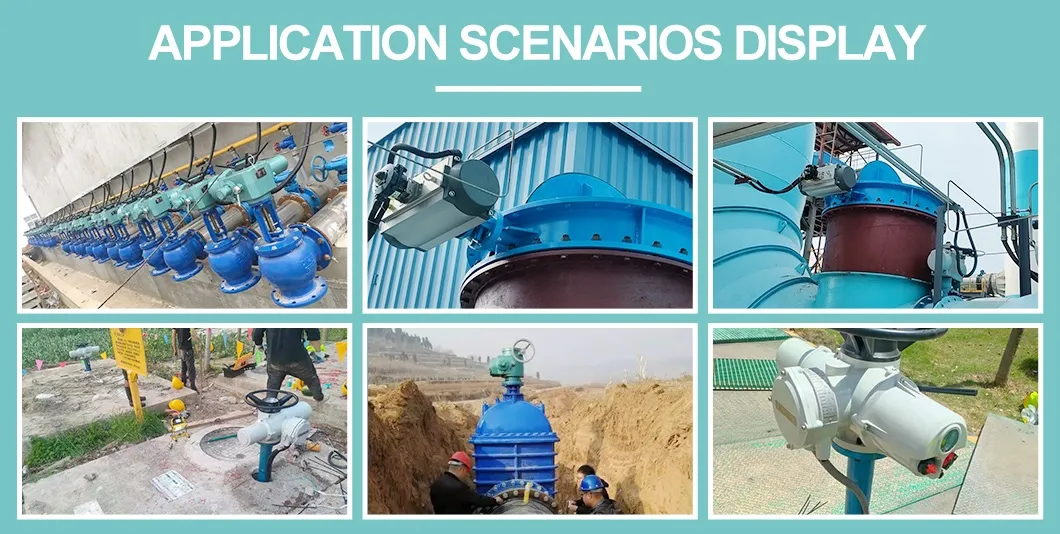

Applications Display

Certifications & Exhibitions

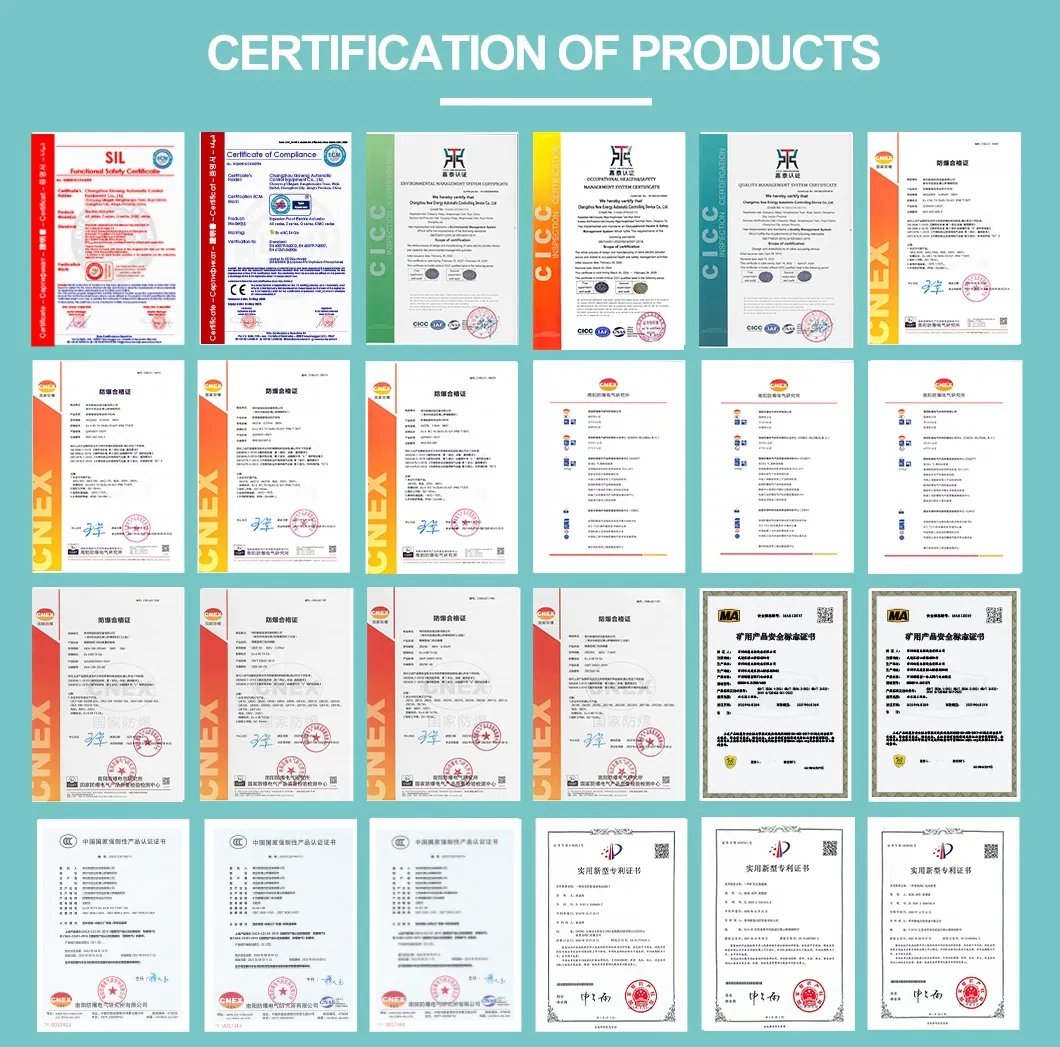

Certifications
