🟦 Basic Information
Principle
Mixing Heat Exchanger
Powder Coating
Black, Sliver, Customized
Design
Professional Design Team
Transport Package
Export Carton Packing
🟦 Product Description
Finned tube heat exchanger / Air cooler / hydraulic oil cooler / Aluminum radiator / air Cooled Brazed Aluminum Radiator for Construction Machinery
| Specifications & Medium |
| Medium |
Air, Oil, Water, Wind |
| Fin Types |
• BW (Wavy-fin): External fin, better heat emission capacity
• JC (Serrated-fin): Internal & external fin, high heat emission
• DK (Perforated-fin): Internal fin
• PZ (Plain-fin): Internal & external fin, used in construction machinery
• BY (Louvered-fin): External fin
|
| Width Series |
2.0mm, 2.5mm, 3.0mm, 3.8mm, 4.7mm, 5.6mm, 6.5mm, 8.0mm, 9.0mm, 9.5mm, 10.3mm, 11.3mm, 11.7mm, 12mm |
🟦 Classification & Applications
By Medium:
Oil cooler, Water radiator, Air cooler, Intercooler, Combined units (Oil-Water, Oil-Air, Water-Air), Air separator, Condensator evaporator.
By Application:
Engineering machinery (Excavator, Loader, Bulldozer), Compressors, Chemistry industry, Petroleum, Automobile, Marine engineering, HVAC, Textile industry.
🟦 Technical Features
✅ Combination welded cores-air & oil cores
✅ Brazed aluminum core/bar and plate
✅ Compact design & Light weight
✅ High performance all aluminum assembly
✅ Working pressure: 2-40 bar
✅ Working temp: -10 to 220 Deg C

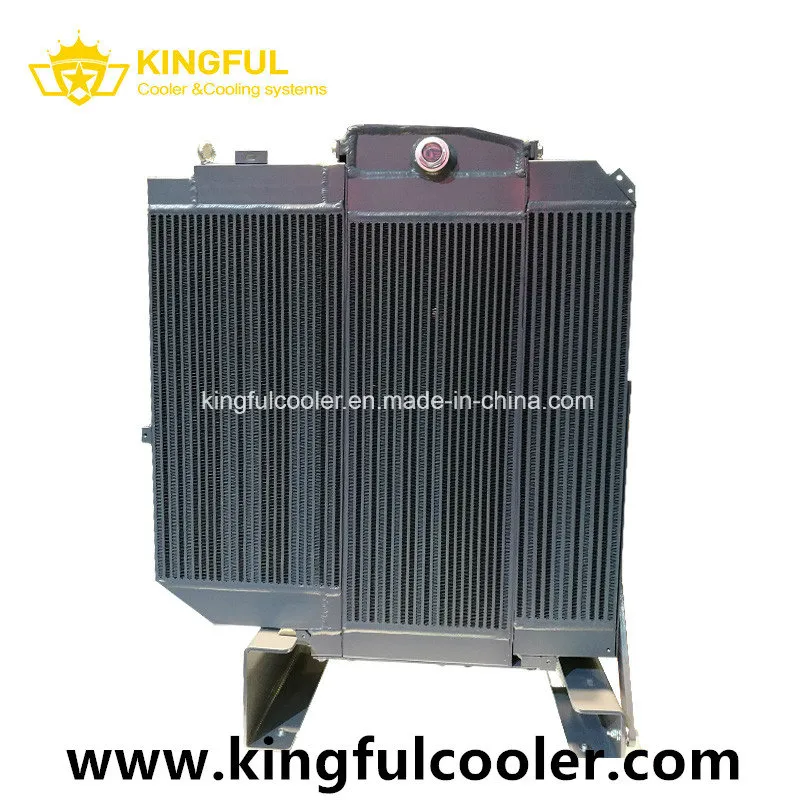

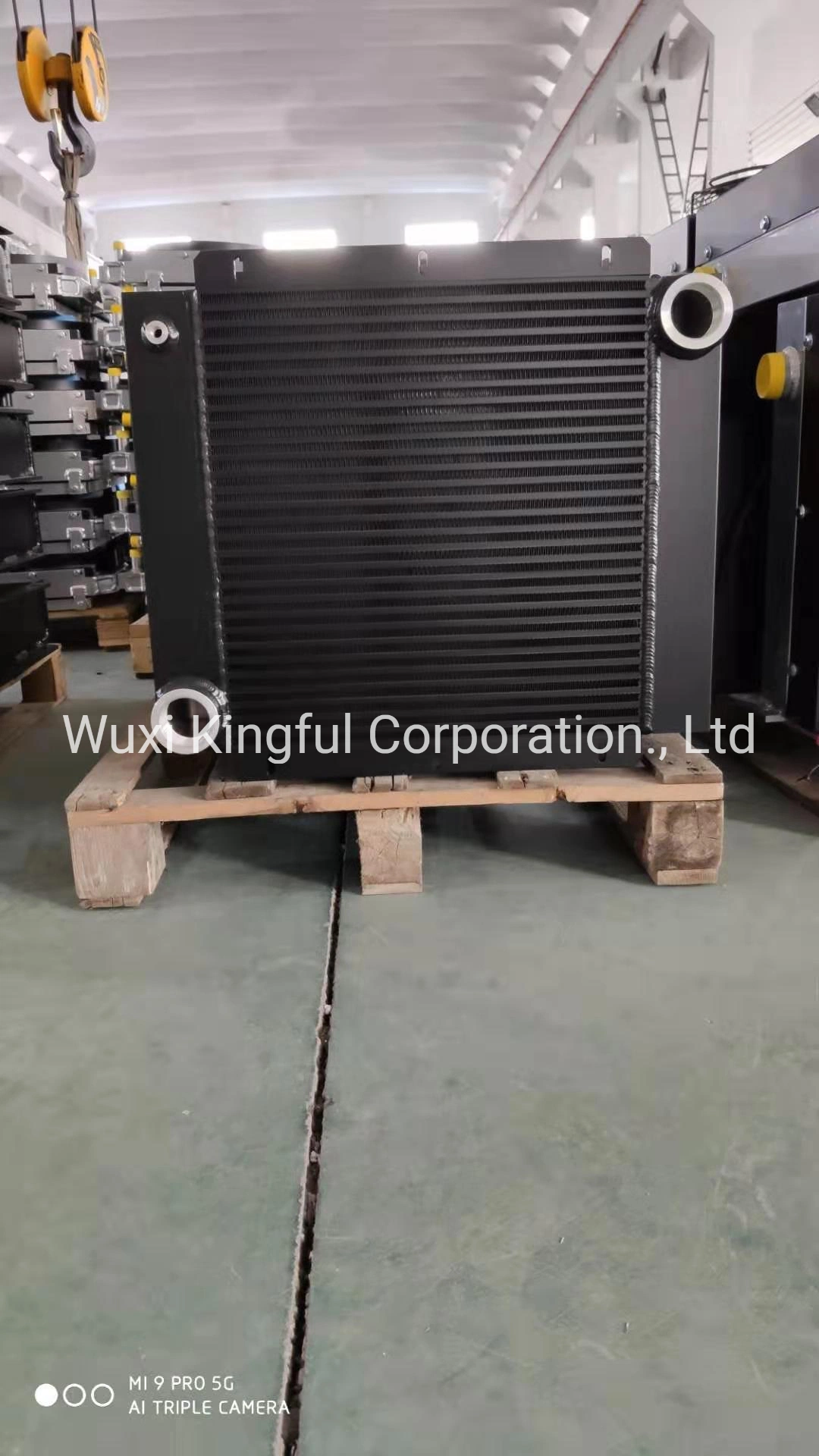

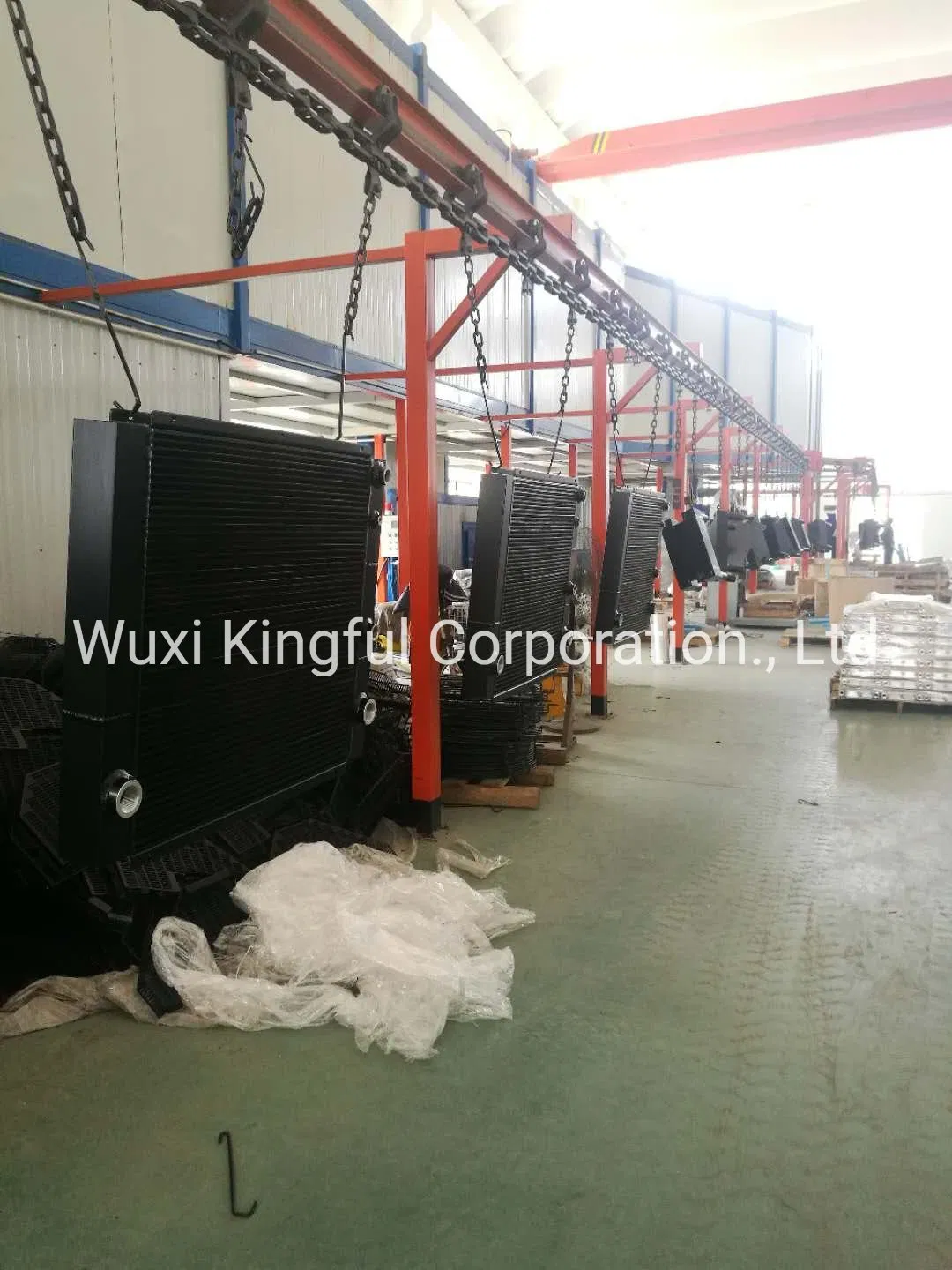

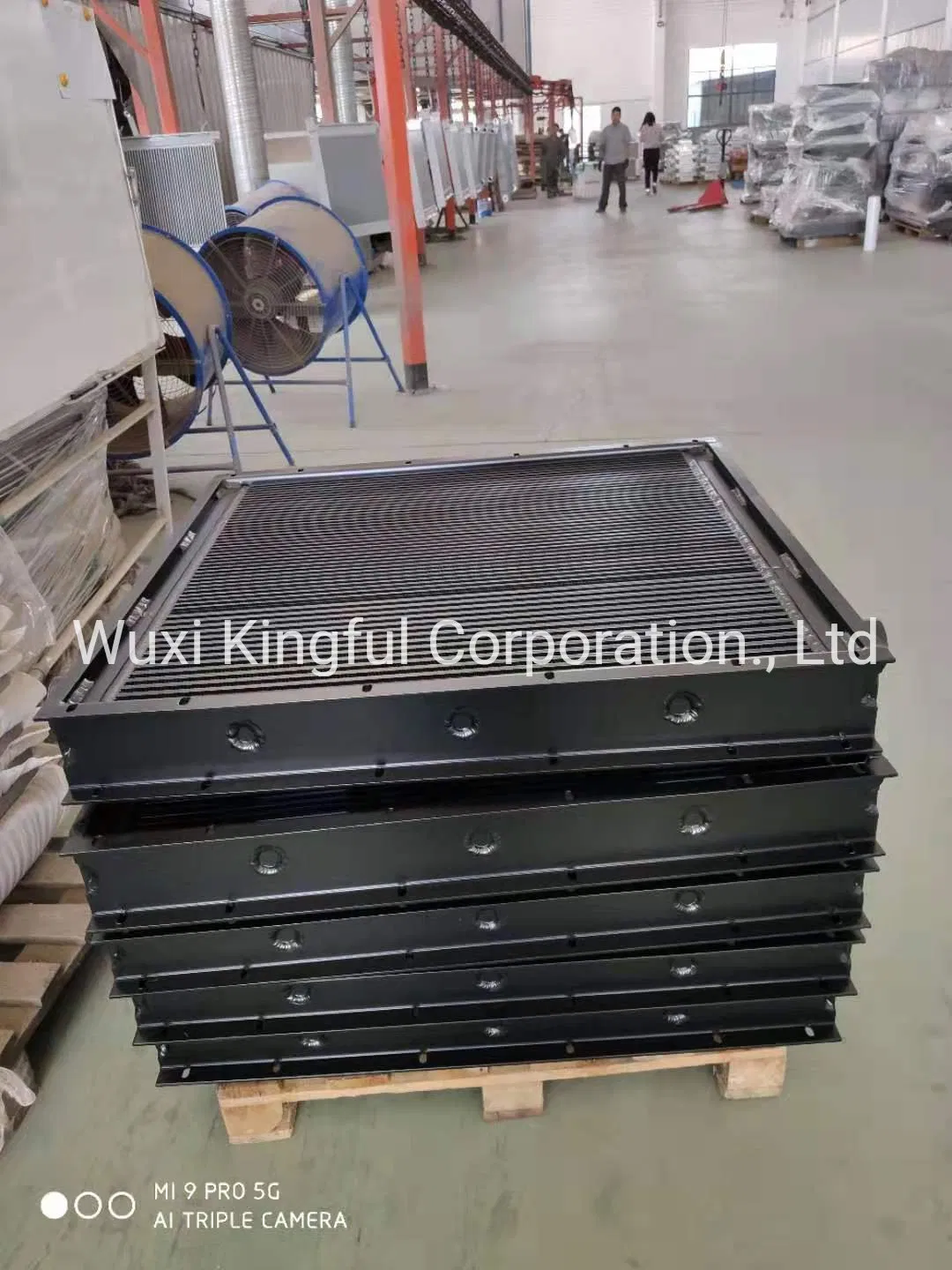

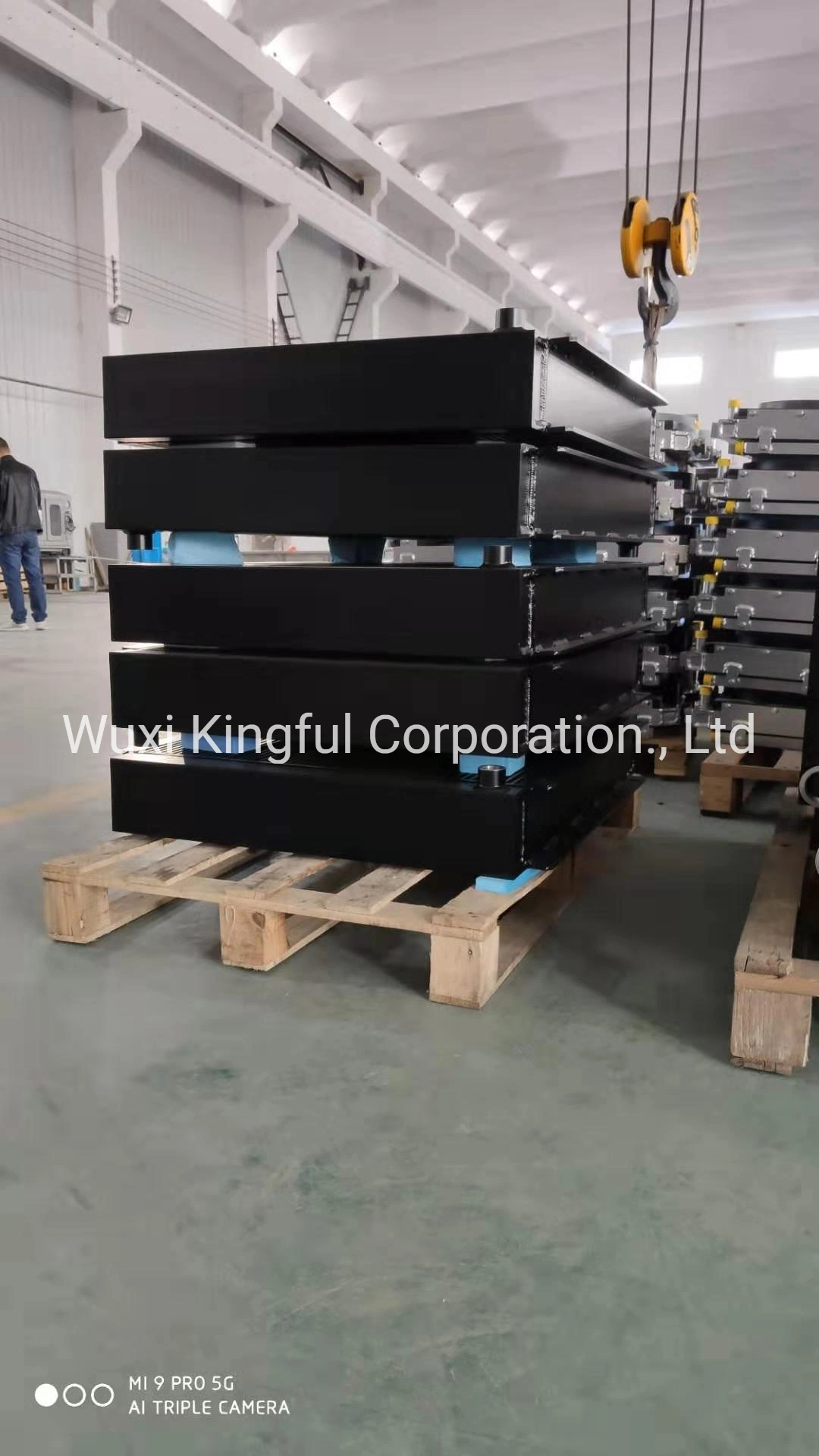

🟦 Product Photos

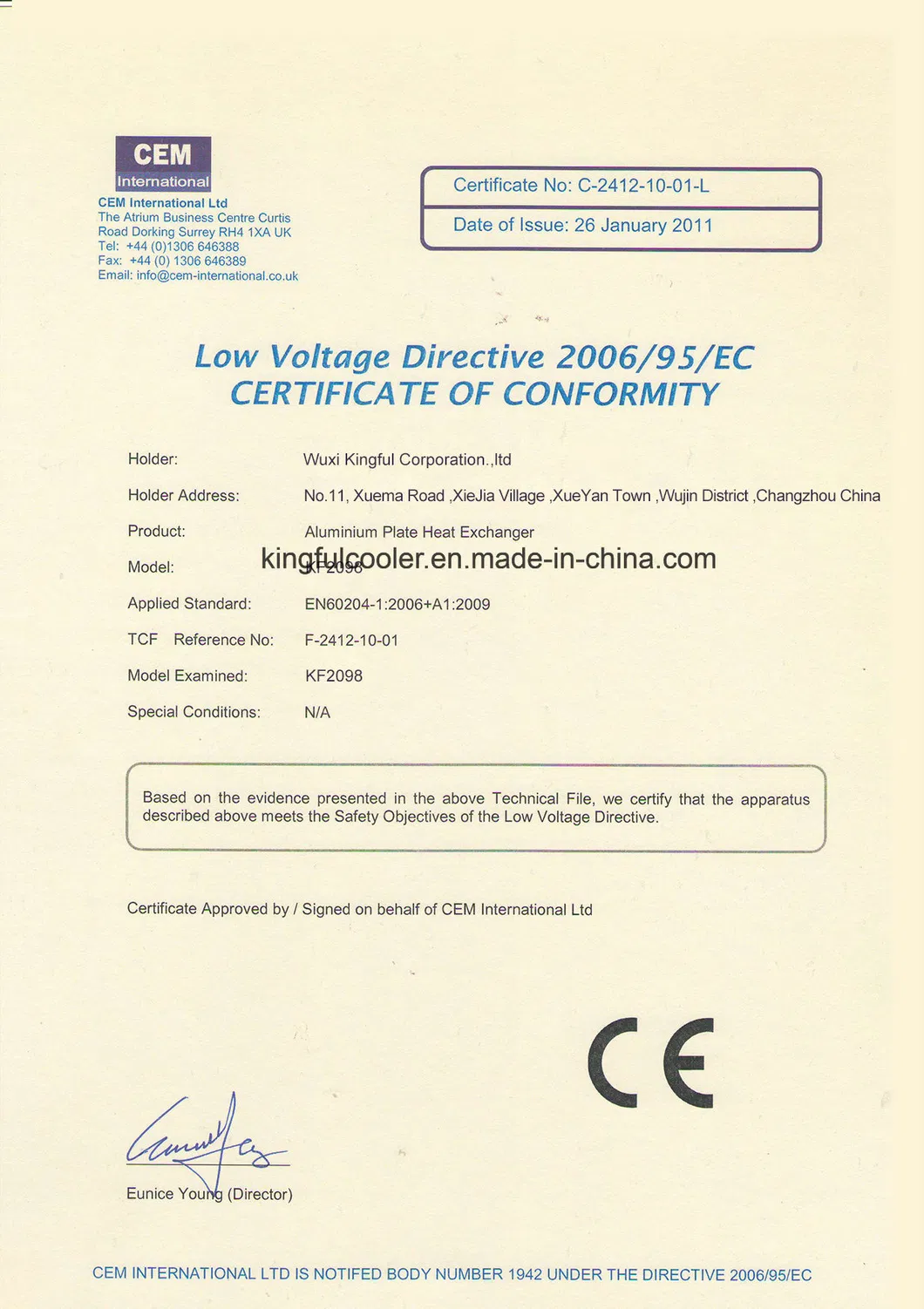

🟦 Certificate

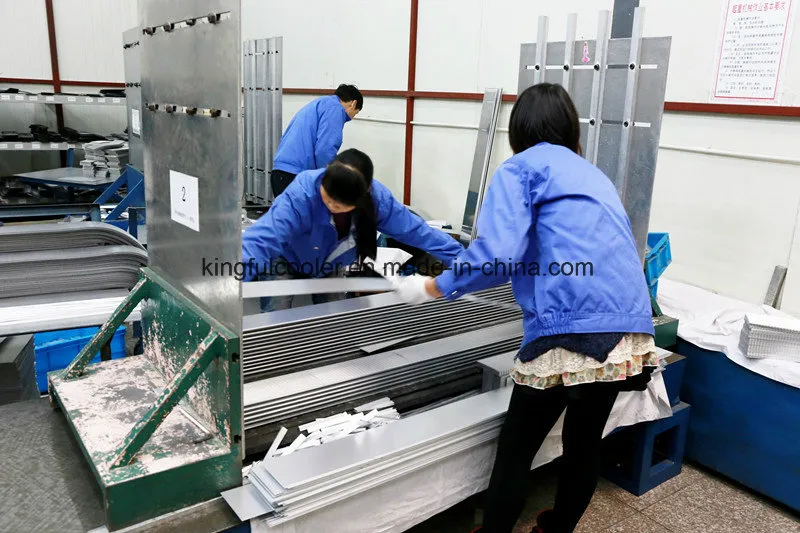

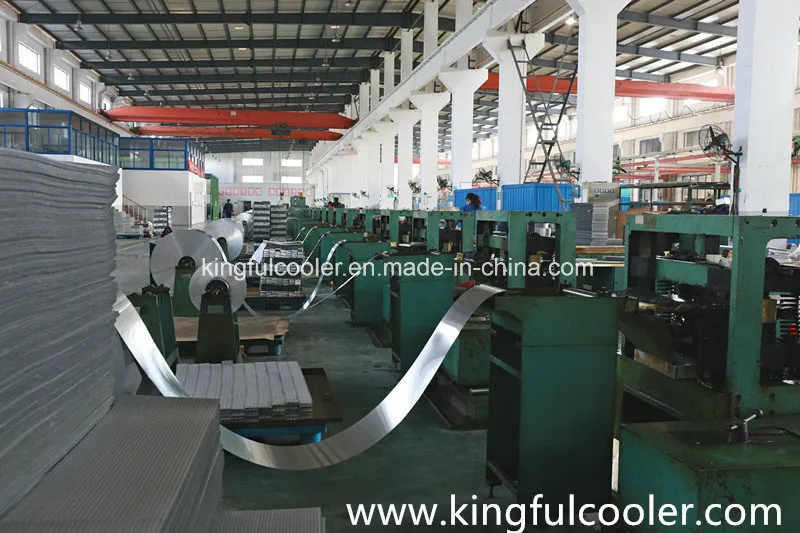

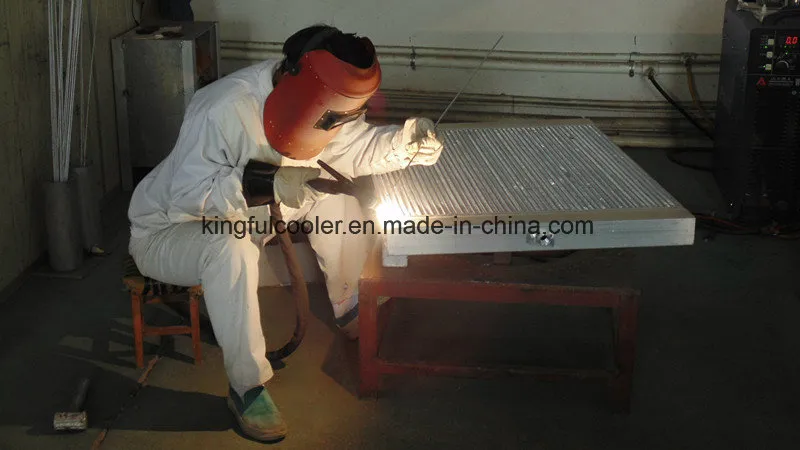

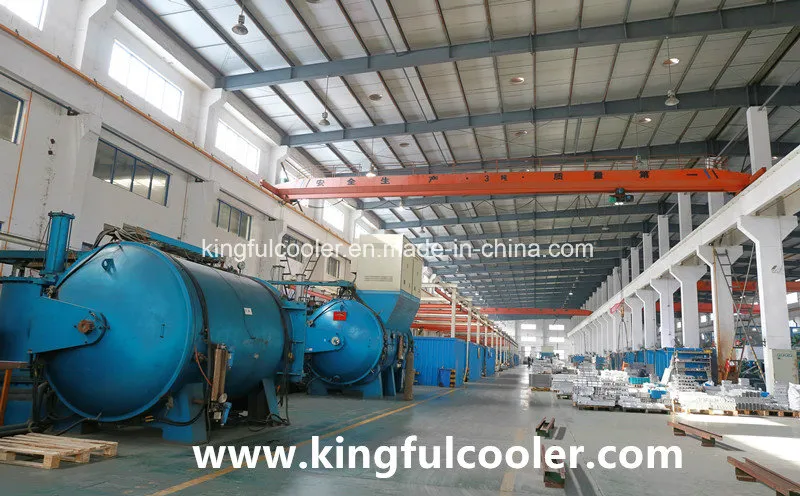

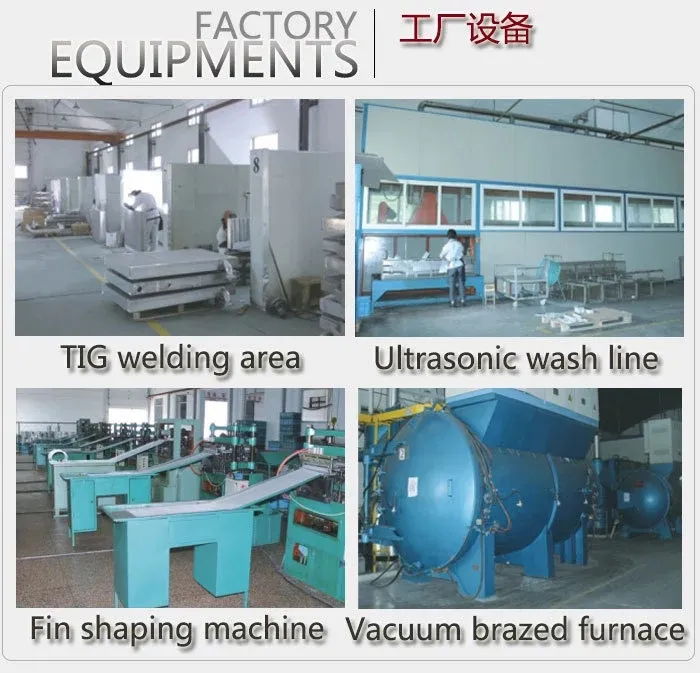

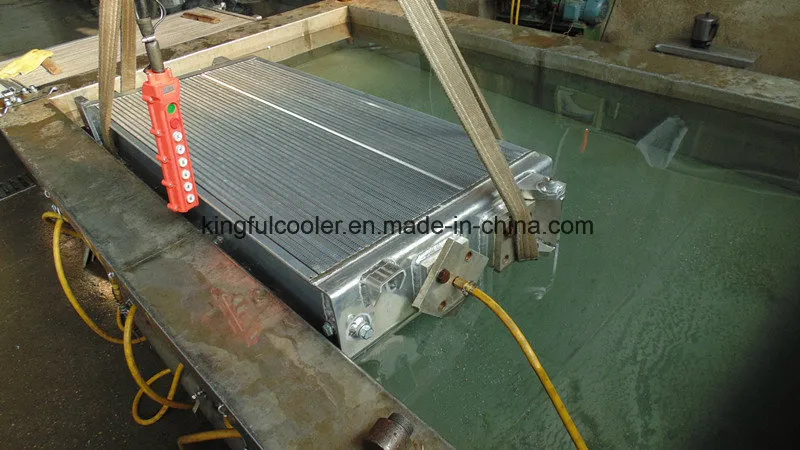

🟦 Factory Equipment
🟦 Exhibition
🟦 Frequently Asked Questions
What materials are used in your heat exchangers?
Our heat exchangers are primarily made of high-quality aluminum using a plate and bar structure for optimal thermal efficiency and durability.
What is the maximum working pressure for these coolers?
The working pressure range for our brazed aluminum radiators is between 2 to 40 bar, making them suitable for various industrial applications.
Can the radiators be customized for specific dimensions?
Yes, we have a professional design team that can provide customized specifications and powder coating colors (Black, Silver, etc.) according to your requirements.
What types of fins are available for selection?
We offer several fin types including BW (Wavy-fin), JC (Serrated-fin), DK (Perforated-fin), PZ (Plain-fin), and BY (Louvered-fin) to suit different heat emission needs.
What are the typical applications for these air coolers?
They are widely used in construction machinery (excavators, loaders), air compressors (2KW-400KW), chemical industries, and marine engineering.
What is the operating temperature range?
Our units are designed to operate efficiently in temperatures ranging from -10 Deg C up to 220 Deg C.
