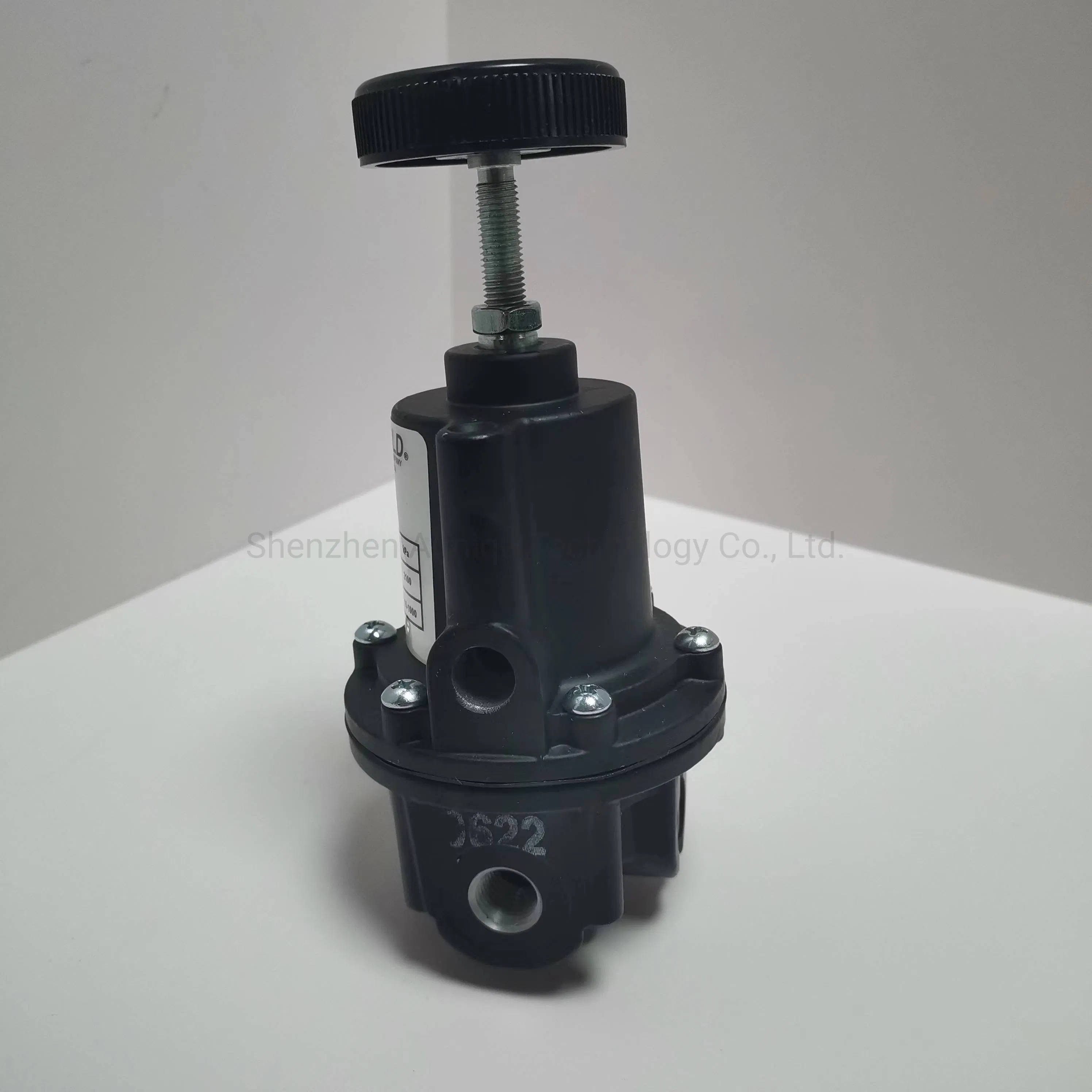

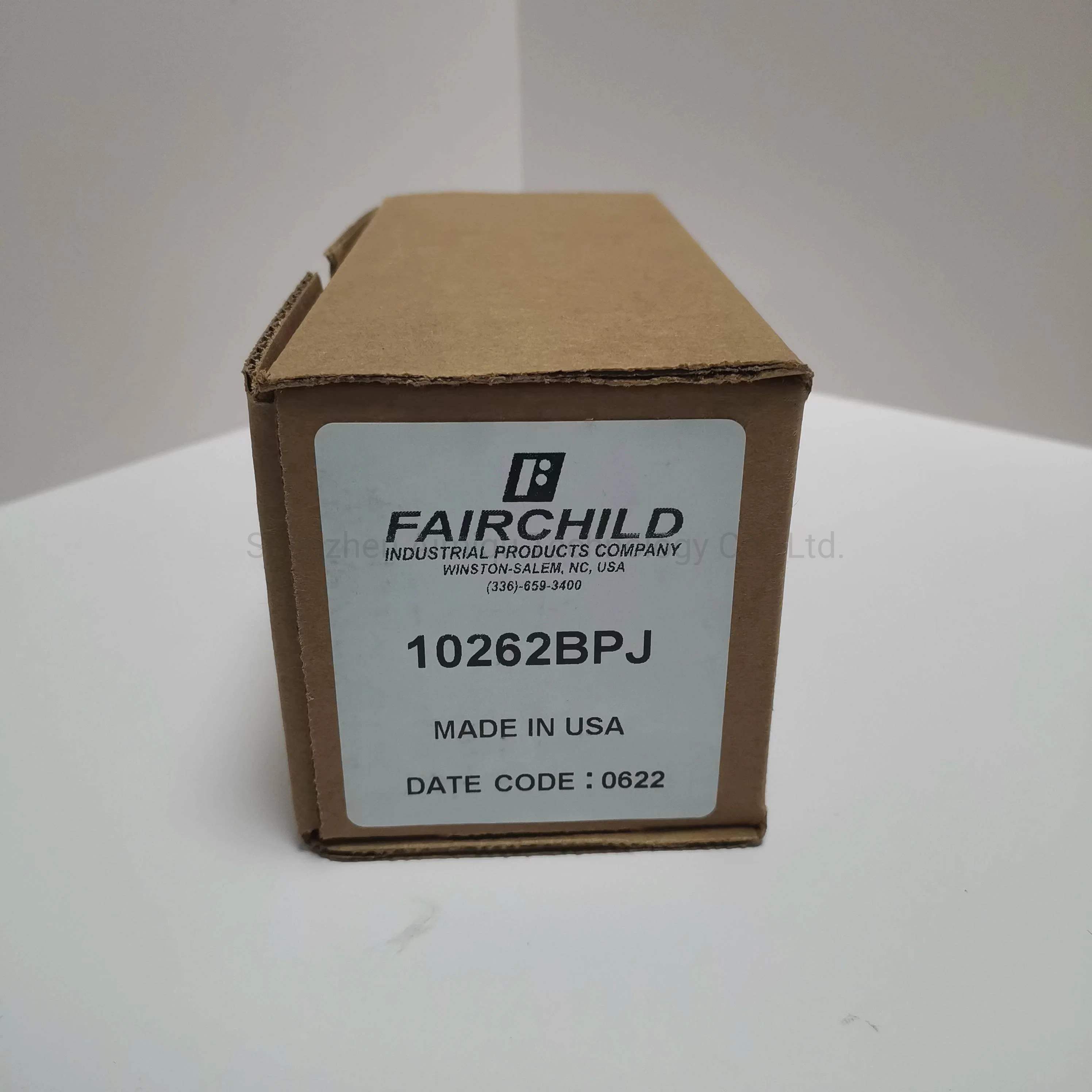

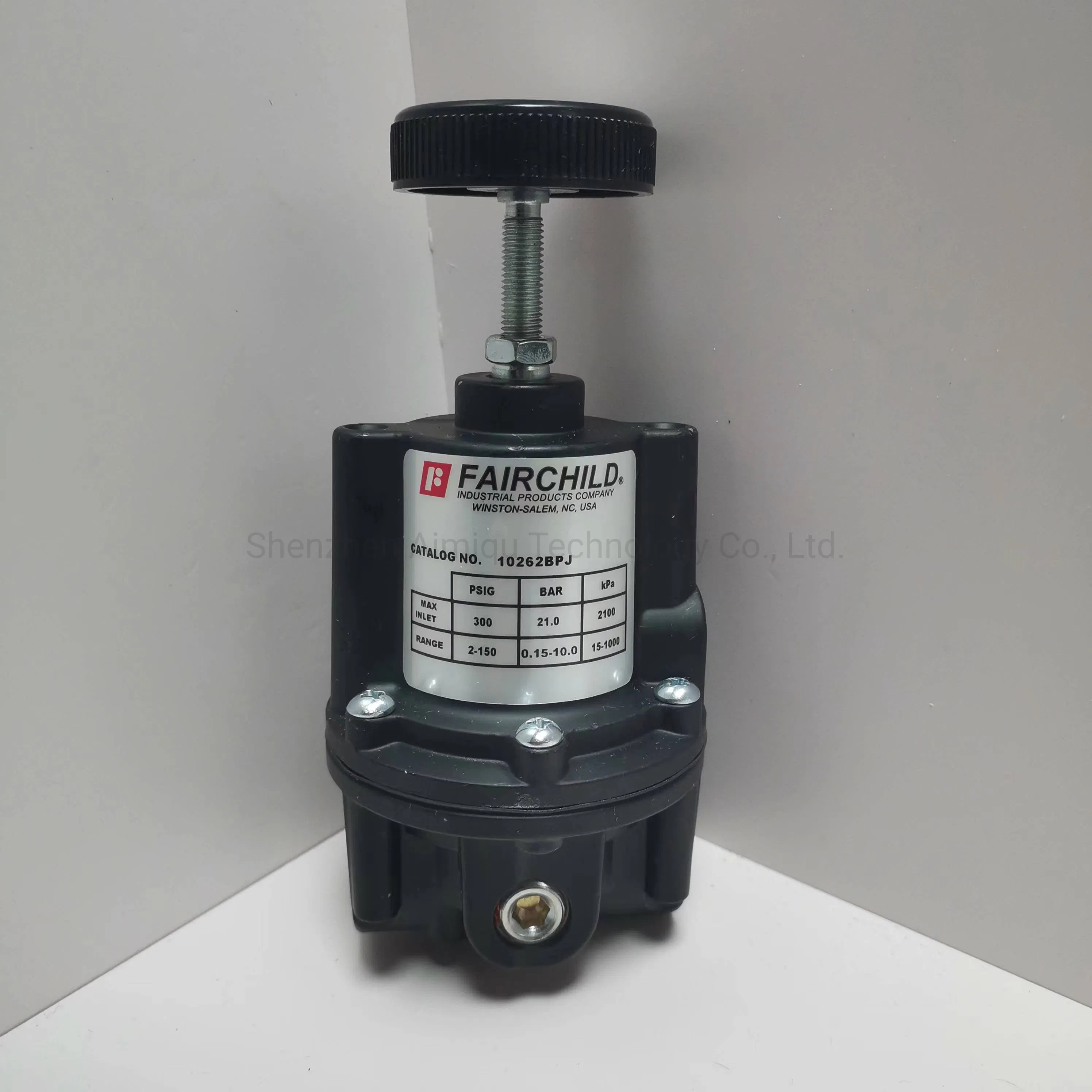

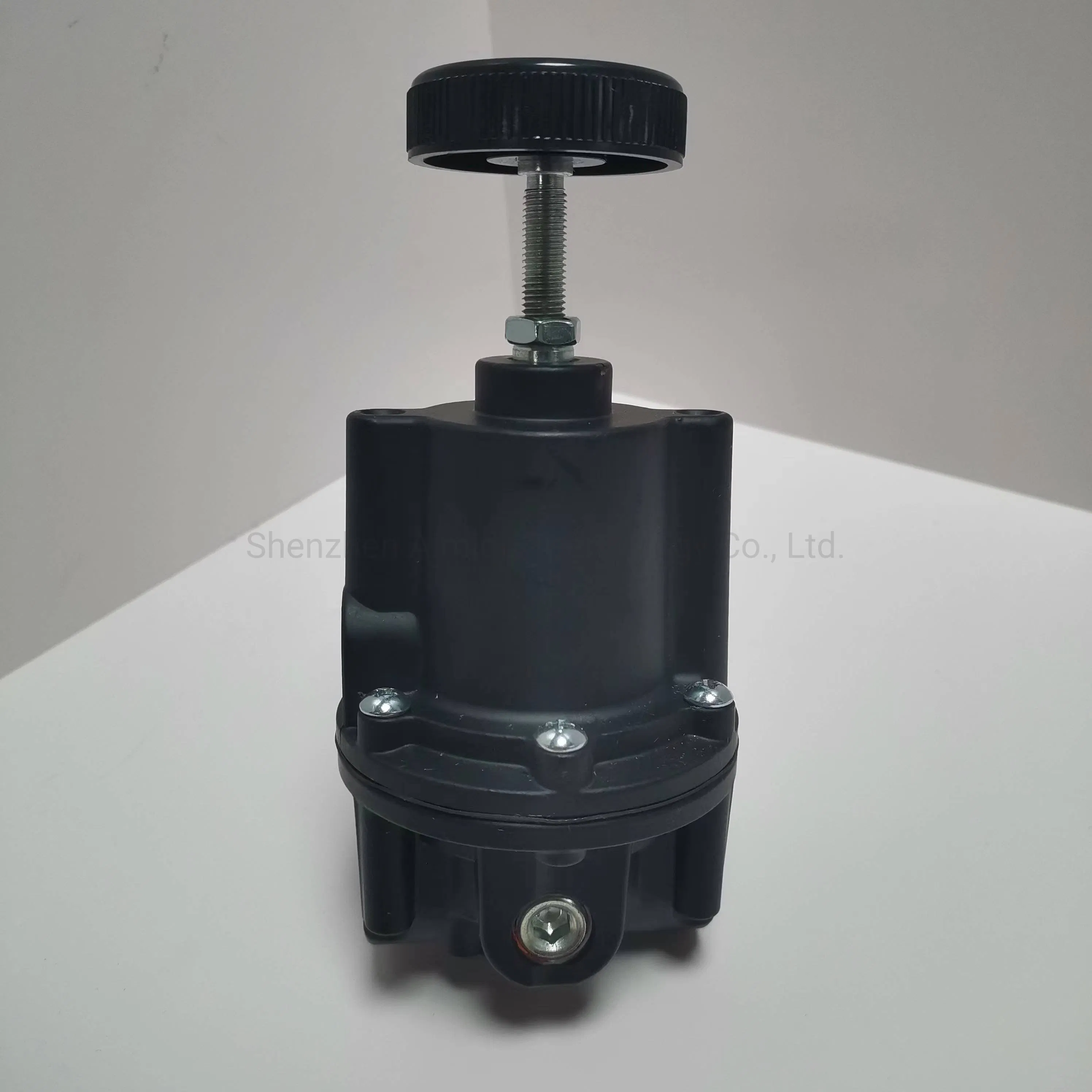

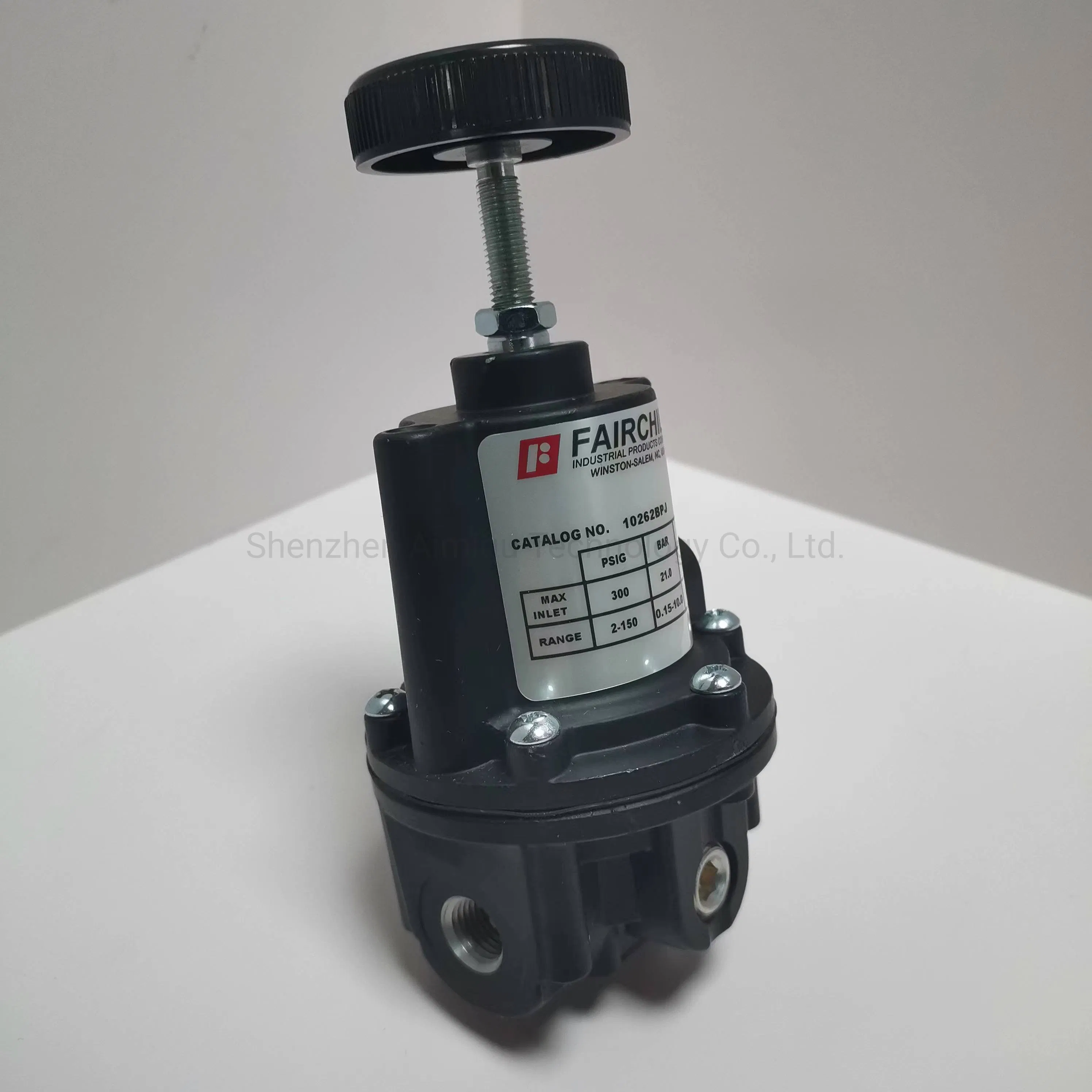

10262bpj Fairchild Products Model 10bp Precision Back Pressure Regulator Pneumatic Precision 2-150 Psig Regulator for Hydraulic Control
1 / 5
10262bpj Fairchild Products Model 10bp Precision Back Pressure Regulator Pneumatic Precision 2-150 Psig Regulator for Hydraulic Control
Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
Base Model: 10262
Body Material: Aluminum
Connection Size: 1/4 in. NPT
Elastomer: Nitrile on Dacron
Exhaust Capacity: 5.5 SCFM
Exhaust Type: Straight (standard)
Flow Capacity: 40 SCFM (68 M³/HR)
Pressure Range: 0 to 150 psig
Sensitivity: 1/8 in. W.C.
Supply Pressure: 500 psi
Trim: Zinc-Plated Steel Brass
Product Category: Pressure Regulators
Product Description
The Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.
The Model 10 features control sensitivity of 1/8 in water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. It will handle a 500 psig [34 BAR] maximum supply pressure and offers output pressure ranges up to 150 psig.
Highest accuracy pressure regulator available
Prevents supply pressure changes from affecting the setpoint
Isolates diaphragm from flow to eliminate hunting and buzzing
Compensates downstream pressure droop under flow conditions
Permits backflow of downstream pressure
Hazardous locations: Group II, Category 2, Gas and Dusts
NOTES: Oil free air must be applied to the regulator. Use a filter to remove dirt and entrained liquid in the air line ahead of the regulator. If an air line lubricator is used, it MUST be located downstream of the regulator.
Frequently Asked Questions
Q1: What is the maximum supply pressure for the Model 10BP?
The regulator can handle a maximum supply pressure of up to 500 psi (34 BAR).
Q2: How sensitive is the pressure control on this regulator?
The Model 10 features an exceptional control sensitivity of 1/8 inch water column.
Q3: What body material is used in the 10262BPJ model?
The body of this precision regulator is constructed from high-quality Aluminum.
Q4: Are there specific air quality requirements for operation?
Yes, oil-free air must be used. It is recommended to install a filter upstream to remove dirt and liquids.
Q5: What is the flow capacity of this unit?
The unit provides a flow capacity of 40 SCFM (68 M³/HR).
Q6: Can this regulator be used in hazardous locations?
Yes, it is rated for Group II, Category 2, Gas and Dusts (Zones 1, 2, 21, and 22).
