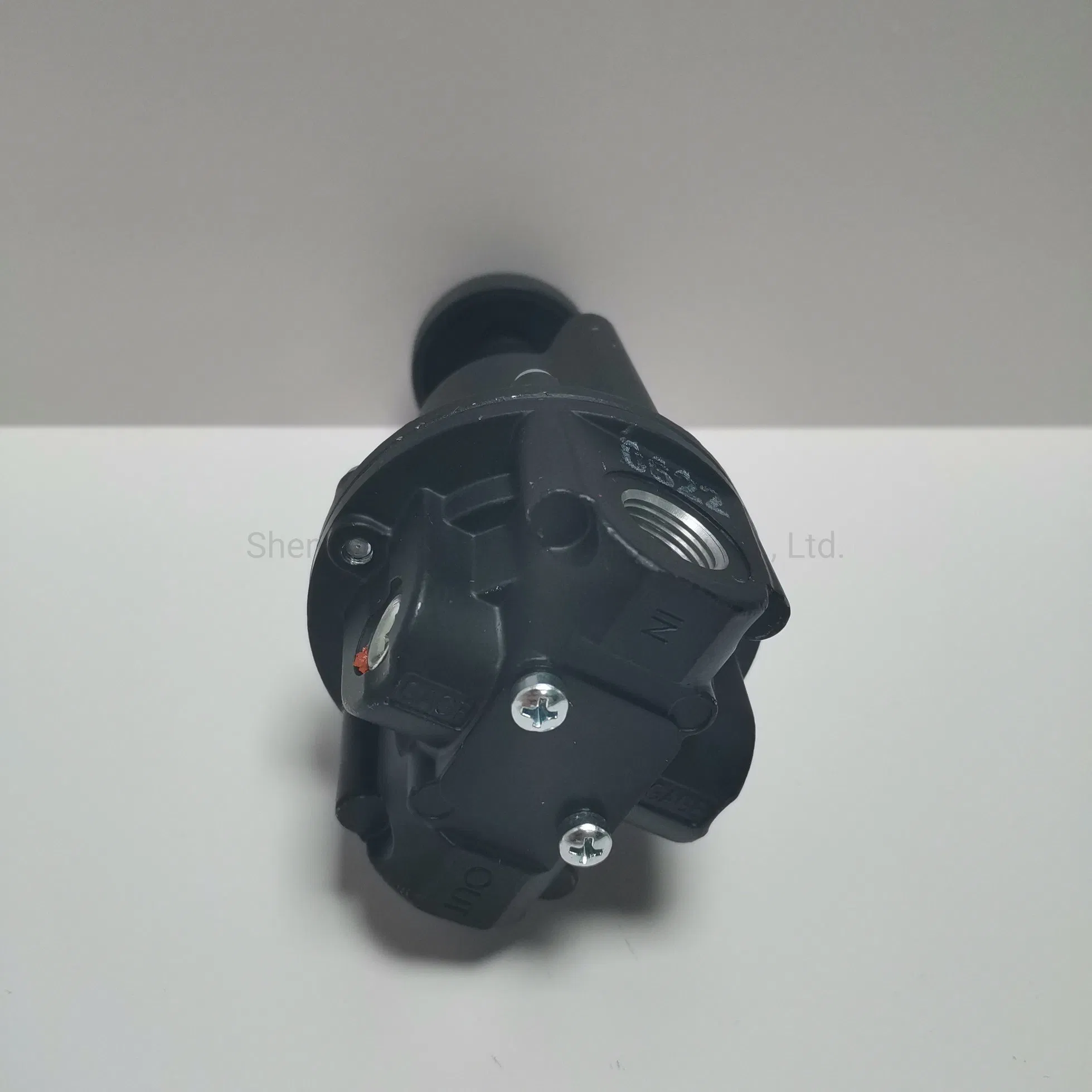

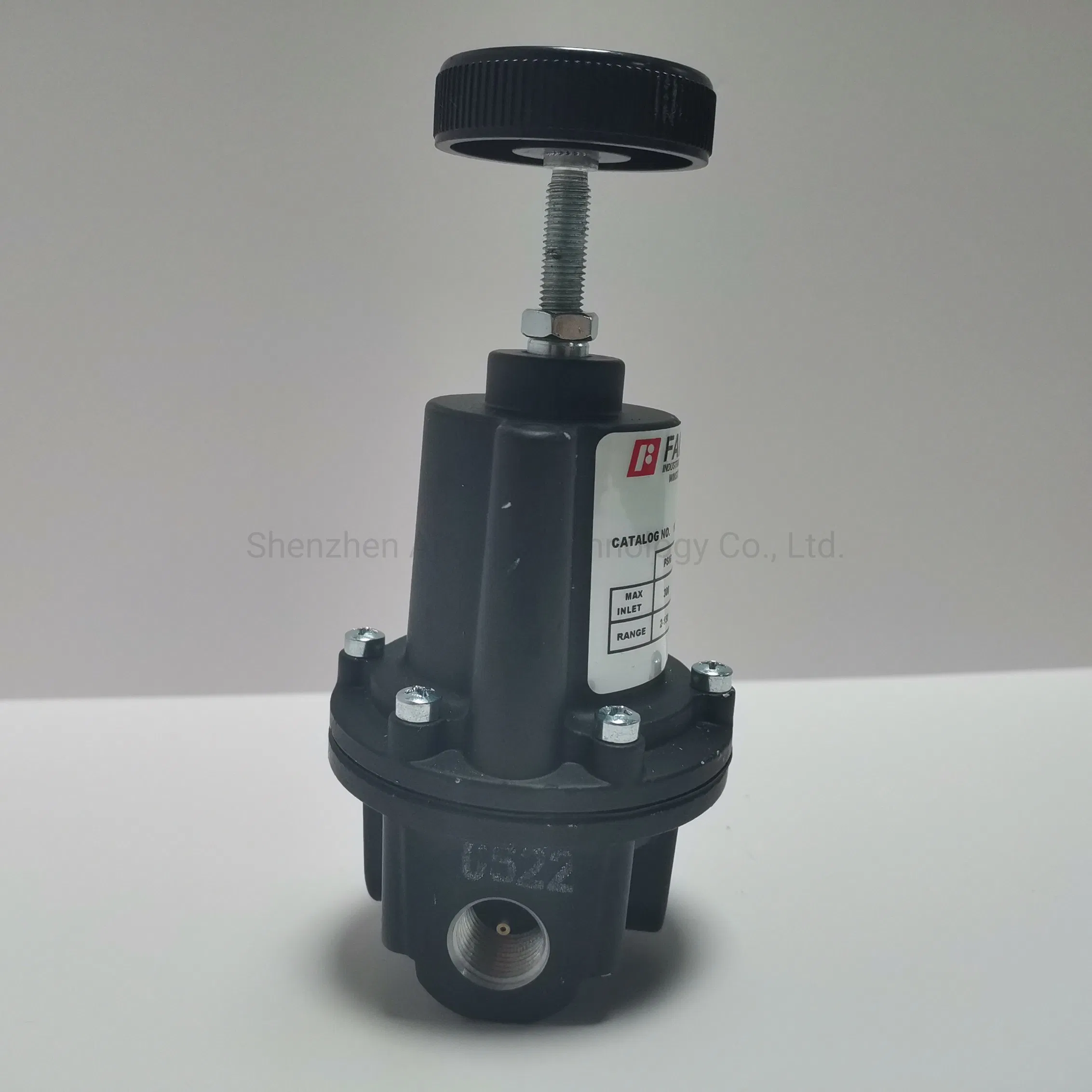

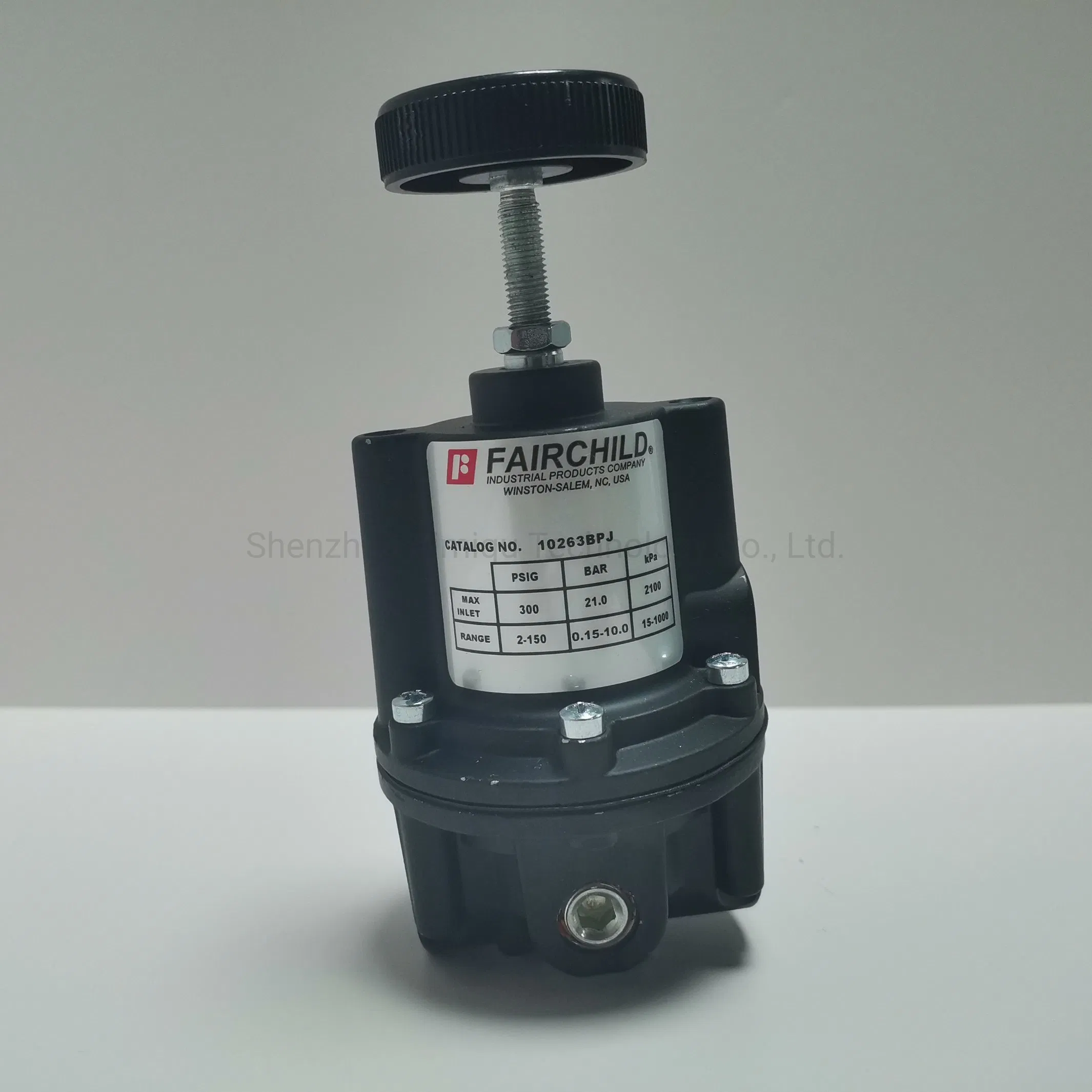

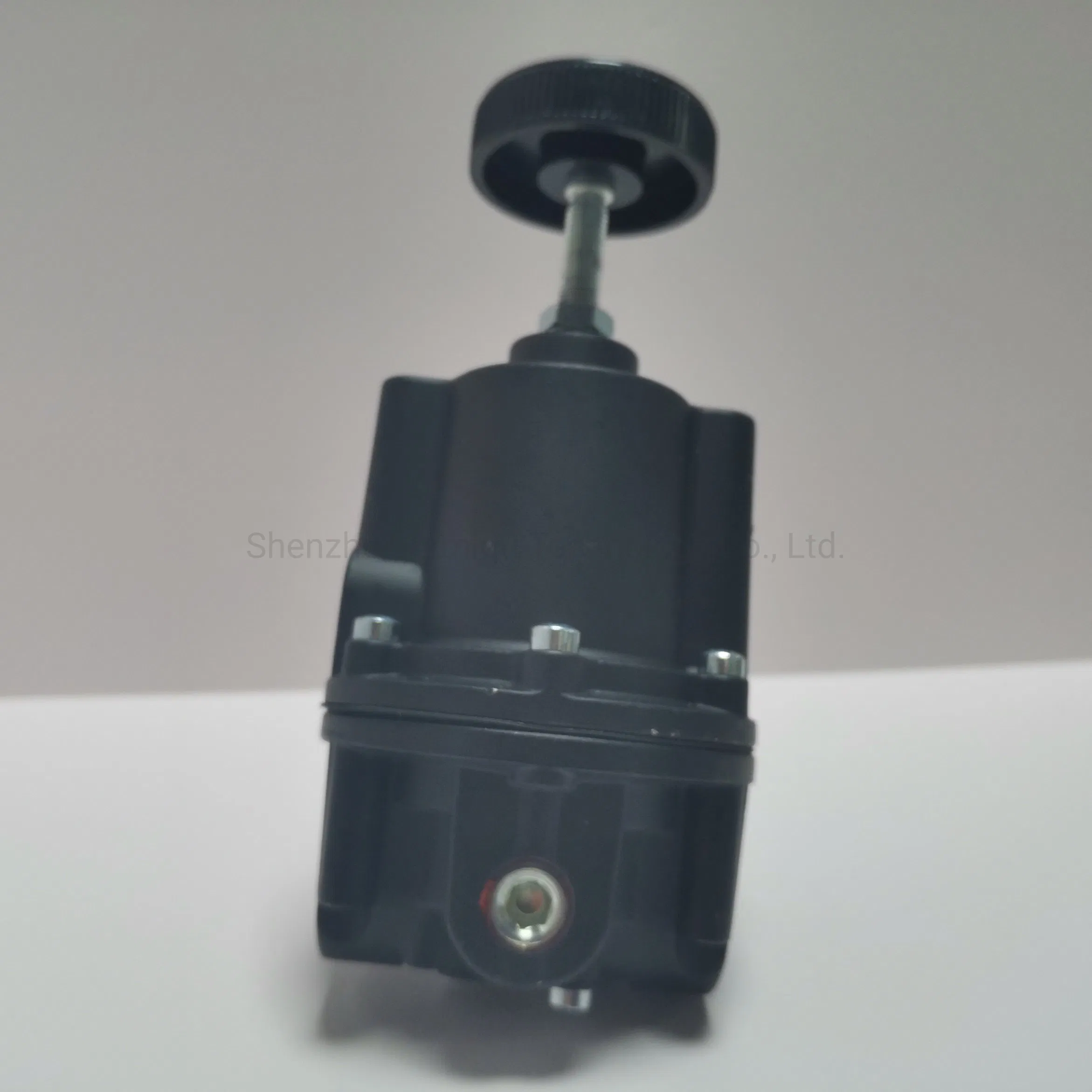

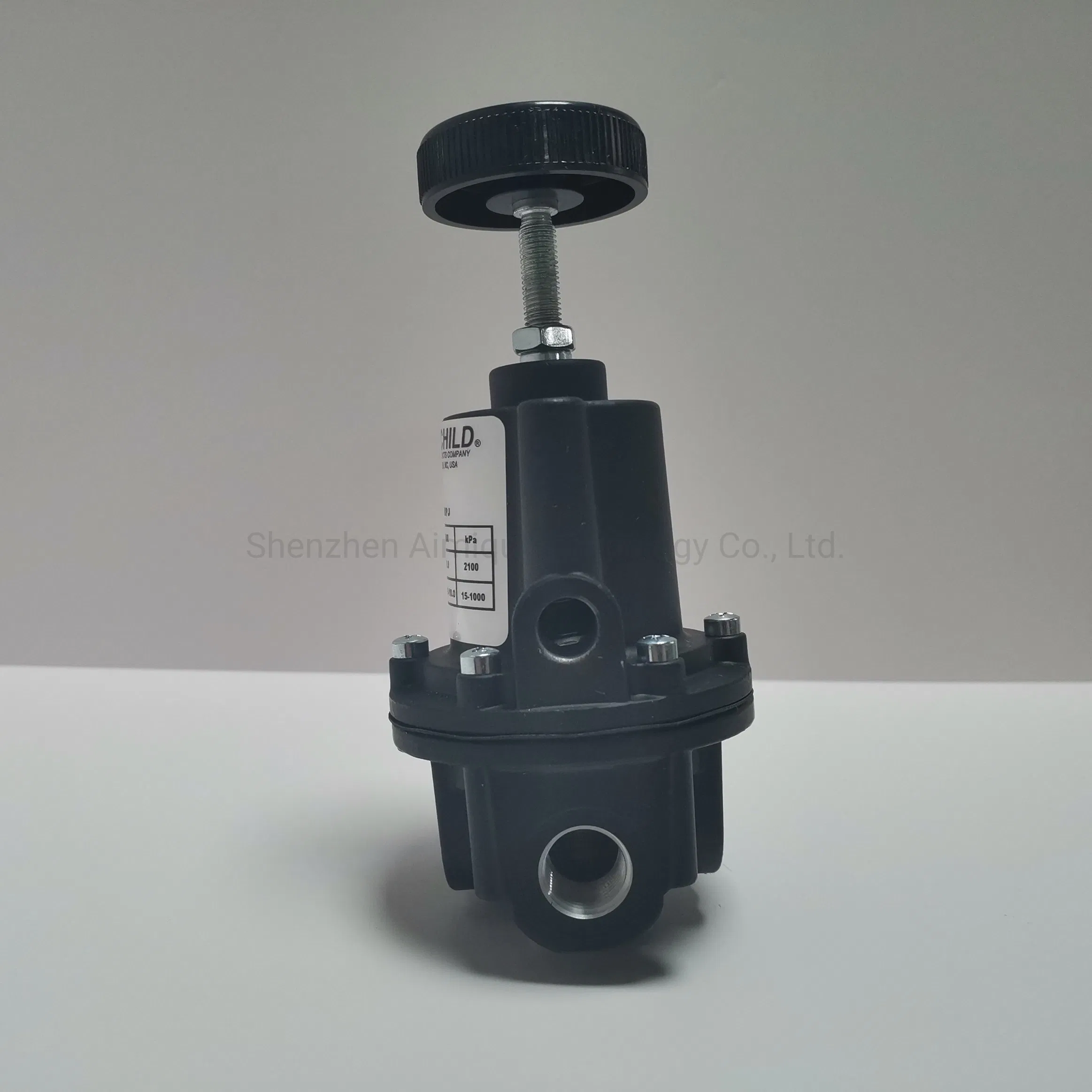

The Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. It uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.
Featuring a control sensitivity of 1/8 in water column and a balanced supply valve, the Model 10BP delivers consistent accuracy regardless of supply pressure changes. As a high-capacity regulator, it provides greater precision than standard relief valves over a narrow pressure range. It can handle a 500 psig [34 BAR] maximum system pressure and offers reliable flow capacity of 40 SCFM (68m³/Hr).
?
Frequently Asked Questions
What is the control accuracy of the Model 10BP?
The 10263BPJ offers a high precision accuracy of 0.10 psi.
What is the maximum flow capacity for this regulator?
It provides a flow capacity of 40 SCFM (68m³/Hr) at 100 PSIG.
What materials are used in the construction?
The body is made of Aluminum, with Viton elastomers and Zinc-plated steel/brass trim.
Can this regulator handle high temperatures?
Yes, it is designed to operate in ambient temperatures ranging from -40° to 200 °F (-40° to 93.3 °C).
What air quality is required for optimal performance?
The unit requires oil-free air. A filter should be installed upstream to remove dirt and liquids.
What is the sensitivity of the Model 10BP?
The regulator features an extremely high sensitivity of less than 1/8 inch water column.
