Basic Info.
| Model NO. |
10262BPJ |
| Manufacturer |
Fairchild Products |
| Connection |
Welding / 1/4 in. Fnpt |
| Structure |
Lever |
| Product Category |
Pressure Regulators |
| Pressure Range |
0 to 150 psig |
| HS Code |
8481100090 |
| Origin |
United States |
Product Description

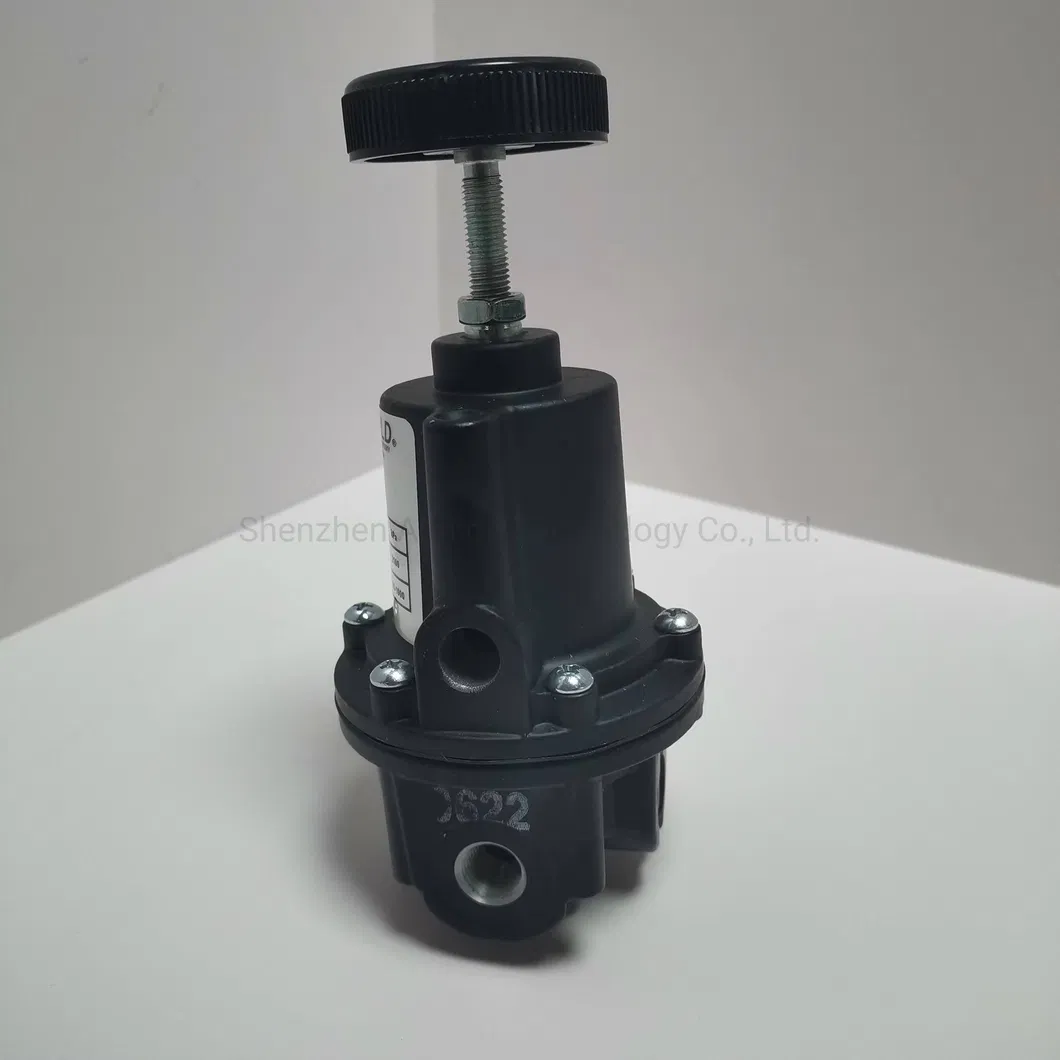

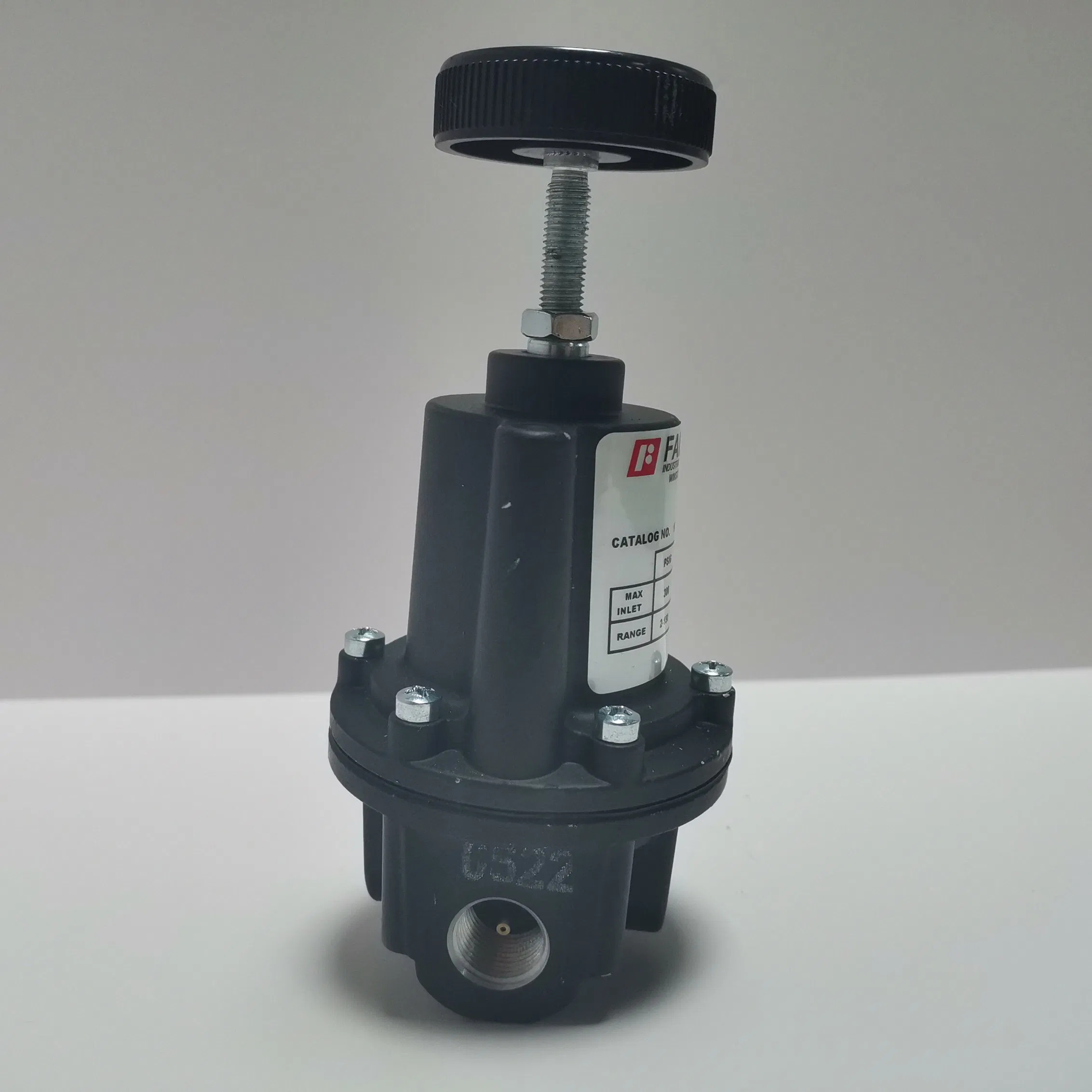

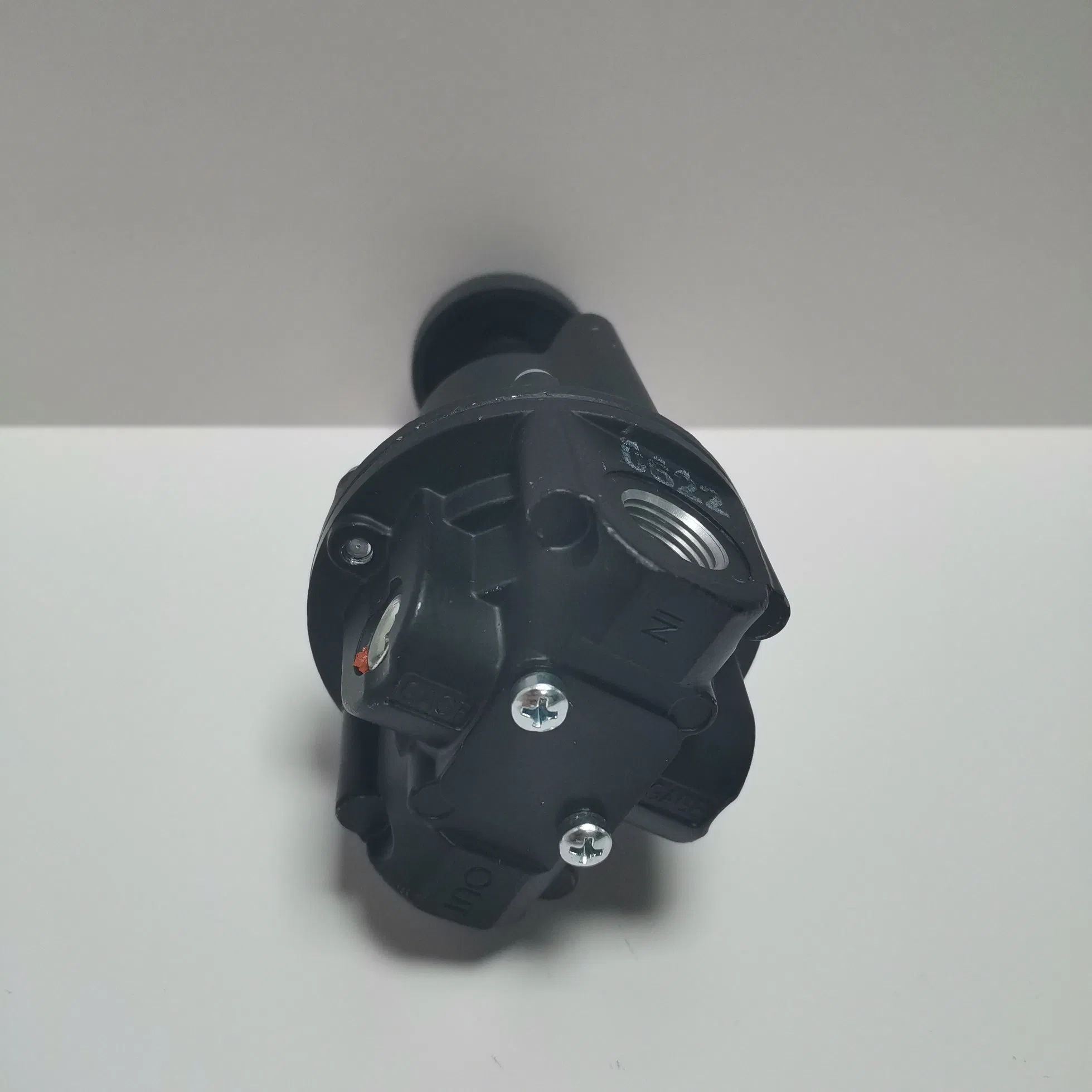

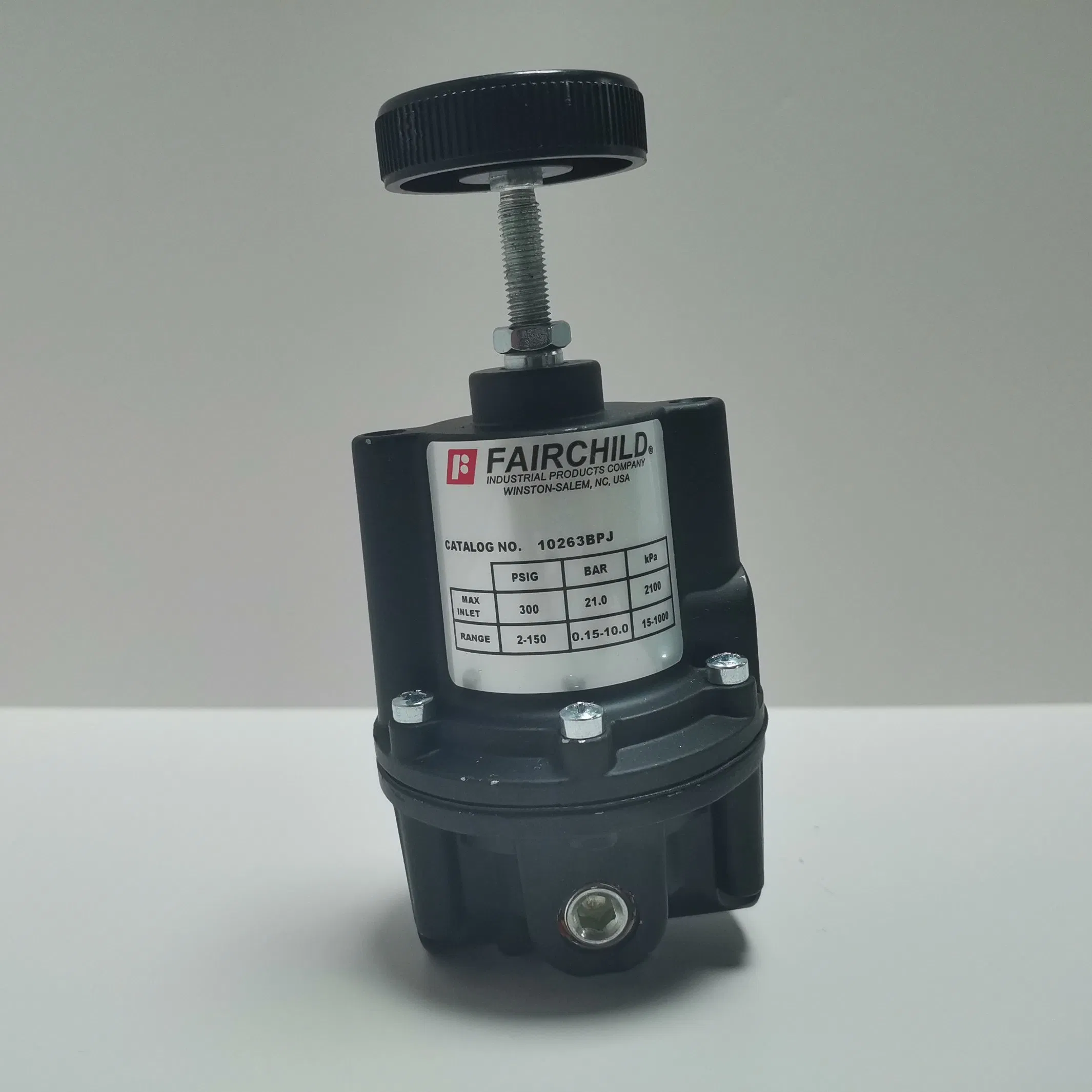

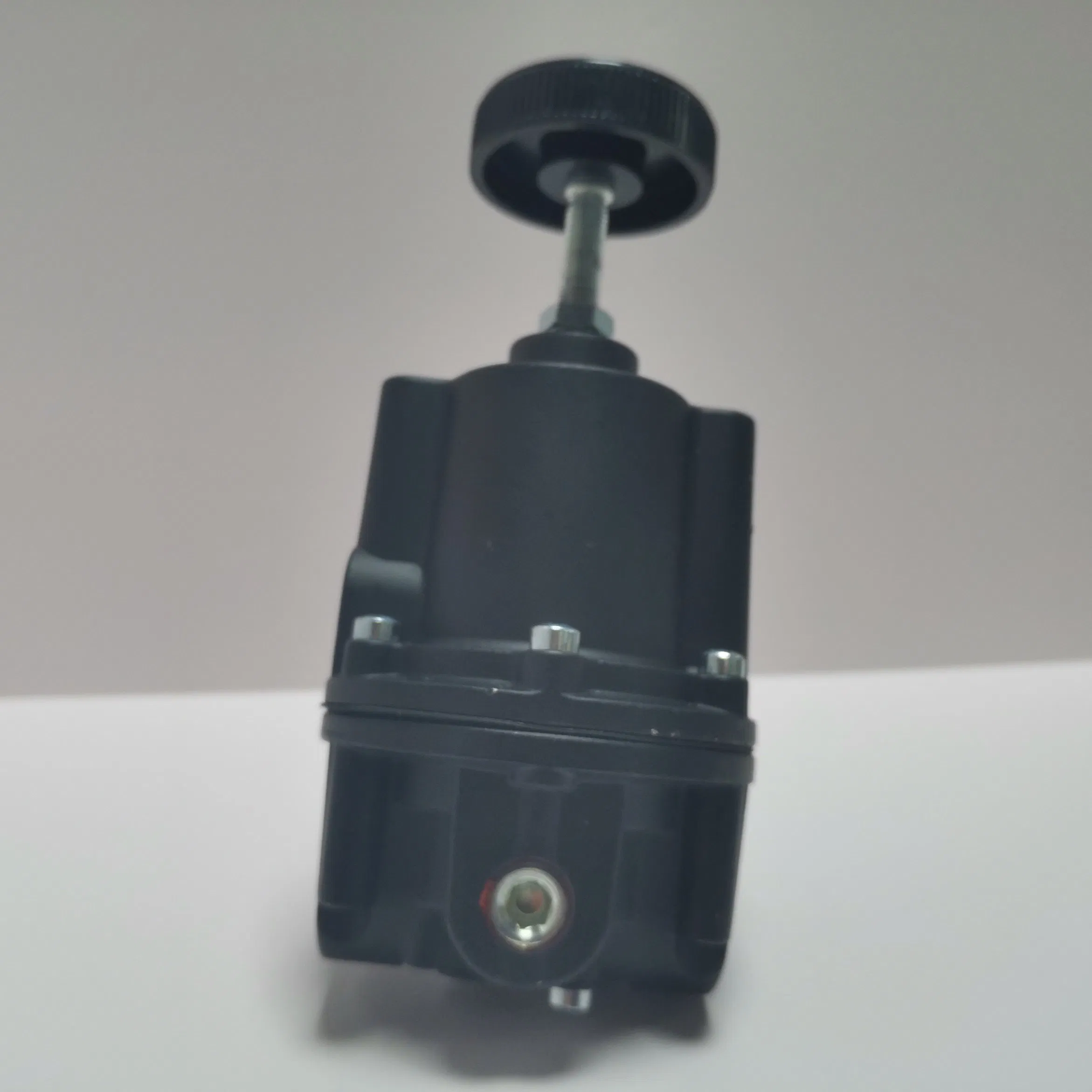

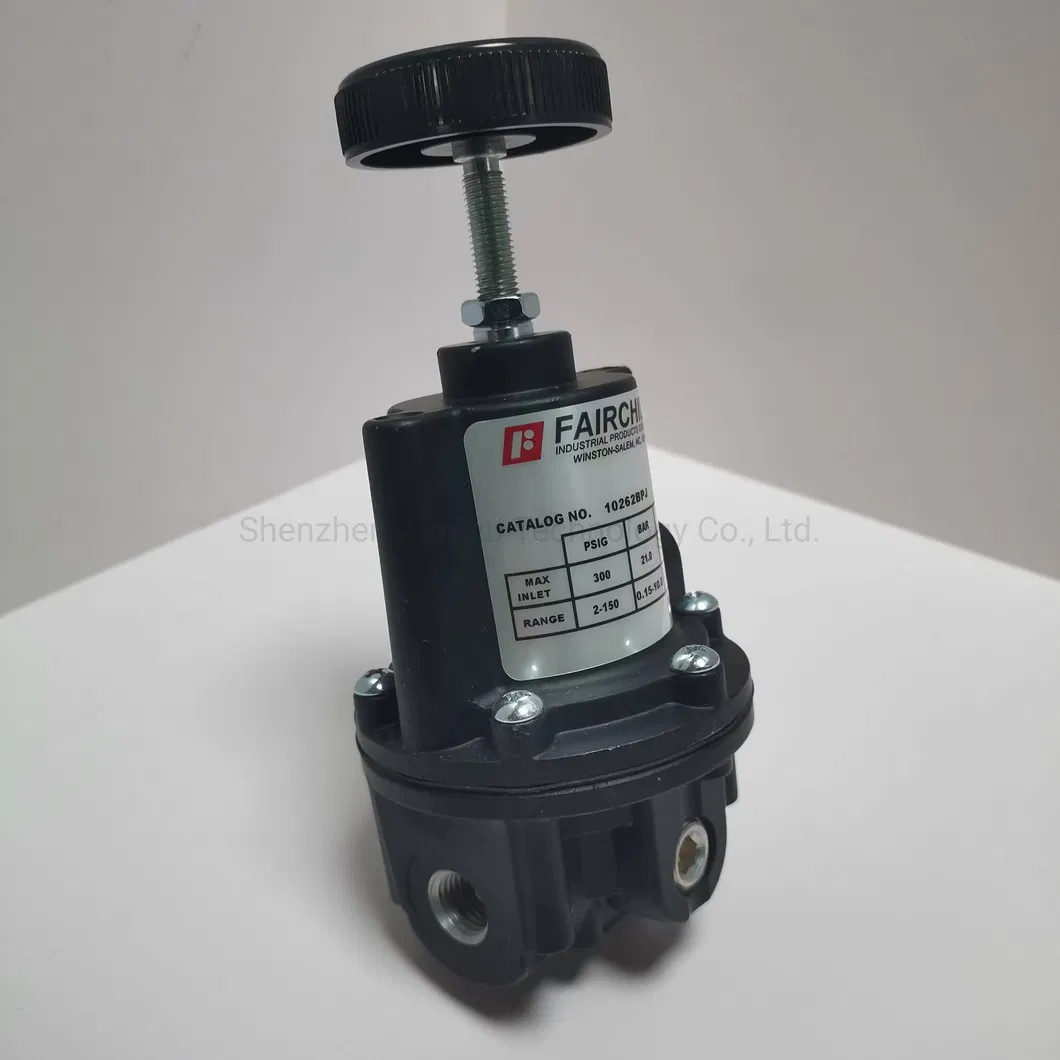

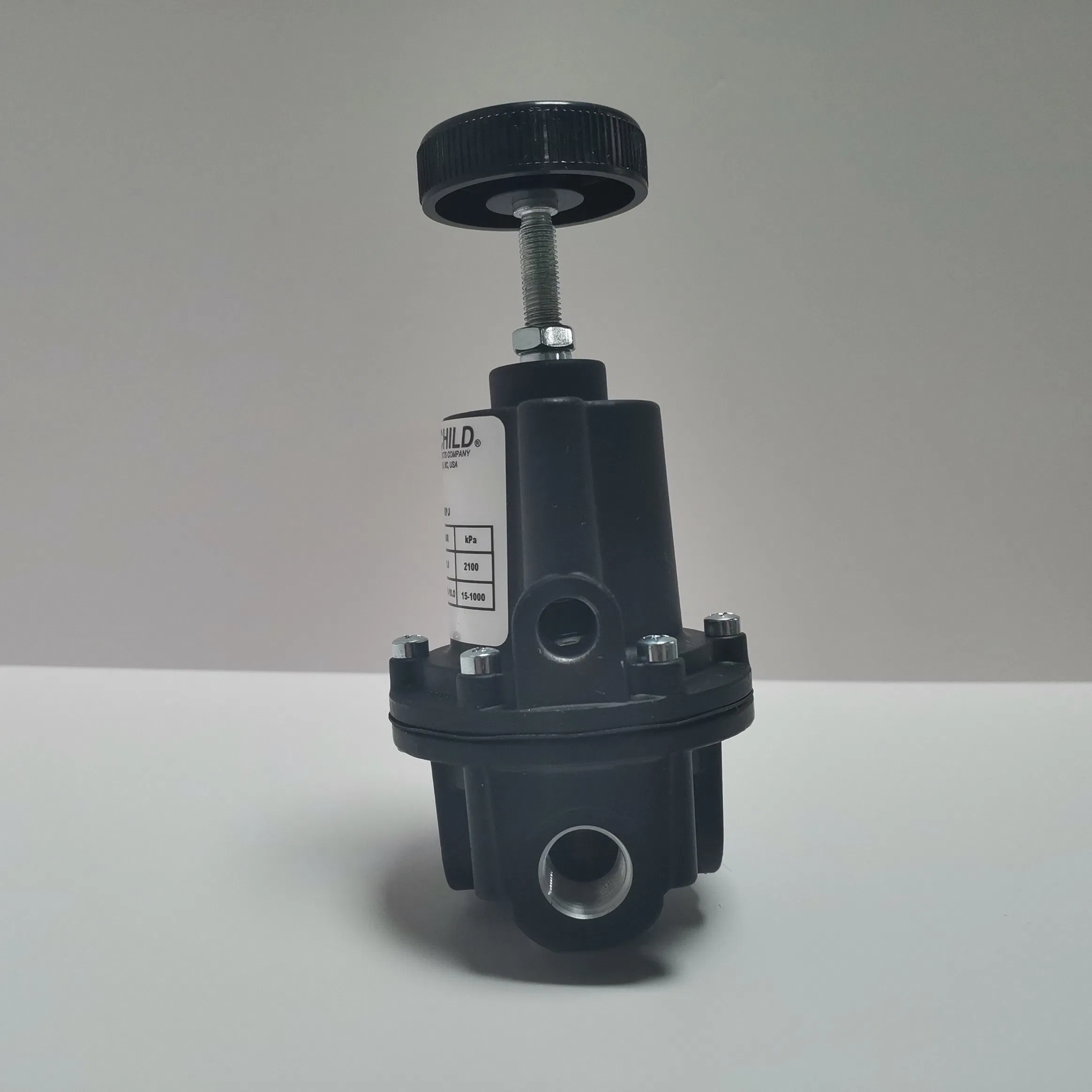

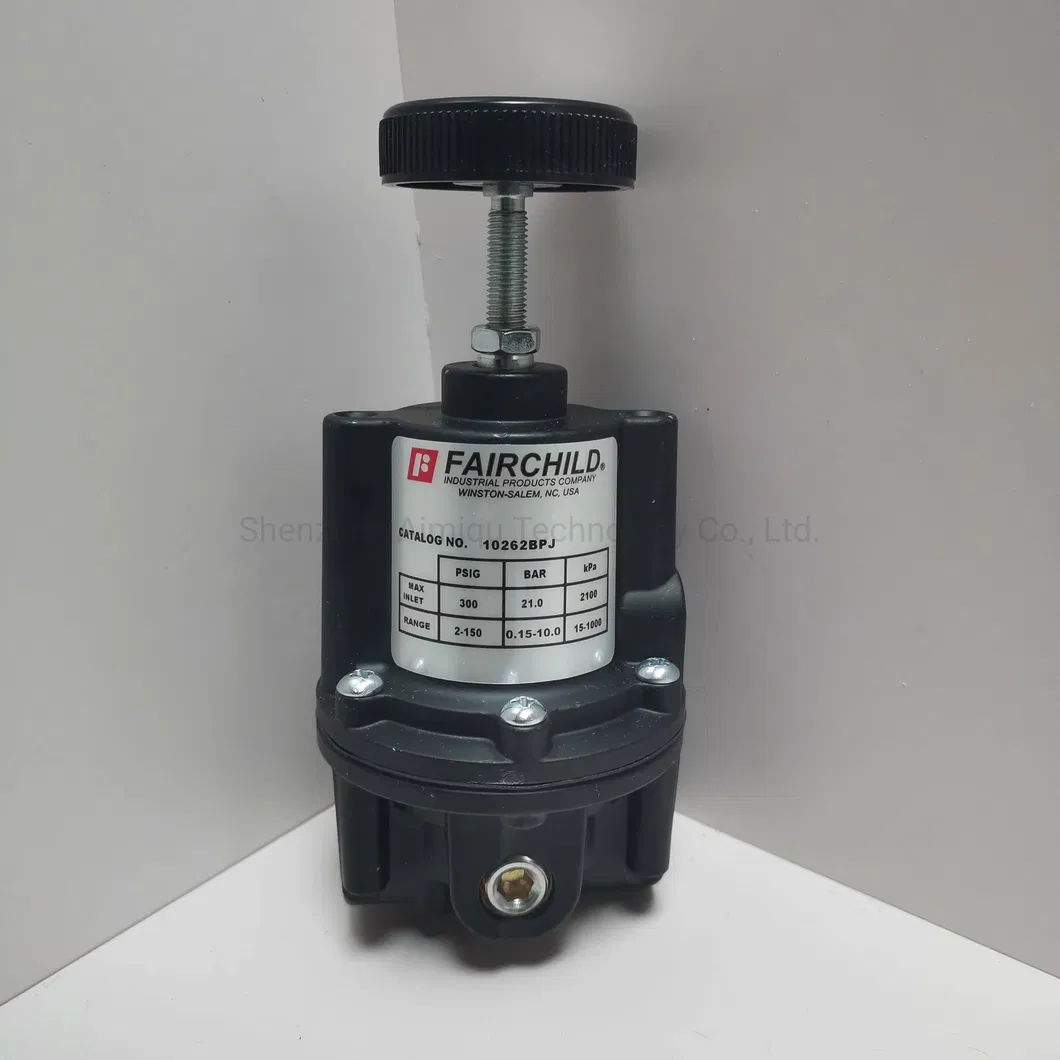

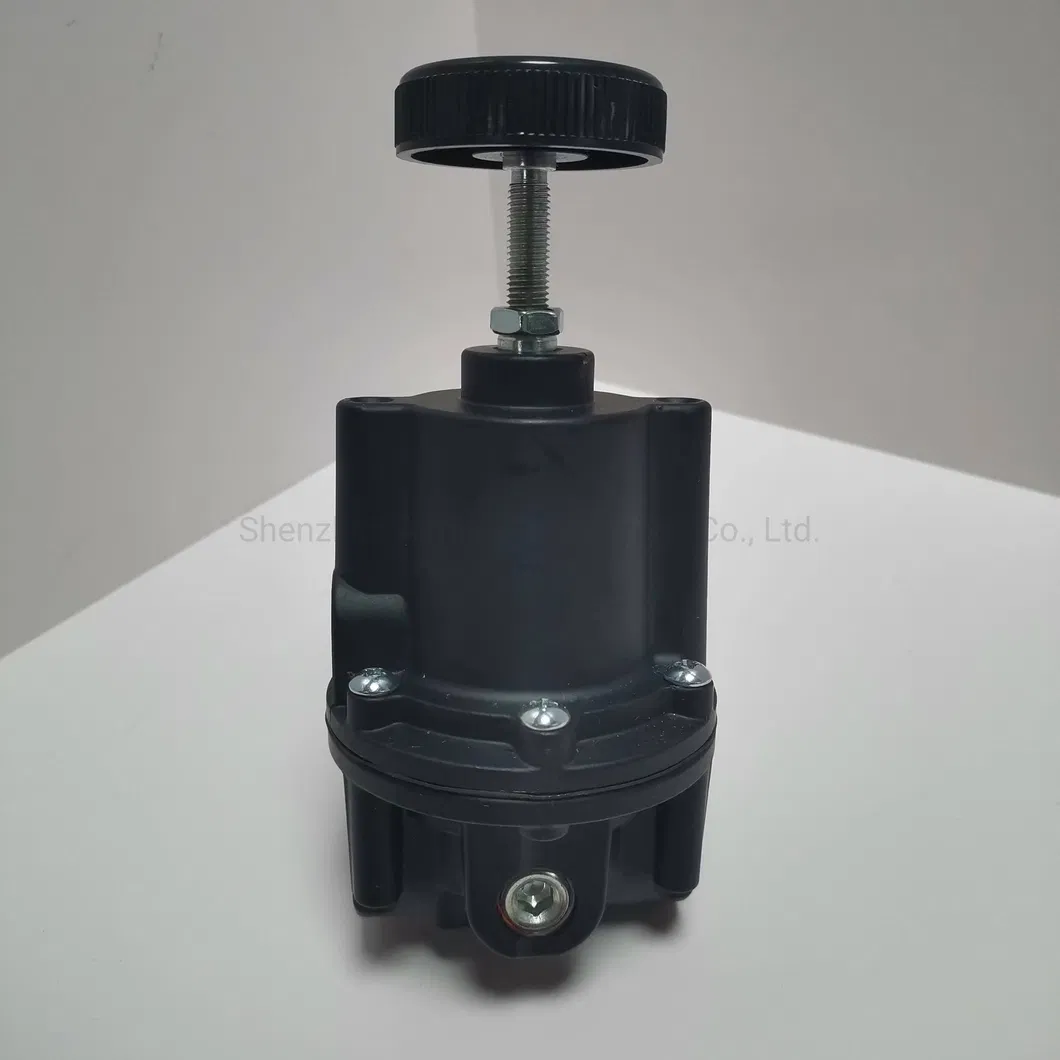

The Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.
- Highest accuracy pressure regulator available
- Prevents supply pressure changes from affecting the setpoint
- Isolates diaphragm from flow to eliminate hunting and buzzing
- Compensates downstream pressure droop under flow conditions
- Select the range best suited for your application
- Permits backflow of downstream pressure
Technical Specifications
- Accuracy: 0.10 psi
- Ambient Temp: -40° to 200 °F (-40° to 93.3 °C)
- Body Material: Aluminum
- Elastomer: Nitrile on Dacron
- Flow Capacity: 40 SCFM (68 M³/HR)
- Exhaust Capacity: 5.5 SCFM
- Sensitivity: 1/8 in. W.C.
- Supply Pressure: 500 psi Max
- Trim: Zinc-Plated Steel Brass
Operating Notes
Oil free air must be applied to the regulator. Use a filter to remove dirt and entrained liquid in the air line ahead of the regulator. If an air line lubricator is used, it MUST be located downstream of the regulator, to avoid interference with regulator performance.
Frequently Asked Questions
Q1: What is the control sensitivity of the Fairchild Model 10262BPJ?
A: The regulator features a high control sensitivity of 1/8 inch water column, ensuring precise pressure adjustments.
Q2: What are the primary materials used in this regulator's construction?
A: The body is made of high-quality Aluminum, with a Nitrile on Dacron elastomer and Zinc-Plated Steel/Brass trim.
Q3: Can this regulator handle high supply pressures?
A: Yes, it is designed to handle a maximum supply pressure of up to 500 psi (34 BAR).
Q4: Does the setpoint change if the supply pressure fluctuates?
A: No, the Model 10 is designed with a balanced supply valve to maintain a consistent setpoint regardless of supply pressure changes.
Q5: What is the ambient temperature operating range?
A: It operates efficiently in environments ranging from -40° to 200 °F (-40° to 93.3 °C).
Q6: What type of air should be used with this precision regulator?
A: It is required to use oil-free air. A filter should be installed upstream to remove dirt and liquids, and any lubricators must be placed downstream.
