📊 Basic Information
Capacity
9999 pieces/Year
🛠️ Technical Specifications
- Manufacturer: Fairchild Products
- Accuracy: 0.10 psi
- Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
- Base Model: 10263BP
- Body Material: Aluminum
- Connection Size: 3/8 in. FNPT
- Elastomer: Viton
- Flow Capacity: 40 SCFM @ 100 PSIG
- Operator: Knob (standard) 1-7/8 in. O.D.
- Pressure Range: 0 to 150 psig
- Product Type: Back Pressure Regulator
- Sensitivity: Less than 1/8 in. W.C.
- Supply Pressure: 300 psi
- Trim: Zinc-Plated Steel Brass
📝 Product Description

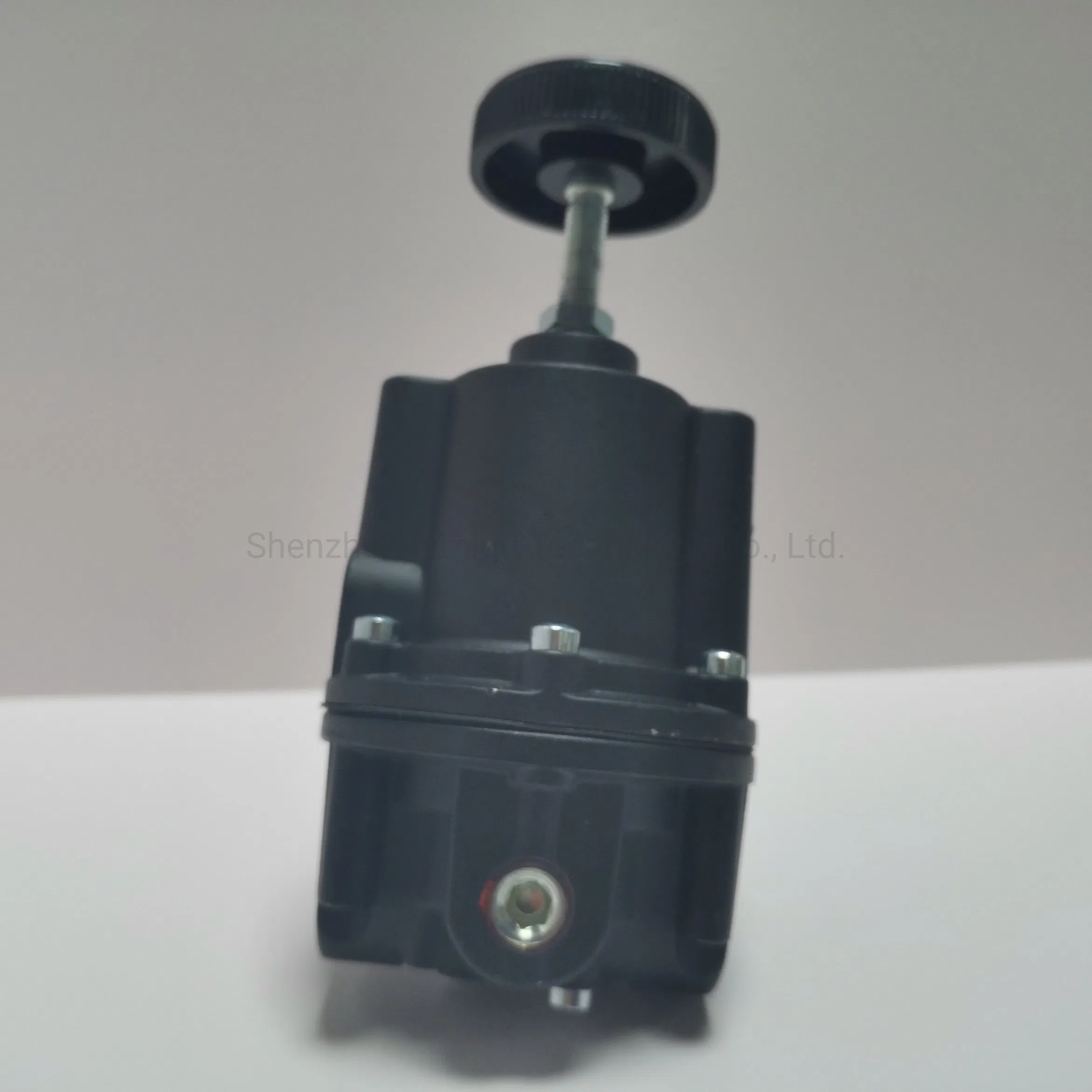

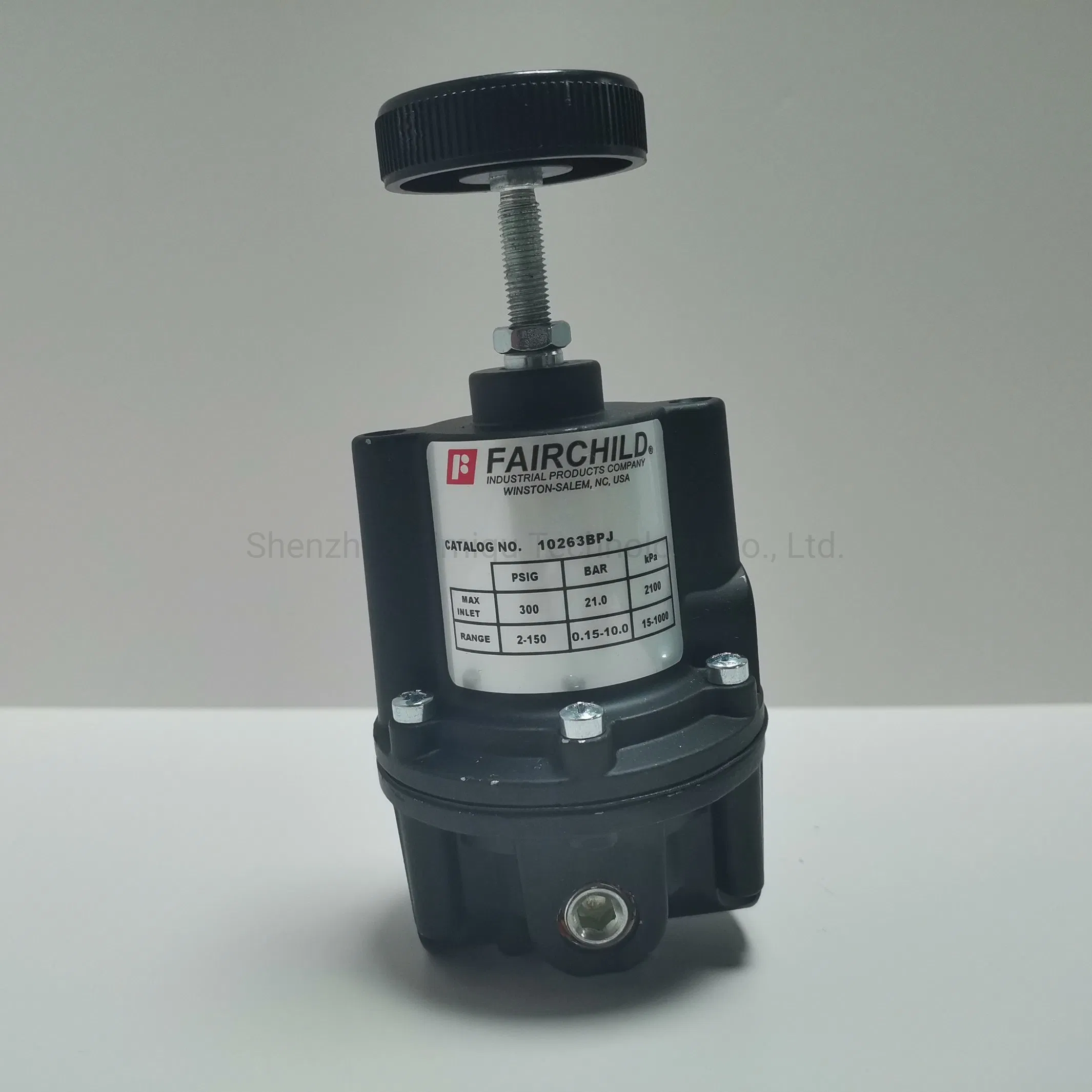

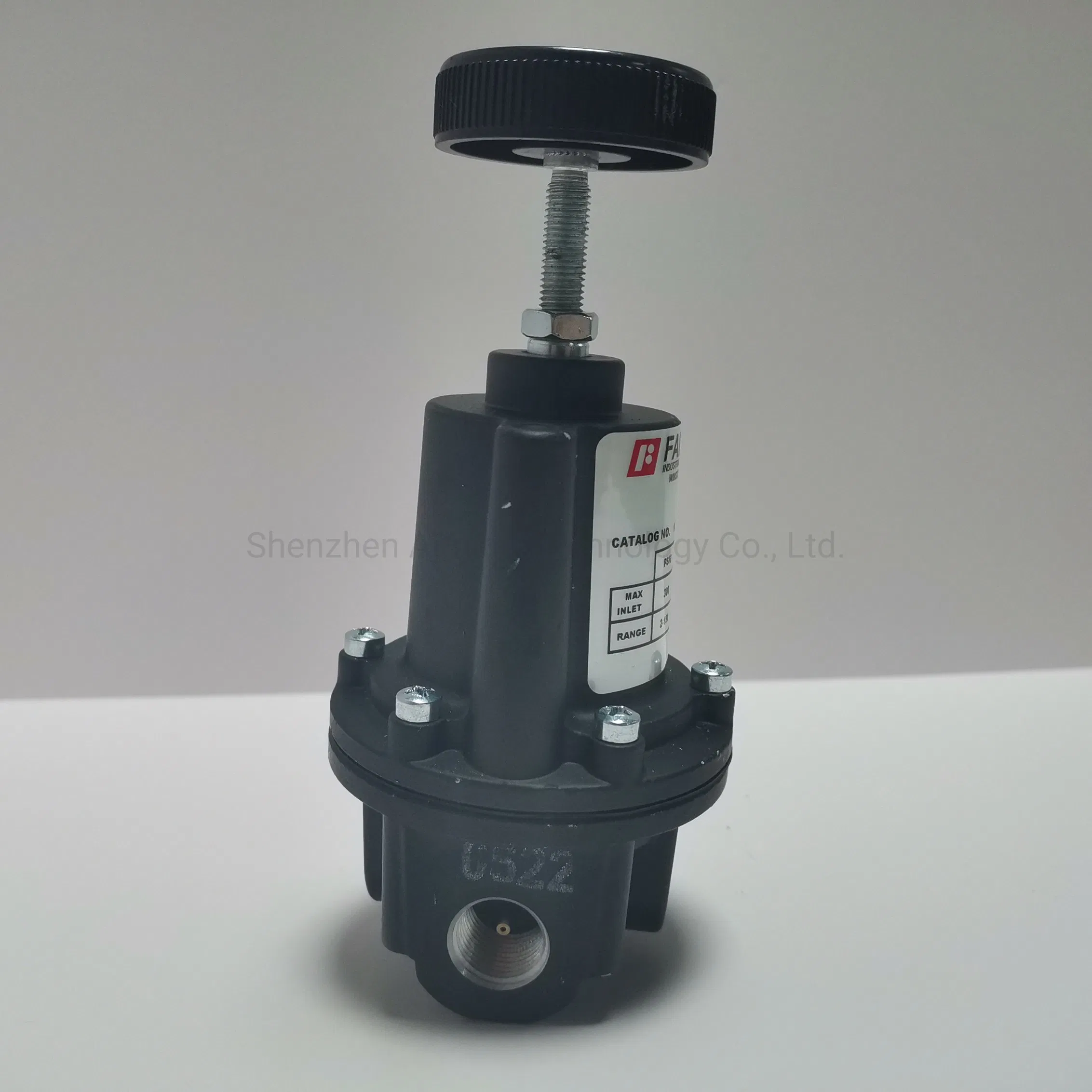

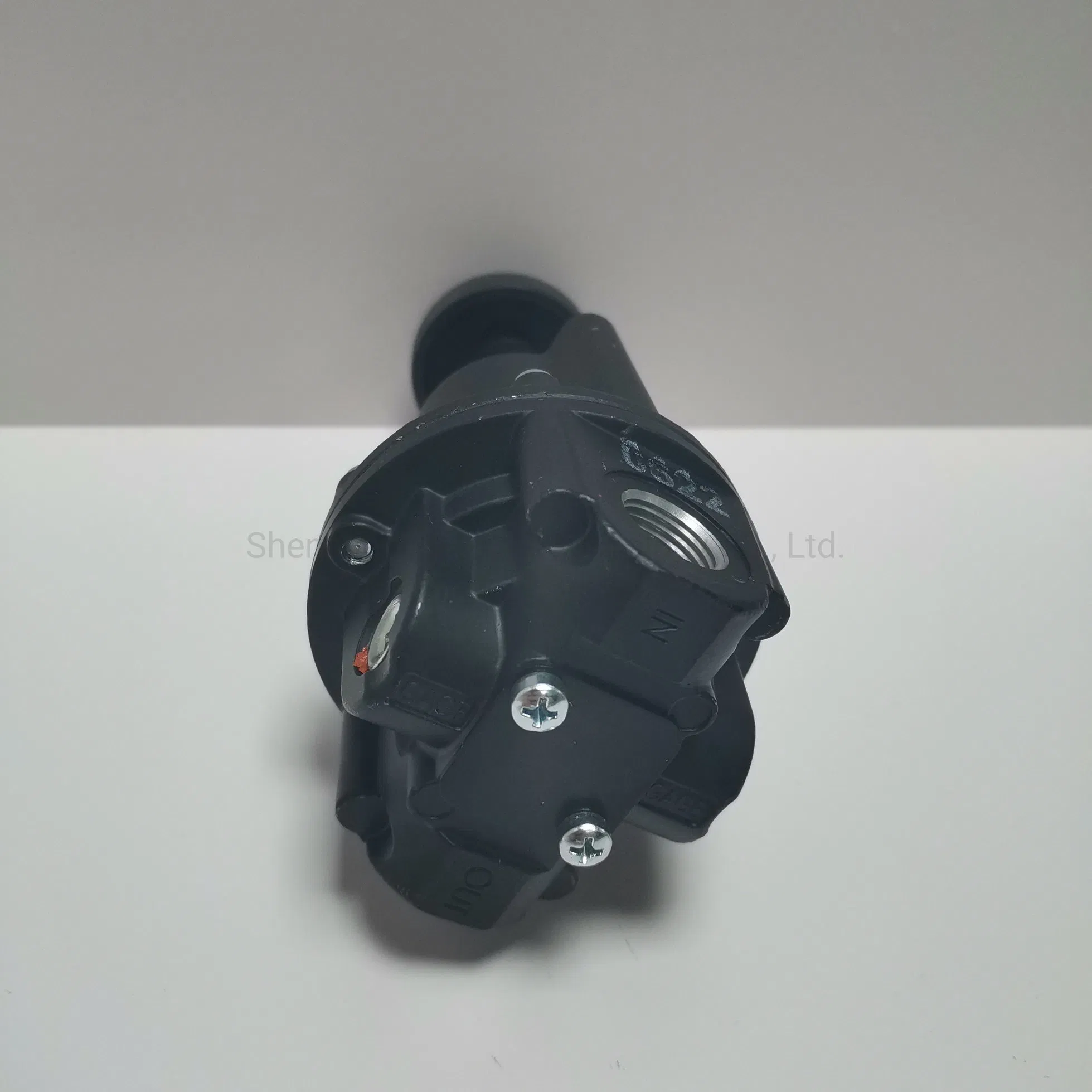

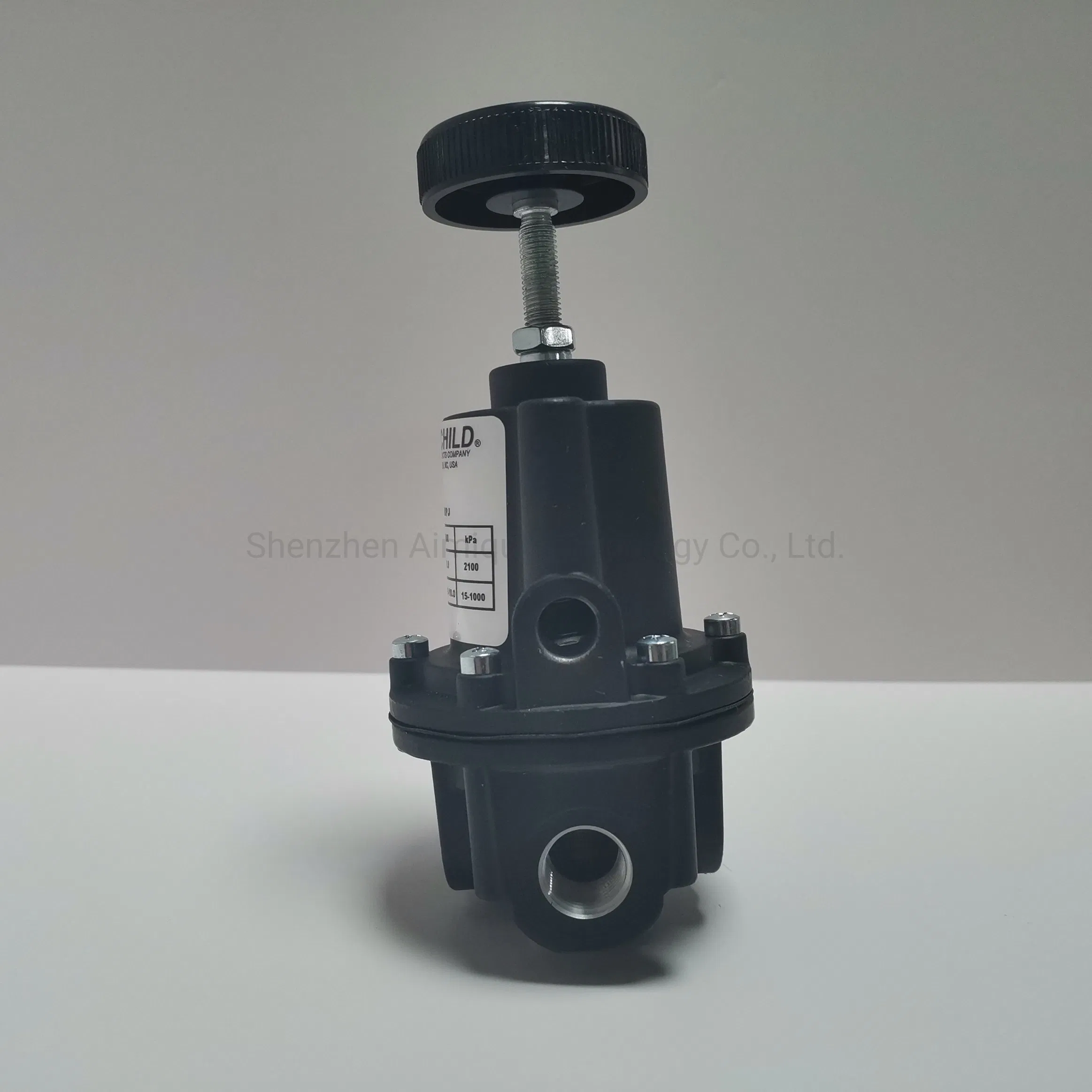

The Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.
Featuring a control sensitivity of 1/8 in water column and a balanced supply valve, it delivers consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. This high capacity regulator provides greater accuracy than relief valves over a narrow pressure range, making it ideal for various precision applications.
Key Performance:
- Handles up to 500 psig [34 BAR] maximum system pressure.
- Nine (9) setpoint pressure ranges available.
- Flow capacity of 40 SCFM (68m³/Hr).
- Highest accuracy pressure regulator available in its class.
- Eliminates hunting and buzzing during operation.
- Compensates for pressure droop under flow conditions.
🖼️ Product Visuals
⚠️ IMPORTANT NOTES:
Oil free air must be applied to the regulator. Use a filter to remove dirt and entrained liquid in the air line ahead of the regulator. If an air line lubricator is used, it MUST be located downstream of the regulator to avoid interference with performance.
🏭 Technical & Manufacturing Overview
Frequently Asked Questions
What is the control sensitivity of the Model 10BP?
The Fairchild Model 10BP features a high control sensitivity of less than 1/8 inch water column, ensuring precise pressure management.
What materials are used for the regulator body and elastomers?
The body is constructed from durable aluminum, and it utilizes Viton elastomers for superior chemical and temperature resistance.
What is the maximum supply pressure for this model?
The unit is rated for a maximum supply pressure of 300 psi, while it can handle system pressures up to 500 psig.
Can the Model 10BP be serviced without removing it from the line?
Yes, the design allows for easy servicing using the Model 10BP Service Kit without needing to remove the regulator from the piping.
What type of air supply is required for optimal performance?
The regulator requires oil-free air. It is recommended to use a filter upstream to remove dirt and liquids, and any lubricators must be placed downstream.
What is the flow capacity of the 10263BPJ?
It offers a flow capacity of 40 SCFM (68m³/Hr) at 100 PSIG, providing efficient relief and regulation for high-capacity applications.
