Basic Specifications
Certification
CE, ISO9001: 2000
Size
Small and Medium Compact
Technology
Axial Piston with Gear Reduction
Function
Shockless Function
Parking System
Built-in Parking Brake
Product Description

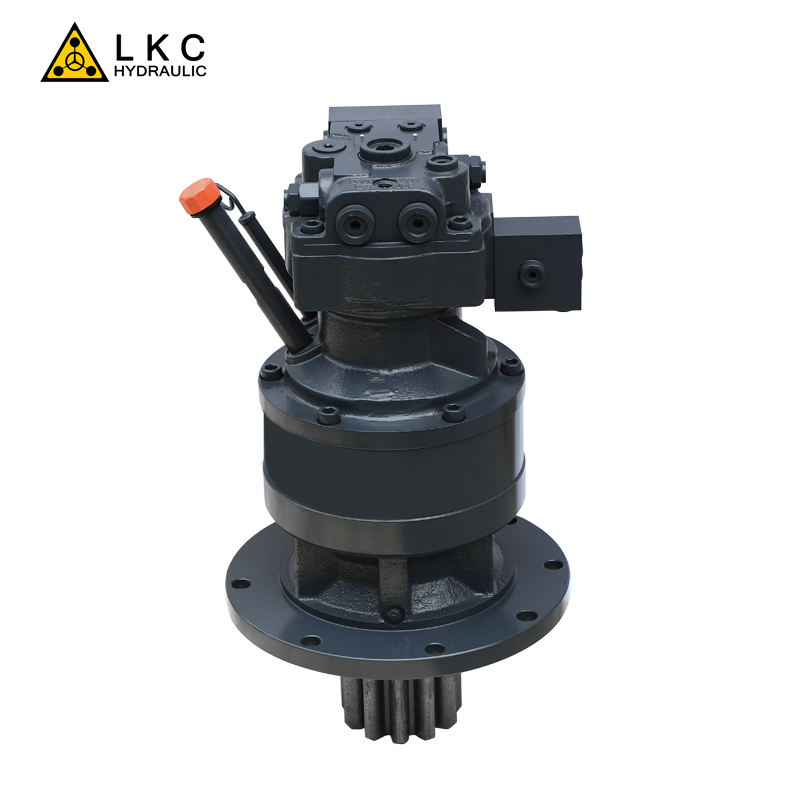

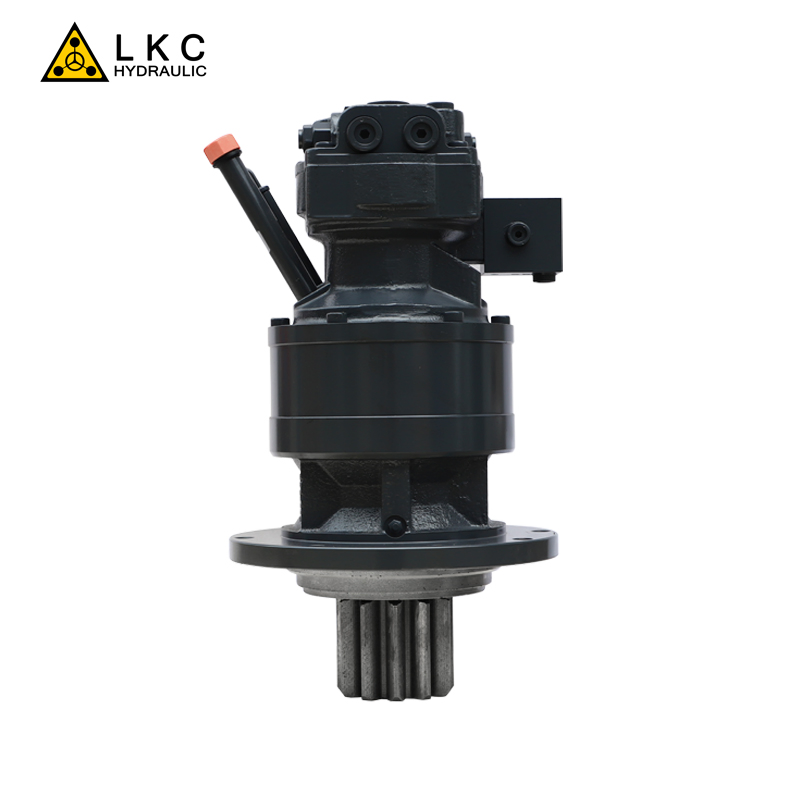

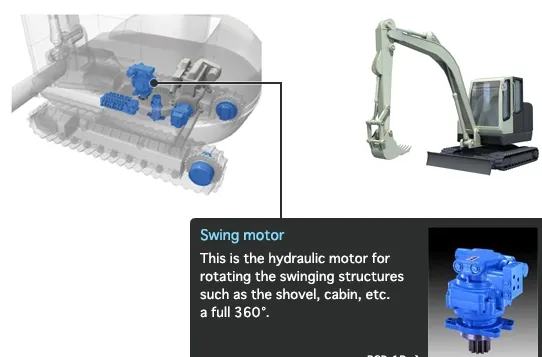

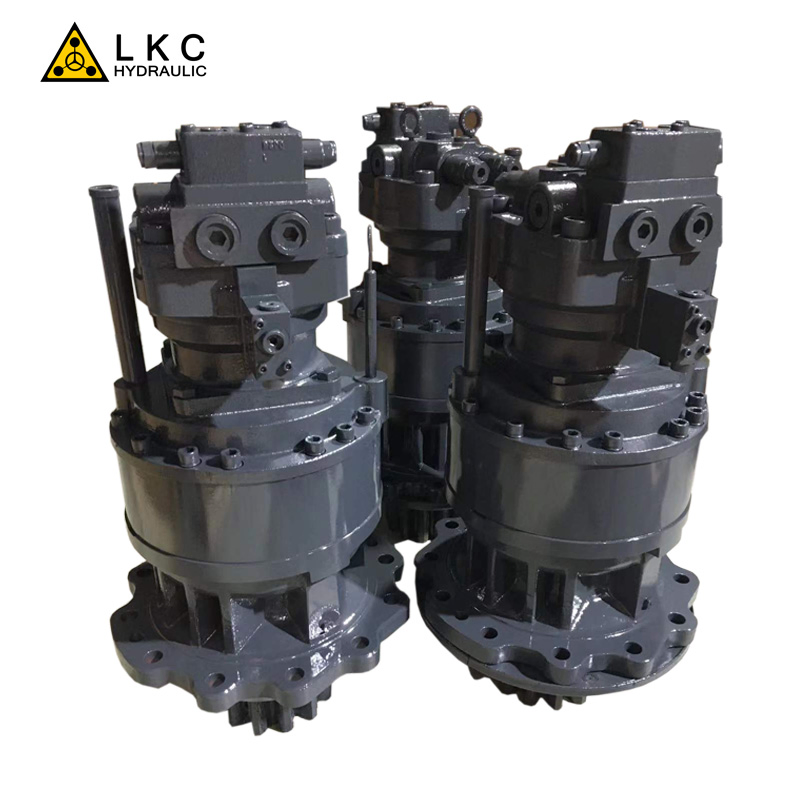

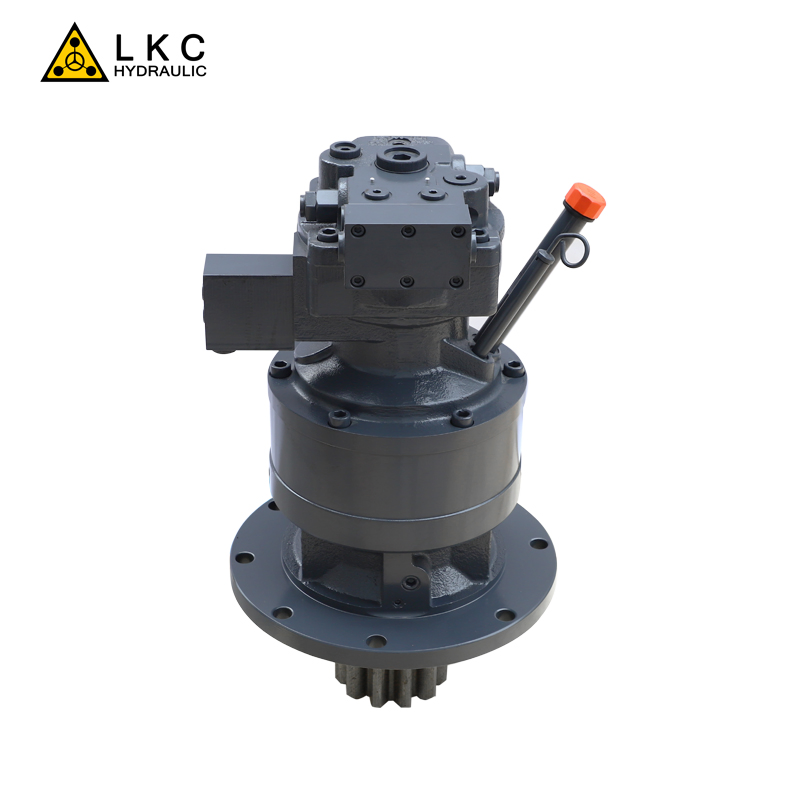

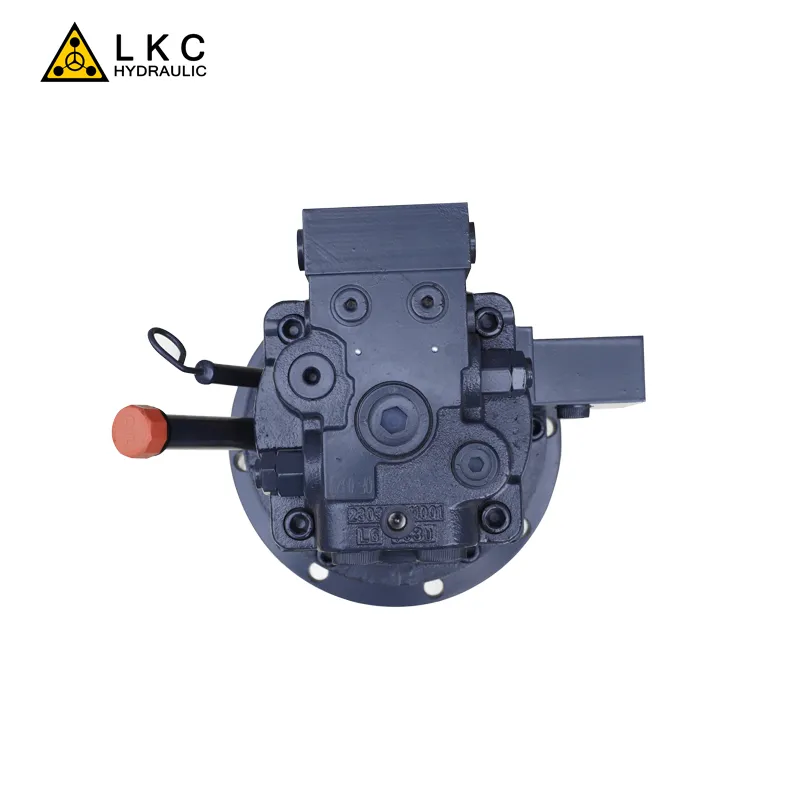

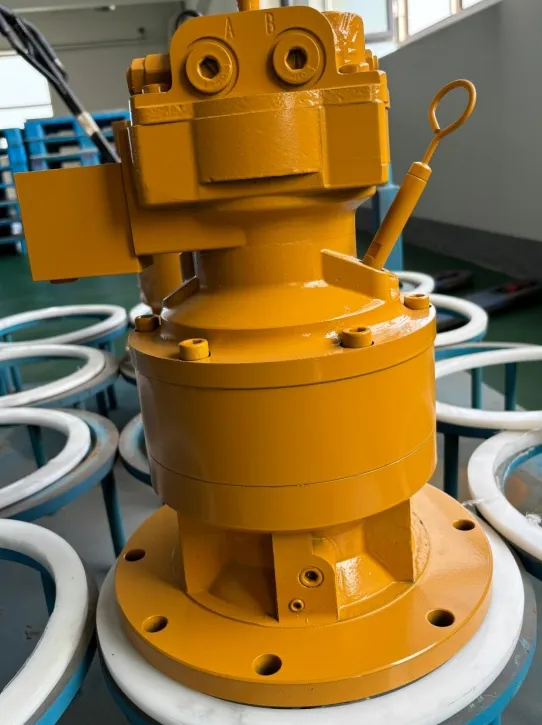

Swing Motor is equivalent to EATON JMF which can fit to 6-8 tons Mini Excavator, Mini Dumper, Mini drilling rigs etc. High OEM quality Swing Motor with one full year warranty.
OEM quality Swing Device can fit Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion Excavators.
-
⚙️
Compact size
Improved arrangement of components and decreased height enable installation under the driver's seat.
-
💧
No gear oil replacement
The lubricating system uses hydraulic operation oil for the reduction gear, eliminating maintenance needs.
-
🅿️
Built-in parking brake
Parking brake can be built into the hydraulic motor, enabling safer parking on an incline.
-
🛡️
Shockless function
Shockless relief is standard equipment to enable smooth Swing operations.

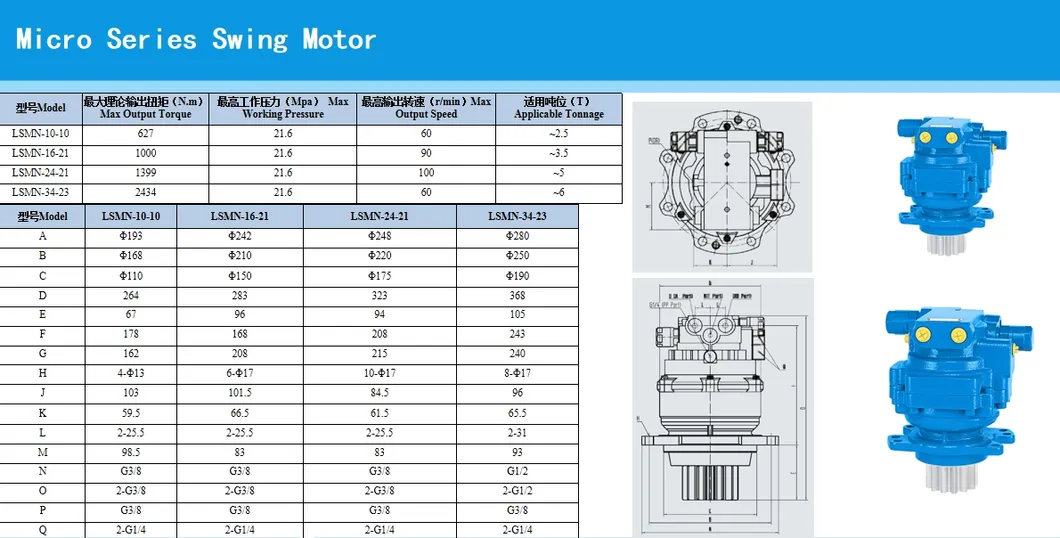

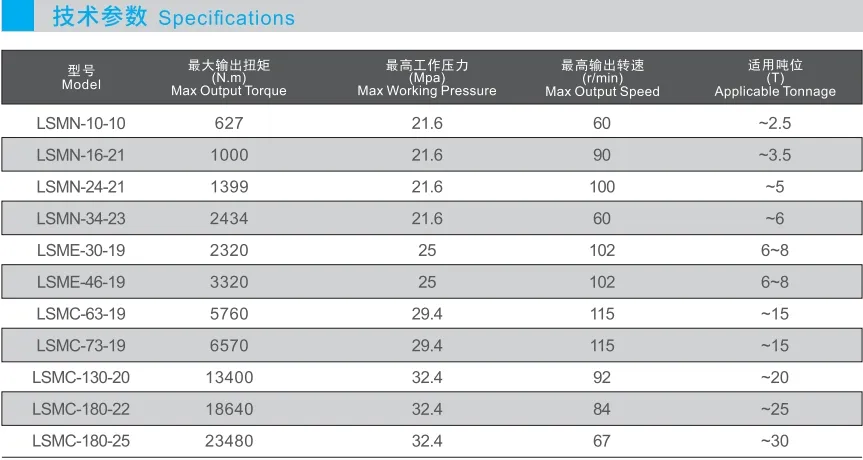

Technical Specifications
Gearbox Output Shaft
| Parameters | Values |
|---|
| Number of teeth | 12 |
| Module | 8 |
| Pressure angle | 20° |
| Pitch diameter | Φ96 |
| Add modification coefficient | 0.55 |
| Span measurement | 39.78 |
| Span number | 2 |
Motor Output Shaft
| Parameters | Values |
|---|
| Number of teeth | 15 |
| Pitch | 16/32 |
| Pressure angle | 30° |
| Pitch diameter | Φ23.8125 |
| Major diameter | Φ24.8±0.1 |
| Minor diameter | Φ21.336 |
| Over pin(Φ3.048) | Φ28.209 / Φ28.272 |

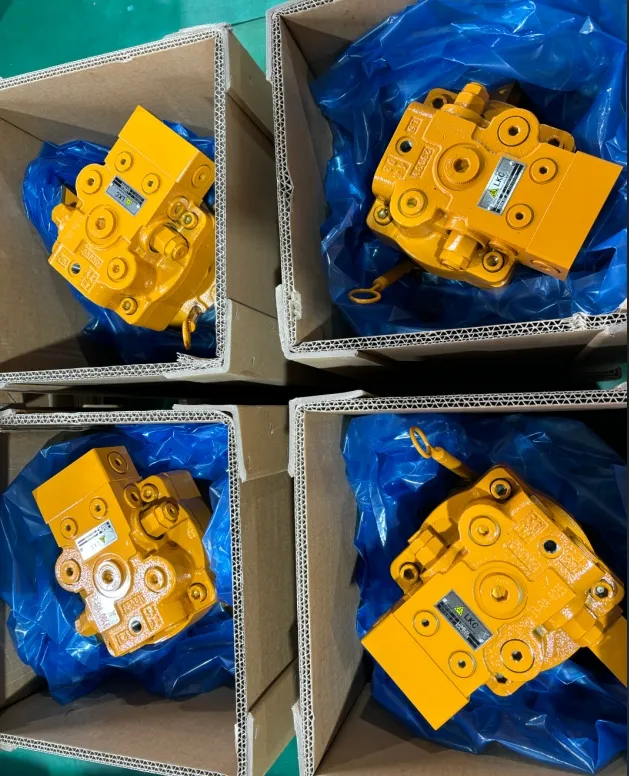

Packaging & Delivery

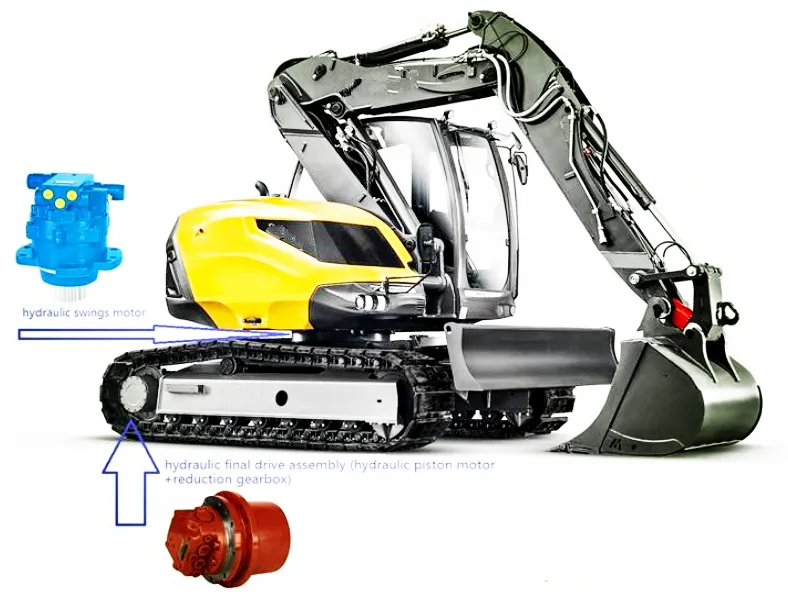

Final Drive is a Hydraulic Travel Motor Assembly with Hydraulic Motor and Planetary Gearbox. It is widely used as traveling device for Hydraulic Excavators, Drilling Rigs, Mining Machinery, and Road Machinery. It is interchangeable with most famous brands such as Nachi, KYB, Eaton, and Rexroth.
Frequently Asked Questions
Are you a manufacturer or a trading company?

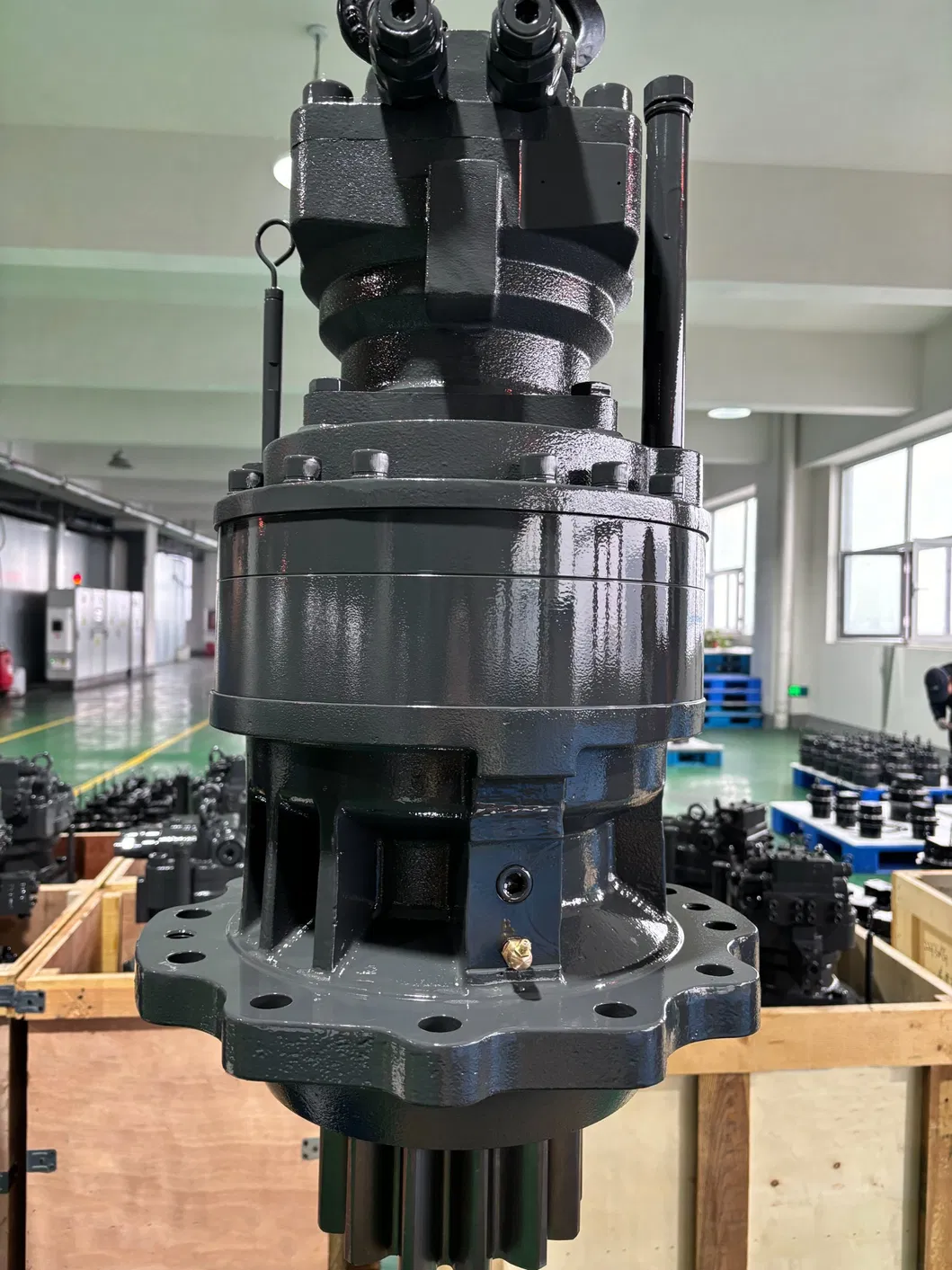

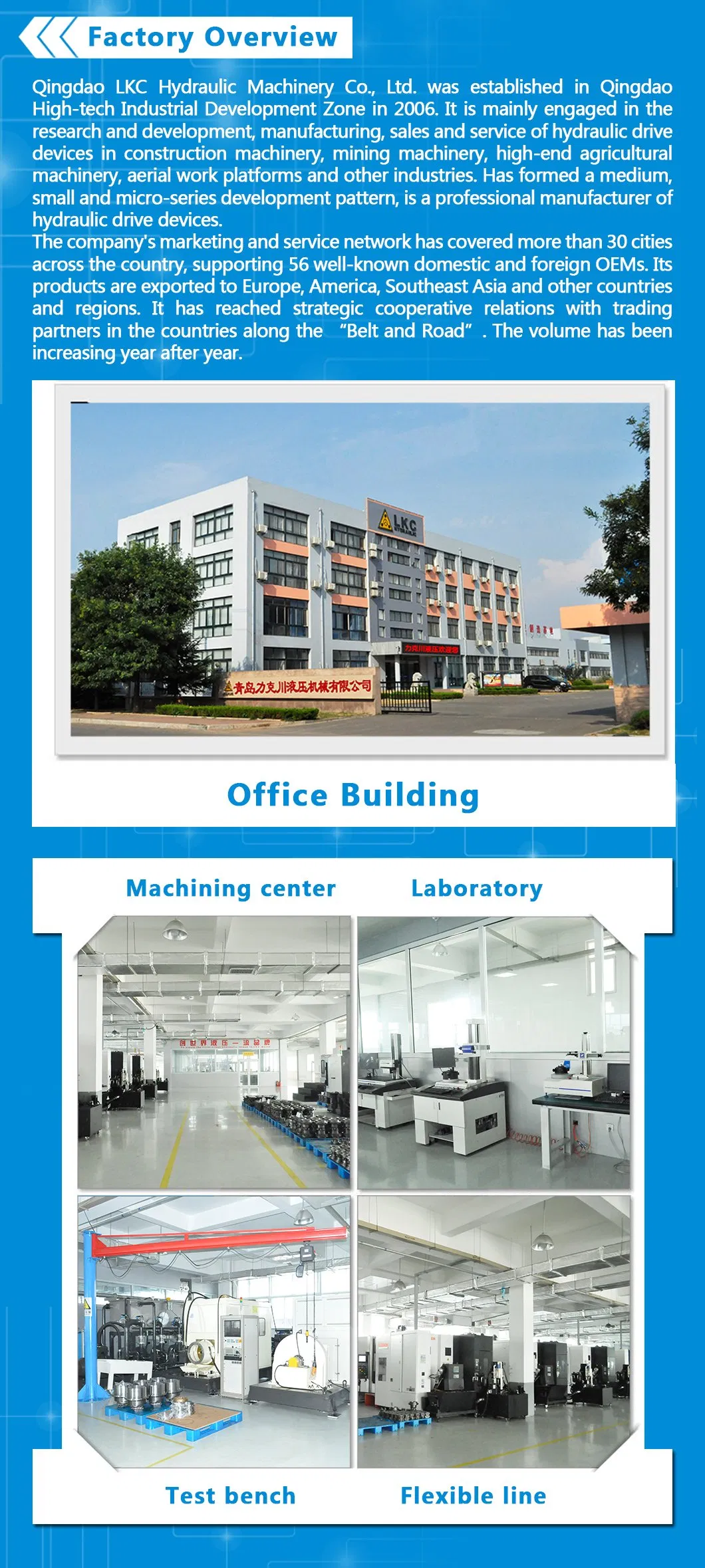

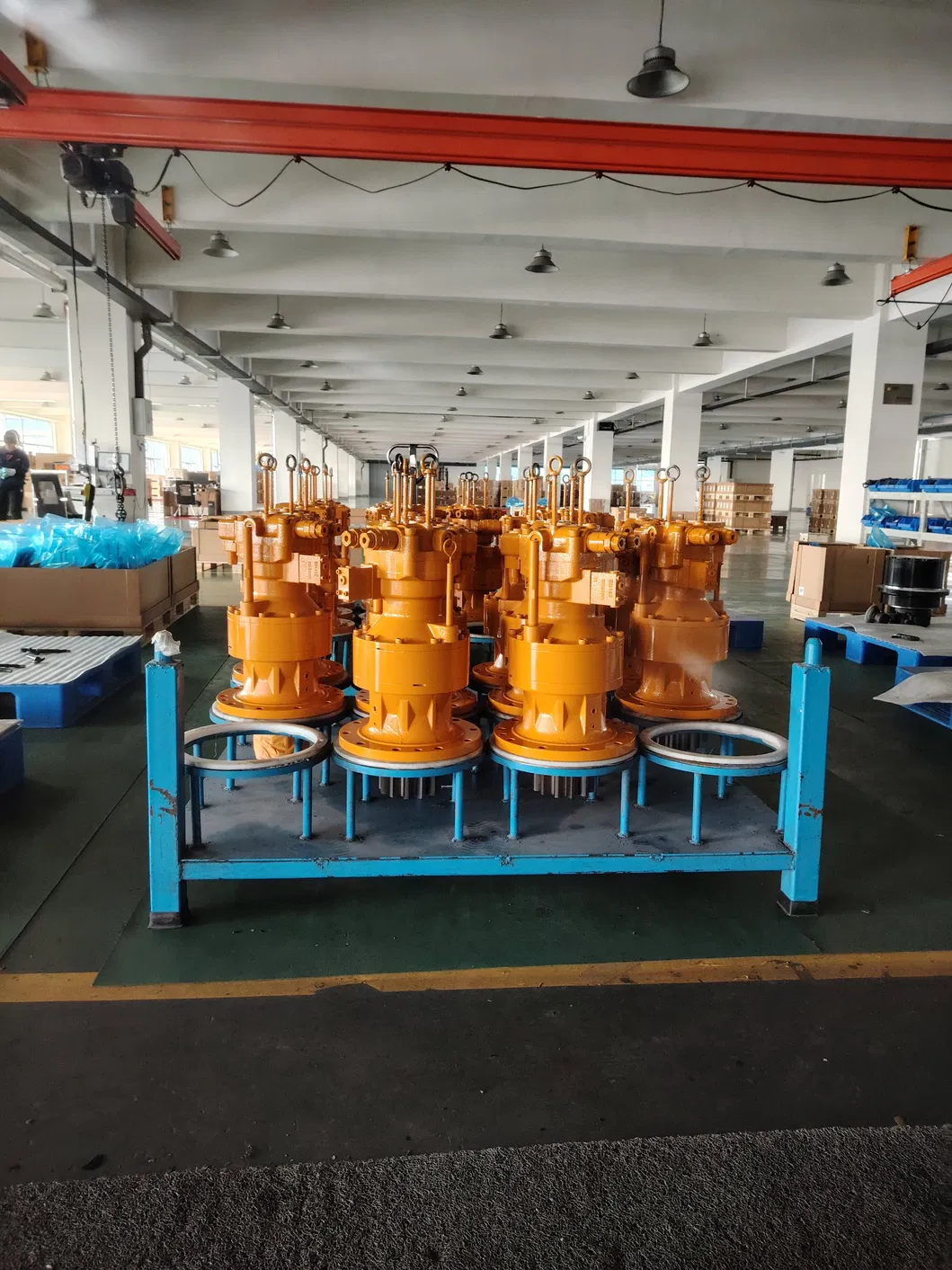

We are a specialized manufacturer of quality final drives and hydraulic motors with 18 years of production experience.
What certificates does your production hold?
Our facility and products are certified under ISO9001, EN ISO 12100, OHSAS 18001, and SGS standards.
How long is the standard delivery time?
We maintain stock for conventional products. New production orders typically take 20 days, while customized products take approximately 40 days.
What are your accepted payment terms?
We currently accept T.T. (Telegraphic Transfer), DP at sight, and LC (Letter of Credit).
What is your warranty policy for hydraulic motors?
All our products are warranted for one full year from the date of delivery against any defects in materials and workmanship.
Can these motors fit different excavator brands?
Yes, our OEM quality swing devices are designed to fit a wide range of major brands including Caterpillar, Komatsu, Volvo, Hitachi, and many others.
