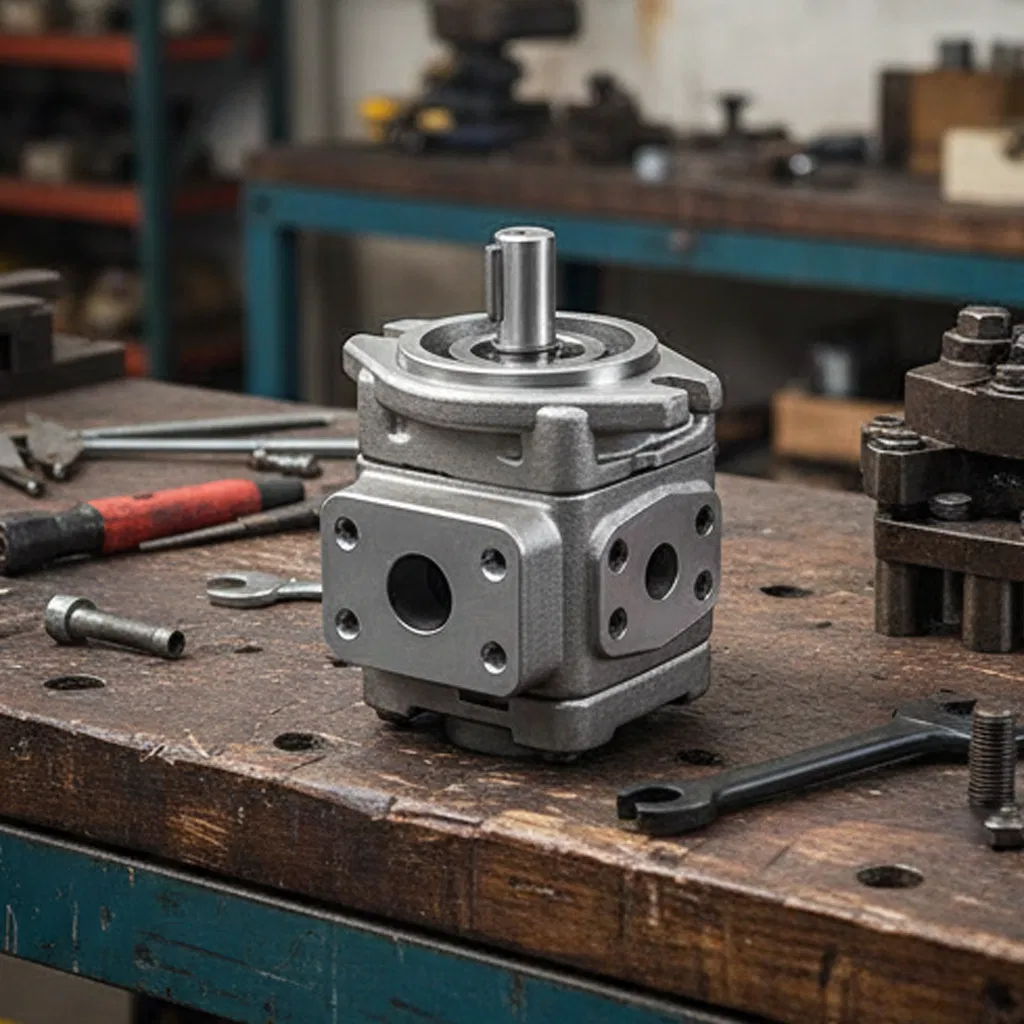

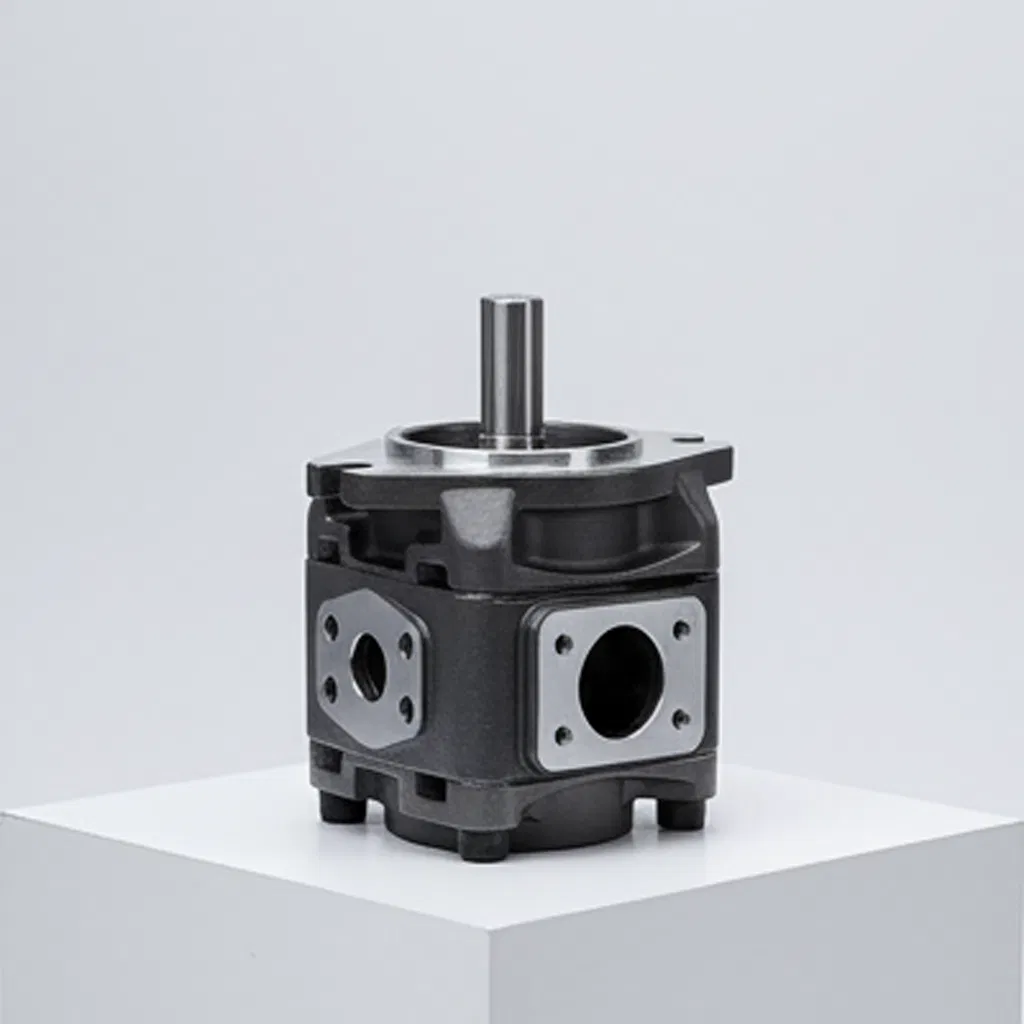

Durable Hydraulic Gear Pump with 125 3ml/R Flow Rate for Trucks

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

VG0 VG1 VG2 VGH0

Mesh Form

Internal Engaged

Power

Hydraulic

Max Pressure

35MPa

Flow

125.3ml/R

Max Speed

3000rpm/Min

Material

High Strength Iron Cast

Certification

CE, ISO, RoHS

Product Description

Replacement hydro gear pump for the Rexroth PGH series. Engineered for optimal performance and reliability.

Available Models:
VG0 is equivalent to PGH3 (8, 10, 13, 16, 20)
VG1 is equivalent to PGH4 (25, 32, 40, 50, 63)
VG2 is equivalent to PGH5 (80, 100, 125, 145, 160)

Axial and radial pressure compensation ensures high volumetric efficiency even at low speed and low viscosity.

Ultra-low noise performance with high-strength cast iron construction and unique internal silencing design.

Exceptionally low flow and pressure pulsation, maintaining steady output.

High-pressure capabilities reaching up to 35Mpa.

Broad speed range supporting up to 3000r/min.

Resilient to oil contamination, ensuring a prolonged service life.

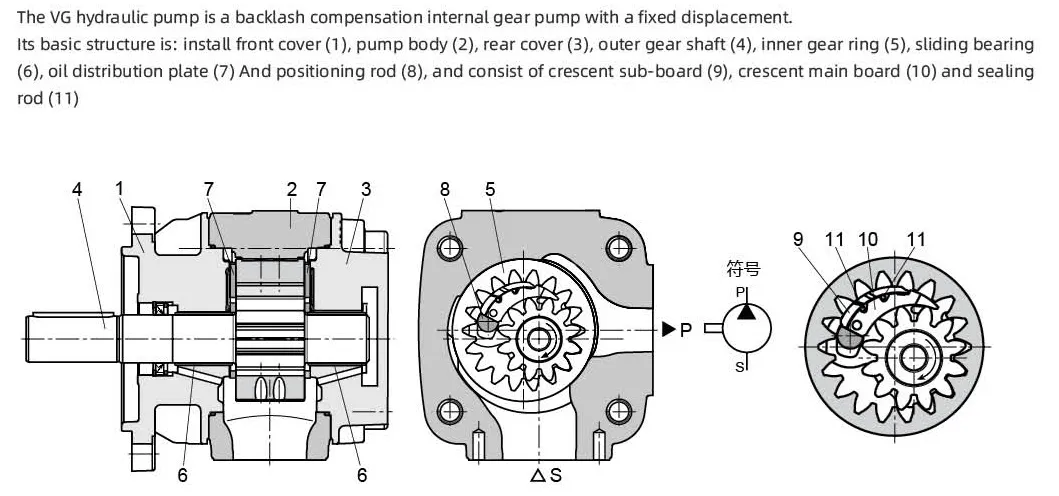

Product Parameters & Designation

Series	Displacement (ml/r)	Rotation	Shaft Type	Sealing
VG0	8, 10, 13, 16, 20, 25, 28	R=Clockwise L=Counter-clockwise	E=Straight Key R=SAE Spline	W=NBR V=FKM
VG1	25, 32, 40, 50, 63		E=Straight Key
VG2	80, 100, 125, 145, 160		E=Straight Key

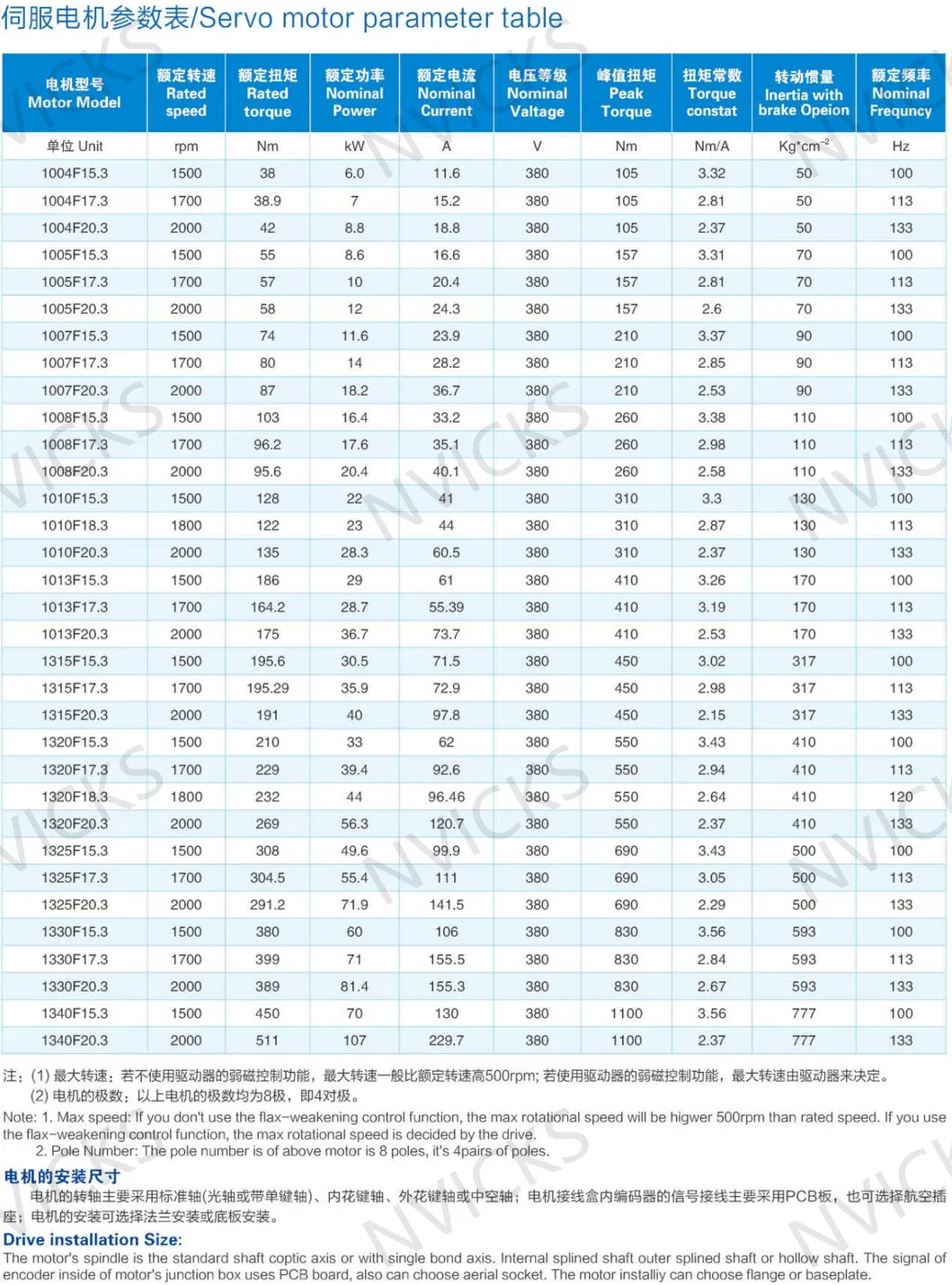

Technical Data Sheet

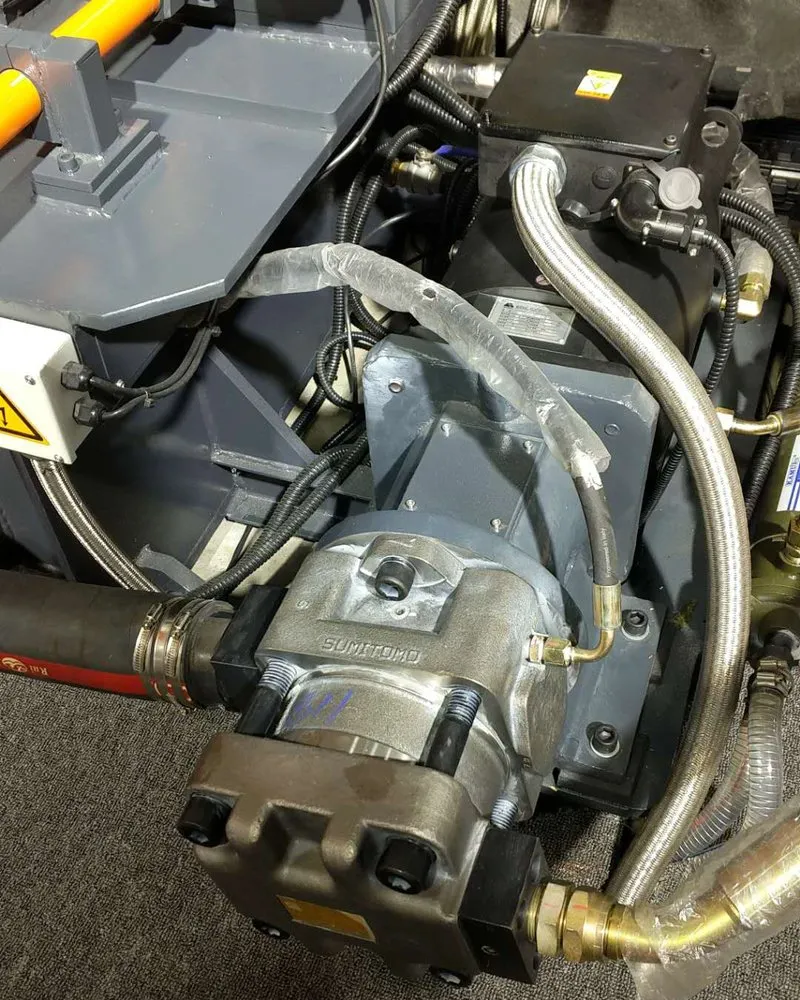

Industry Applications

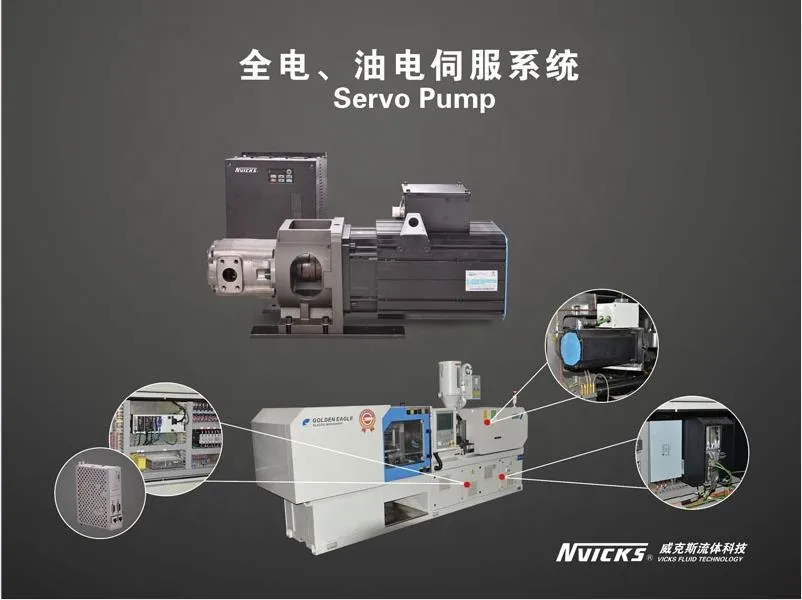

Widely applicable across industries including plastics manufacturing, shoe production, die-casting machinery, forklifts, and other hydraulic systems. Ideal for energy-saving servo frequency conversion drive systems.

Frequently Asked Questions

What are the main advantages of the VG series internal gear pumps?

The VG series features axial and radial pressure compensation for high efficiency, ultra-low noise design, and high-pressure capabilities up to 35MPa. They are also highly resilient to oil contamination.

Are these pumps compatible with Rexroth PGH series?

Yes, the VG series is designed as a high-performance replacement for the Rexroth PGH series. Specifically, VG0 matches PGH3, VG1 matches PGH4, and VG2 matches PGH5.

What is the maximum speed and pressure these pumps can handle?

These pumps can operate at speeds up to 3000 r/min and can sustain a maximum pressure of 35MPa, making them suitable for high-demand industrial applications.

What kind of quality control do these products undergo?

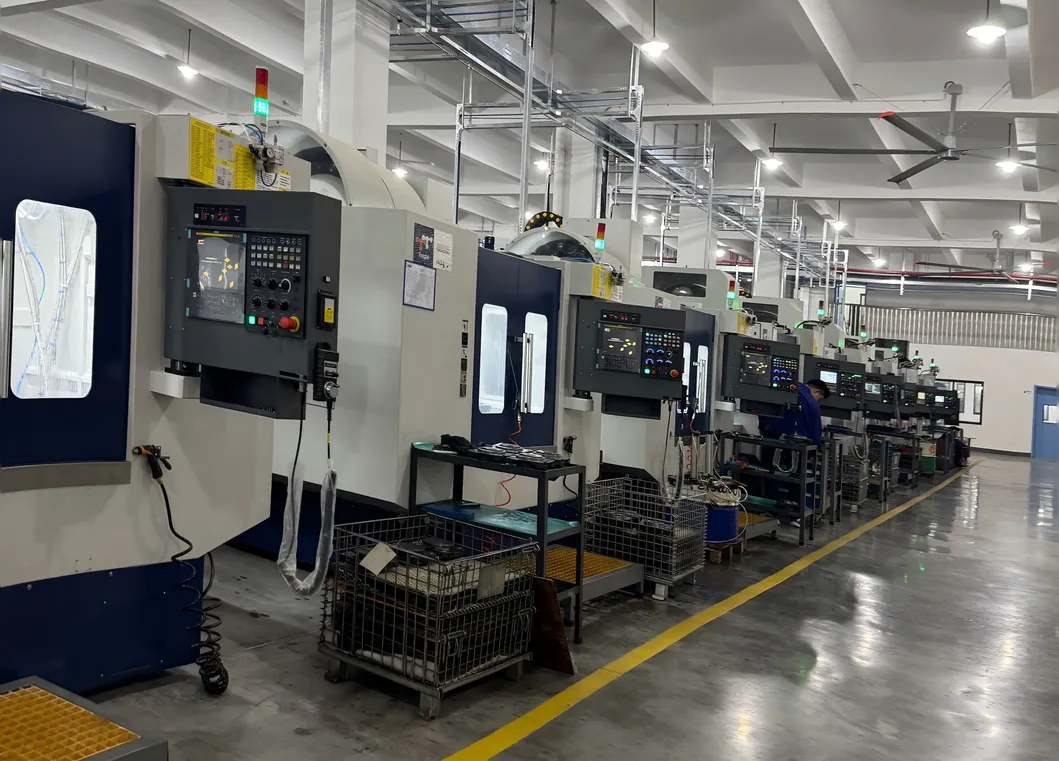

All products are 100% tested before shipment using advanced CNC machinery imported from Germany and Japan. Each unit has a unique tracking code to ensure quality consistency.

What certifications do your hydraulic pumps hold?

Our products are certified by CE, ISO, and RoHS. Additionally, our designs have been recognized by major classification societies including DNV, ABS, BV, LR, and CCS.

What is the standard warranty and delivery time?

We offer a 1-year warranty on all products. Small orders can typically be shipped within one week, while larger orders (up to 100 sets) are usually processed within one month.
