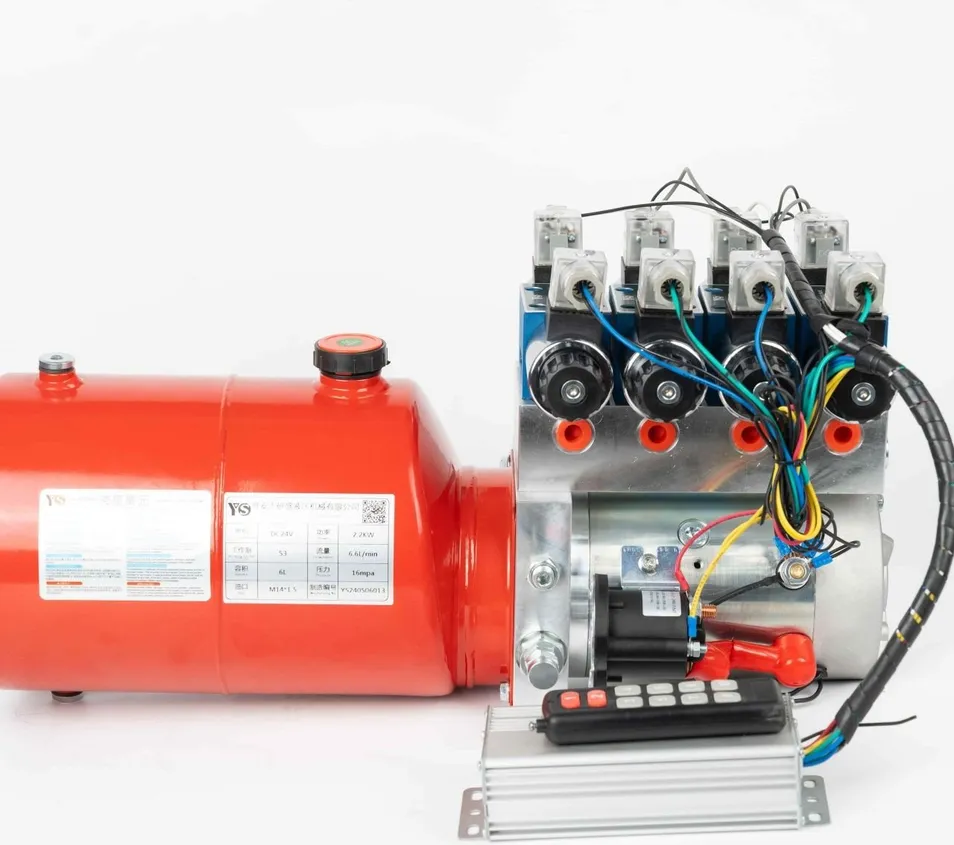

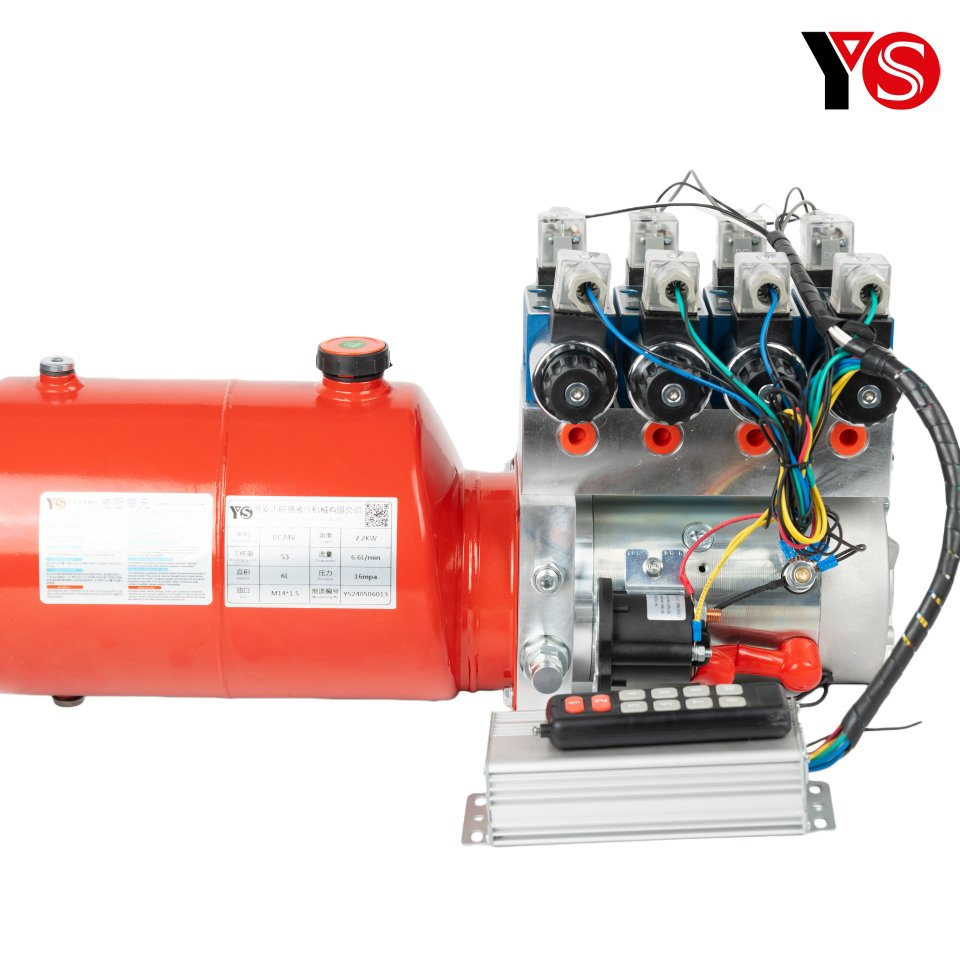

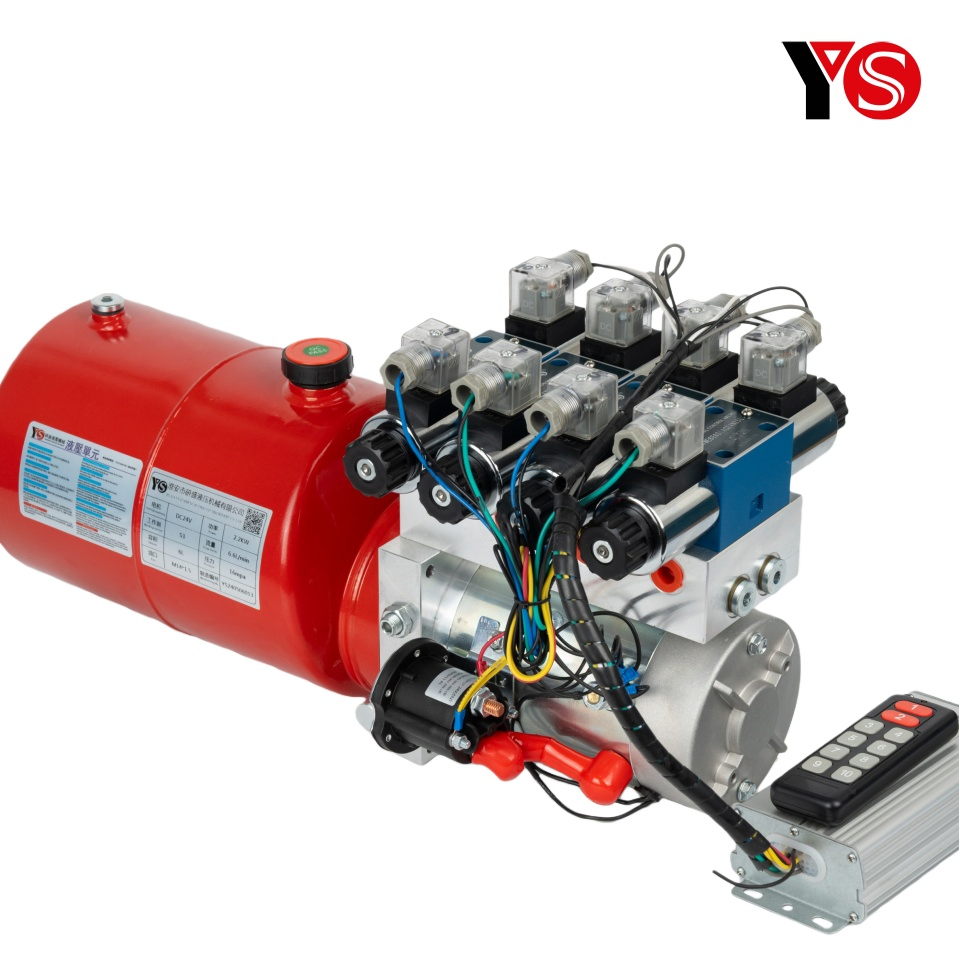

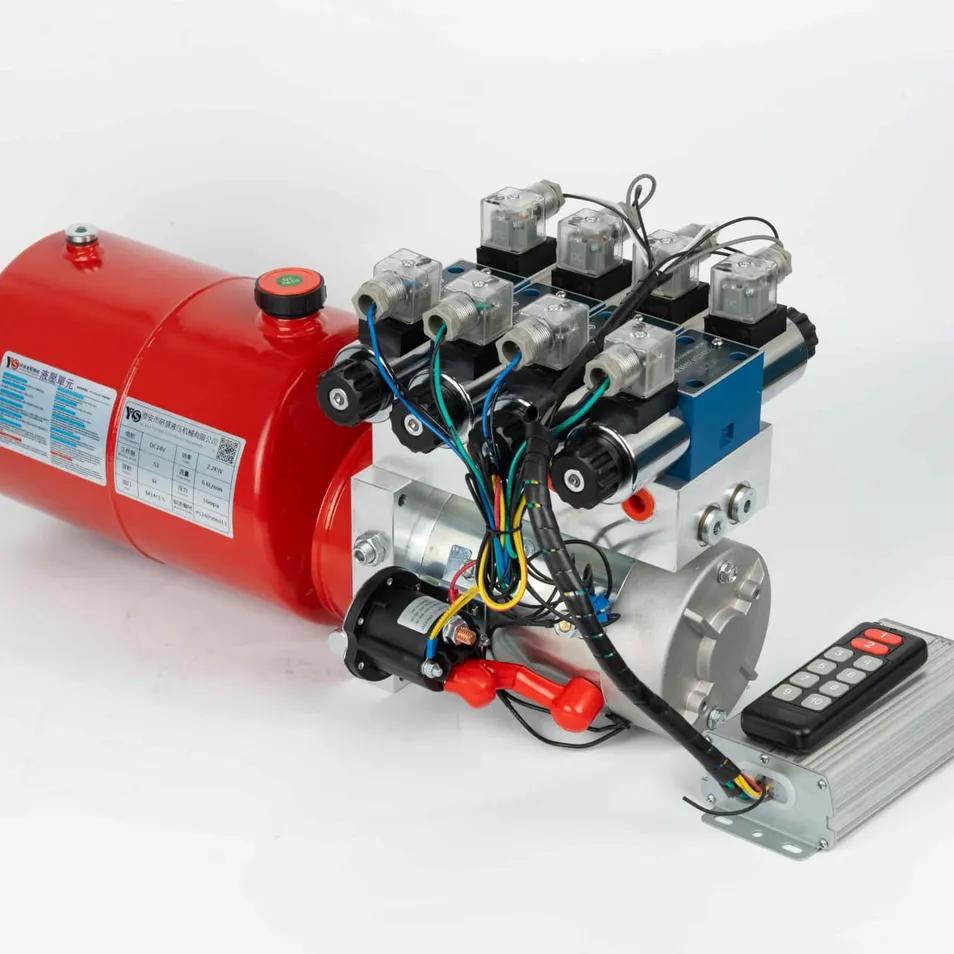

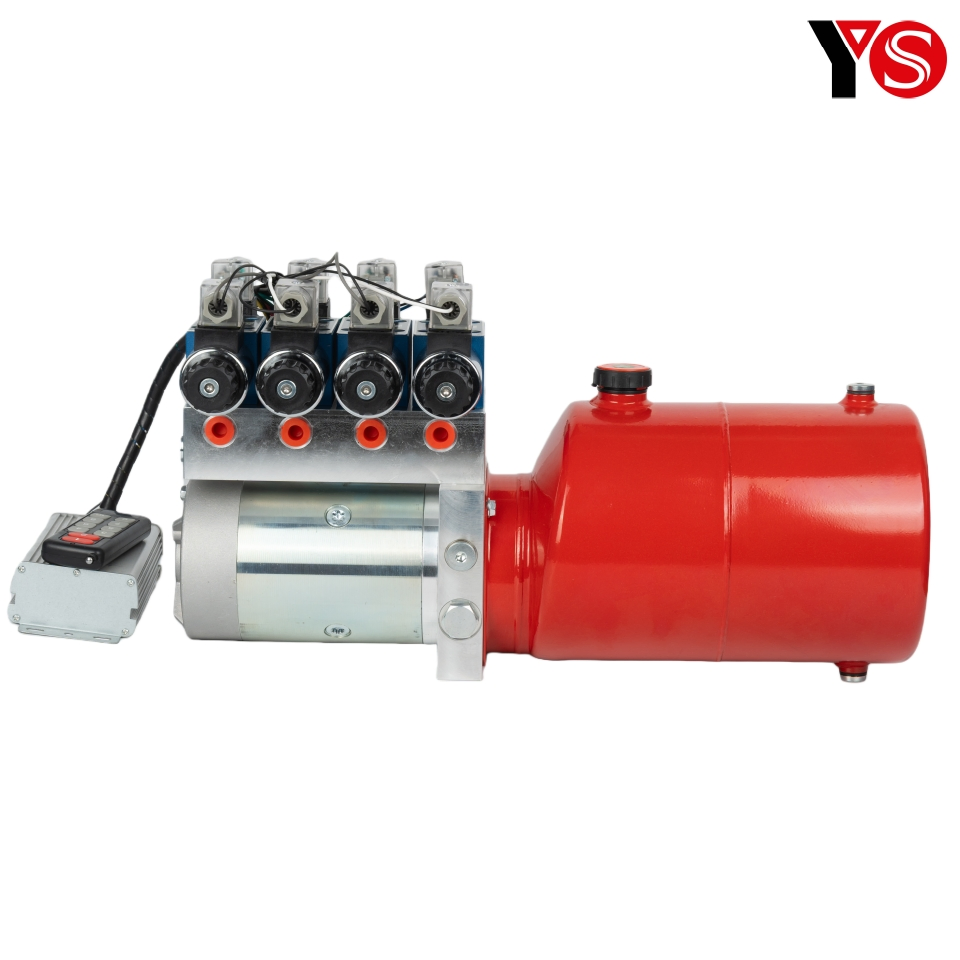

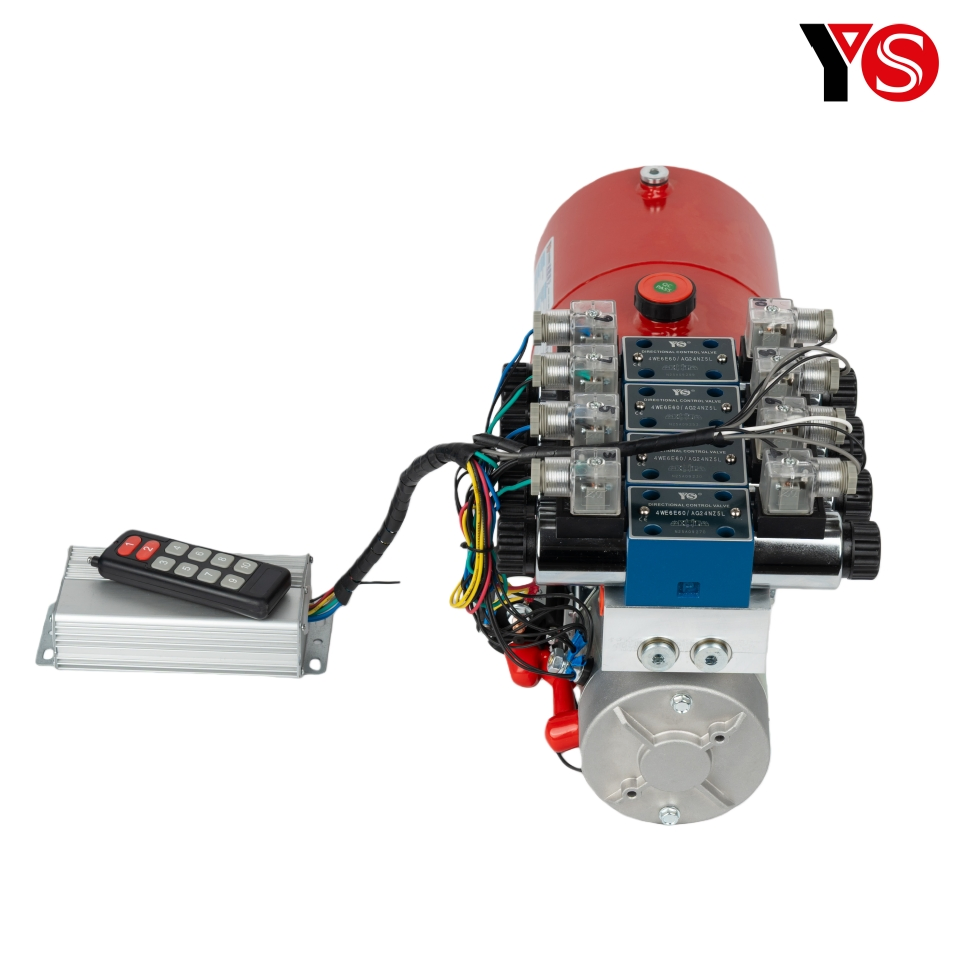

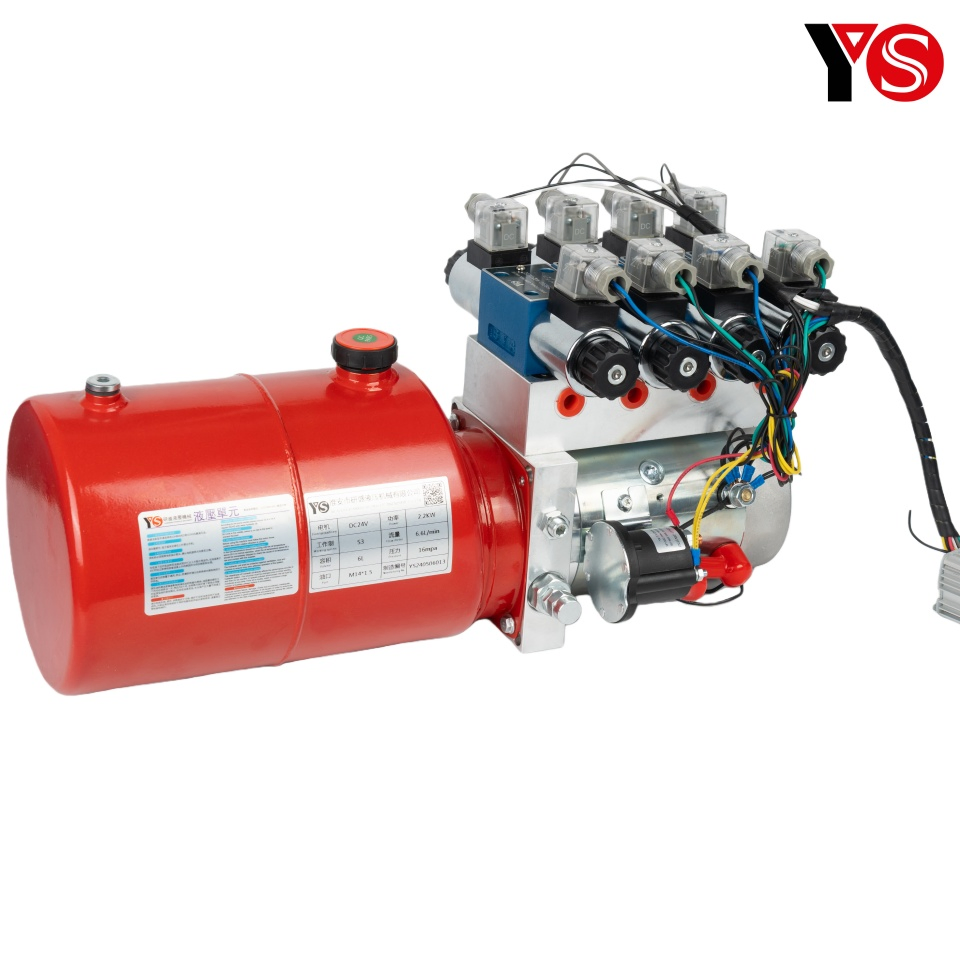

Hydraulic Power Unit for Hydraulic Outriggers
This is a DC double-acting hydraulic power unit specifically designed for the hydraulic outriggers of trailers. Depending on the configuration of the cylinder diameter and system pressure, it can bear a maximum weight of 90 tons.
| Model |
Motor Voltage |
Motor Power |
Pump Displacement |
Pressure |
Tank Capacity |
| YS-DC24-F-H-24-H-A-E-E |
DC24V |
2.2KW |
2.6cc/r |
16MPa |
6L |

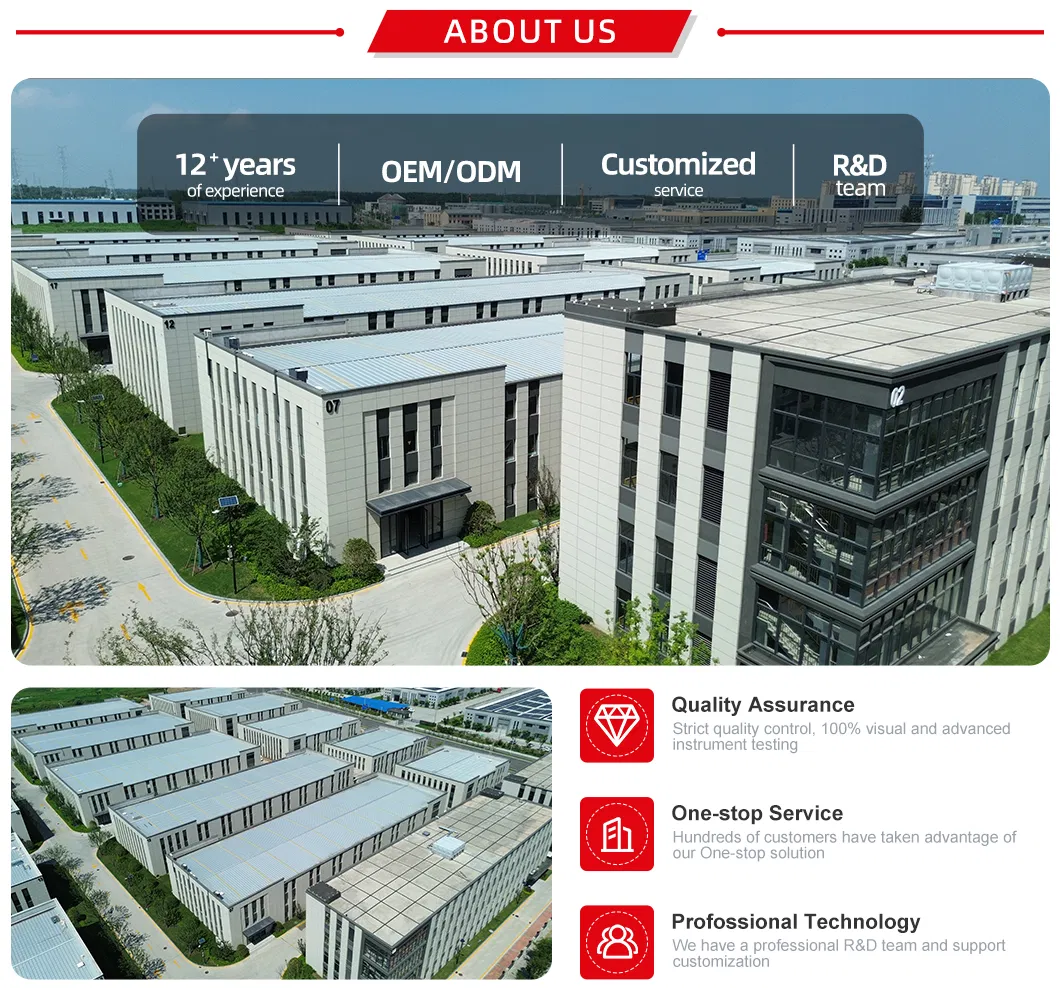

ℹ️ Profile & Capabilities
We are a professional manufacturer of small and medium-sized hydraulic systems and related hydraulic power units, small-displacement gear pumps, cylinders, and valves. We utilize advanced professional equipment such as machining centers, CAD and UG design systems, and CAT performance test benches.
Over the past 12 years, we have been dedicated to the research and production of hydraulic systems. Our products are widely used in warehousing, logistics, automotive machinery, railway machinery, construction machinery, and agricultural machinery. With 14 utility model patents, including leak detection devices and low-noise power units, we prioritize quality and customer satisfaction through strict management and excellent technology.
🛠️ Troubleshooting & Maintenance
Motor failure: If the motor does not rotate, check the accuracy of the connection lines and the start switch.
Cylinder rising issues: Check oil levels, viscosity, and potential filter clogging. Ensure the solenoid valve is correctly closed.
Unloading issues: Verify solenoid valve power and input voltage. Clean any blocked throttle or pressure compensation valves.
Pressure Maintenance: Inspect the check valve and oil seals if the system fails to maintain pressure.
System Noise: Remove air by working the system back and forth; check the coupling for wear or incorrect installation.
❓ Frequently Asked Questions
What is the maximum load capacity of this hydraulic power unit?
Depending on the configuration of the cylinder diameter and system pressure, this unit can support a maximum weight of up to 90 tons.
What voltage options are available for the motor?
We offer a wide range of DC voltage options including 12V, 24V, 48V, 60V, and 72V to suit various trailer and equipment requirements.
What materials are used in the construction of the unit?
The main body of the unit is constructed from high-quality Aluminum Alloy, providing a balance of strength, durability, and lightweight performance.
Can I use this unit for applications other than trailer outriggers?
While specifically designed for hydraulic outriggers, this small-displacement hydraulic system is also suitable for warehousing, logistics, automotive machinery, and agricultural equipment.
What should I do if the system noise becomes too loud?
First, check for air in the system and cycle it to remove trapped air. If the noise persists, inspect the coupling for wear and ensure the motor is functioning correctly.
Is the oil tank capacity customizable?
Standard capacities include 4L, 8L, and 10L. For specific requirements, please refer to the technical specifications for the YS series models.
