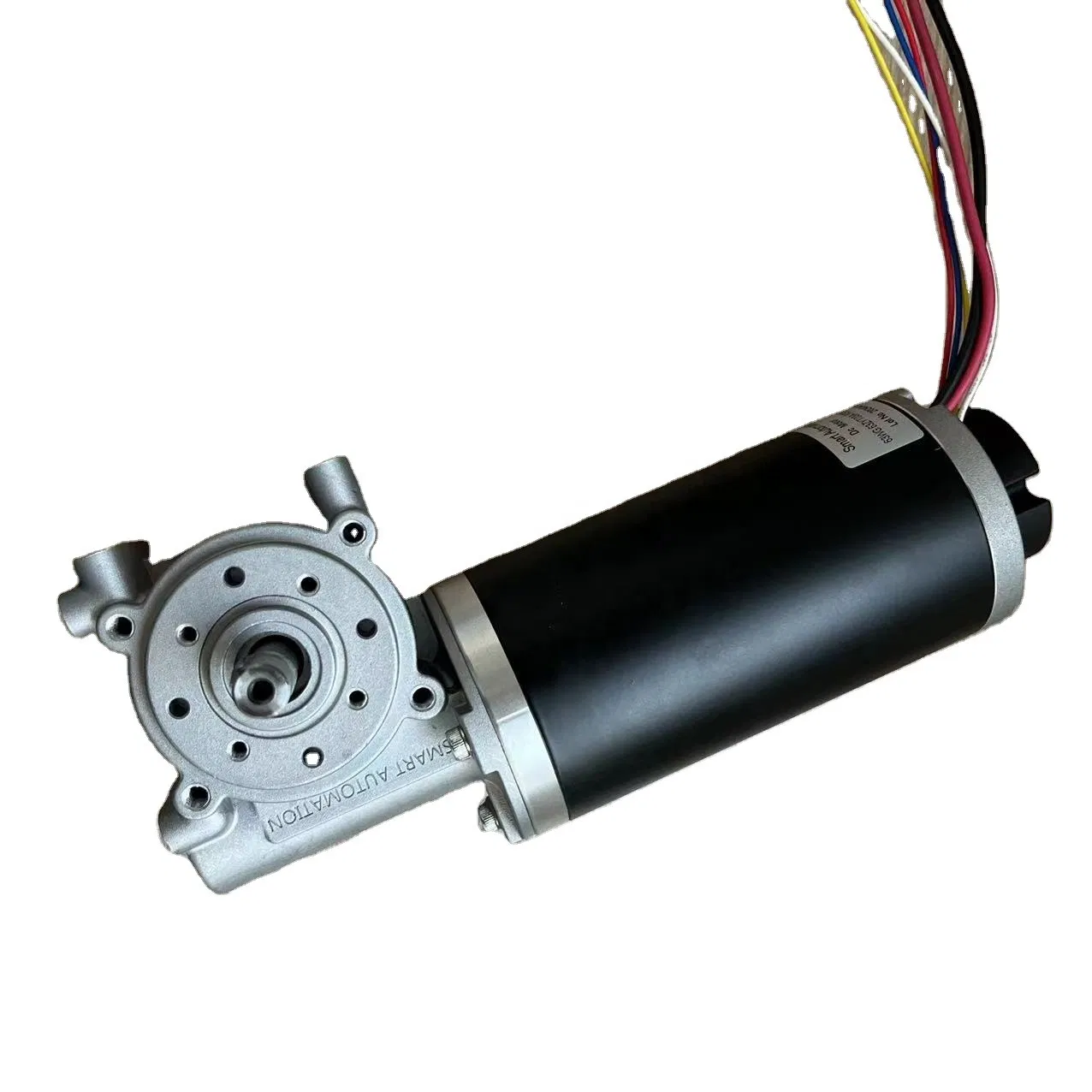

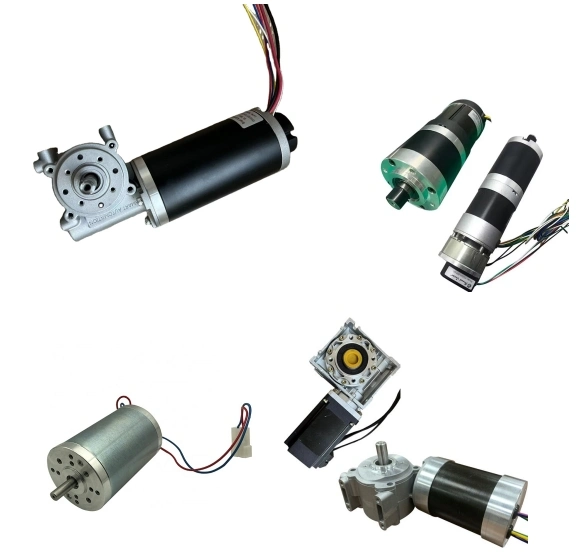

DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
1 / 5
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder
DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder

DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications

Model NO.
63WG
Function
Driving
Casing Protection
Closed Type
Number of Poles
2
Structure
Brush
Certification
ISO9001, Ce, RoHS
Transport Package
Standard Export Package
Specification
Size 63mm
Origin
China
HS Code
8501310000
Capacity
10000 PCS Per Month

Product Description

Brush & Brushless DC Motor / Gear Motor for Door Opener
⚡ Customizable voltage, dimension, performance, shaft, and mounting.
🛠️ Integrated solutions including encoders, gearboxes, and brakes.

Available Options

Diameter30mm, 36mm, 38mm, 42mm, 52mm, 57mm, 60mm, 63mm, 70mm, 76mm, 80mm, 86mm, 90mm
Rated Voltage12V, 24V, 36V, 48V
Rated TorqueUp to 3Nm (with gearbox up to 120Nm)
Rated Speed1rpm up to 15000rpm
Rated Power10W up to 1000W
Protection ClassIP00, IP40, IP50, IP54, IP56, IP66, IP67
EMISuppression available
ThermalThermal protection available
GearboxPlanetary or worm gearbox options
BrakeElectric brake assembly options
EncoderOptical or Magnetic encoders available
ControllerIntegrated controller for BLDC motors

Customized Door/Gate Motors

  • Brushed or brushless versions available
  • Equipped with planetary or worm gearboxes
  • Optional integrated brake systems
  • High-precision encoder integration

Typical Models & Gallery

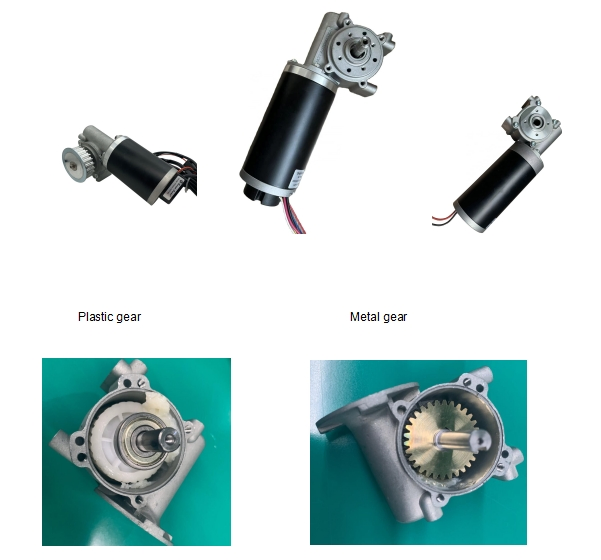

1. 63WG.63ZYT Series PM DC Worm Gear Motor

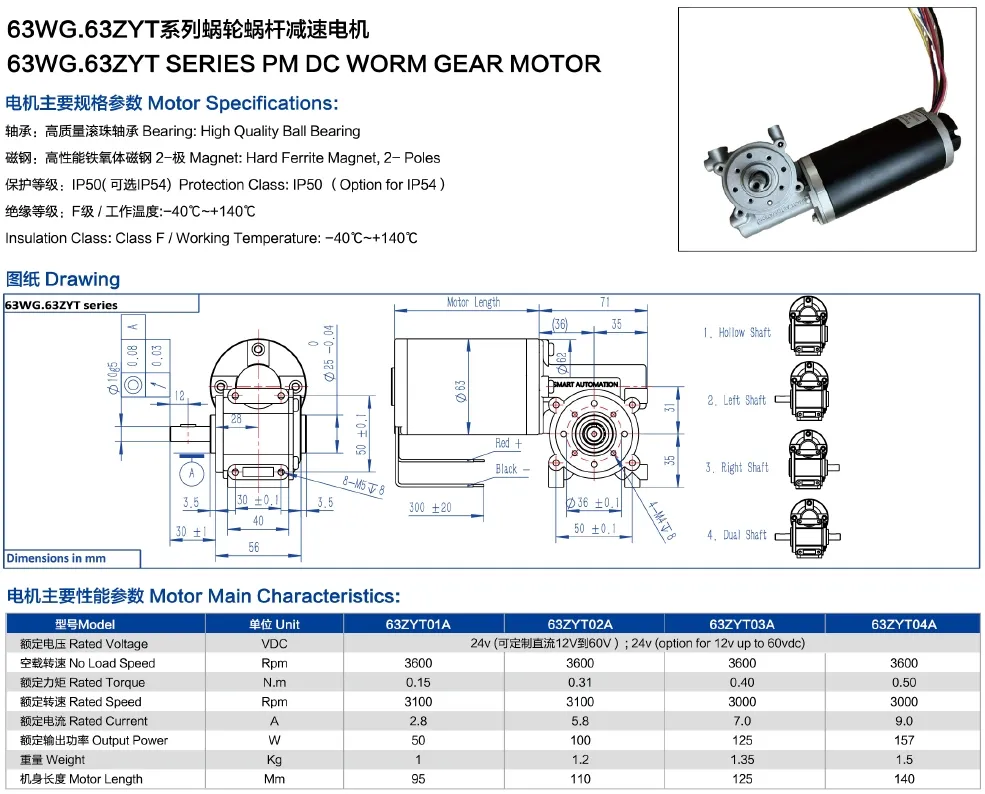

PM DC Worm Gear Motor Diagram

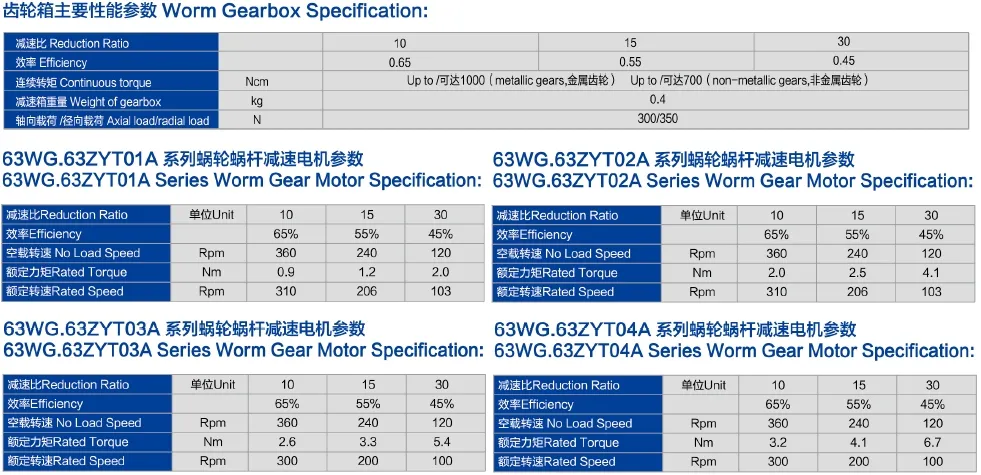

PM DC Worm Gear Motor Specs

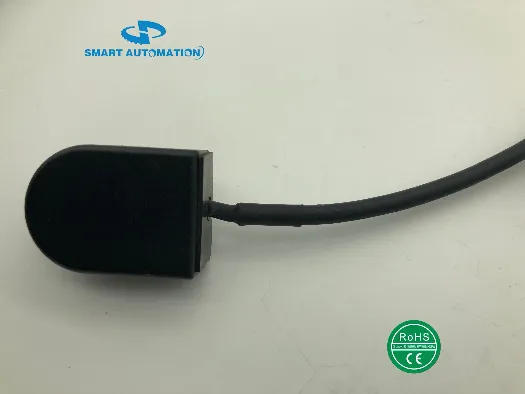

Optical Encoder Option

Optical Encoder Option

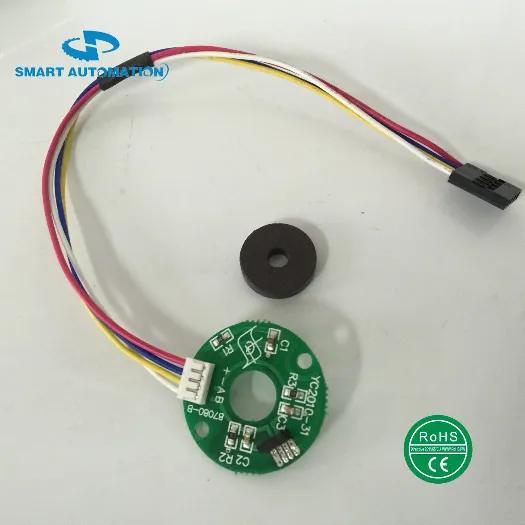

Magnet Encoder Option

Magnet Encoder Option

2. 63WG.63RBL Series BLDC Worm Gear Motor

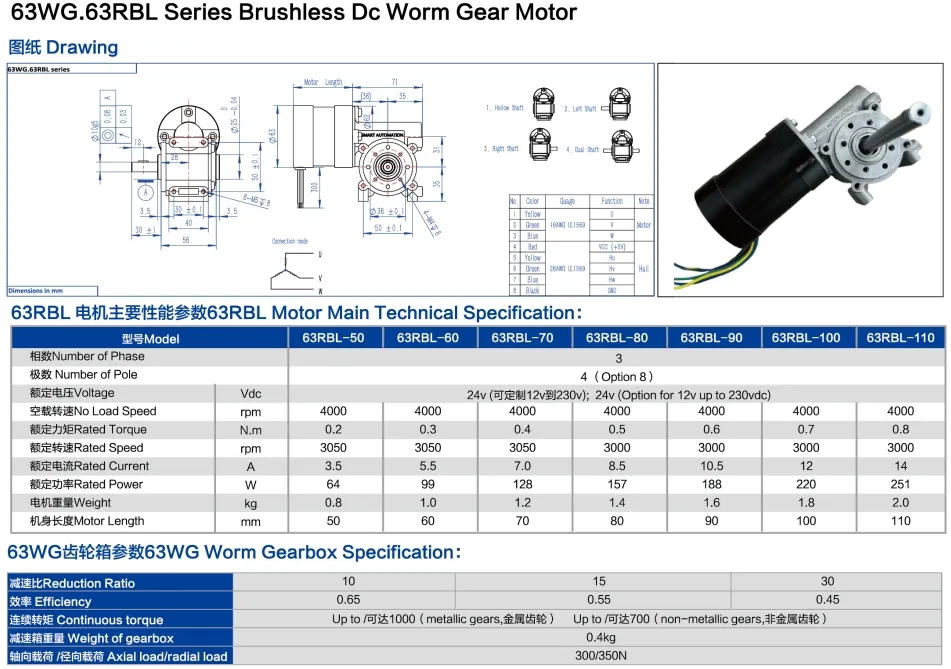

BLDC Worm Gear Motor Diagram

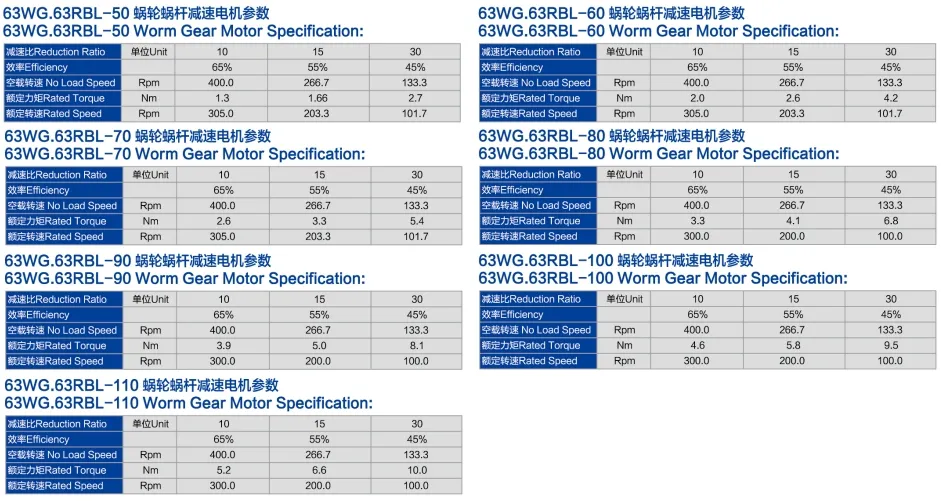

BLDC Worm Gear Motor Technical Data

3. Additional Models & Configurations

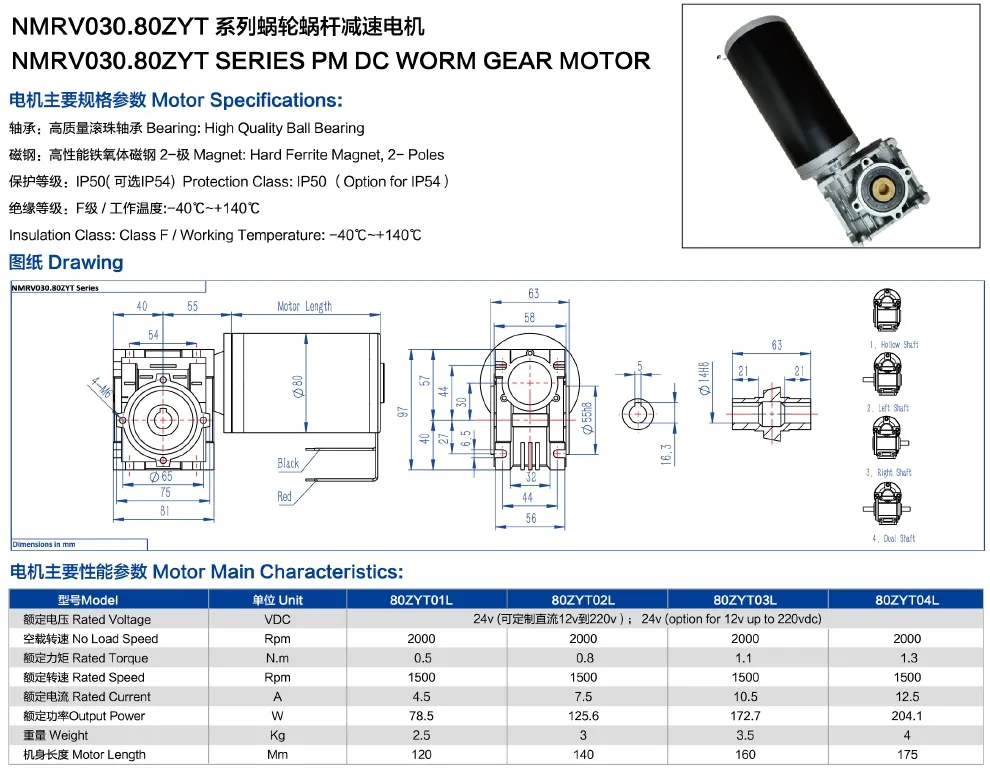

Motor Model A

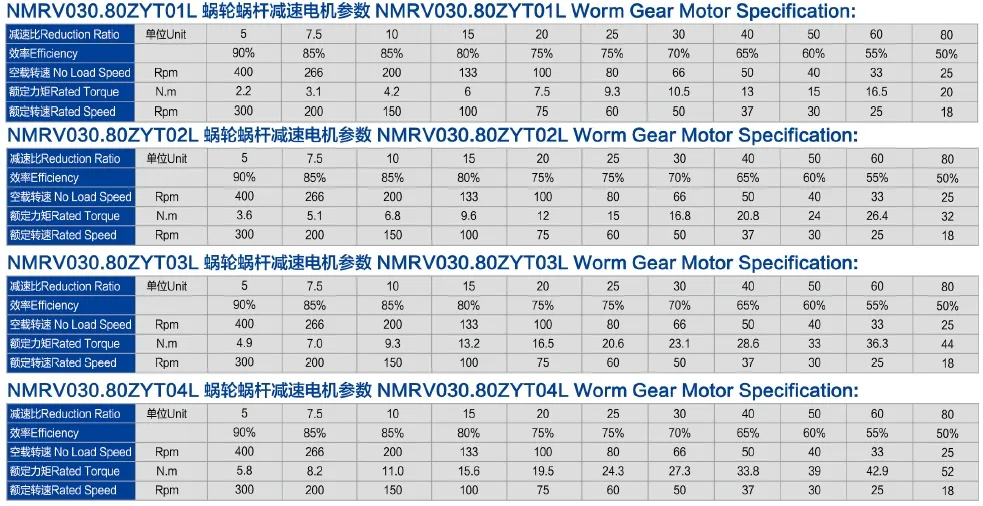

Motor Model B

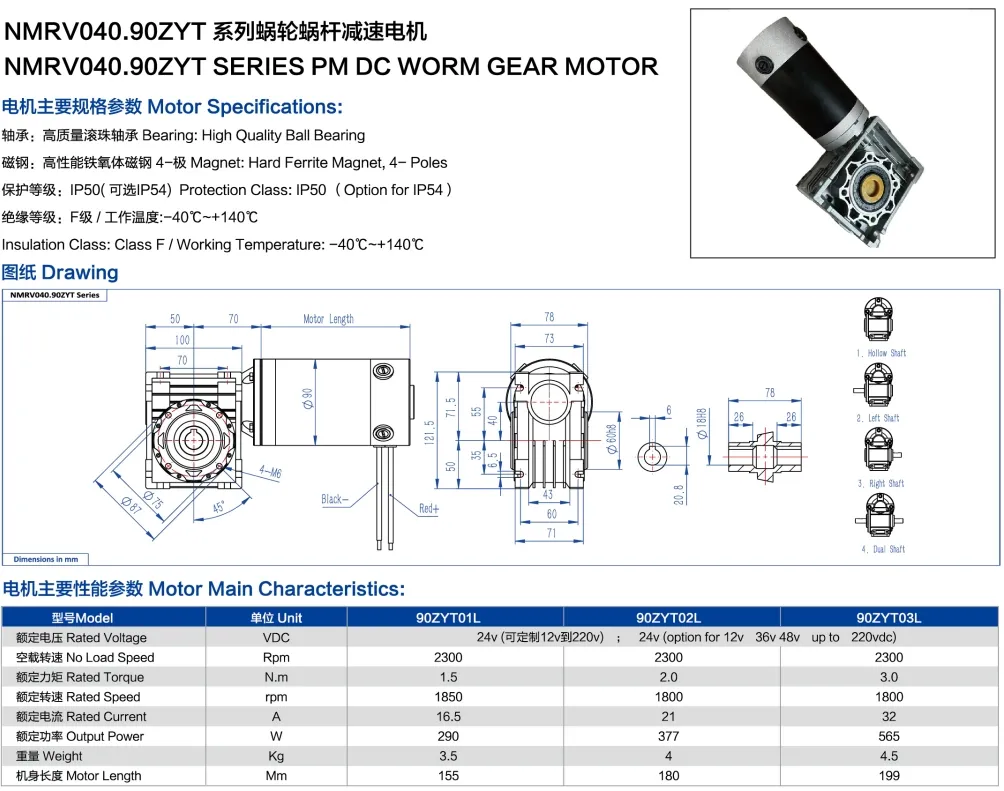

Motor Model C

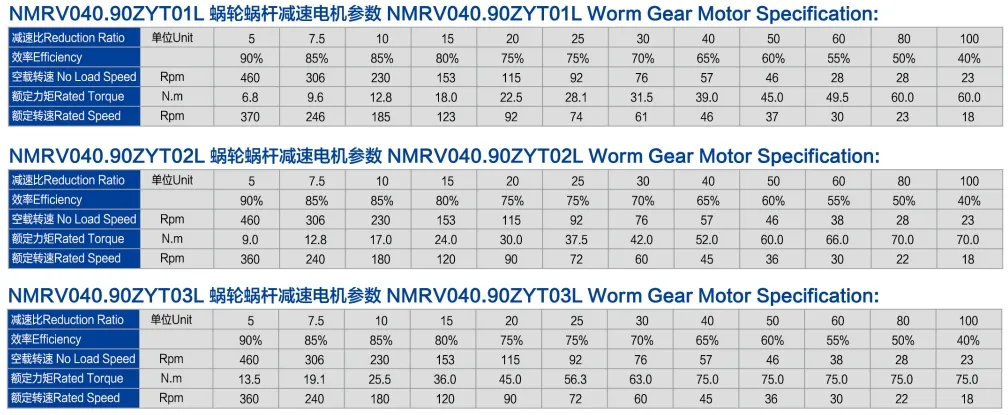

Motor Model D

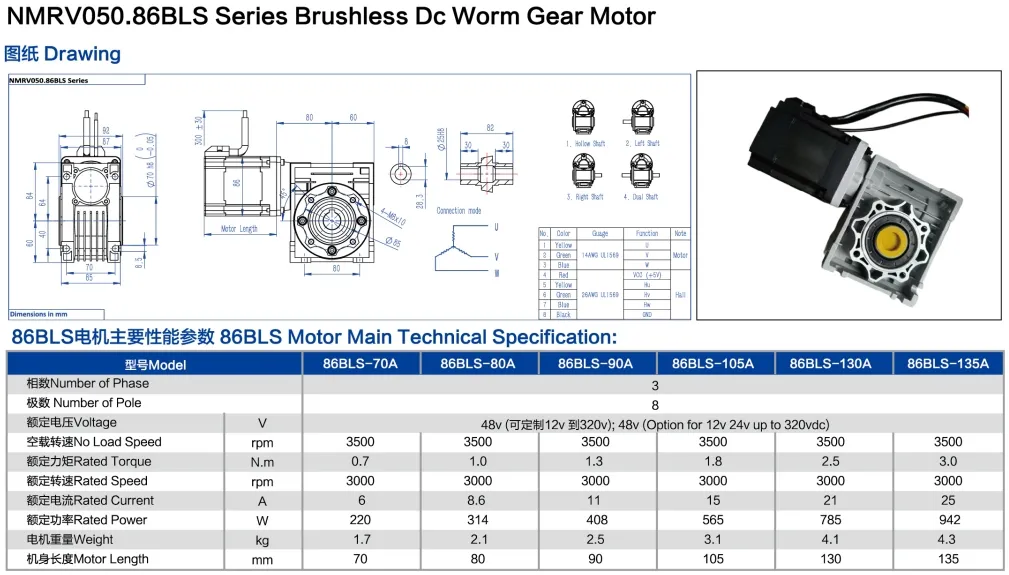

Motor Model E

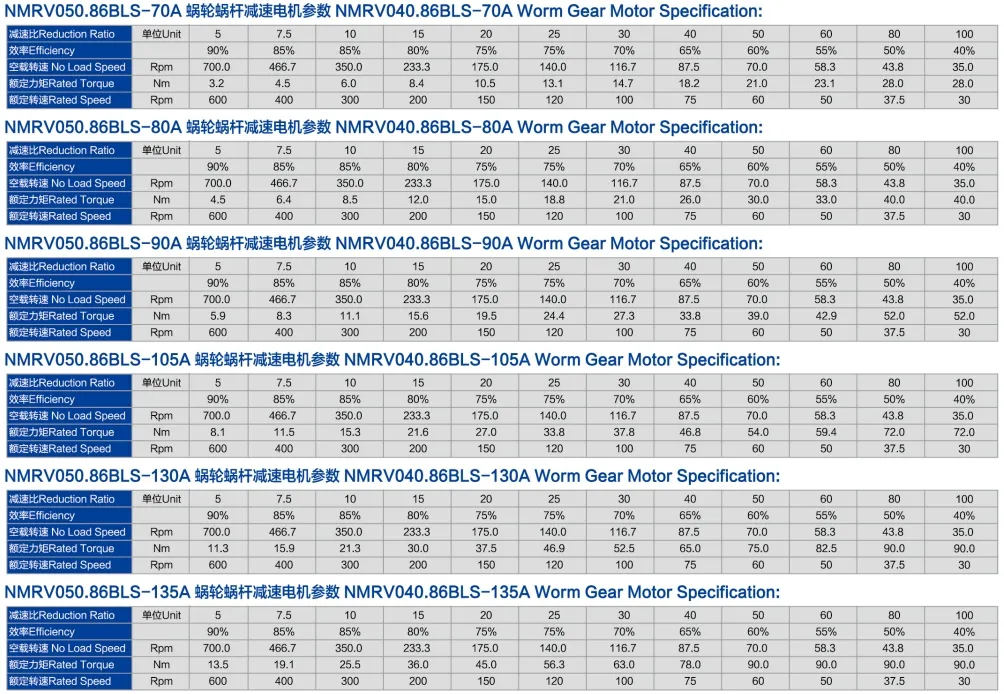

Motor Model F

Frequently Asked Questions

What voltages are available for these door opener motors?
We offer standard rated voltages of 12V, 24V, 36V, and 48V DC to suit various power supply requirements.
Can the motor be customized with a gearbox or brake?
Yes, we provide options for planetary or worm gearboxes and can integrate electric brakes for safety and positioning.
Do these motors support encoders for position control?
Absolutely. Both optical and magnetic encoders can be assembled with the motors for high-precision feedback and control.
What is the typical protection class for these motors?
Depending on your application, options range from IP40 and IP54 up to IP67 for superior dust and water protection.
What applications are these gear motors suitable for?
They are ideal for sliding doors, swing doors, rolling elevators, garage doors, and various industrial lifting or opening mechanisms.
Is there a brushless (BLDC) version available?
Yes, we offer both brushed (ZYT series) and brushless (RBL series) versions to meet different performance and longevity needs.
