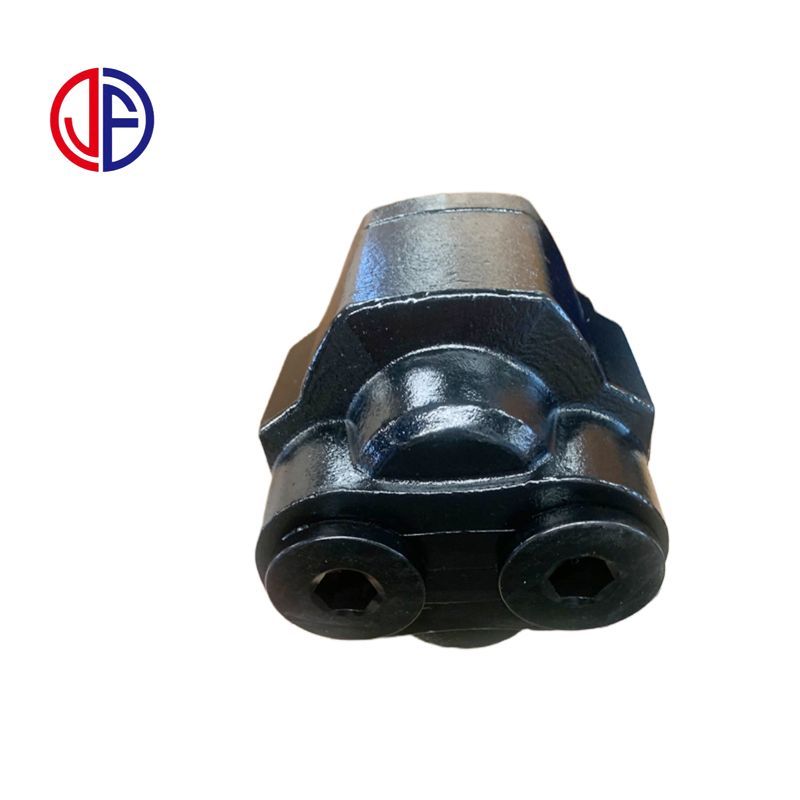

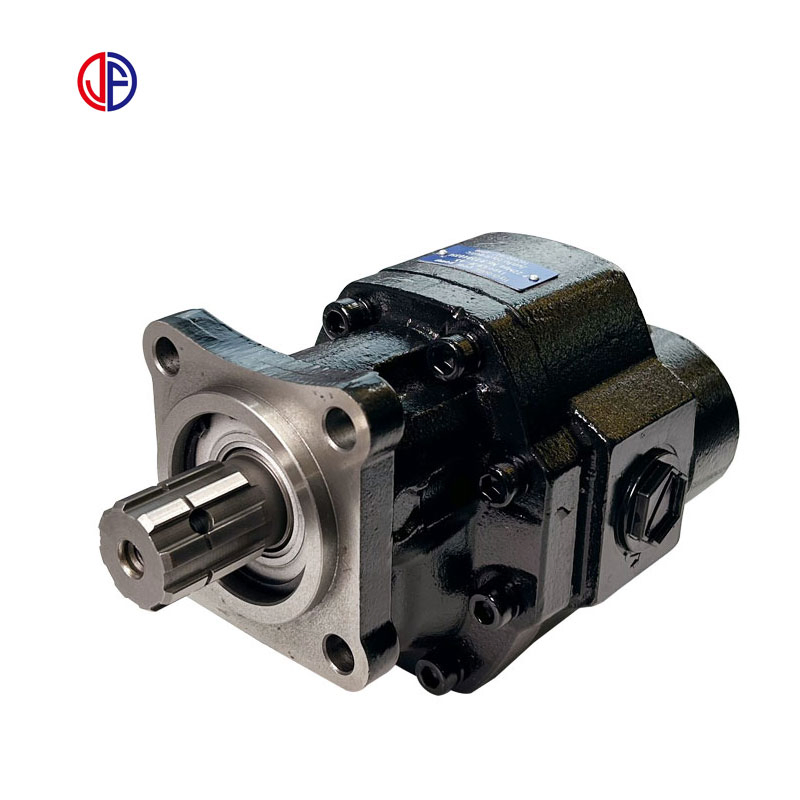

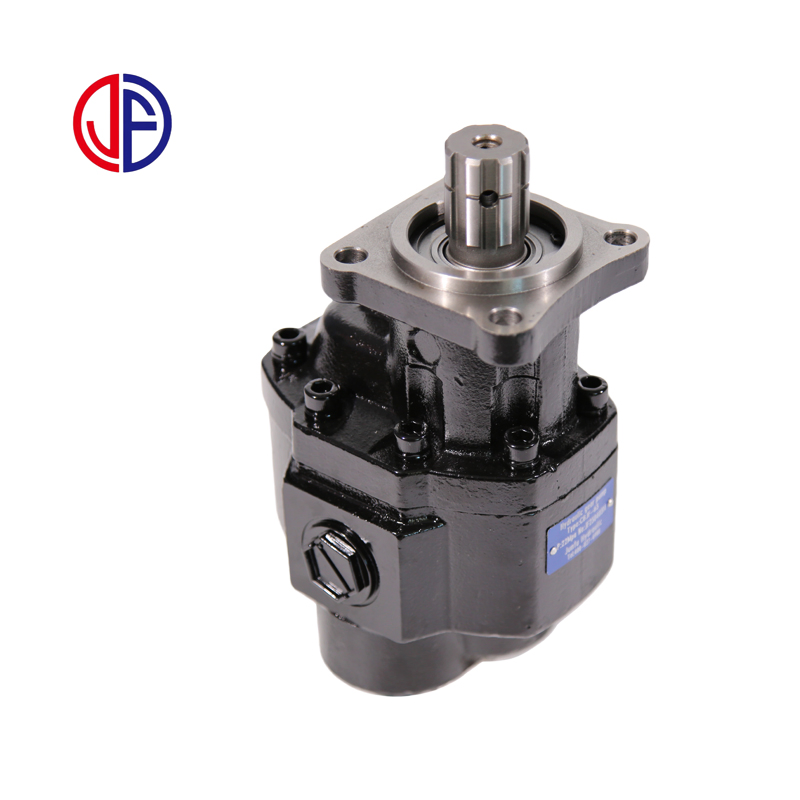

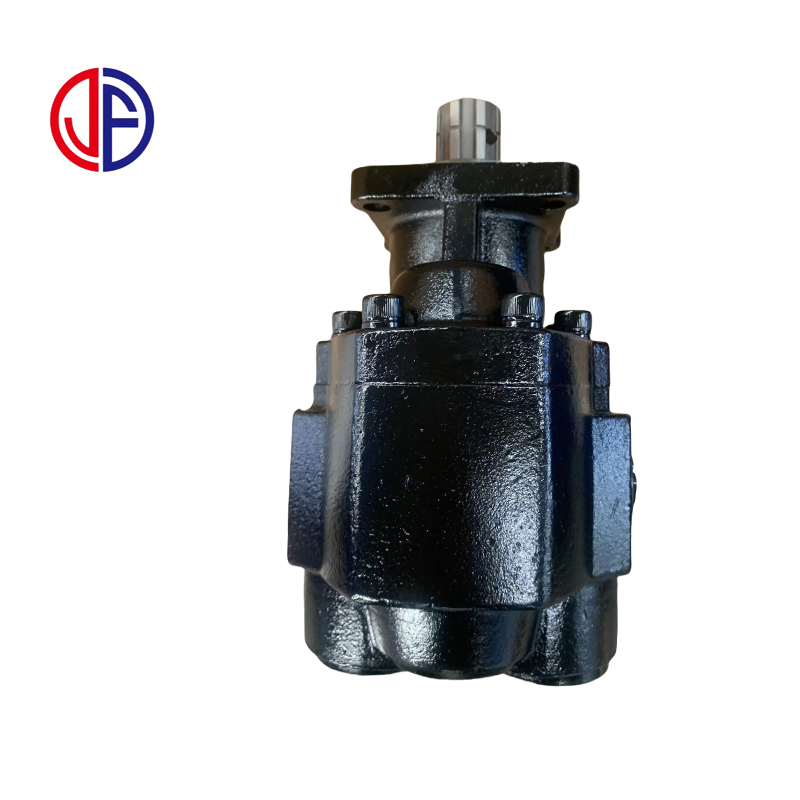

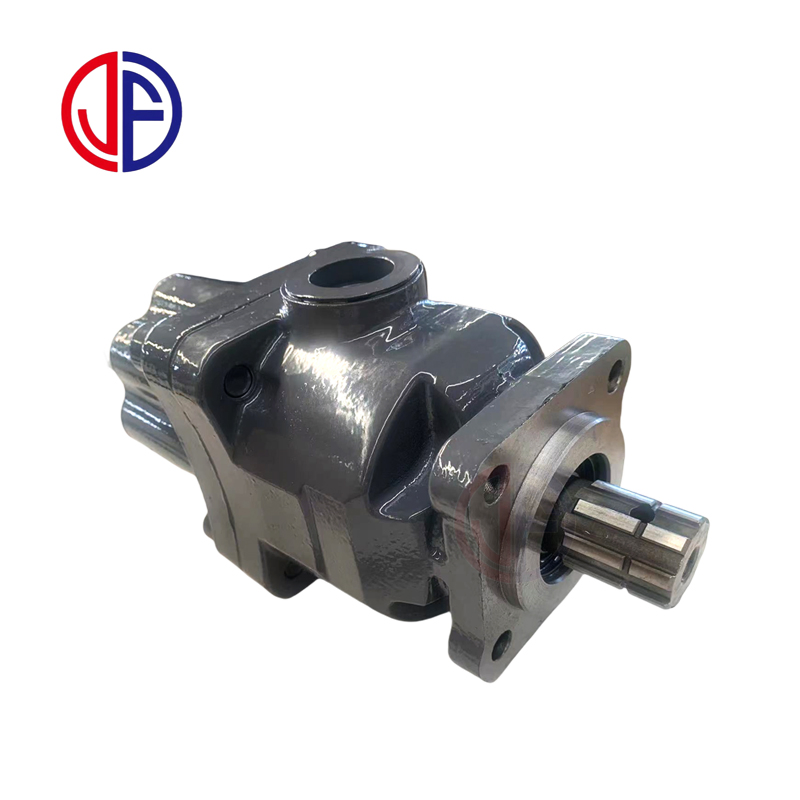

Factory Customized High quality Hydraulic Gear Pump for Dump Truck

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.
JFGP
Color
Silver
Weight
18.5kg
MOQ
1set
Warranty
1 Year
OEM
Available
Oil Port
Bottom or Side
Displacement
60/80/100 Ml/R
Rated Pressure
20MPa
Max Rotating Speed
2500 Rpm
Transport Package
Cartoon
Specification
material: cast iron
Origin
China
HS Code
8413609090
Production Capacity
100000 PCS/Year

Product Introduction

CBO-P series gear oil pump, made of high-strength cast iron, has strong bearing capacity, high volumetric efficiency, high working pressure and long service life. It is an ideal power unit for the hydraulic system of main engines such as dump trucks.

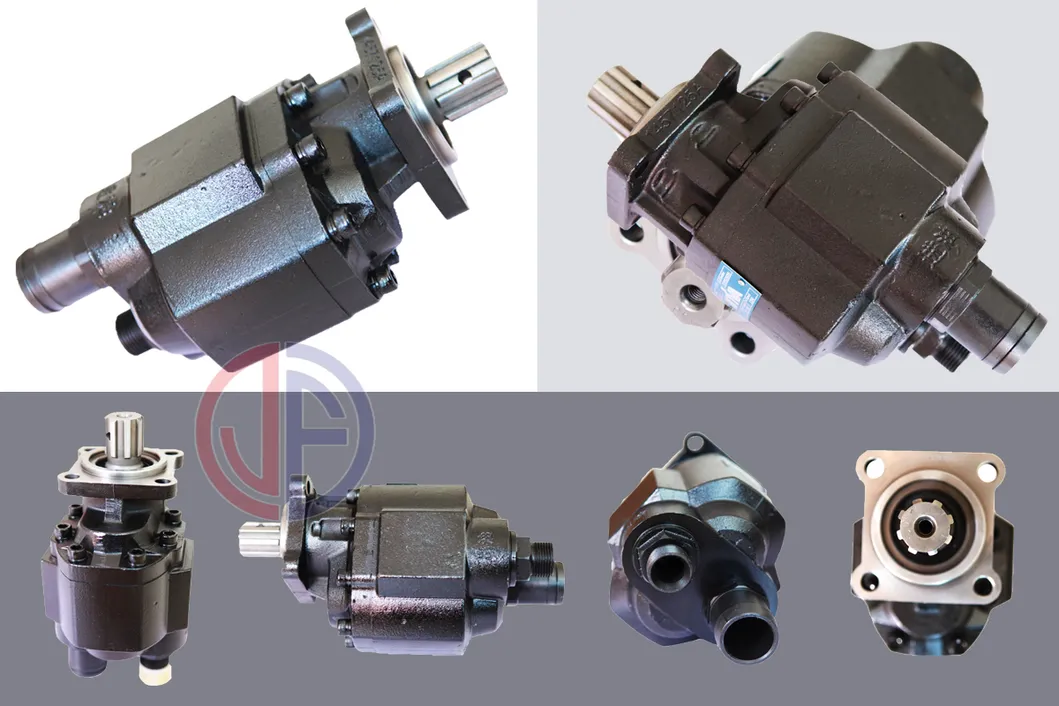

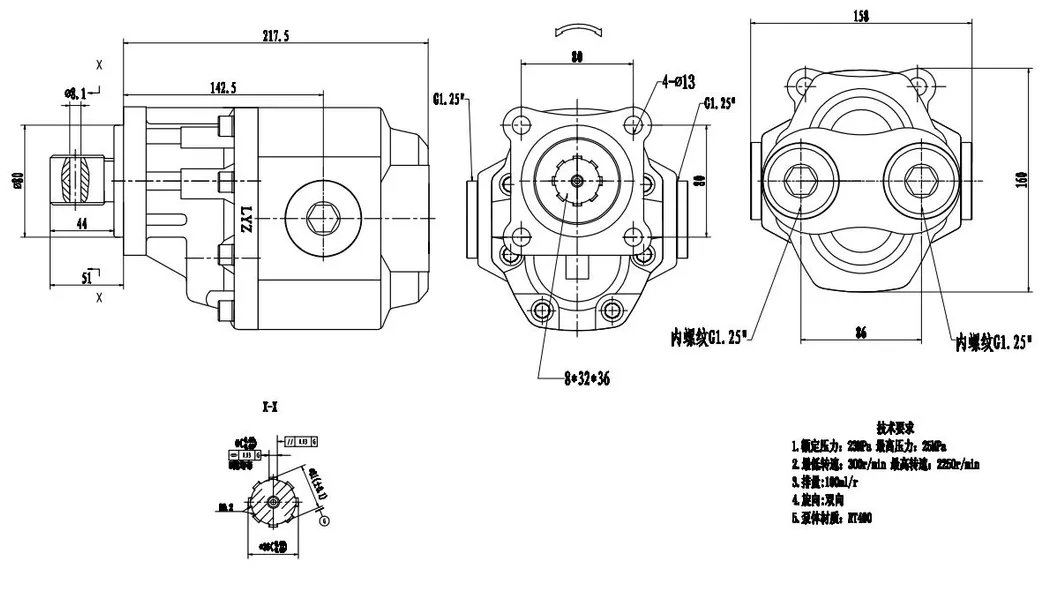

Port at the bottom

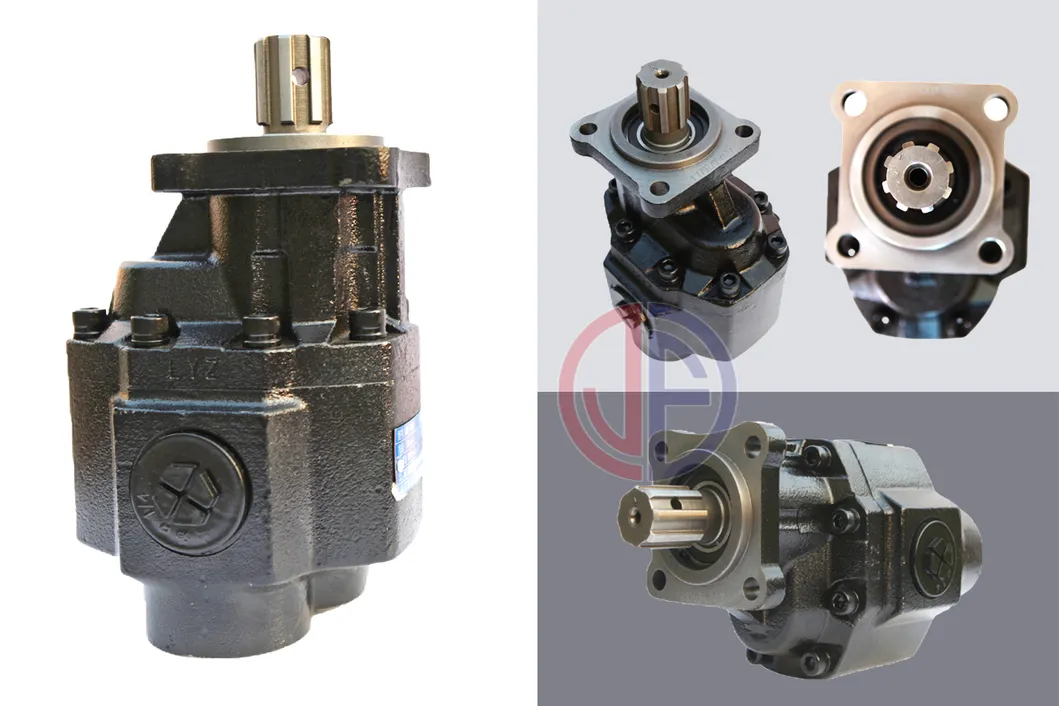

Port at the side

Product Features & Spare Parts

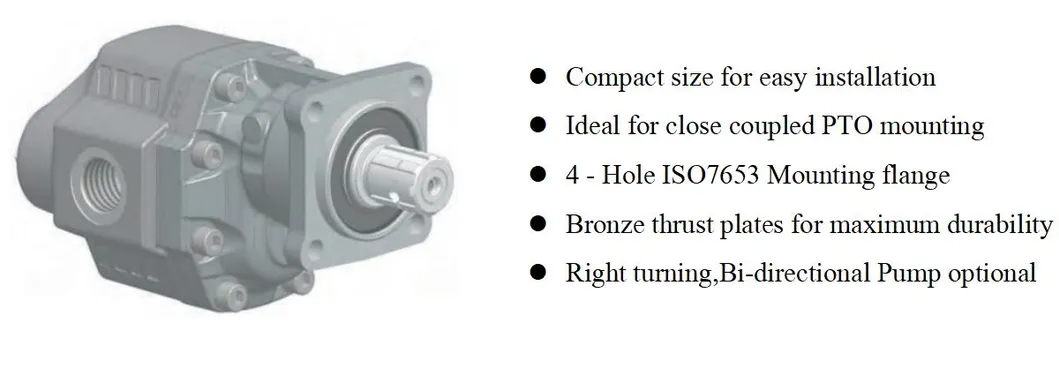

Features

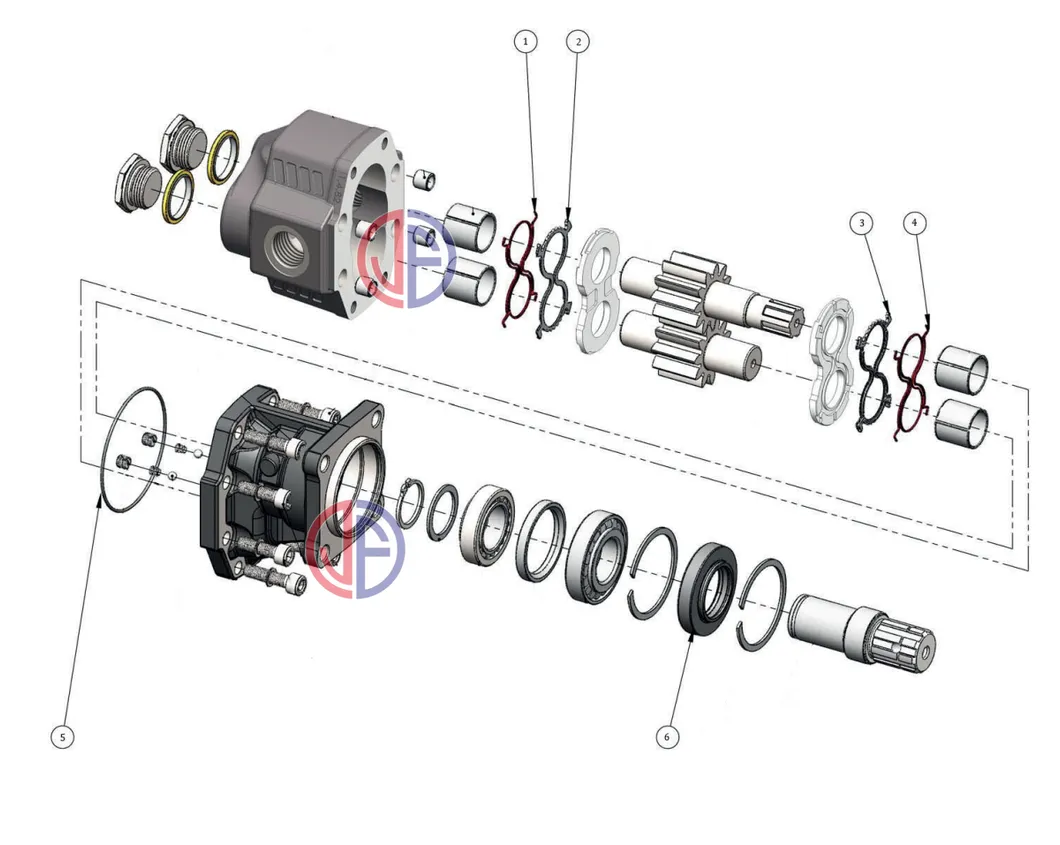

Spare Parts
Type CBO-F100 CBO-F80
Norminal Displacement 100 ml/r 80 ml/r
Rated Pressure (MPa) 20 20
Max Pressure (MPa) 25 25
Min Rotating Speed (RPM) 800 800
Rated Rotating Speed (RPM) 2000 2000
Max Rotating Speed (RPM) 2500 2500
Power (kW) 84.61 65.5
Volume Efficiency % >92 >92
Working Temperature -20 to 80 -20 to 80
Weight (KG) 17 16.3

Our Advantages

+30 years experience in hydraulic parts production, hydraulic pumps are known for their durability, reliability in all conditions and value for money. OEM is available.

Certified Quality: Excellent quality management system and testing methods make the product strong enough to resist all kinds of climate and environment and work stable. We hold certifications like CE, SGS, GB, ISO9001, and AAA.

Customized Solutions: We can manufacture according to technical drawings or offer professional guidance based on our experience. Packages can be customized as per client requests. We have exported to more than 15 countries including USA and Australia.

Certifications

Frequently Asked Questions

How could I get a sample?
Before we receive the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
What is the lead time for samples?
For existing items, the sample time is typically within 15 days.
Can you provide OEM/Branding services?
Yes. We can print your Logo on both the products and the packages if you can meet our Minimum Order Quantity (MOQ).
What quality certifications do you have?
We have passed the IATF 16949:2016 Quality control system, ISO9001, and CE certifications to ensure stable and excellent product quality.
What are the primary applications for this gear pump?
The CBO-P series gear oil pump is an ideal power unit for the hydraulic systems of main engines, specifically dump trucks.
What material is the pump made of?
The pump is constructed from high-strength cast iron, providing high bearing capacity and long service life.
