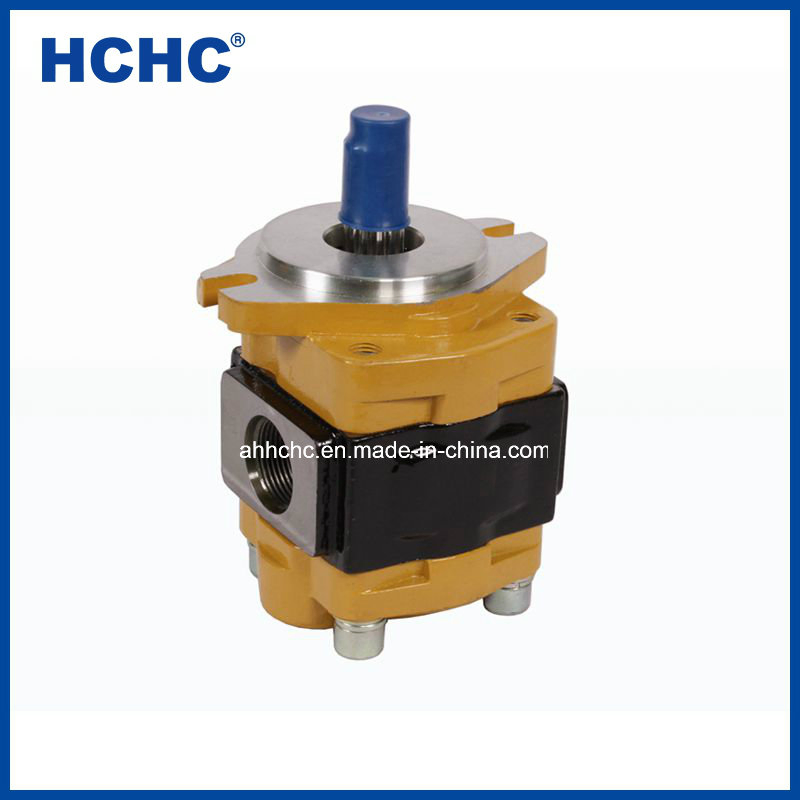

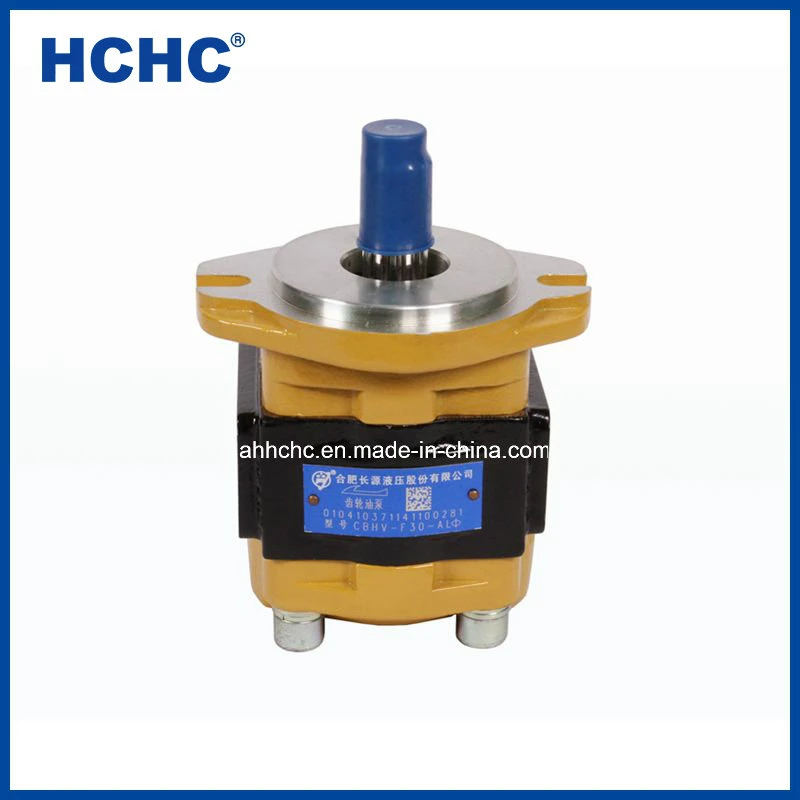

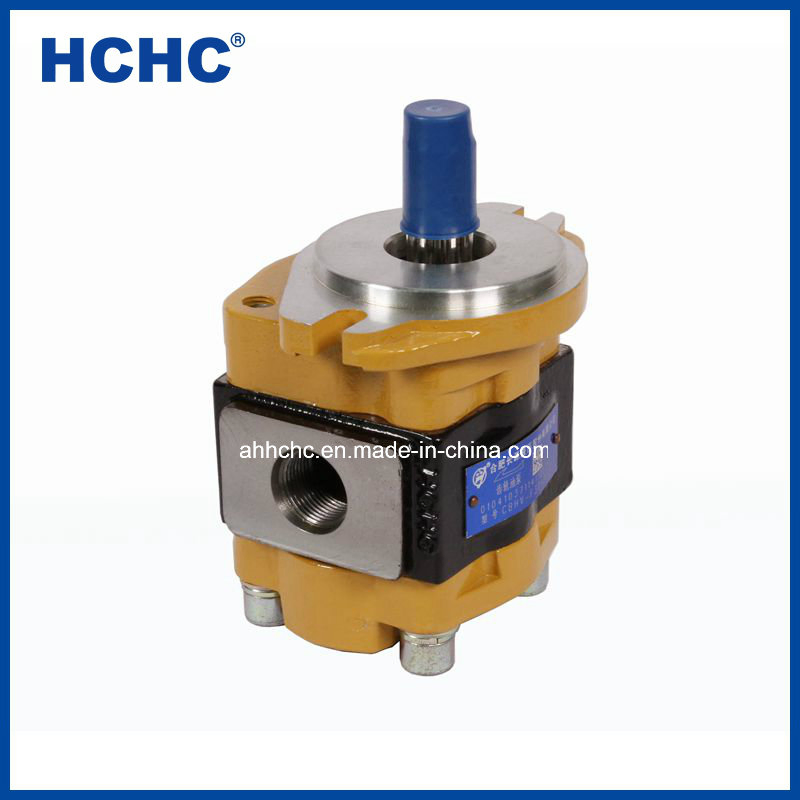

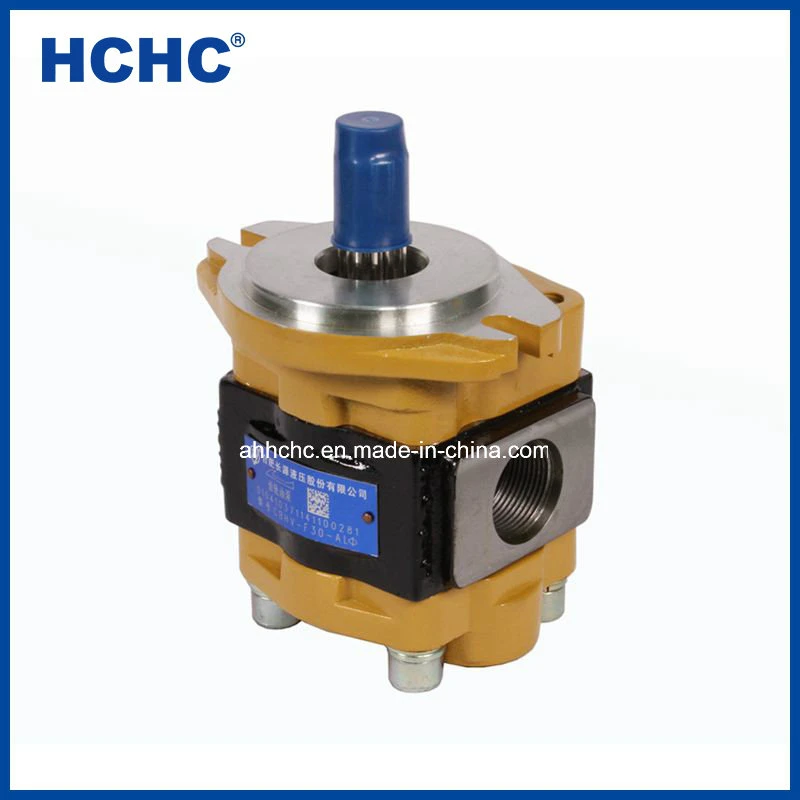

Hot Sale China Hydraulic Gear Pump Cbhv for Heli Forklift

Customization:	Available
Mesh Form:	External Engaged
Tooth Flank:	Straight Tooth

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

CBHV-F

Tooth Curve

Involute

Power

Hydraulic

Type

Gear Pump

Applications

Machinery Manufacturing

Certification

ISO9001:2008

Product Name

Hydraulic Double Gear Pump

Nominal Displacement

20~40 Ml/R

Rated Pressure

200 Bar

Maximum Pressure

250 Bar

Minimum Speed

450 Rpm

Rated Speed

2500 Rpm

Maximum Speed

3000 Rpm

Volume Efficiency

94 %

Warranty

1 Year

Production Capacity

8000 Sets Per Month

⚙️ Performance Characteristics

Environment-friendly products with noise level <=70dB.

The shell was made of anti-vibration material for stable operation.

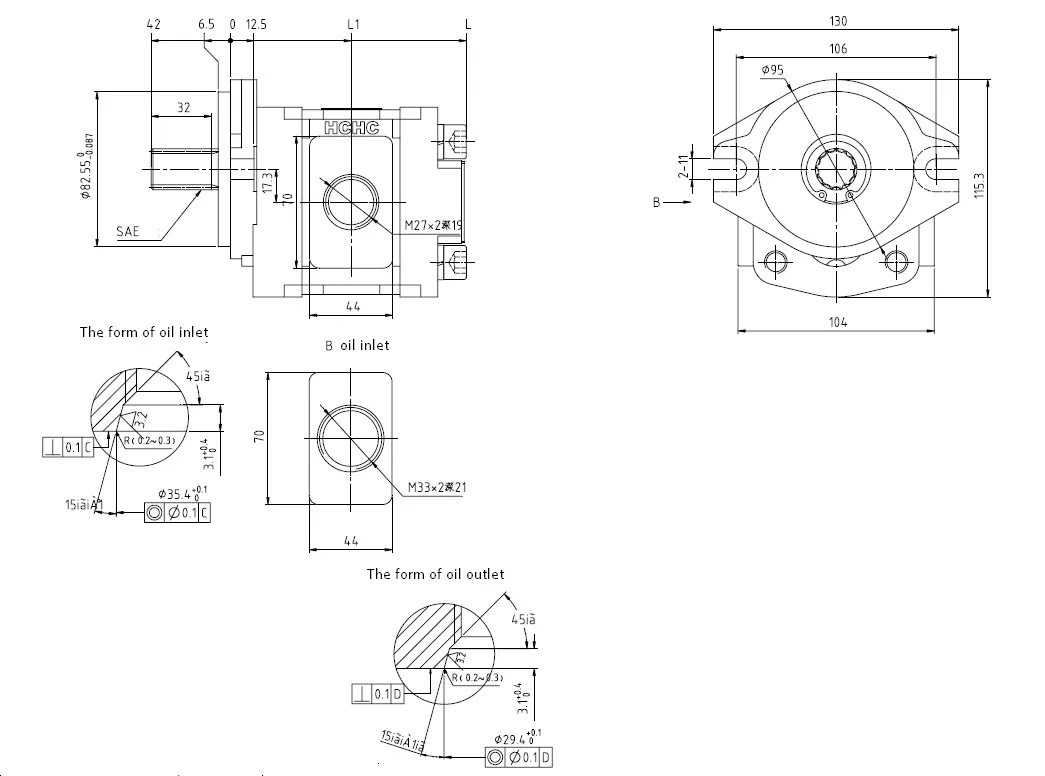

Shaft end types: P(plain key), H(rectangle spline), SAE spline, and metric involute spline.

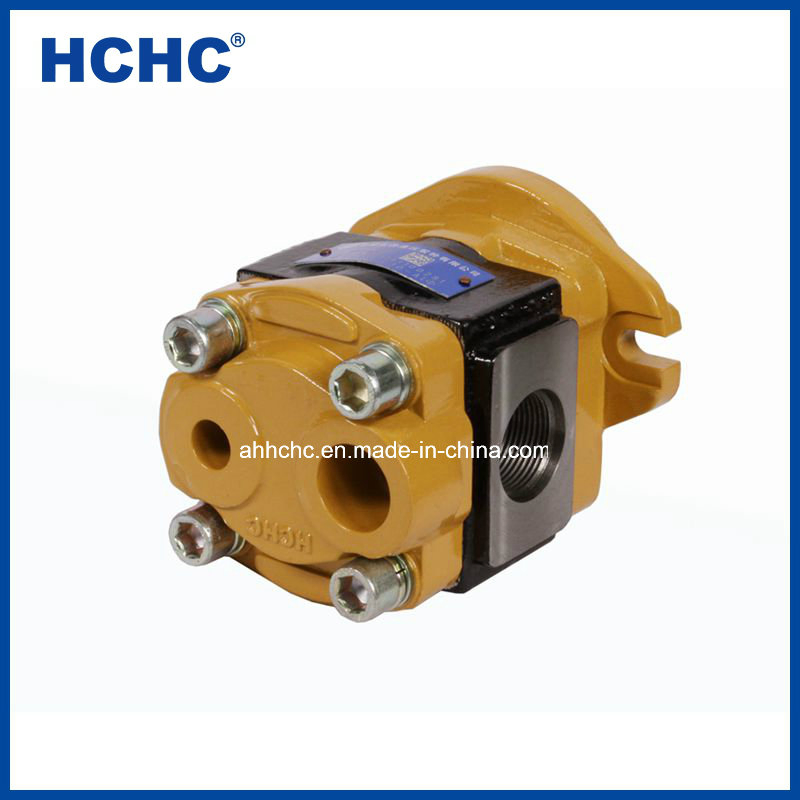

Joining types: Flange(F) or Thread (L) for inlet/outlet positions.

Multiple inlet/outlet combinations: Back/Back, Back/Side, or Side/Side.

Auto-compensation unit of axial clearance ensures high volumetric efficiency.

Widely applied to the electric transport industry and machinery manufacturing.

📊 Technical Parameters

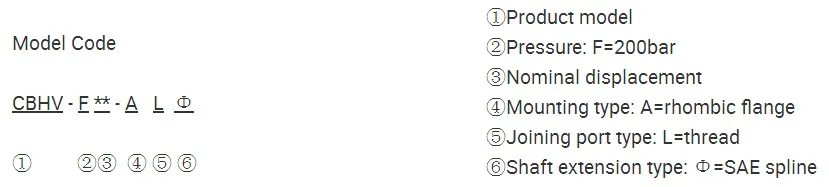

Model	Displacement (mL/r)	Pressure (bar)		Speed (r/min)			Vol. Efficiency (≥%)
Model	Displacement (mL/r)	Rated	Max.	Min.	Rated	Max.	Vol. Efficiency (≥%)
CBHV-F20-ALφ	20	200	250	450	2500	3000	94
CBHV-F25-ALφ	25
CBHV-F26.5-ALφ	26.5
CBHV-F28.2-ALφ	28.2
CBHV-F30-ALφ	30
CBHV-F32-ALφ	32
CBHV-F36-ALφ	36
CBHV-F40-ALφ	40

❓ Frequently Asked Questions

What is the noise level of the CBHV series hydraulic gear pump?

The CBHV series are environment-friendly products designed with a low noise level of <=70dB.

What are the available shaft end types for this pump?

It supports various shaft types including Plain Key (P), Rectangle Spline (H), SAE Spline, and Metric Involute Spline.

What is the maximum pressure rating for the CBHV-F model?

The pump has a rated pressure of 200 bar and can reach a maximum pressure of 250 bar.

In which industries is this hydraulic double gear pump commonly used?

It is widely applied in machinery manufacturing and the electric transport industry.

What ensures the high volumetric efficiency of these pumps?

The inclusion of an auto-compensation unit for axial clearance ensures a high volume efficiency of 94% or more.

What displacements are available for the CBHV-F series?

The series offers a range of nominal displacements starting from 20 mL/r up to 40 mL/r.
