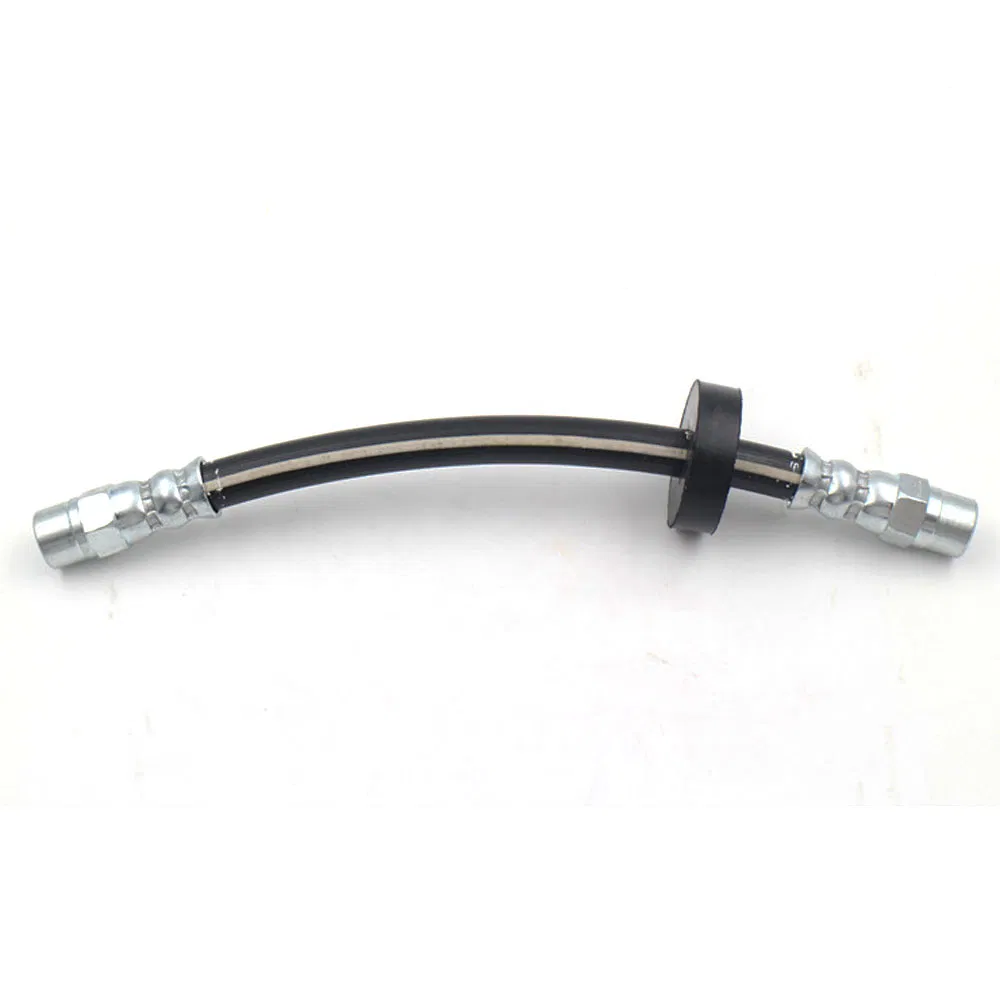

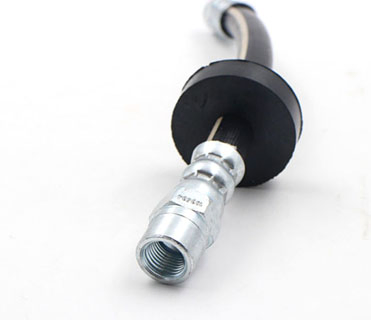

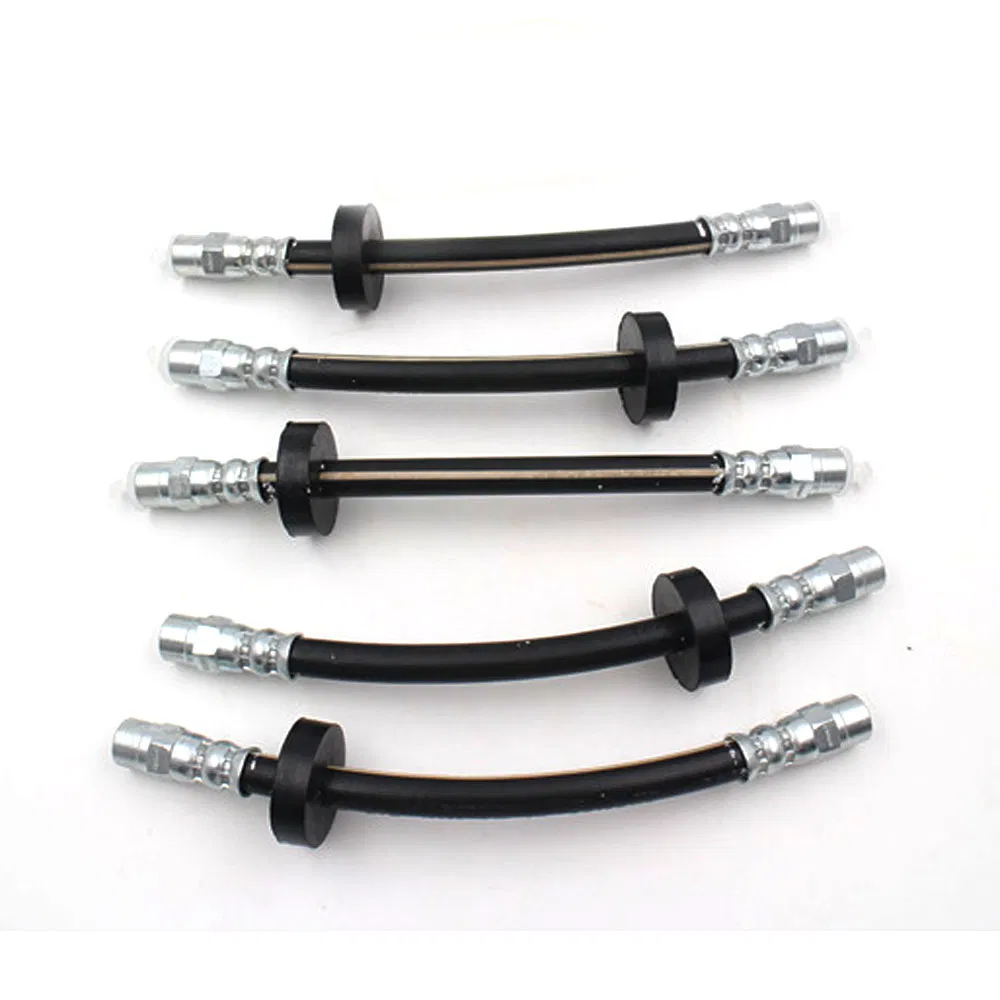

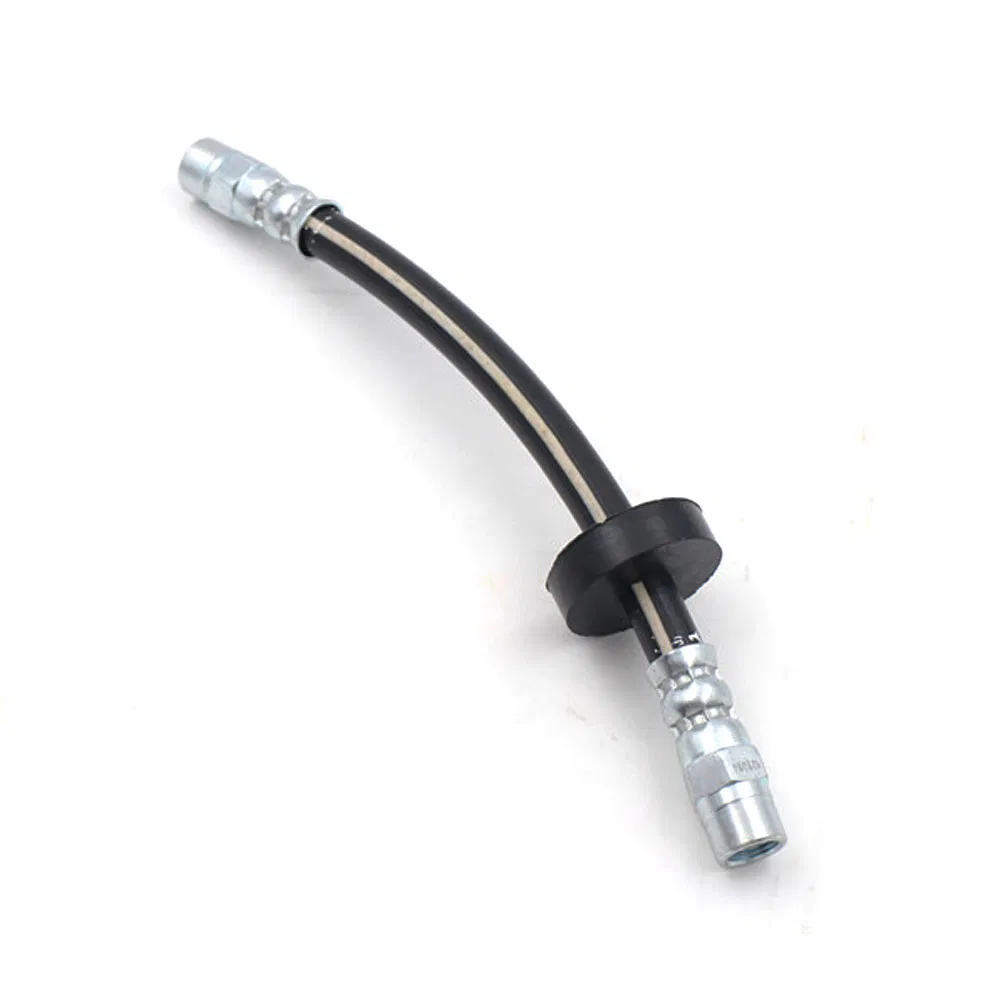

China Leading Manufacturers Car Automobile Brake System SAE J1401 Industry Auto Chassis High Pressure EPDM Rubber Hydraulic Brake Line Pipe Tube Hose Assembly

1 / 5

China Leading Manufacturers Car Automobile Brake System SAE J1401 Industry Auto Chassis High Pressure EPDM Rubber Hydraulic Brake Line Pipe Tube Hose Assembly

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️ Basic Information

Type:Brake Hose

Material:Rubber

Position:Front

Standard:DOT SAE J1401 Fmvss106

Burst Pressure:> 80MPa

Inner Diameter:3.2mm (1/8")

Outer Diameter:10.5mm

Hose Material:EPDM Rubber

🔧 Product Description

Leading Manufacturers Car Automobile Brake system SAE J1401 Industry Auto Chassis High Pressure EPDM Rubber Hydraulic Brake Line Pipe Tube Hose Assembly.

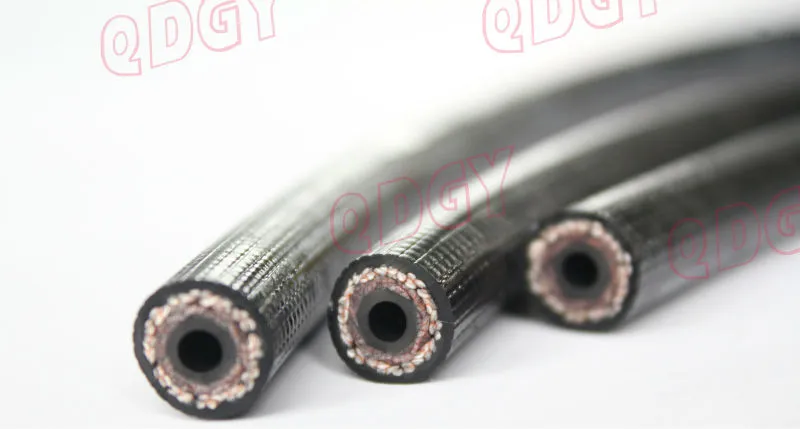

Rubber Brake Hose Specifications:

Inner Diameter	Outer Diameter	Outer layer	Double braid	Inner layer
1/8" (3.2mm)	0.413" (10.5mm)	EPDM	PVA	EPDM
3/16" (4.8mm)	0.492" (12.5mm)	EPDM	PVA	EPDM

⭐ Features & Advantages

Two braid PVA reinforced hose.
Meets FMVSS-106 and SAE J1401 specifications.
Every brake hose pressure tested to 3500 psi (240 bar or 24Mpa).
Burst pressure: minimum 7250 psi (500 bar or 50Mpa).
Temperature range -50°C to 121 °C.
Compatible with DOT3, DOT4 and DOT4+ brake fluids.
Hoses constructed of EPDM rubber and PVA braid, offering high dynamic strength.
Chemical & thermal resistance.

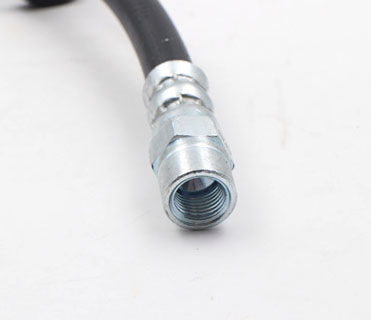

⚙️ Fitting Material & Measurements

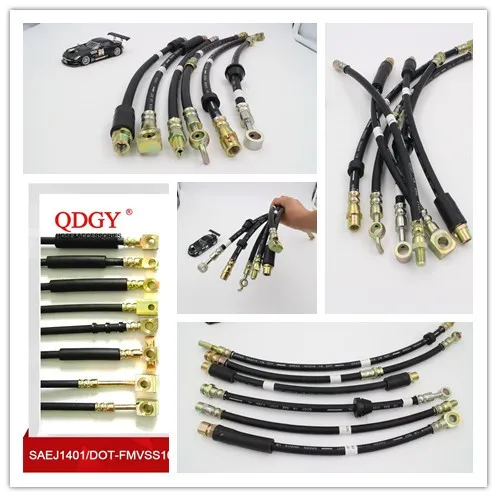

Fitting Type	Female, Male fitting, Banjo fitting, Bolt and Nuts, Welding fitting, Special fitting, brake adapter fitting...
Thread Measure	M10x1, M10x1.25, M11x1.25, M12x1, M12x1.25, M20x1.25; 1/8NPT, 1/2NPT, 1/8x28BSPP, 1/4x19 BSPP, 3/8x19...
Fitting Material	Steel, Stainless Steel, Brass, Aluminum...

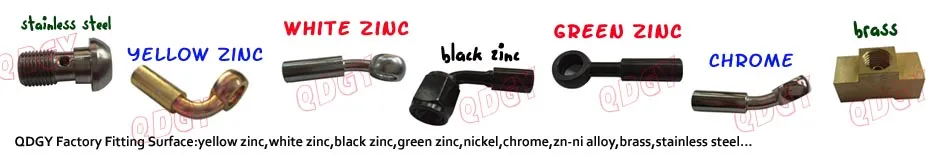

Surface Treatment	Yellow zinc, White zinc, Green zinc, Nickel, Chrome, Zn-Ni Alloy

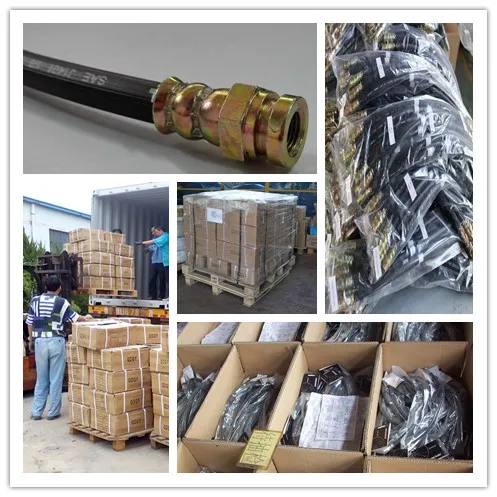

📦 Packaging & Shipping

Common package: PVC bag in carton box. Special package requests (single packing, designed packages) are acceptable with minimal cost.

Lead time: Common fittings within 30 days; special fittings within 40 days.
Brake hose: Within 20 days.
Assembly: Within 40 days.

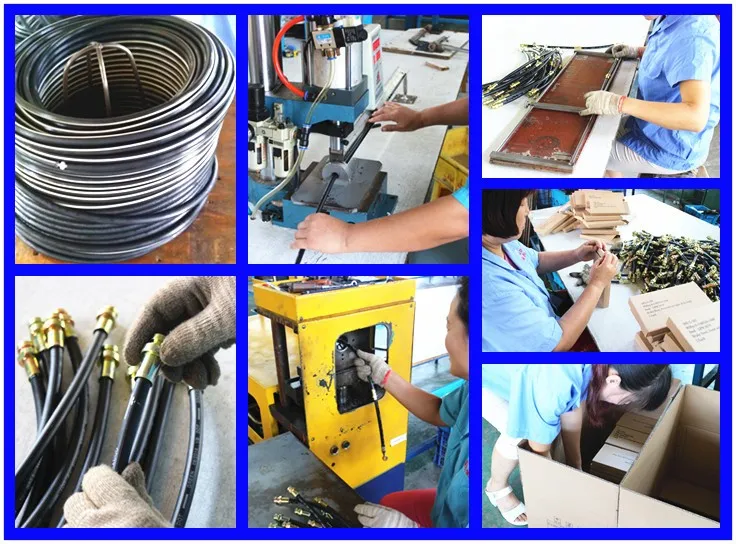

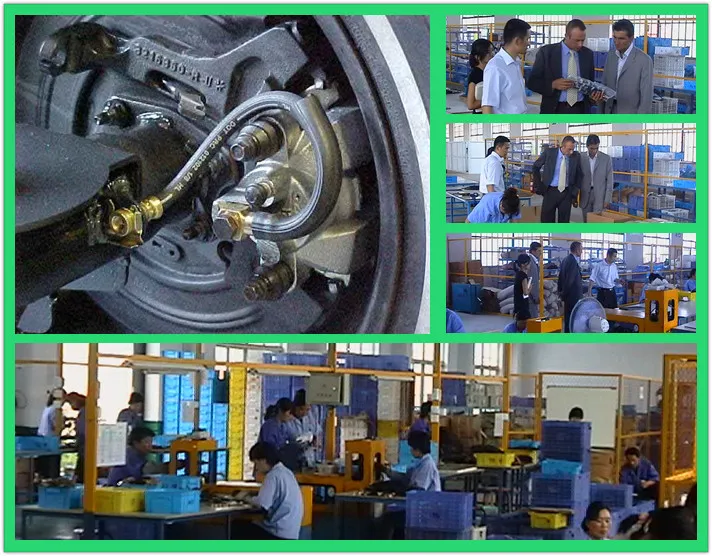

🏭 Advanced Workshop

🔬 Testing Equipment & Report

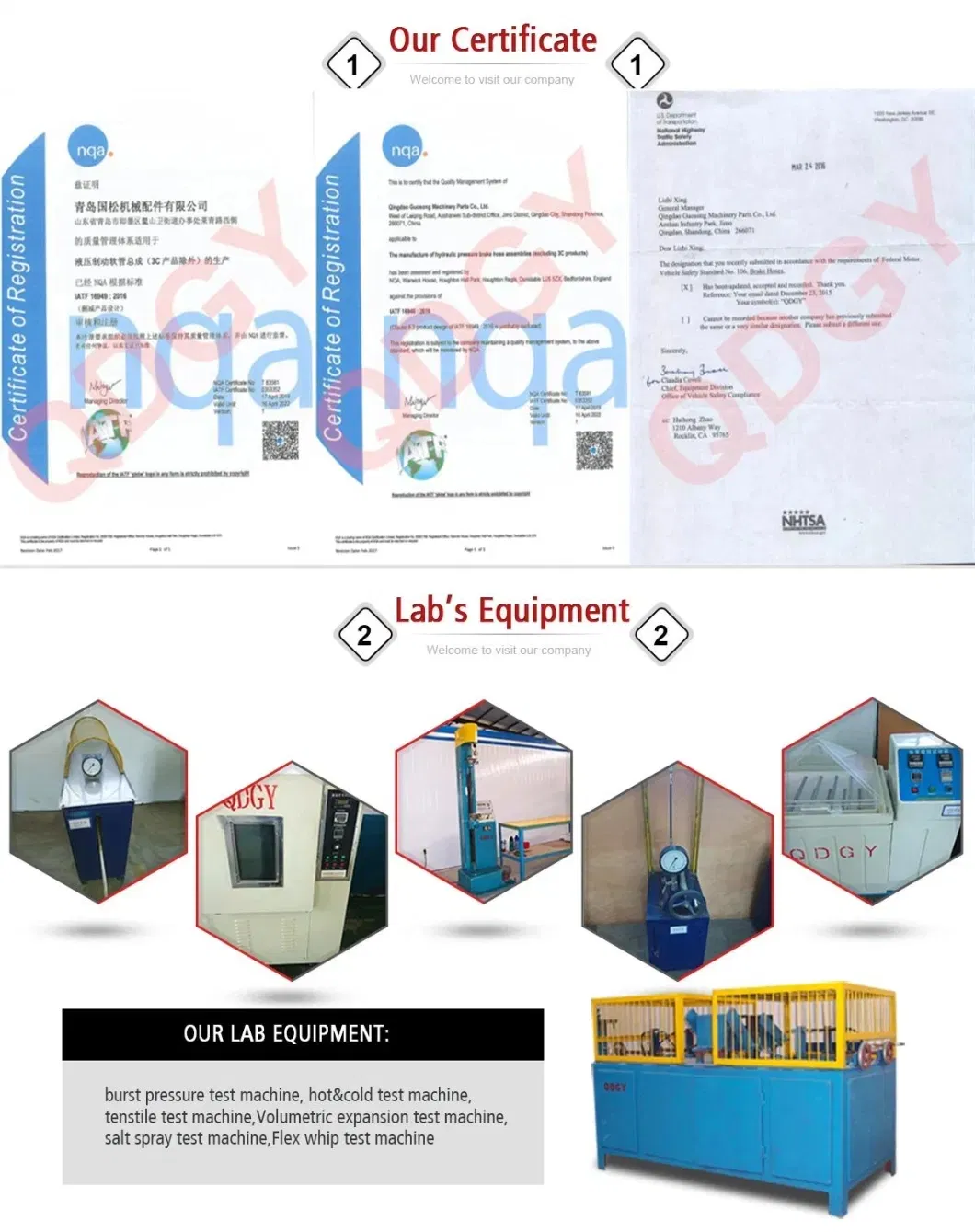

Equipment includes Burst Pressure test Machine, Hot & Cold test machine, Tensile test machine, Volumetric expansion test machine, Salt Spray test machine, and Flex whip test machine.

Test Items	Standard	Test Results
ID / OD	3.2mm / 10.5mm	Pass (3.15~3.45mm / 10.30~10.70mm)
Expansion (1000psi)	0.33cc/ft max.	0.14~0.16cc/ft
Burst Pressure	>7000psi	>10,500psi
Tensile Strength	>1446N	2400N
Ozone Resistance	No cracking	No cracking

Frequently Asked Questions

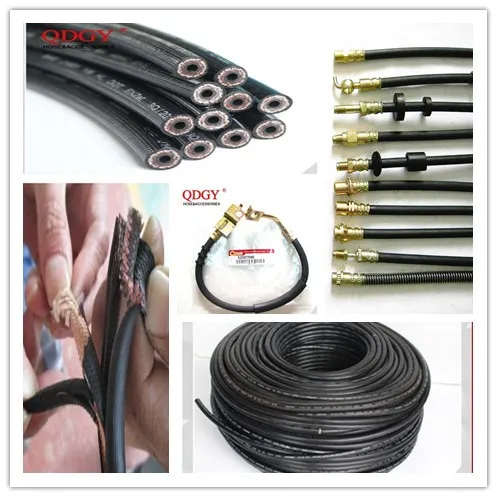

Q1: What kinds of main rubber hoses can you produce? A: We produce rubber brake hoses, EPDM brake hoses, hydraulic brake lines, fuel & oil hoses, stainless steel braided brake hoses, and PTFE/Teflon hoses.

Q2: What sizes of brake hose can you supply? A: Common sizes include 3.2x10.5mm (1/8") and 4.8x12.5mm (3/16"). Special sizes like 3.2x11mm are available upon request.

Q3: Can you provide custom printing on the hoses? A: Yes, we provide embossed and printing marking in different colors according to your requirements.

Q4: What types of fittings are available? A: We supply female, male, banjo, and adapter fittings. Materials include steel (zinc, chrome, or nickel plated), stainless steel, and brass.

Q5: What is the standard delivery time for orders? A: It usually takes 5-40 days depending on the order quantity and current stock. Common fittings are generally ready within 30 days.

Q6: Are the products tested to international standards? A: Yes, all products meet or exceed FMVSS-106, SAE J1401, and DOT specifications. Each hose is pressure tested before shipment.
