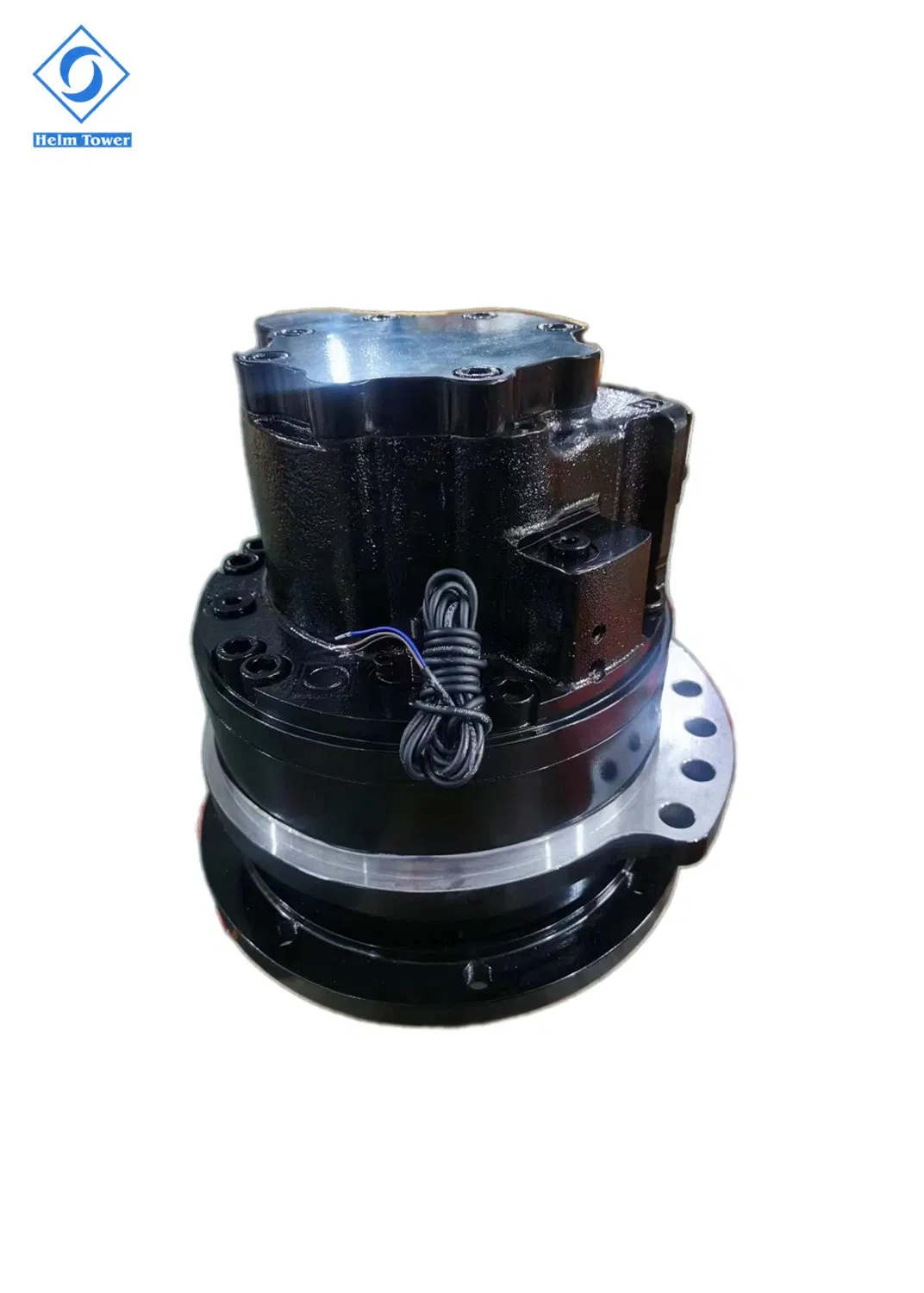

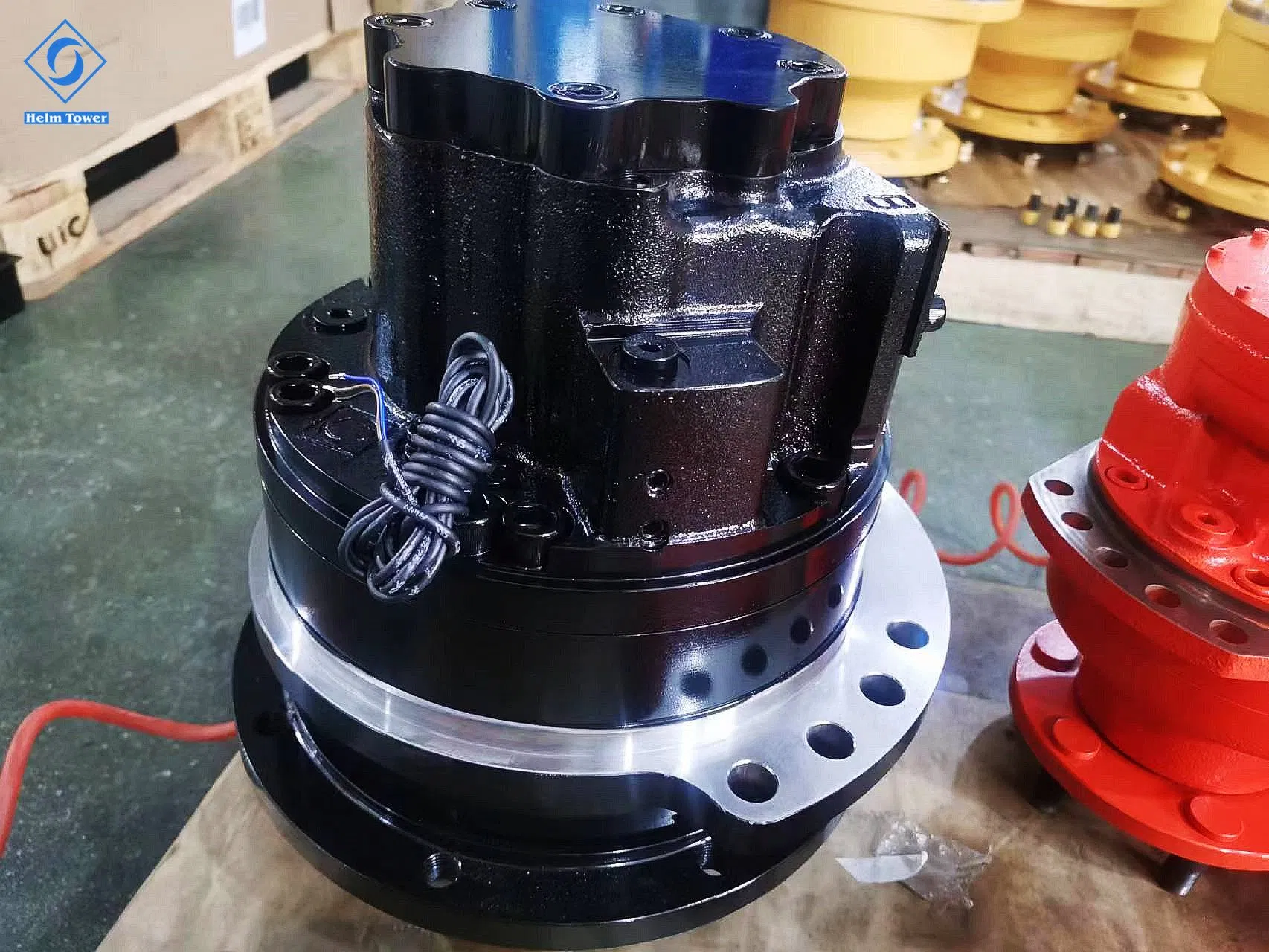

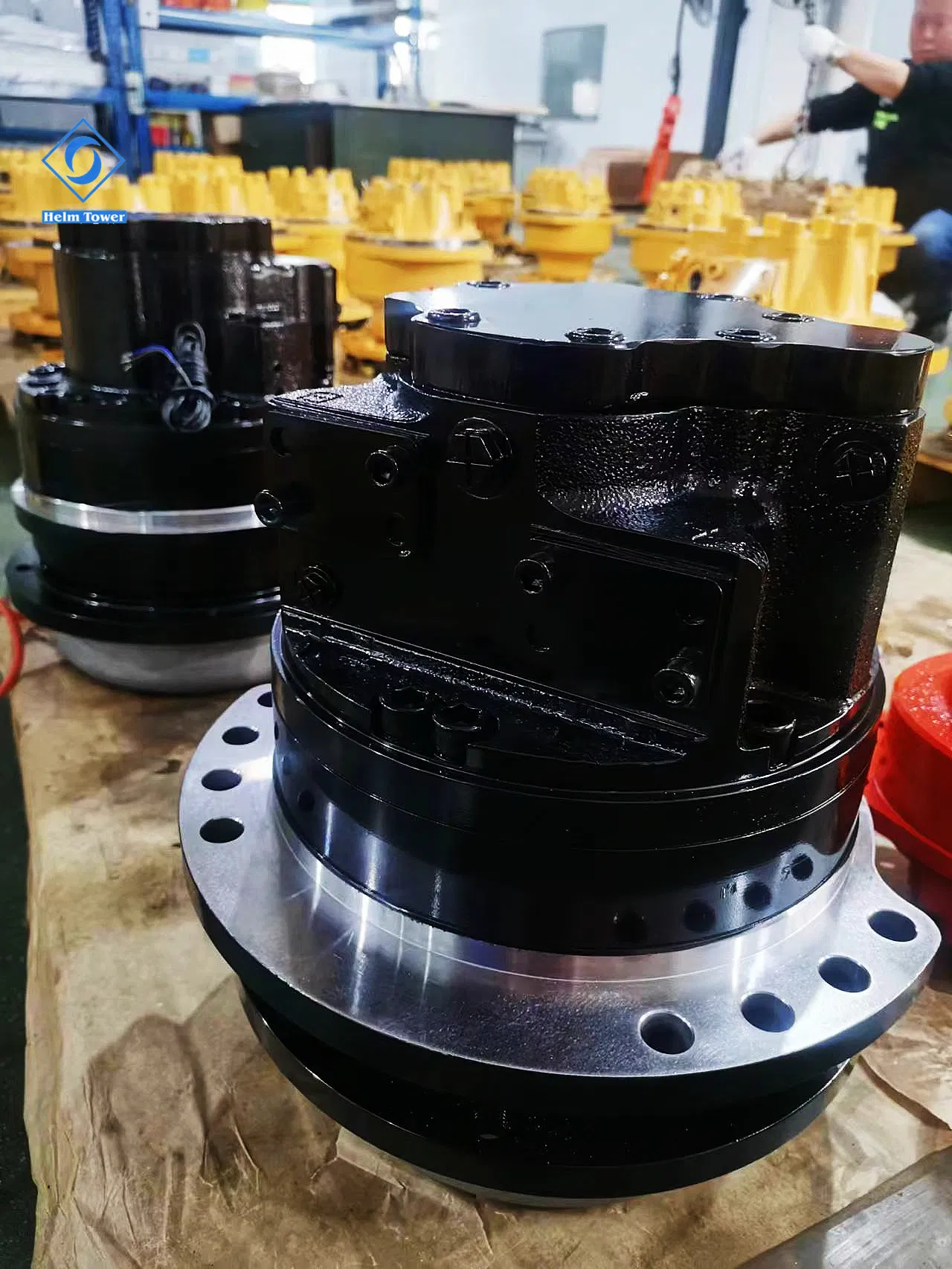

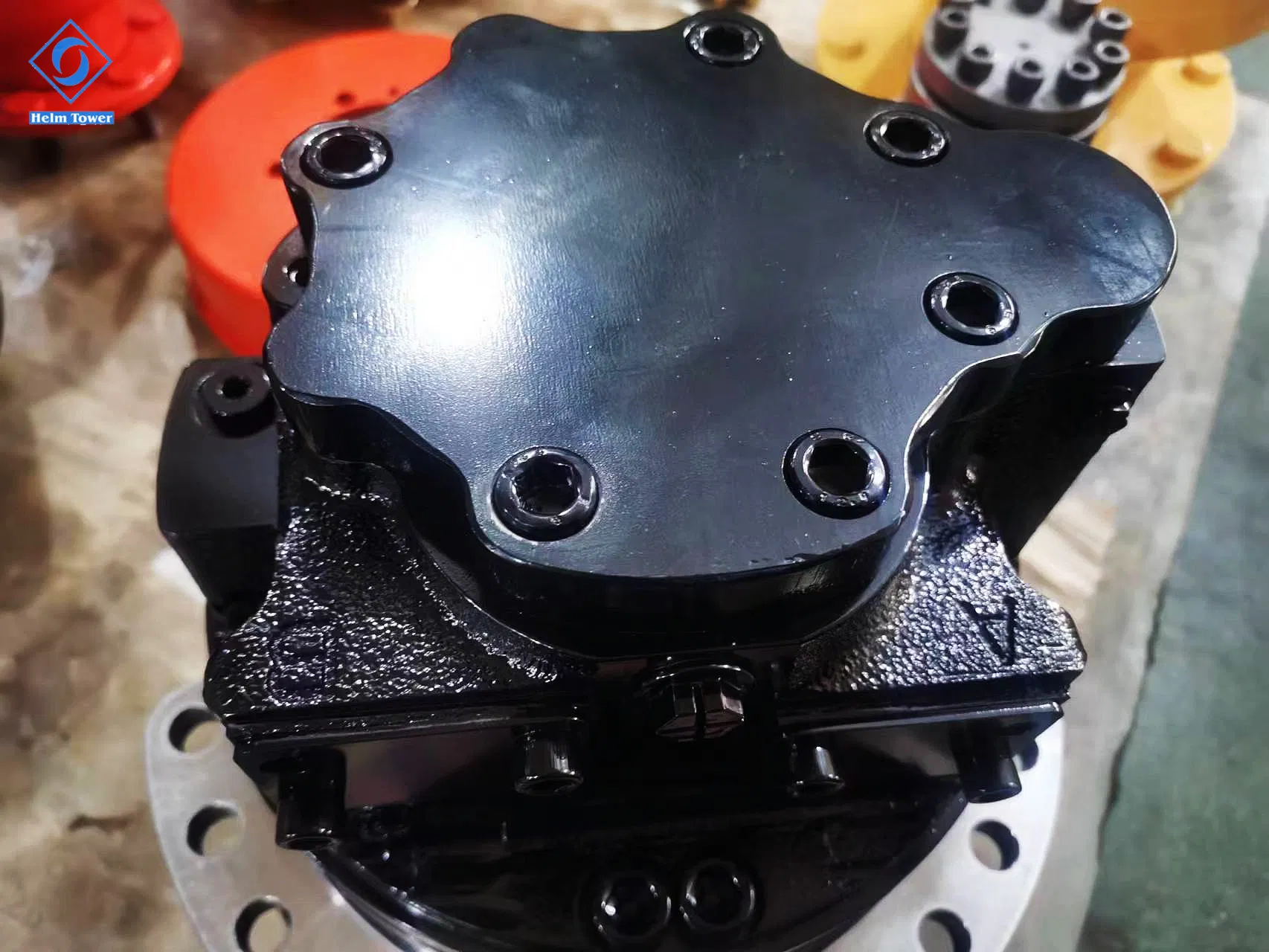

Boschrexroth MCR10 Hydraulic Drive Motor Final Drive Track Motor with Sensor

1 / 5

Boschrexroth MCR10 Hydraulic Drive Motor Final Drive Track Motor with Sensor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

MCR10

Type

Hydraulic Motor/Track Motor with Sensor

Application

Wide Machinery

Certification

CE, ISO9001: 2000, ISO9001:2008

Condition

New

MOQ

1 PCS

Color

Customized

Rate Pressure

25-30 MPa

Transport Package

Wooden Case

Specification

Boschrexroth MCR10

HS Code

8412291000

Production Capacity

750 /Month

📦 Product Description

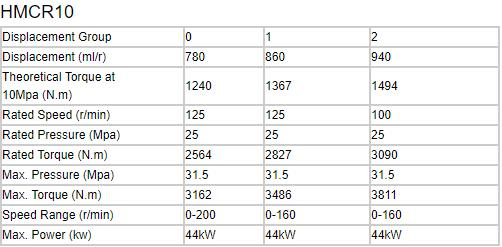

Code	HMCR10			HMCRE10
Displacement Group	0	1	2	0	1	2
Displacement(ml/r)	780	860	940	1120	1250	1340
Theoretical torque at 10Mpa(N.m)	1240	1367	1494	1780	1987	2130
Rated speed(r/min)	125	100	100	100	80	80
Rated pressure(Mpa)	25	25	25	25	25	25
Rated torque(N.M)	2560	2820	3090	3680	4110	4400
Max.pressure(Mpa)	31.5	31.5	31.5	31.5	31.5	31.5
Max.torque(N.m)	3160	3480	3810	4540	5060	5430
Speed range(r/min)	0-215	0-195	0-180	0-150	0-135	0-125

■ MCR10 Application:

Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill

Engineering Machinery: Skid Steer Loader, Break Machine

❓ Frequently Asked Questions

Q1: What are the primary applications for the MCR10 hydraulic motor? A: The MCR10 is widely used in mining machinery (coal winning machines, road headers) and engineering machinery such as skid steer loaders and break machines.

Q2: What is the rated pressure range for this motor? A: The rated pressure for the MCR10 hydraulic motor is between 25 and 30 MPa, with a maximum pressure capacity of 31.5 MPa.

Q3: Does the MCR10 motor come with any certifications? A: Yes, our motors are certified with CE, ISO9001:2000, and ISO9001:2008 standards to ensure high quality and safety.

Q4: Can the color of the hydraulic motor be customized? A: Yes, we offer customized color options to meet your specific branding or machinery requirements.

Q5: What is the minimum order quantity (MOQ) and packaging? A: The minimum order quantity is 1 piece. For protection during transport, all units are packed in sturdy wooden cases.

Q6: What is the production capacity for the MCR10 model? A: We have a robust production capacity of approximately 750 units per month to ensure steady supply.
