Basic Information
Casing Protection
Closed Type
Condition
New Hydraulic Motor
Dimension(L*W*H)
50*20*20 Cm
Structure
Hydraulic System
Transport Package
Wooden Box
Product Description

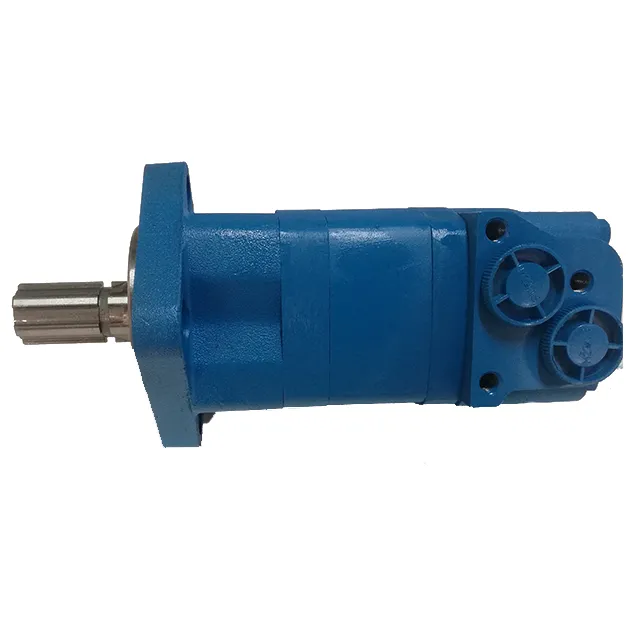

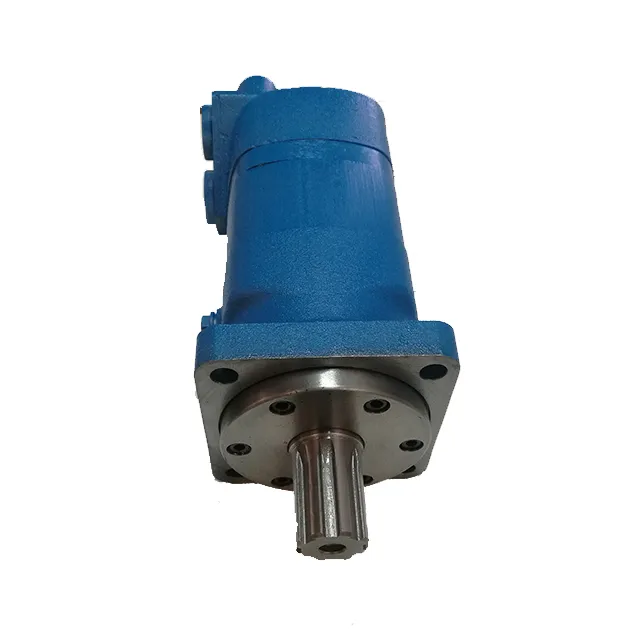

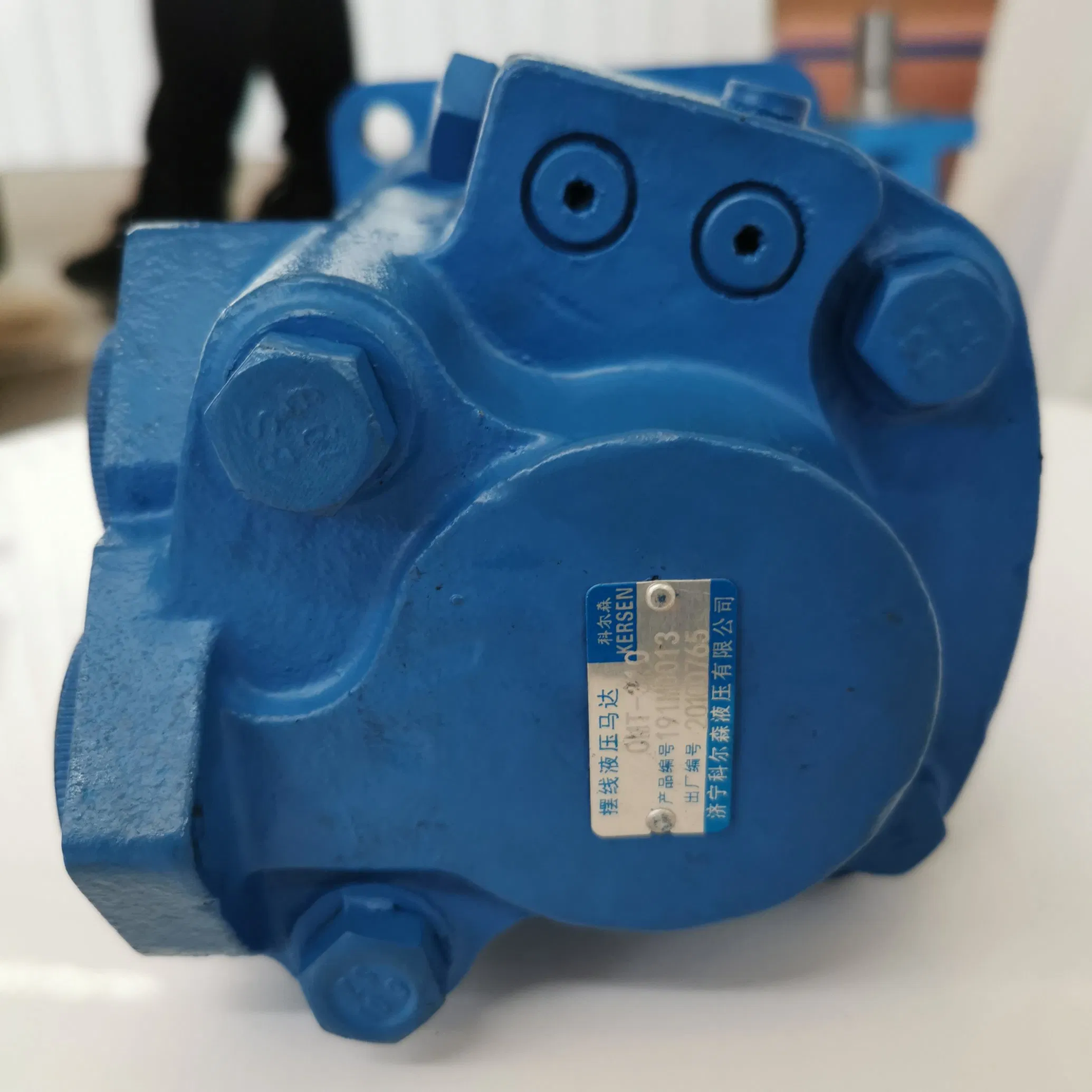

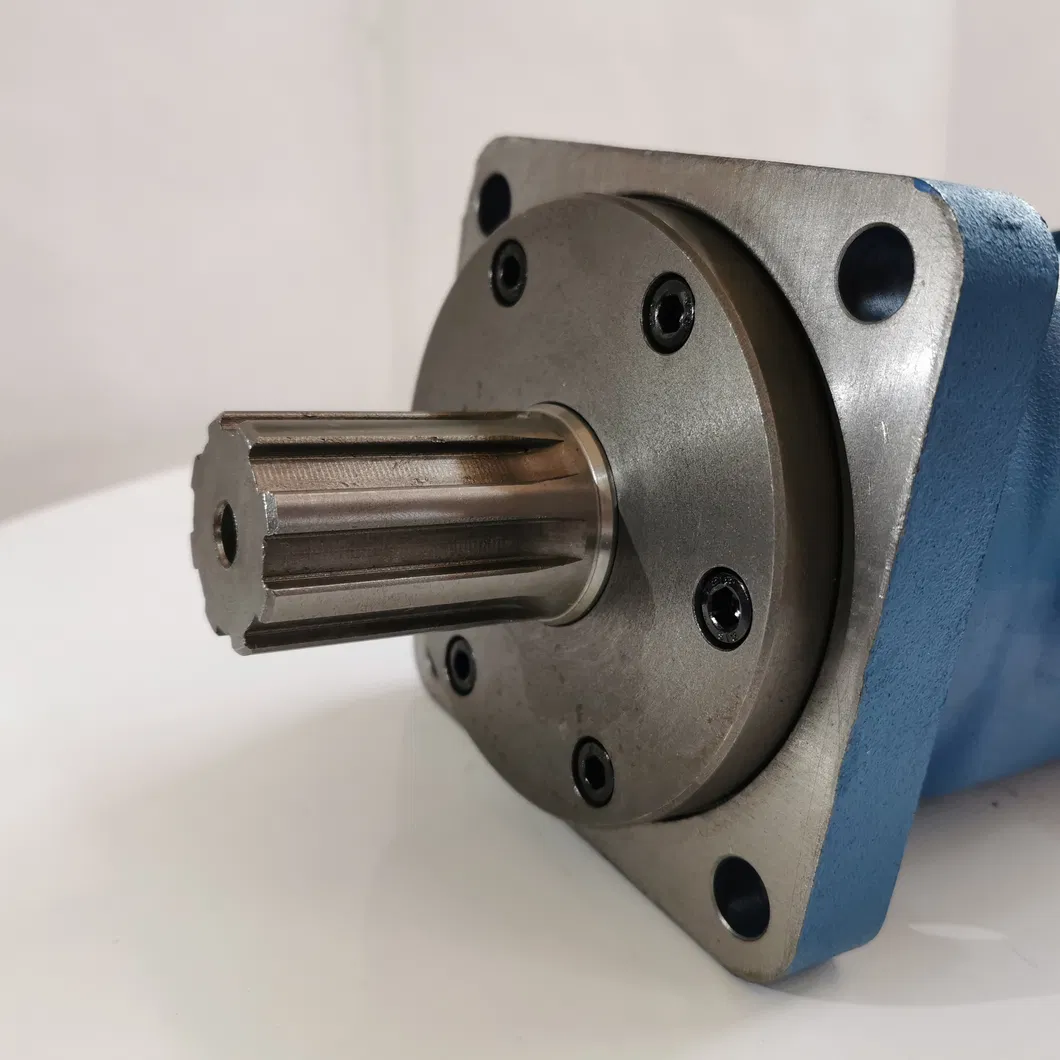

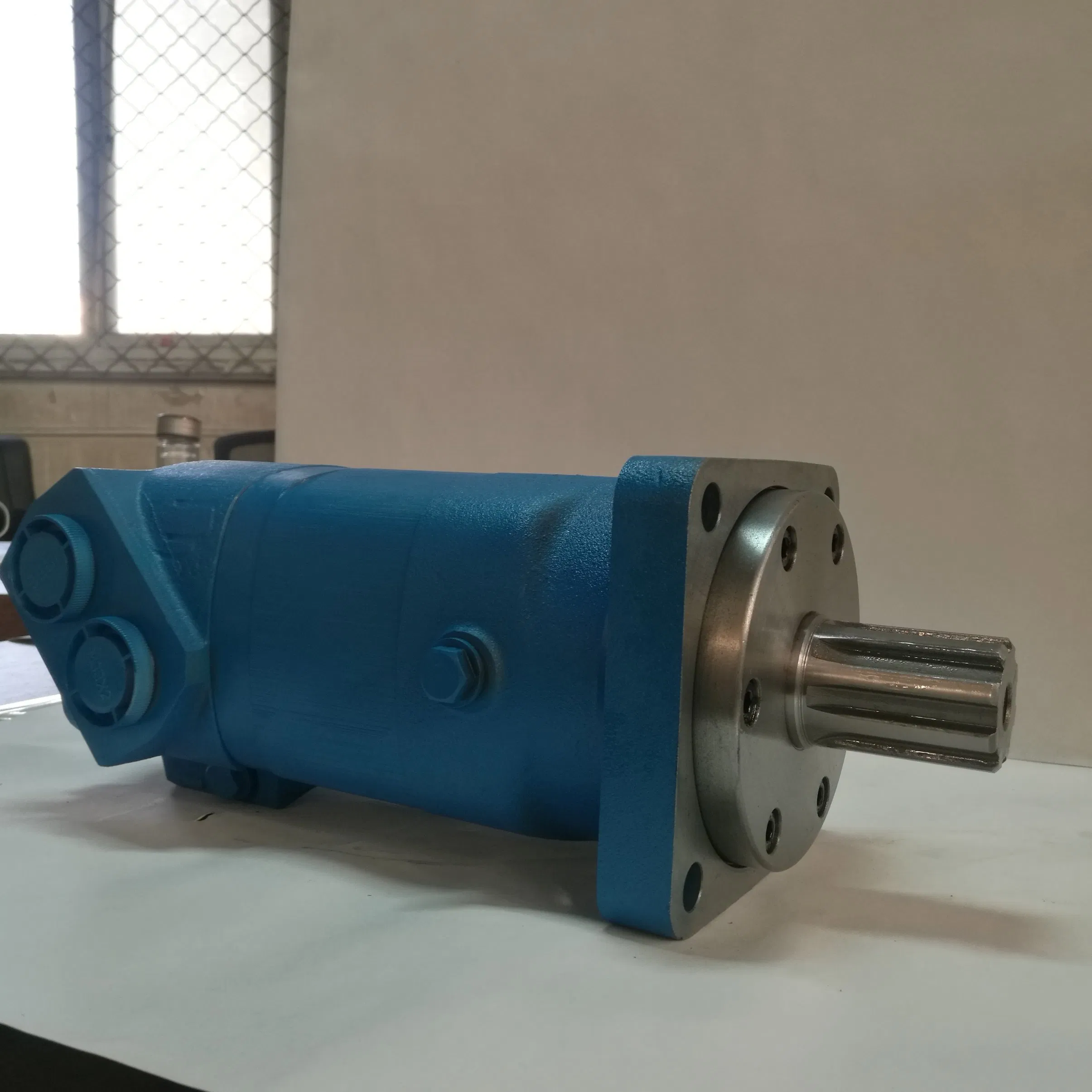

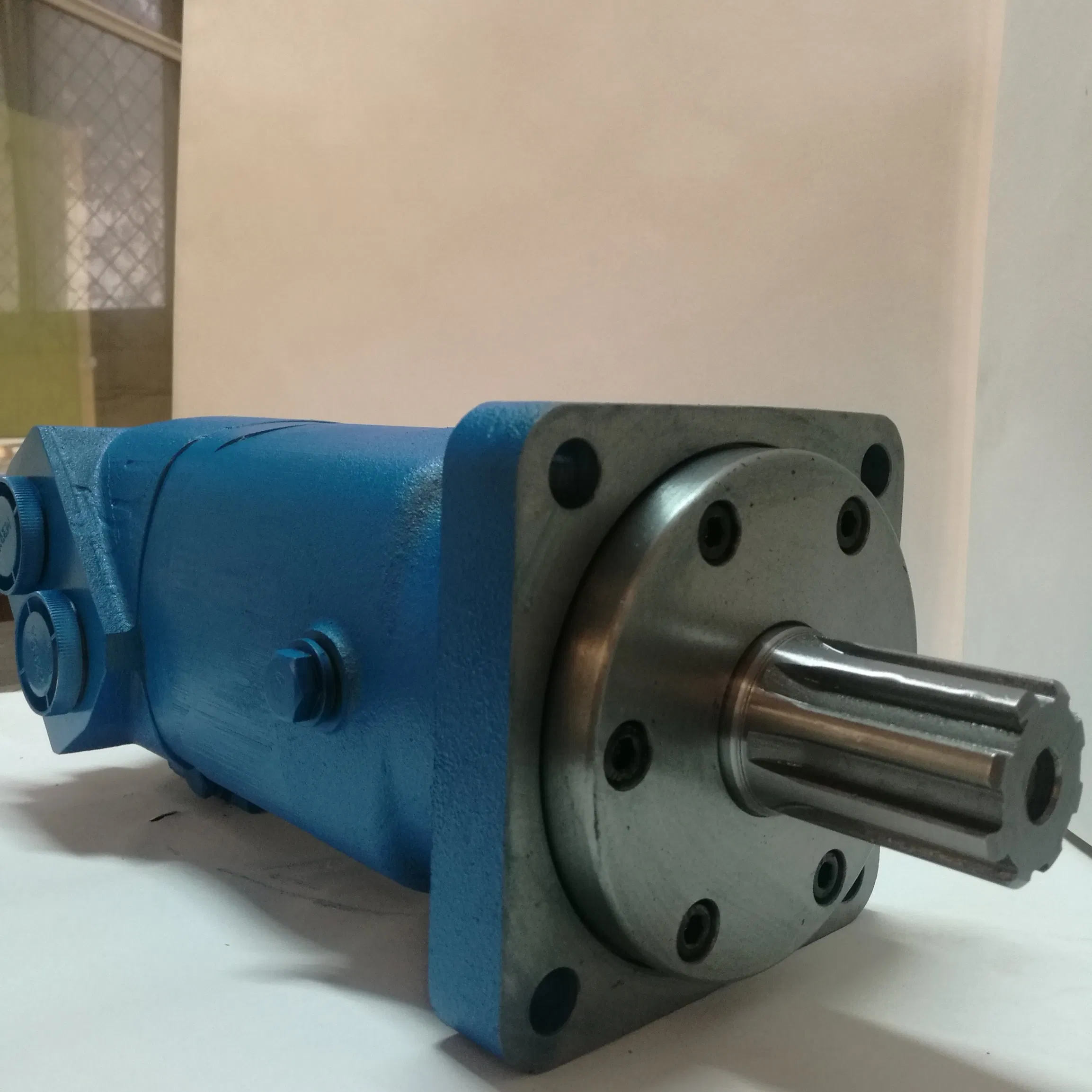

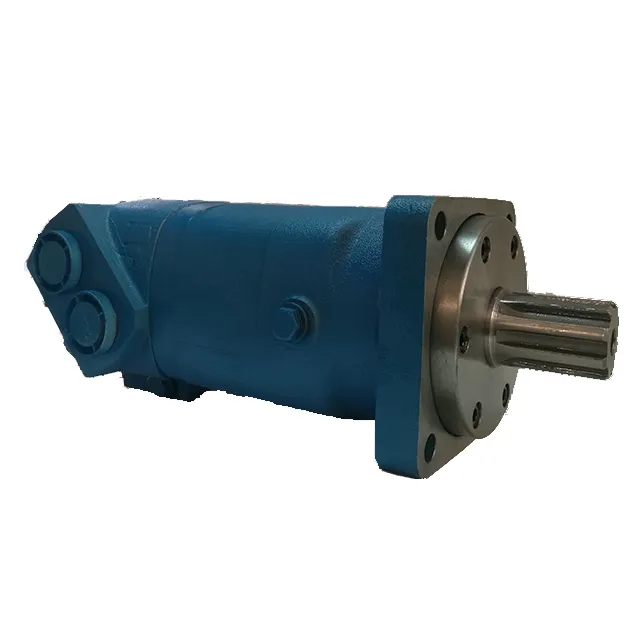

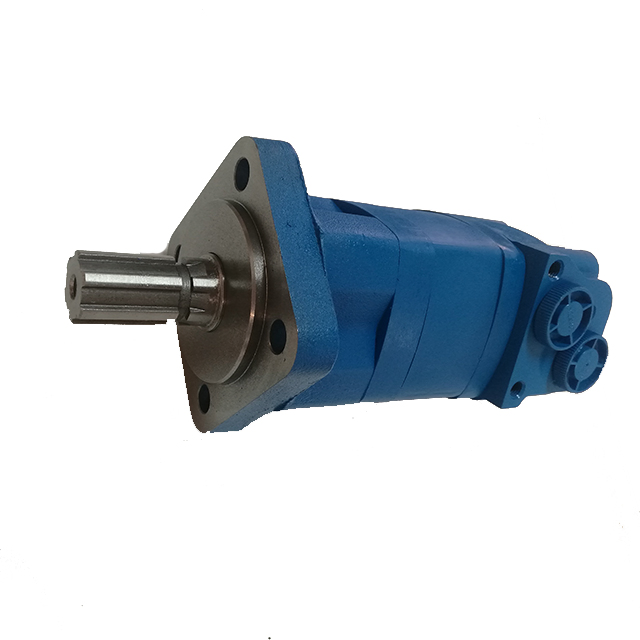

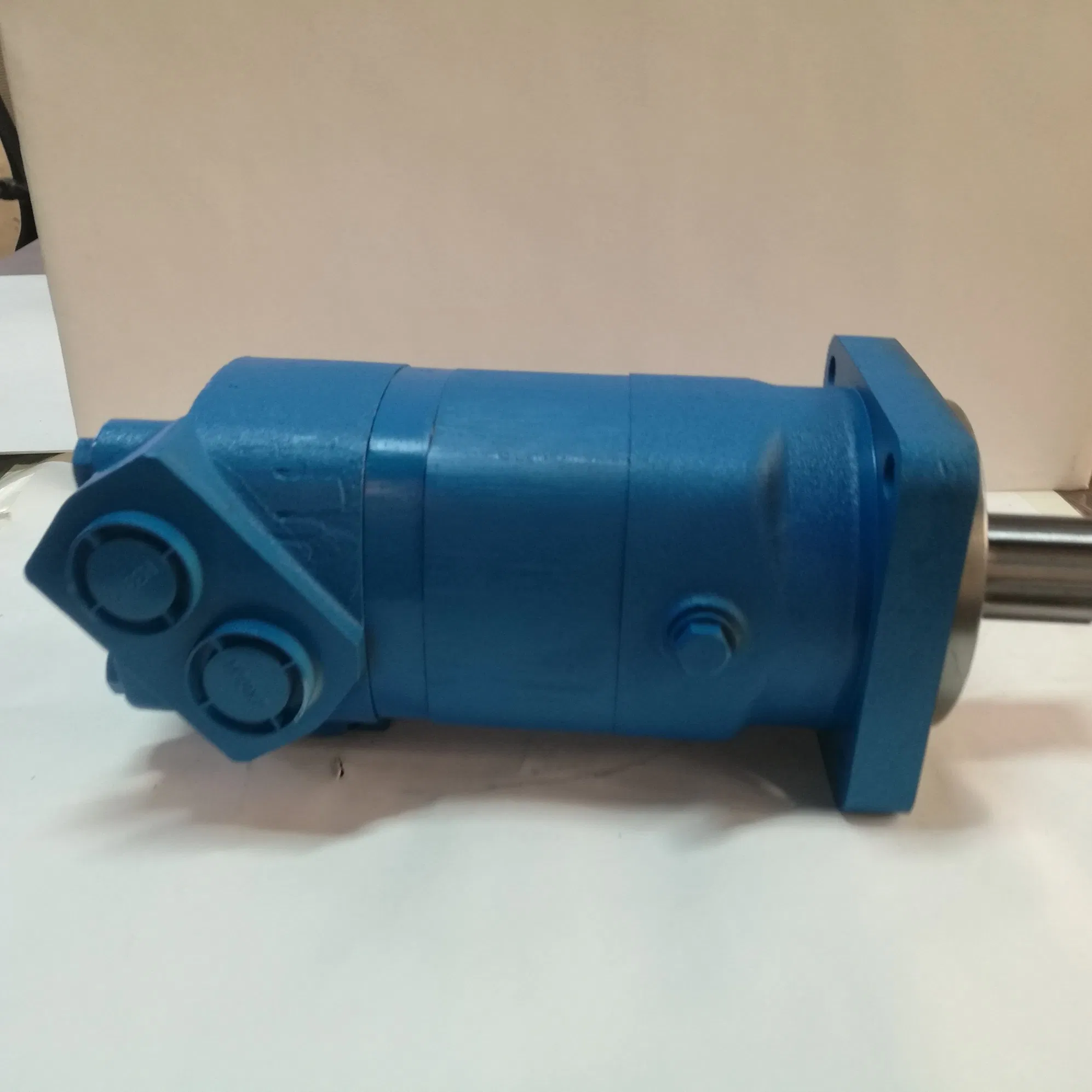

BM6/OMT/BMT Series gear hydraulic motor, BM6-310/390/490 gear pump motor, hydraulic travel motor
The OMT/6000/6K/BM6 series orbital hydraulic motor is a disc valve type gerolor motor. It features an advanced design of disc distribution flow, which provides improved performance at low speeds and higher volumetric efficiency to automatically compensate for wear.
Double taper roller bearings permit high radial loads, making these motors suitable for heavy vehicles and machinery in traction drive applications. These motors are widely applied in agriculture, fishing, plastic industry, mining, and construction machinery.
Compatible Replacement Models:
OMT160, OMT200, OMT250, OMT315, OMT400, OMT500...etc.
6K-195, 6K-245, 6K-310, 6K-390, 6K-490, 6K-625, 6K-800, 6K-985...etc.
Key Features
- Compact design with disc valving and Geroler technology.
- High-pressure capacity shaft seal for enhanced durability.
- Advanced spline and drive design for long-term motor reliability.
- Wide variety of mounting flanges, shafts, and ports for design flexibility.
- Smooth and easy control of shaft rotation direction and speed.
- Optimal combination of high efficiency and economy for medium-duty applications.
Technical Specifications
| Displacement (ml/r) |
195 |
245 |
310 |
390 |
490 |
625 |
800 |
985 |
| Flow (LPM) Cont. |
150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Speed (RPM) Cont. |
775 | 615 | 485 | 387 | 241 | 307 | 184 | 150 |
| Pressure (Mpa) Cont. |
17 | 17 | 17 | 17 | 17 | 17 | 12 | 12 |
| Torque (N*m) Cont. |
475 | 615 | 775 | 965 | 1125 | 1215 | 1380 | 1500 |
Wide Applications
The OMT/6000/6K/HMT/BM6 series orbital hydraulic motors are essential components in various industries:
- Agricultural Machinery: Combine harvesters, seeders, rotary tillers, lawn mowers, sprayers, feed mixers.
- Construction Machinery: Road rollers, truck cranes, cement mixers.
- Common Machinery: Winch units, drilling machines, winding machines, textile machines, road sweepers, snow sweepers.
Packing & Service
Pre-sales Service
- Inquiry and consulting support
- Sample testing support
- Professional machine recommendations
- Factory visiting welcomed
After-sales Service
- Installation training
- Operation training
- 1-year quality warranty
- Overseas engineering support available
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional factory. Our main products include hydraulic orbit motors, hydraulic winches, steel hole punchers, and mini excavators.
How can I pay for the products?
We support multiple payment methods including T/T, PayPal, Western Union, and Credit Card payments.
What kind of warranty do you provide?
We offer high-quality products with professional after-sales service. We provide technical support as needed and a standard six-month to one-year warranty depending on the model.
What if I cannot find the specific model on your website?
Please contact us directly with the descriptions and pictures of the products you need. We will check our inventory and reply to your inquiry as soon as possible.
Can I purchase a single unit for quality testing?
Yes, we understand that quality testing is important. We are happy to provide 1 set for your quality evaluation.
How are the products packaged for delivery?
All products are packed in standard wooden cases or carton boxes to ensure safety during long-distance transportation. Each unit is carefully checked before delivery.
