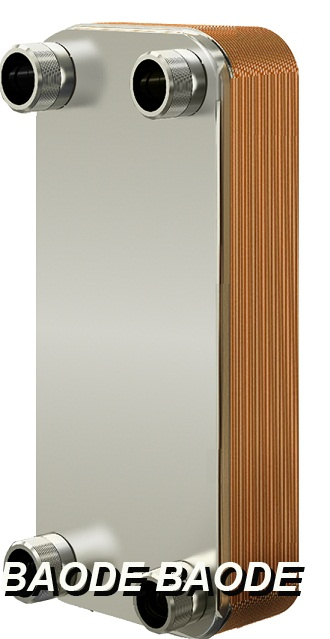

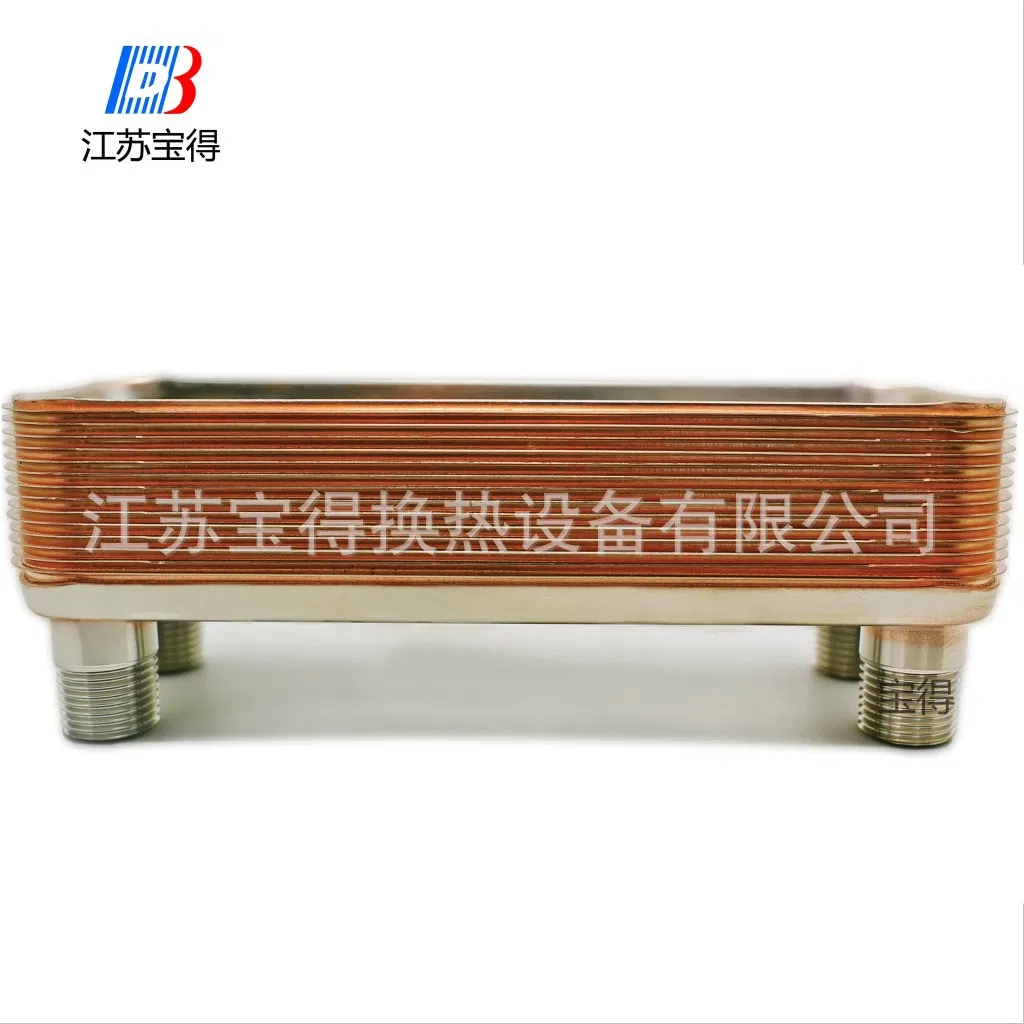

Baode Bl120 Hydraulic Oil Cooler for Marine

Customization:	Available
Certification:	CE, ISO, Ce, UL, Wras, ISO9001
Material:	Stainless Steel

📊Basic Info.

Model NO.

BL120

Product Type

Heat Exchanger

Max Pressure

3/4.5 MPa

Test Pressure

4.5/6.7 MPa

Max Temperature

225c

Transport Package

Standard Plywood Box

Specification

ISO9001, CE, UL, WRAS, rohs and etc.

Origin

China

HS Code

8419500090

Production Capacity

1000 PCS/Month

📝Product Description

BL120 hydraulic oil cooler for gear box

Working principles

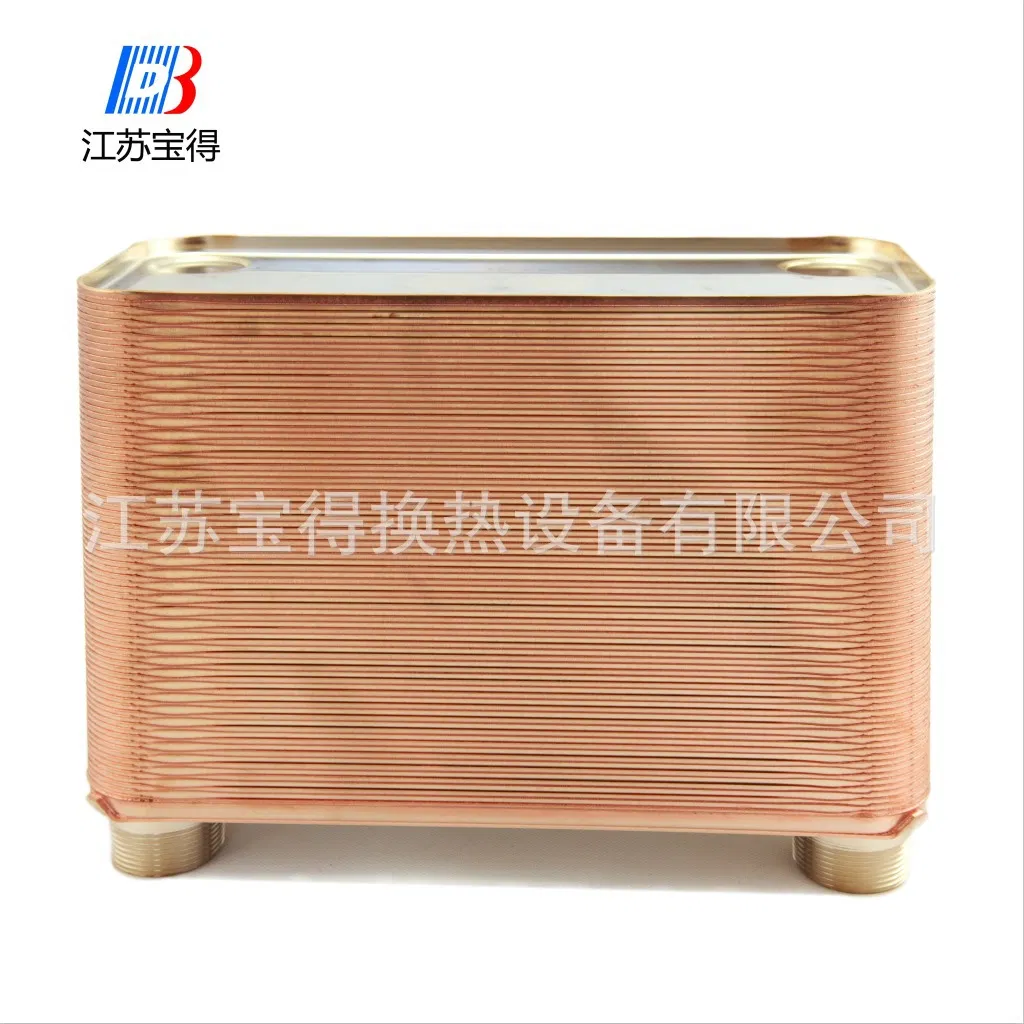

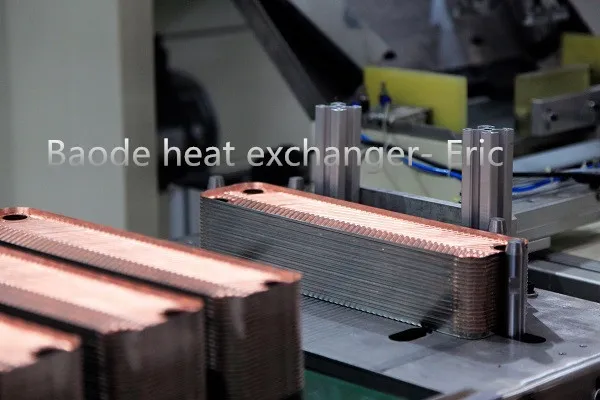

The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between the plates and corner ports are arranged so that the two media flow through alternate channels, always in counter-current flow. The media are kept in the unit by a brazed seal around the edge of the plates. The contact points of the plates are also brazed to withstand the pressure of the media handled.

Standard design

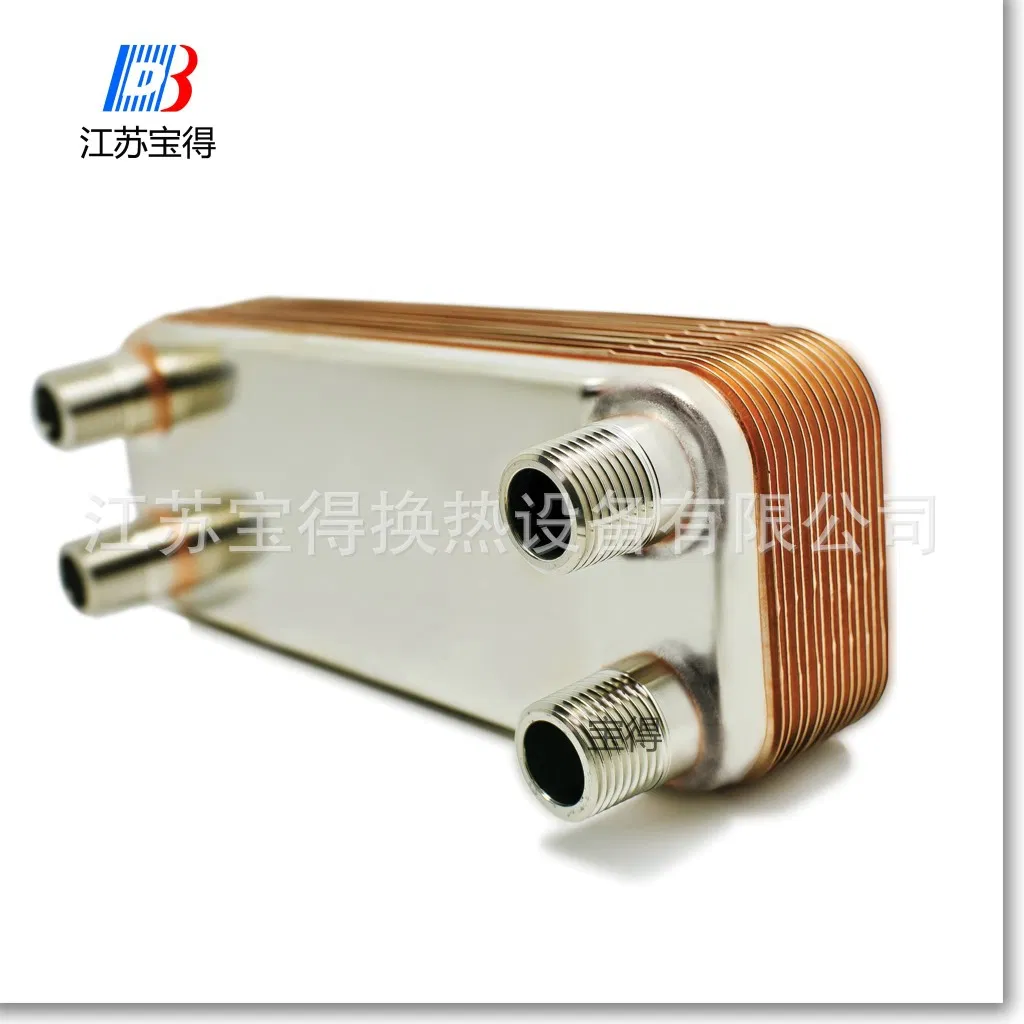

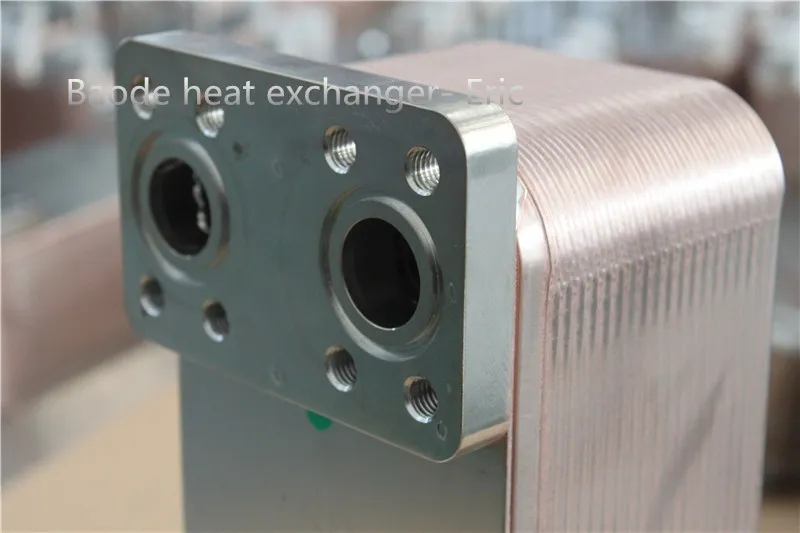

The plate pack is covered by cover plates. Connections are located in the front or rear cover plate. The channel plates are corrugated to improve heat transfer efficiency and to make them rigid.

Standard materials

Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper

Particulars required for quotation

To enable a specific quotation, enquiries should be accompanied by the following particulars:

Flow rates or heat load required
Temperature program
Physical properties of liquids in question
Desired working pressure
Maximum permitted pressure drop

🖼️Product Display

❓Frequently Asked Questions

1. What is the maximum temperature the BL120 can withstand?

The BL120 hydraulic oil cooler is designed to handle a maximum temperature of 225°C.

2. What materials are used in the construction of the BL120?

The cover plates, connections, and channel plates are all made from high-quality Stainless Steel AISI 316, with copper used as the brazing material.

3. What is the pressure rating for this heat exchanger?

The unit has a maximum working pressure of 3/4.5 MPa and is tested at pressures of 4.5/6.7 MPa to ensure safety and durability.

4. What information is needed to receive a custom quote?

Please provide flow rates, heat load requirements, temperature programs, physical properties of the liquids, desired working pressure, and maximum permitted pressure drop.

5. What certifications does the BL120 meet?

The product complies with international standards including ISO9001, CE, UL, WRAS, and RoHS.

6. How is the product packaged for international transport?

All units are packed in standard plywood boxes to ensure protection during transit.
