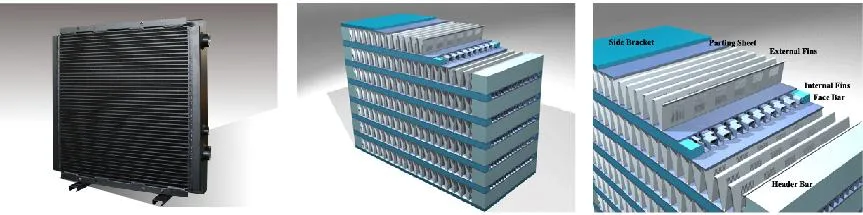

Our Air Cooled Oil Coolers feature a high-performance Bar & Plate Brazed Aluminum Core, designed to be rugged, lightweight, and compact. These units are specifically engineered for both mobile and industrial applications, providing efficient thermal management for demanding environments.

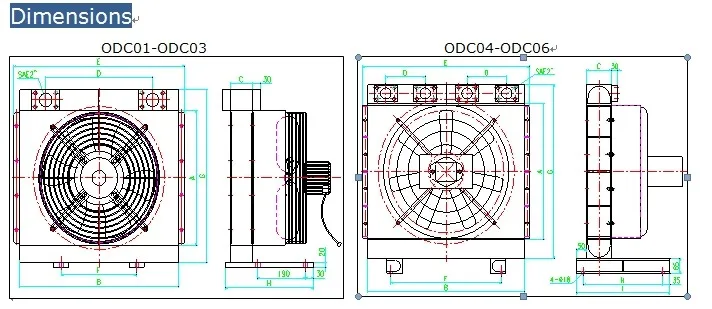

| CODE Type | ODC01 | ODC02 | ODC03 | ODC04 | ODC05 | ODC06 |
|---|---|---|---|---|---|---|
| Power (kw) | 12-15 | 20-26 | 32-40 | 50-70 | 75-95 | 105-140 |
| Oil Flow (L/min) | 50-150 | 80-200 | 100-250 | 150-400 | 200-500 | 250-600 |
| Volume (L) | 6.12 | 9.47 | 14.3 | 26.4 | 33.2 | 48.9 |
| Cooling Air Flow (m³/h) | 3600 | 5700 | 8400 | 13000 | 17000 | 22200 |
| Fan Diameter (mm) | 350 | 450 | 550 | 690 | 750 | 900 |
| Working Pressure | 20 bar | 20 bar | 20 bar | 20 bar | 20 bar | 20 bar |

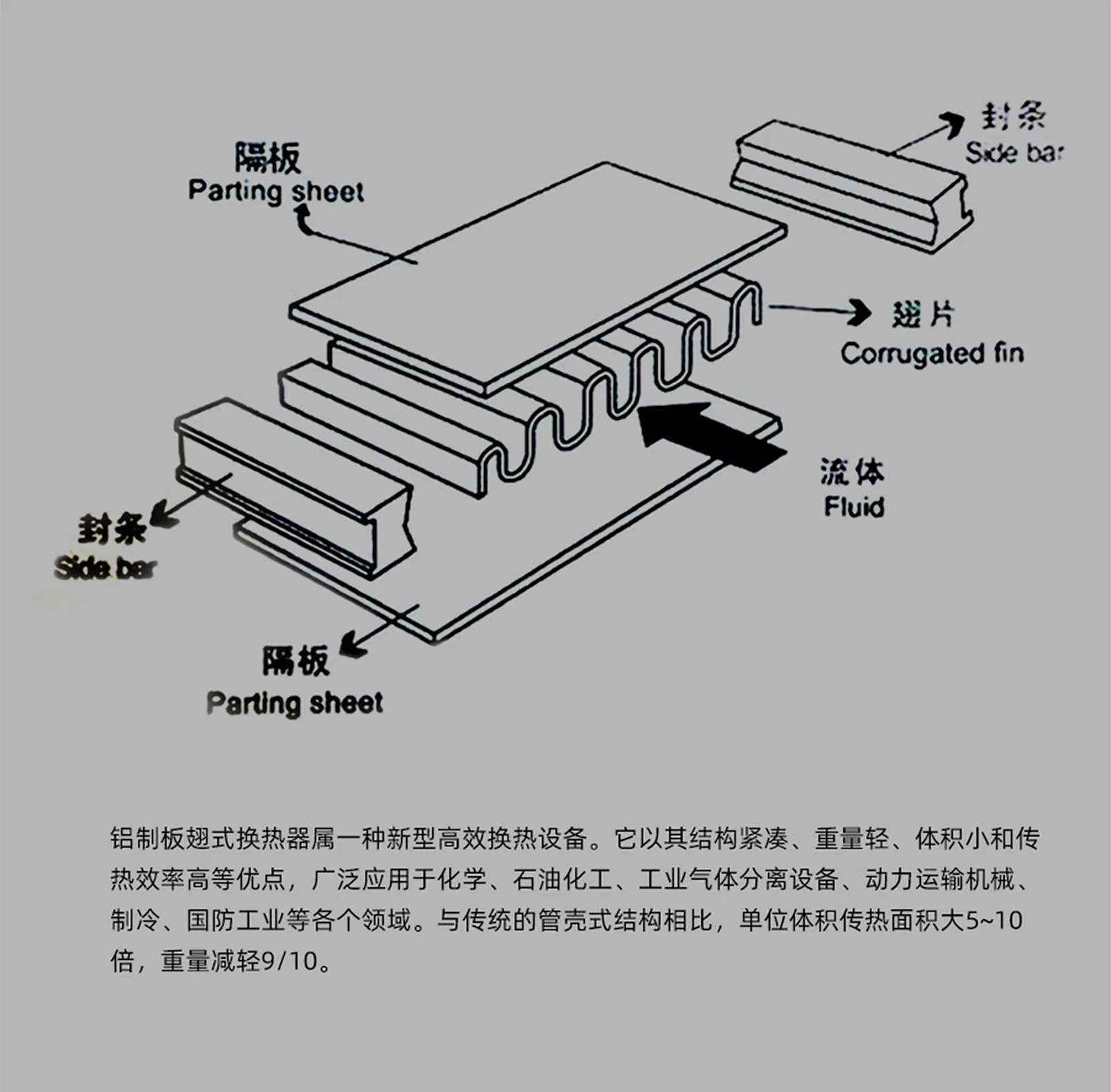

The P-BAR (Aluminum Plate & Bar) design integrates the radiator, hydraulic oil, and charge air coolers into a single package. This structure is ideal for construction machinery such as excavators, rollers, and bulldozers.
1. Suction Distance: Maintain air suction distance of at least 1/2 of the fan diameter.
2. Ports: Oil ports can be used as inlet/outlet interchangeably. Tighten screws carefully to avoid damage.
3. Threads: Standard products use PT (British), RC (Japan), or ZG (China). Custom options available.
4. Filtration: Oil filters in series must be installed at the front stage of the cooler.
5. Electricity: Confirm wind direction (red arrow) matches the fan rotation for DC or three-phase units.

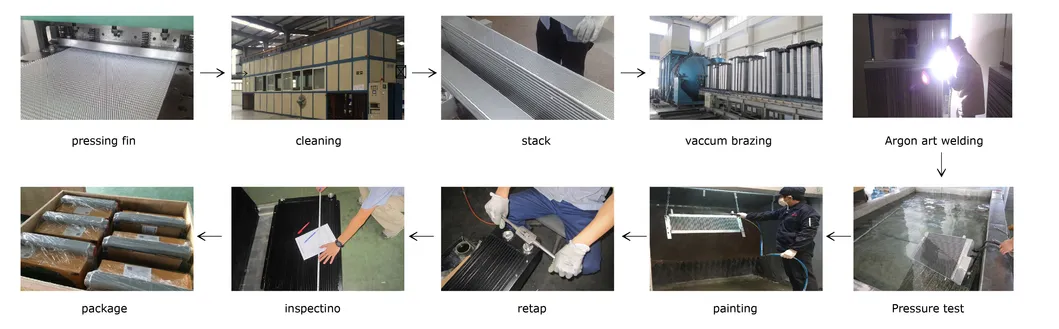

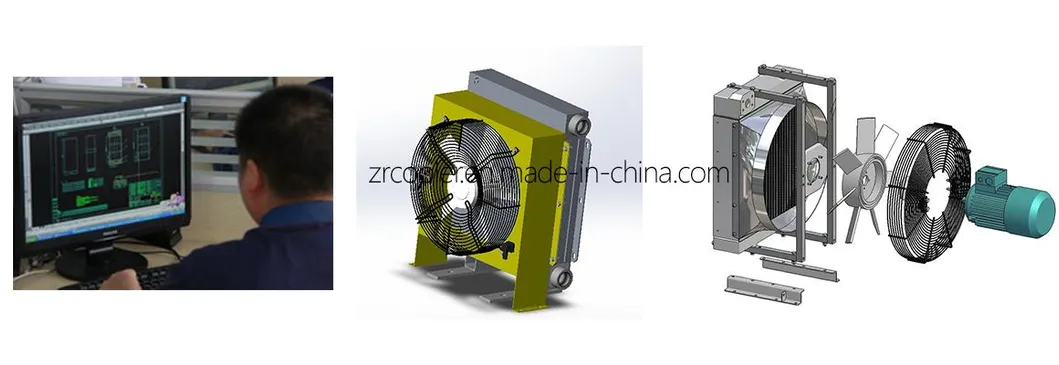

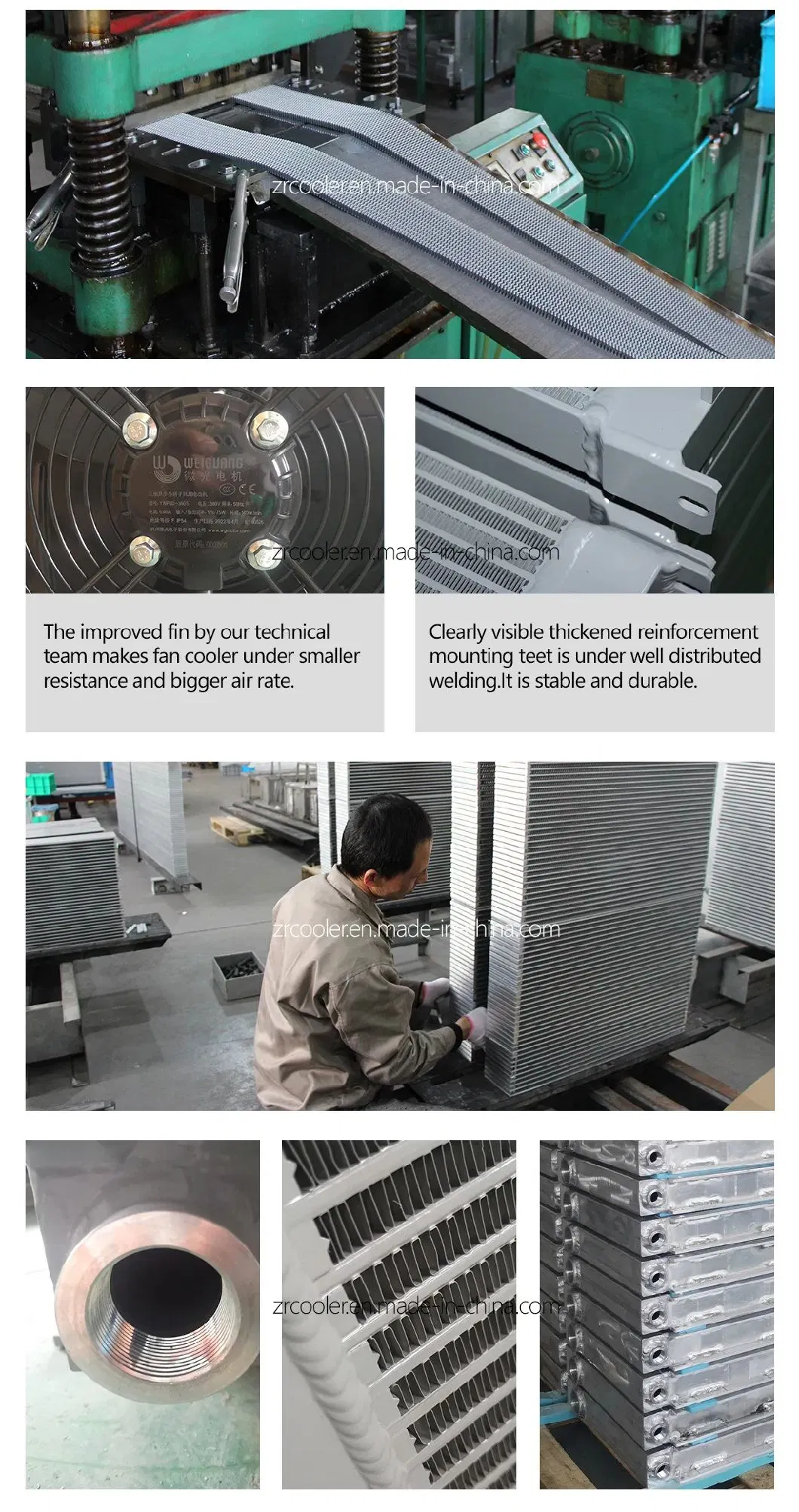

We are dedicated to the design and manufacture of aluminum plate-bar heat exchangers with over twenty years of industry experience. Our coolers are exported globally to markets in the UK, Germany, USA, Canada, and Australia.
