Aluminum Oil Cooler for Hydraulic Oil Cooling System

i

Overview - Basic Information

Model NO.

OEC01

Type

Air-Cooled

Cooling Water

Seawater

System Type

Closed System

Fans Species

Single-speed Fan

Noise Level

Low

Max Work Pressure

250psi

Certification

ISO

Production Capacity

10000PCS/Year

HS Code

8419500090

★

Product Description & Features

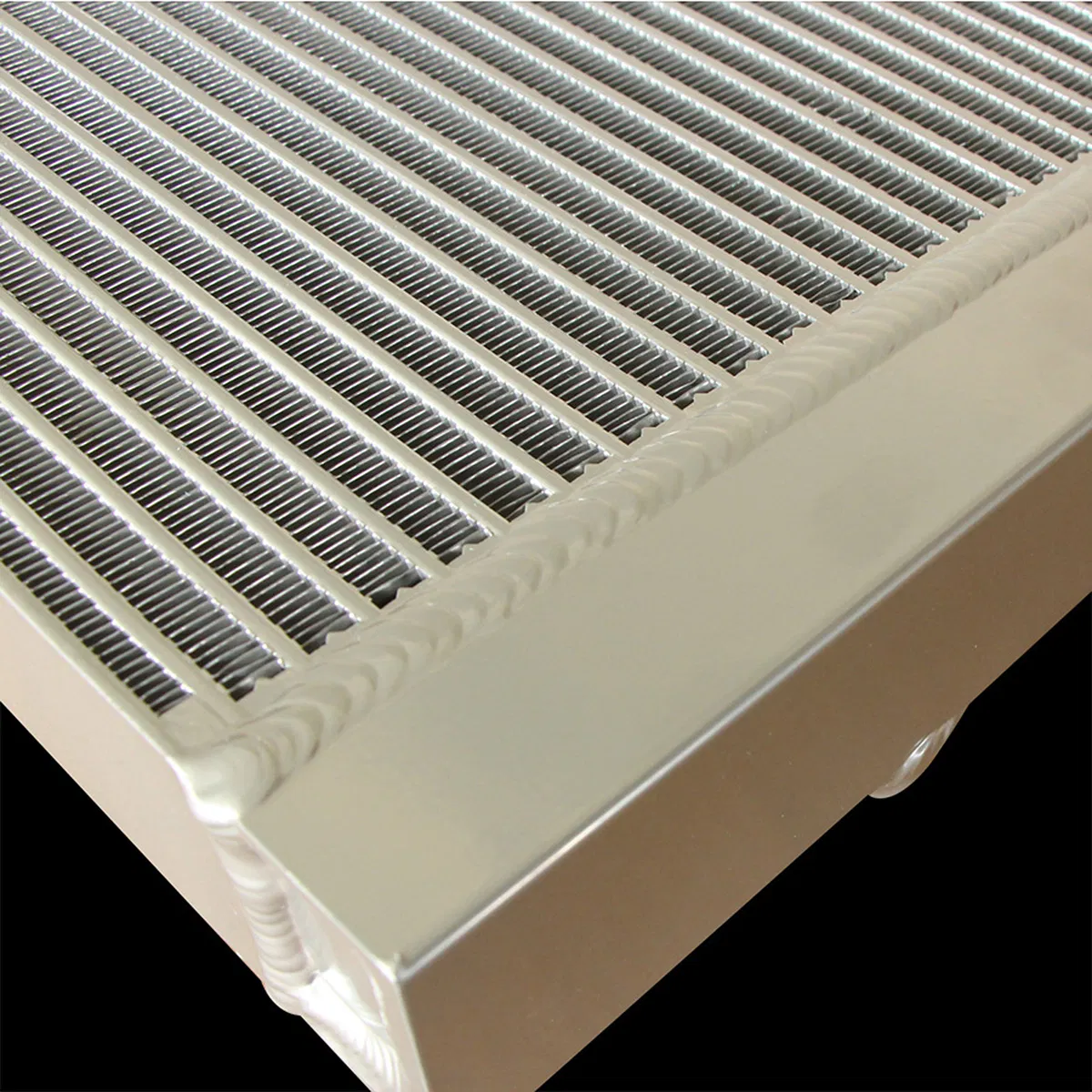

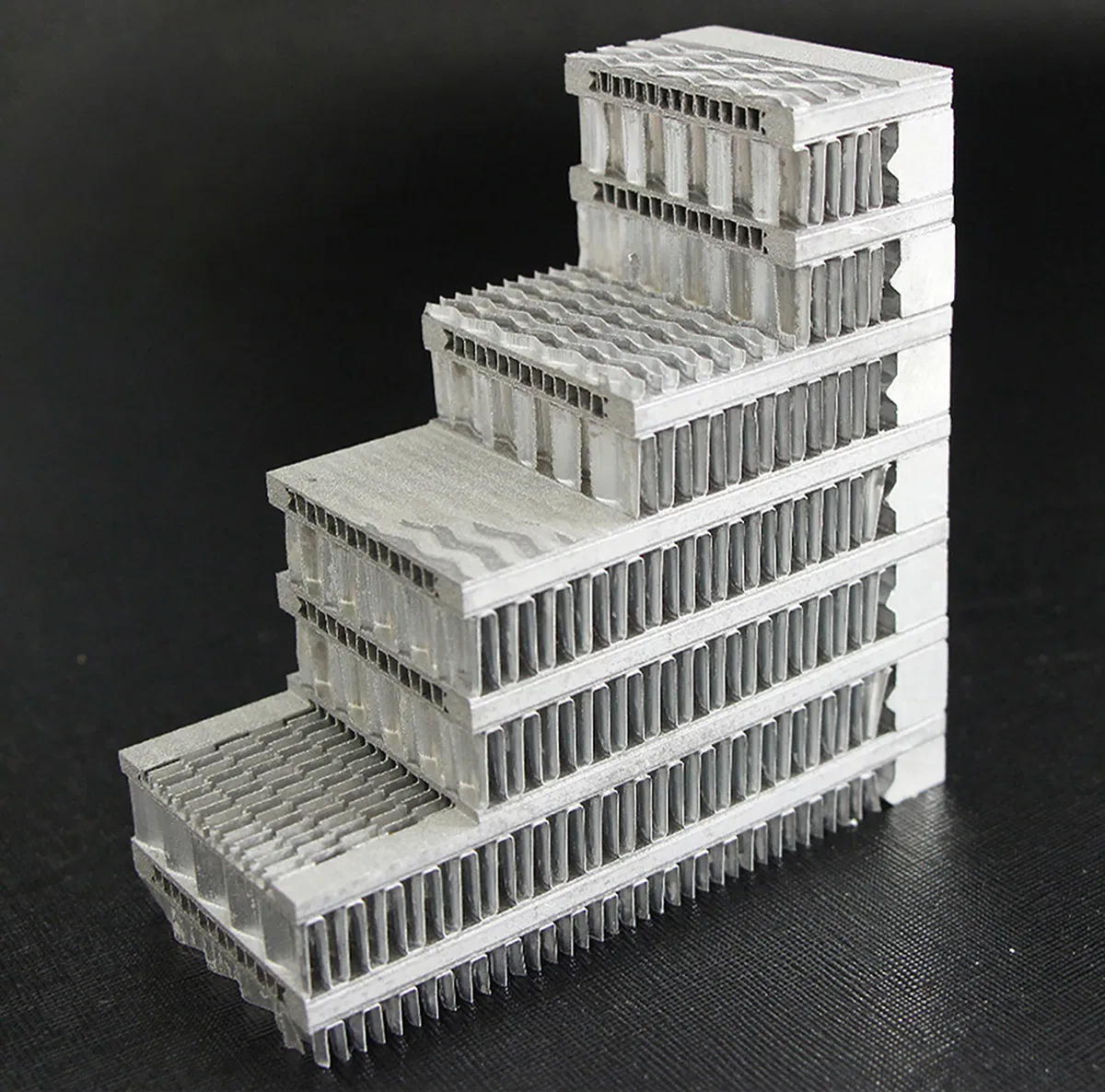

Bar & Plate Brazed Aluminum Core

Rugged, Lightweight and Compact

Best Heat Transfer per given size

Air-side fin design minimizes fouling

Welded aluminum fittings / ports

Customized units available

Technical Specifications

Maximum Working Pressure: 21bar
Dynamic working pressure: 14bar
Maximum oil inlet temperature: 120ºC
Core Material: Brazed Aluminum Bar and Plate
Tanks: 5052 Aluminum

Length (mm)	Width (mm)	Thickness (mm)	Port
260	260	60	G1"

⚙

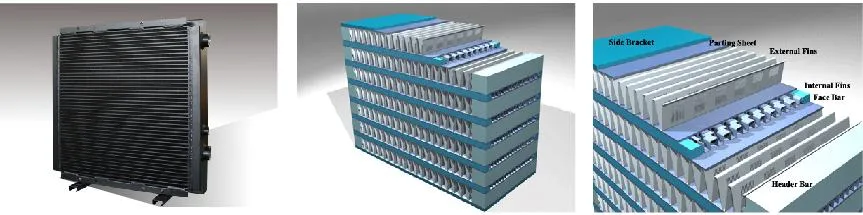

Core Structure & Range

P-Bar design for high volume OE Mobile Applications. Incorporates radiator, hydraulic oil and charge air coolers into one package.

Customised oil air cooler for compressors
Compressed air coolers for construction machinery
Oil coolers for hydraulic systems and engines
Complete fan units with DC/AC and hydraulic motors

📷

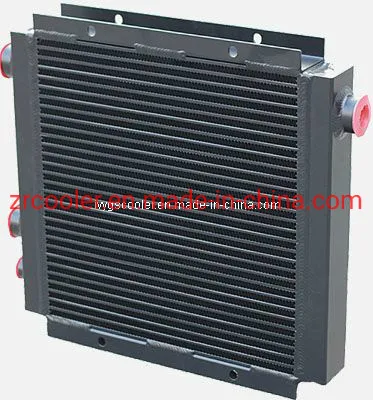

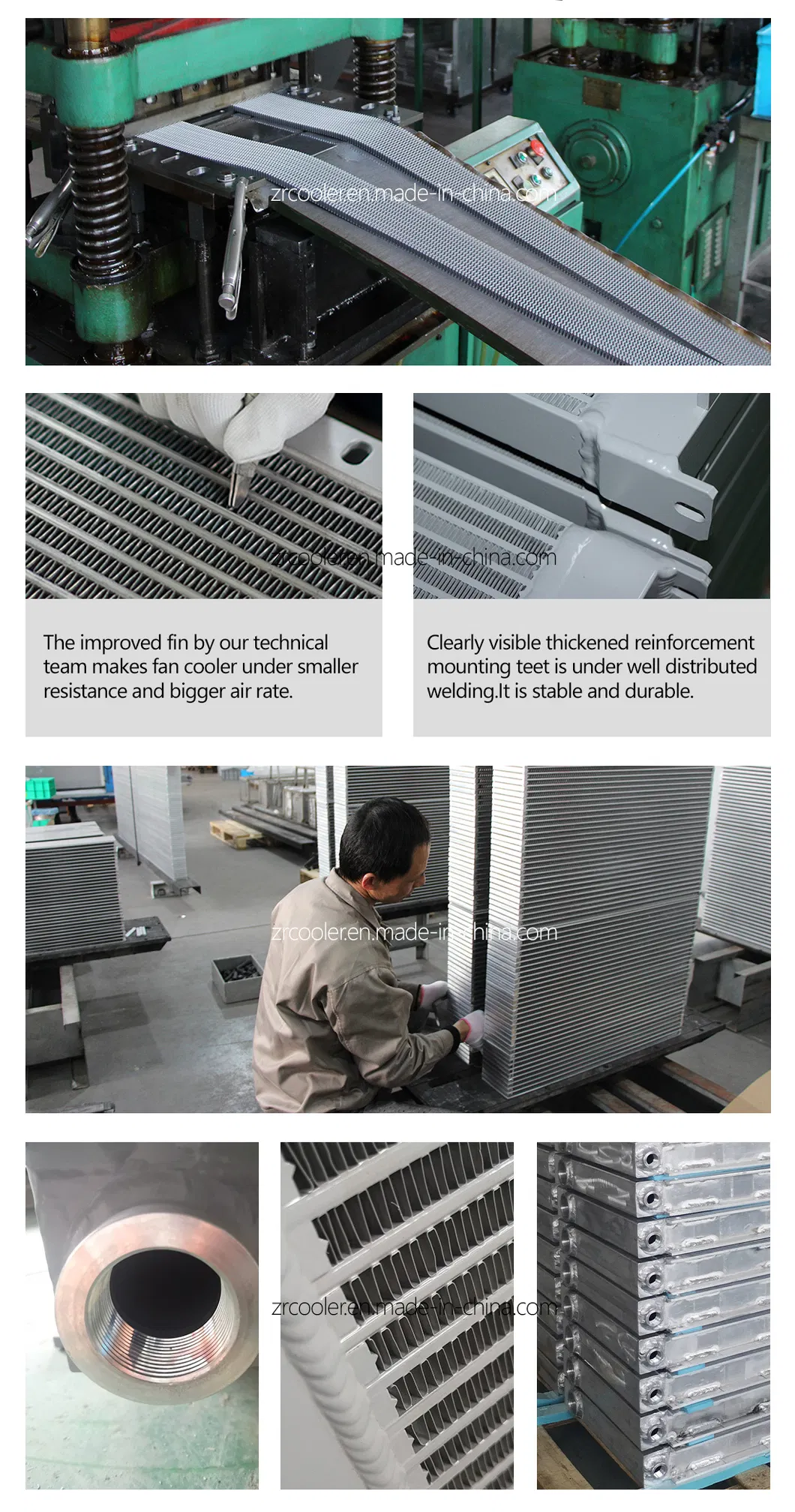

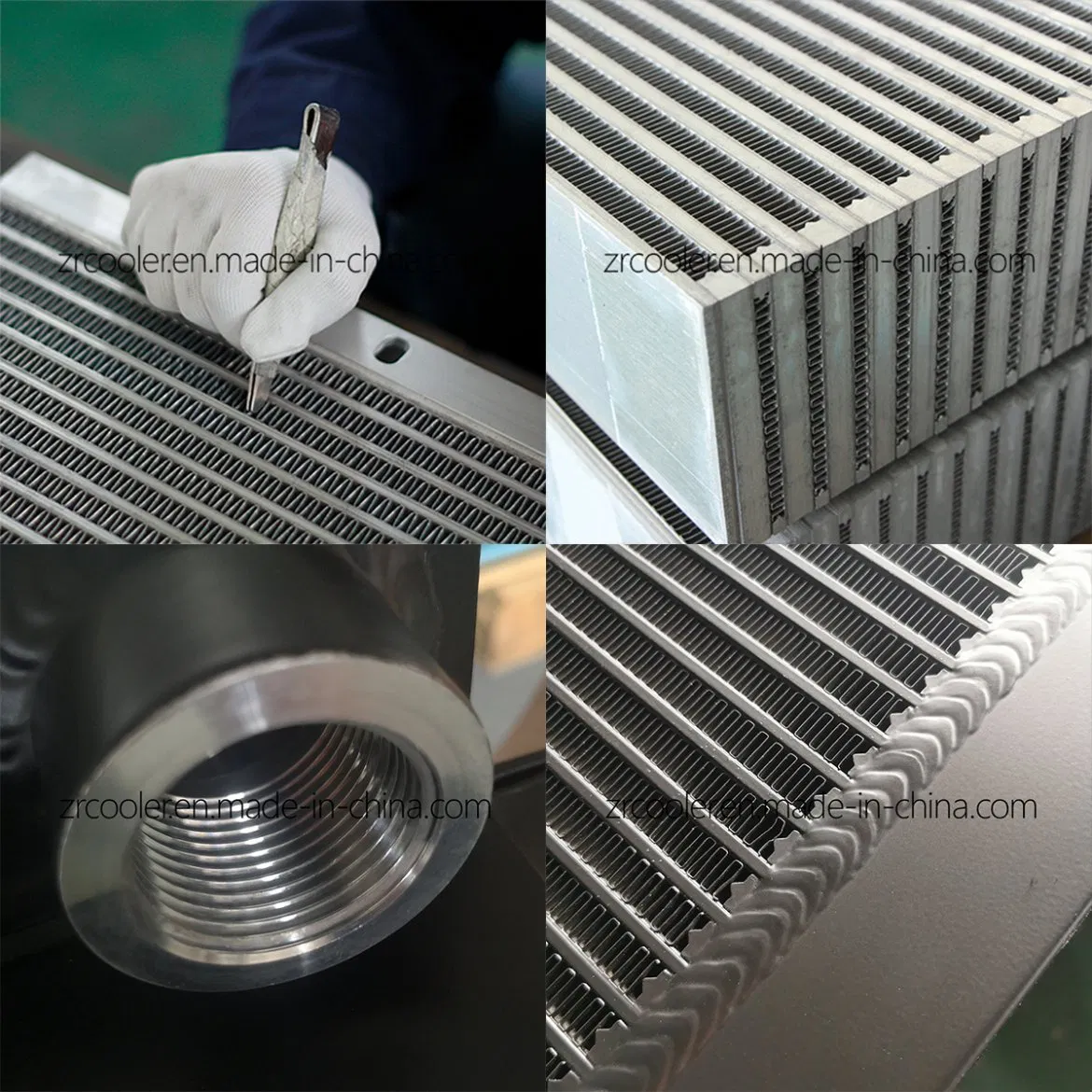

Detailed Photos & Performance

🛡

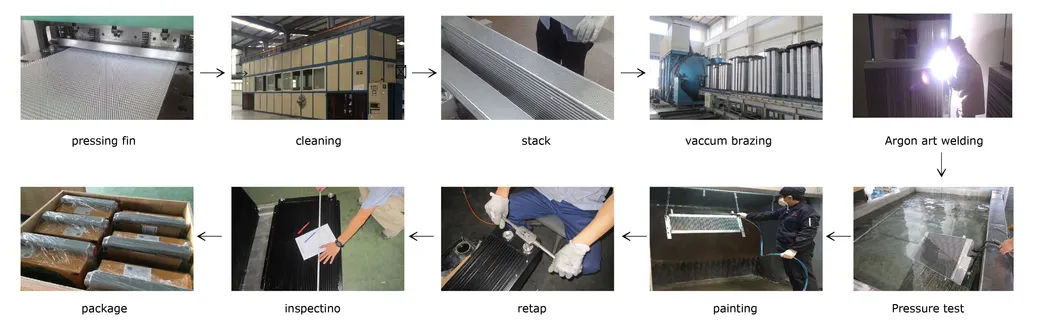

Certifications & Manufacture Process

Modules are 100% pressure and leak tested

Short lead time for prototypes and production

Advanced core geometries for radiators and oil coolers

Complete packages with fan, motor, and guards

🔧

Installation Instructions

Maintain adequate air suction distance (minimum 1/2 of fan diameter).
Oil ports can be used interchangeably as inlet/outlet; tighten with proper tools.
Applicable threads: PT (British), RC (Japan), ZG (China Standard); others customizable.
Series oil filters must be installed at the front stage of the cooler.
Verify rotation direction (marked by red arrow) for DC or three-phase voltage motors.

✈
