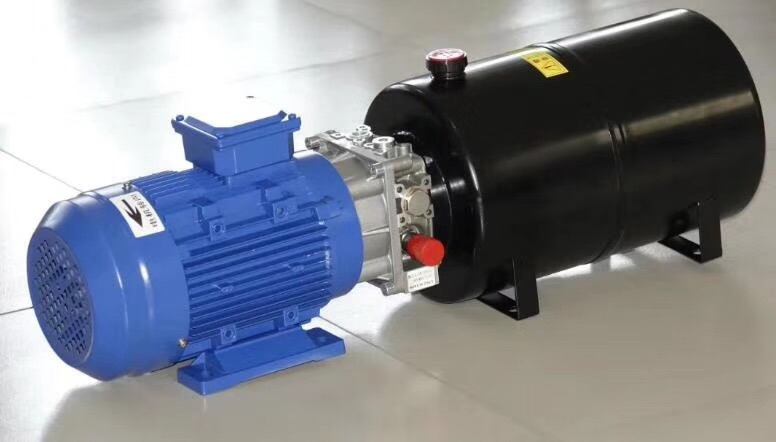

AC Double Acting Mini Power Unit Hydraulic Power Unit

1 / 5

AC Double Acting Mini Power Unit Hydraulic Power Unit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DLY-220AC-01

Work Temperature

Normal Temperature

Voltage

220V AC

Installation

Horizontal

Material

Aluminum Alloy

Type

Hydraulic Power Units

Motor Type

Gear-Type Hydraulic Motor

Oil Tank

5-8L Rounded Horizontal

Max Pressure

140-150 Bar

Origin

China

Product Technical Description

Name: AC single acting mini power unit

Model: DLY-220V-01

Motor: 220V AC motor with power options up to 1.8KW.
Flow Performance: Efficient flow rate of 5-6 L/M (Adjustable range 0.2-6l/Min).
Pressure Capability: Standard operating pressure of 140-150 Bar, capable of reaching up to 250 Bar.
Configuration: Single acting with 220V AC solenoid valve and G3/8'' oil ports.
Mounting: 5-8L rounded horizontal mounting oil tanks.

Features & Advantages

Flexible MOQ: Starting from 1PC, with special request support.
Premium Quality: High CNC manifolds designed for single, double acting, and reversible circuits using universal central blocks.
Versatile Tank Options: Range of oil tanks from 3L to 36L in round or square shapes for both horizontal and vertical mounting.
Voltage Versatility: Optional solenoid valves available in 12V DC, 24V DC, and 220V AC.
Quality Assurance: 100% inspection before shipment and backed by a 1-year warranty.

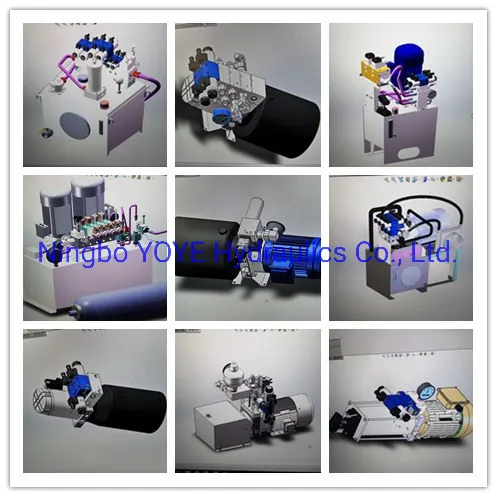

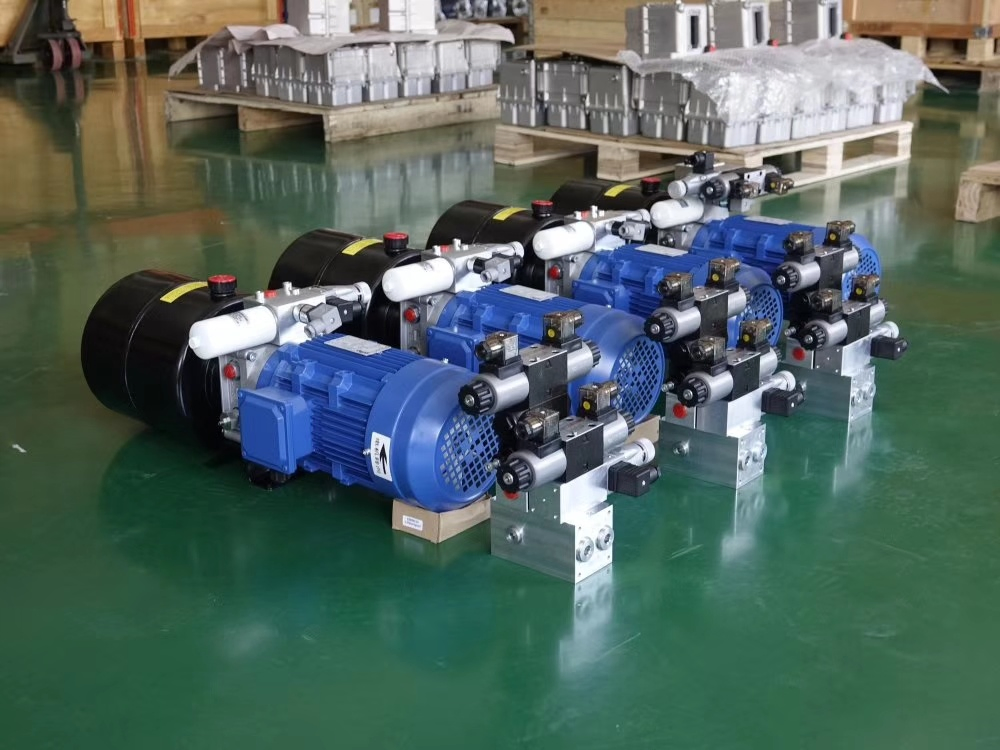

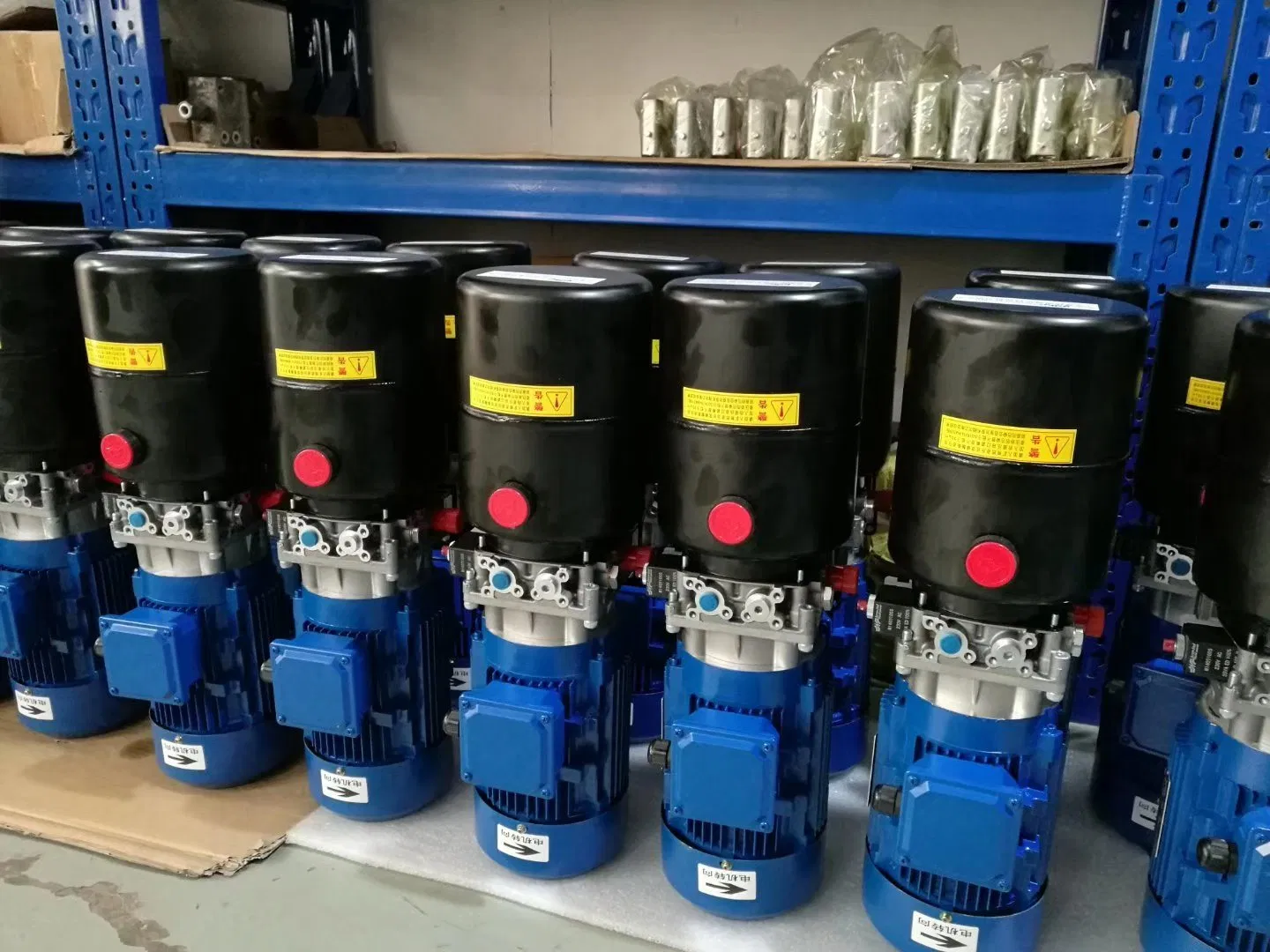

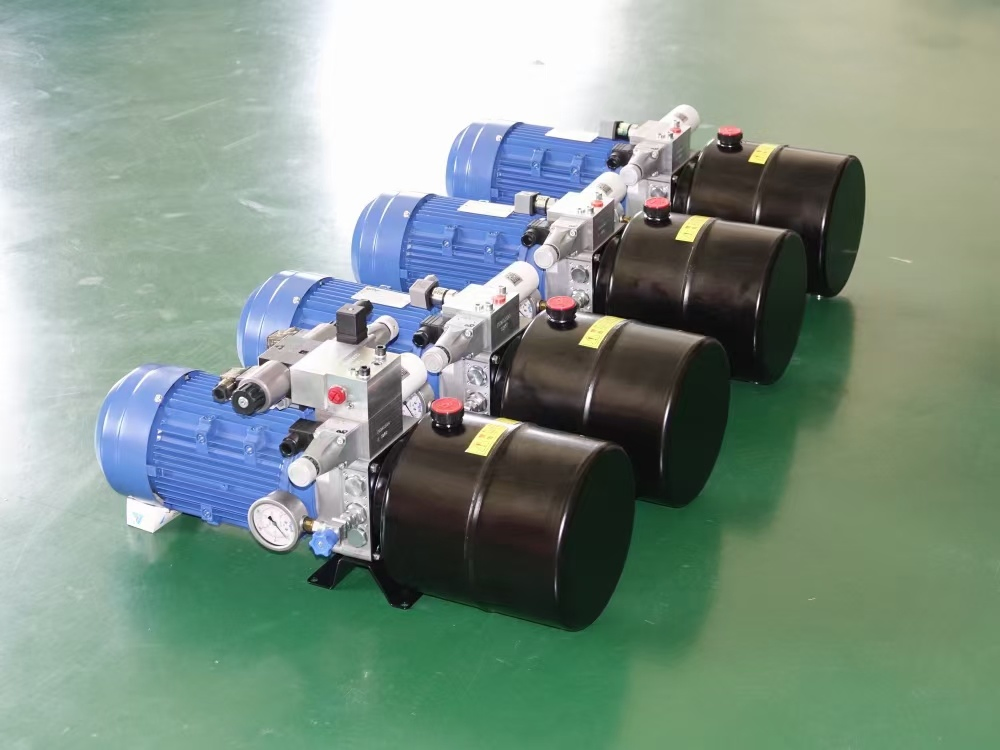

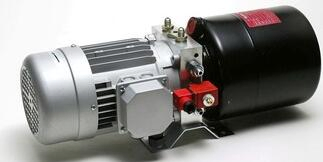

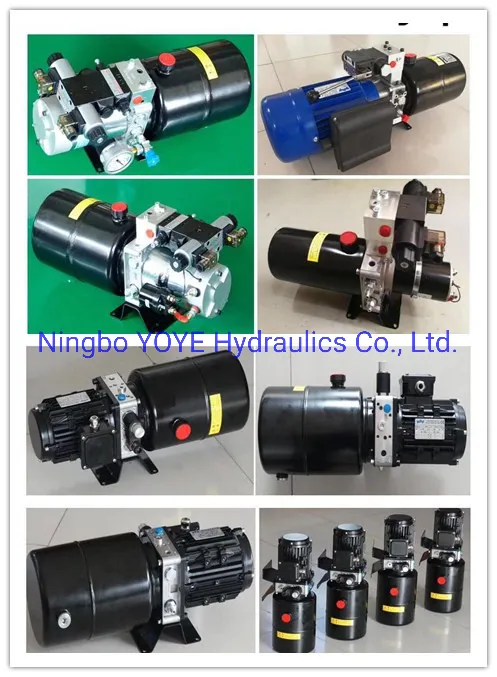

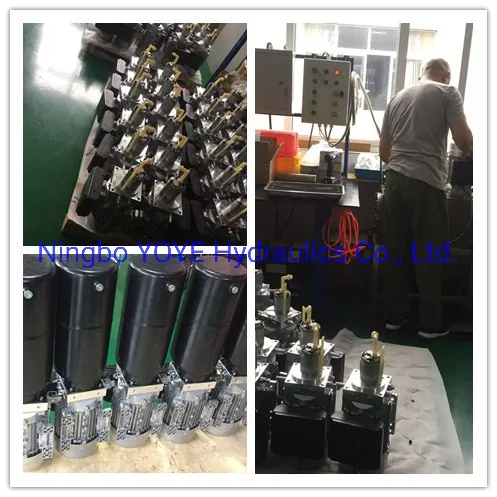

Product Visuals

Wide Range Applications

Lift Equipment

Transportation Vehicles

Automotive Applications

Medical Equipment

Agricultural Machinery

Snow Blower

Dock Leveler

Frequently Asked Questions

What is the standard power supply for this hydraulic unit?

This model is designed for 220V AC power, though optional DC motors (12V/24V) are also available upon request.

Can the oil tank capacity be customized?

Yes, we offer a wide range of oil tank sizes from 3L up to 36L in both round and square configurations for horizontal or vertical installation.

What is the maximum pressure this unit can handle?

While the standard max pressure is 140-150 Bar, the system is capable of supporting pressures up to 250 Bar depending on the configuration.

Is there a minimum order requirement?

The Minimum Order Quantity (MOQ) is 1 piece, making it accessible for both small-scale projects and large distributors.

What kind of warranty is provided with the product?

We provide a 1-year warranty on our hydraulic power units, and every unit undergoes 100% inspection before shipment to ensure high quality.

What materials are used for the manifold blocks?

We use high-quality CNC machined aluminum alloy manifold blocks designed to handle single, double acting, and reversible circuits.
