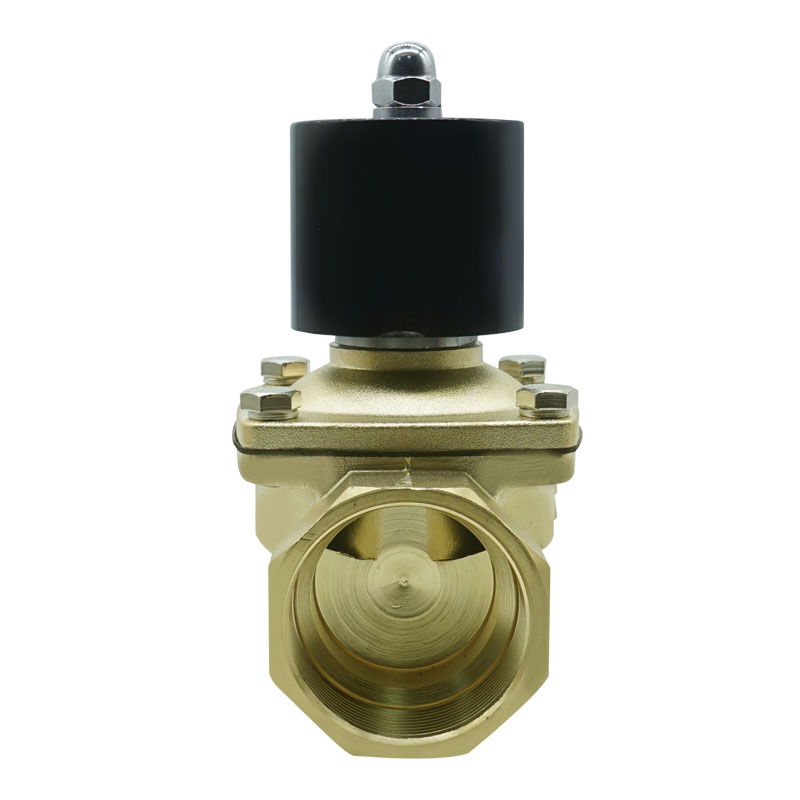

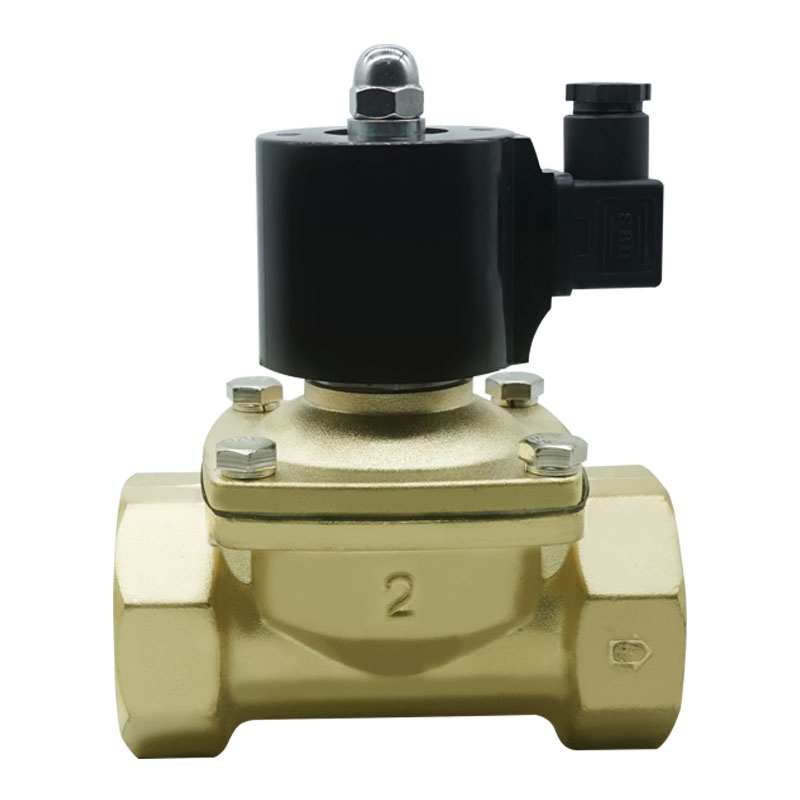

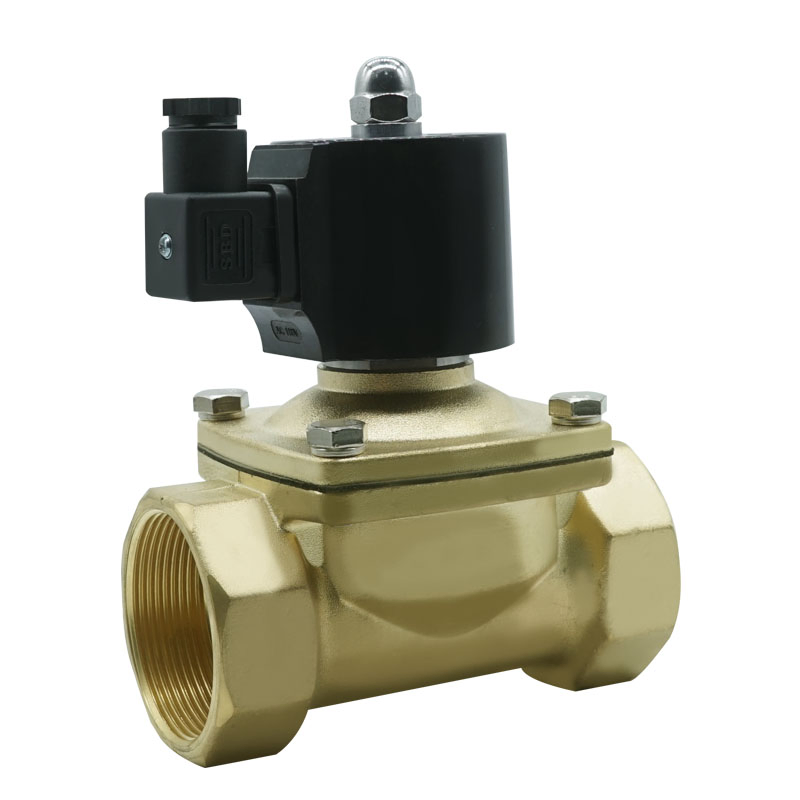

2W Series Normally Closed Waterproof 2-Way Direct Acting Solenoid Control Valve for Liquids AC220V DC12V DC24V

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
2W160-08
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Brass, Stainless Steel
Pressure
0~0.7MPa, 0~2.0MPa
Valve Structure
Direct-Acting Piston
Power Supply
AC/DC Solenoid Valve
Usage
Flow Control
Standard
DIN
Application
Industrial, Water Usage
Pattern
Normally Closed
Orifice
16mm
CV Value
4.8
Connection Ports
1/2''
Working Temp
-5~80 degree
Rated Voltage
DC12-24V / AC24V-380V
Seal Material
NBR/EPDM/FKM
HS Code
8481804090
Production Capacity
10000PCS Per Month
Product Description
Waterproof Solenoid Valve (2W-160)

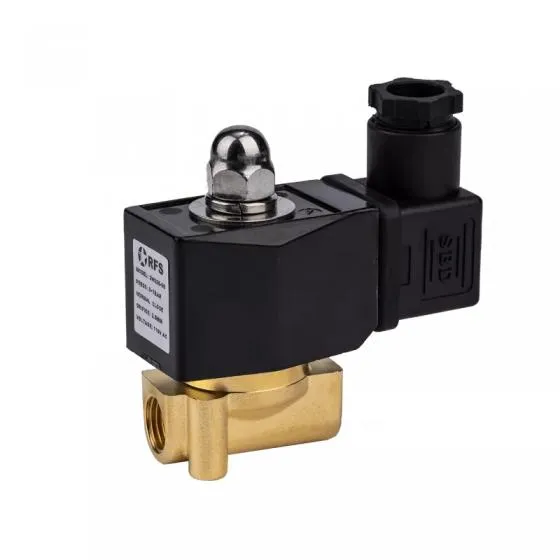

Solenoid Valve 1

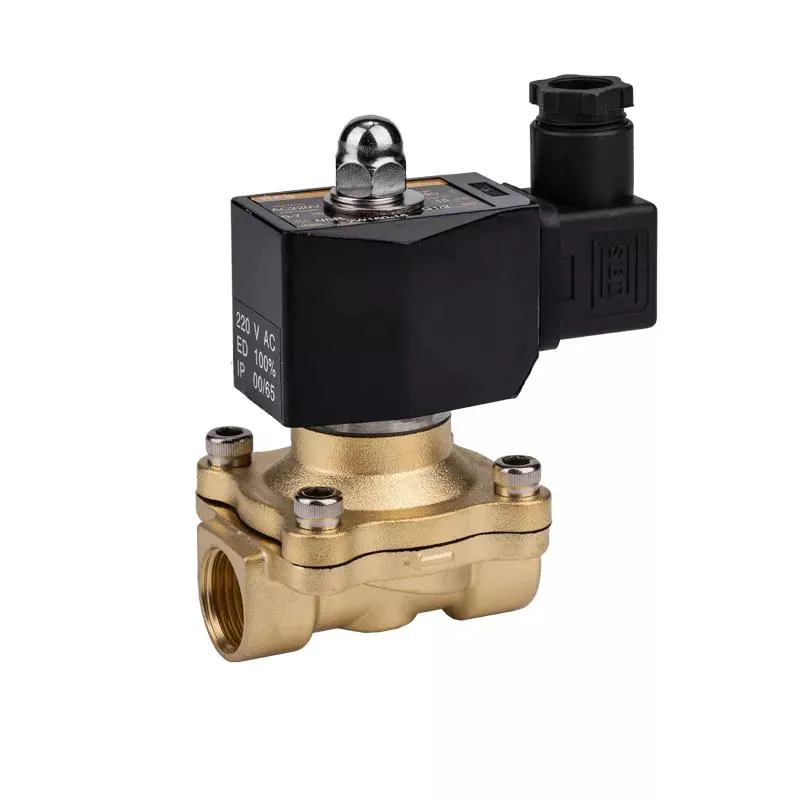

Solenoid Valve 2

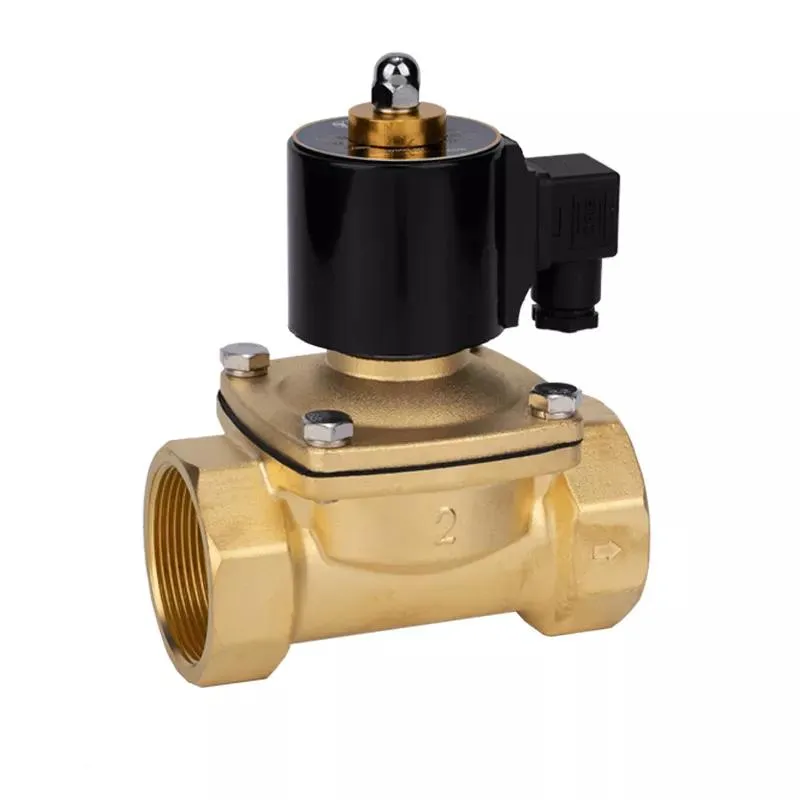

Solenoid Valve 3

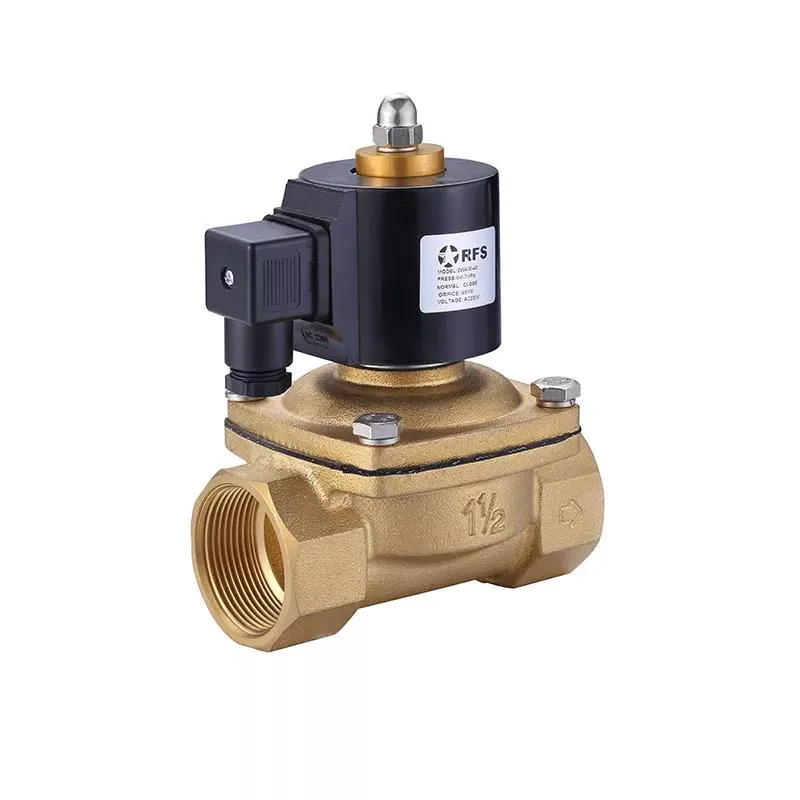

Solenoid Valve 4

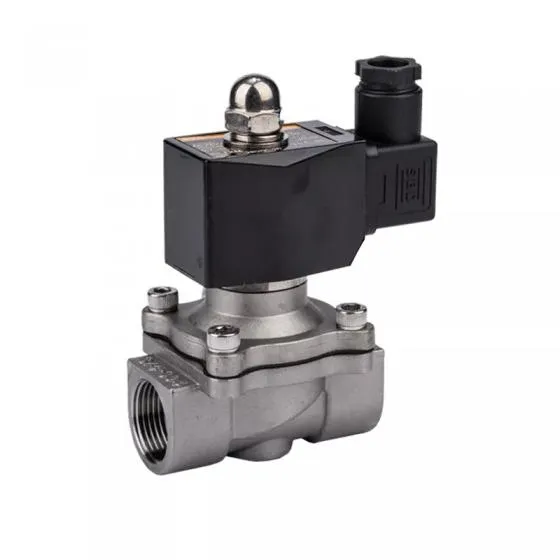

Solenoid Valve 5

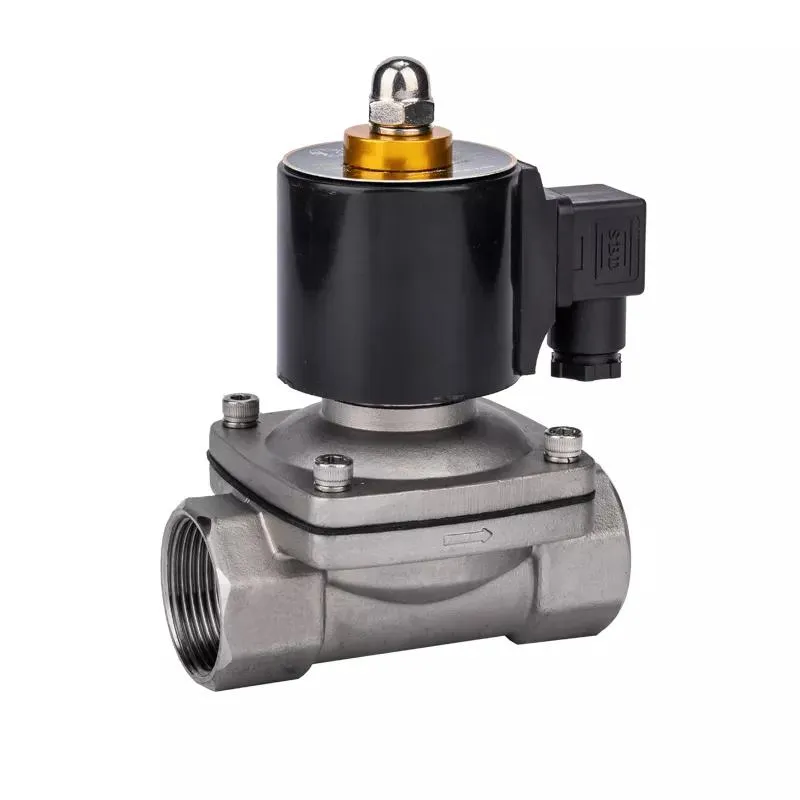

Solenoid Valve 6
Key Specialities
  • Direct acting, diaphragm structure, operates at zero pressure.
  • Plate diaphragm structure for high reliability and long service life.
  • Valve body available in Brass and Stainless Steel options.
  • Plastic encapsulating coil suitable for diverse environments.

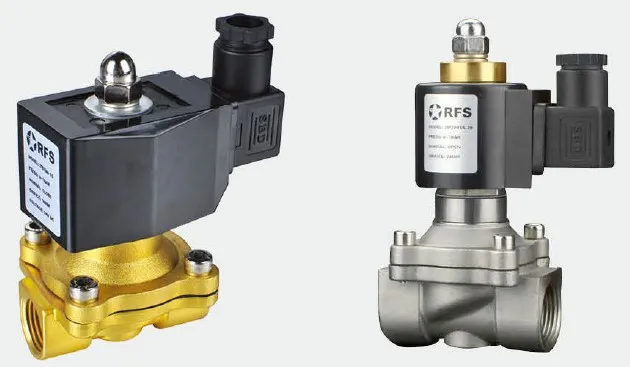

Speciality
Ordering Code & Parameters

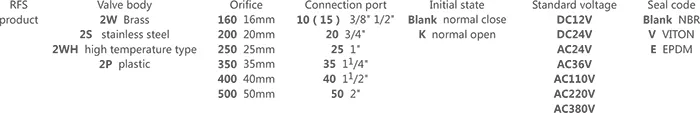

Ordering Code
Model Media Working Type Pattern Orifice (mm) CV Value Port Size Pressure (Mpa) Temp (ºC) Voltage
R2W160-10Air, Water, OilDirect ActionNormally Close164.83/8''0-0.7-5~80DC12-24V / AC24V-380V
R2W160-15164.81/2''0-0.7-5~80DC12-24V / AC24V-380V
R2W200-20207.63/4''0-0.7-5~80DC12-24V / AC24V-380V
R2W250-2525121''0-0.7-5~80DC12-24V / AC24V-380V
Overall Dimensions

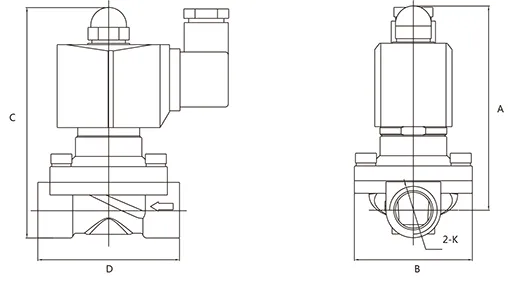

Dimensions Diagram
Model A B C D K (Thread)
R2W160-10975711066G3/8
R2W160-15975711066G1/2
R2W200-201065711570G3/4
R2W250-251067312299G1
Frequently Asked Questions
What media can this solenoid valve handle?
The 2W series solenoid valve is designed to control Air, Water, and Oil media efficiently.
Can this valve operate without pressure?
Yes, its direct-acting diaphragm structure allows it to work at zero pressure, making it highly versatile for various industrial applications.
What materials are available for the valve body?
The valve body is available in both high-quality Brass and Stainless Steel to ensure durability and corrosion resistance.
Is the solenoid coil suitable for harsh environments?
Yes, the valve uses a plastic encapsulating coil, which is waterproof and robust enough to be used in numerous environmental conditions.
What is the standard delivery time for orders?
Delivery generally takes about 10-25 days. However, if items are in stock, shipment can be arranged within 3 days.
What is the warranty period for these valves?
Standard products are typically guaranteed for 12 months from the date of dispatch.
